Description
BRAND Iscar
Item
MSRP: $399.00
- specs
Insert Style GIP
Insert Size Code 400E040
Cutting Width (Decimal Inch) 0.1575
Cutting Width (mm) 4.00
Insert Hand Neutral
Maximum Depth of Cut (Decimal Inch) 0.0945
Maximum Depth of Cut (mm) 2.40
Insert Material Carbide
Manufacturer Grade IC908
Full Radius No
Corner Radius (Decimal Inch) 0.0157
Corner Radius (mm) 0.40
Rake Positive
Insert Size 400040
Material Grade C6; C7; C1; C2
Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000
Maximum Depth Of Cut Range (mm) 2.00 to 3.00
Lead Angle 7
Multi-use Tool Yes
Series Cut-Grip
Coating Process PVD
Rake Angle 7
Overall Length (Decimal Inch) 0.63
Primary Workpiece Material Universal
Primary Workpiece Material Code P; S; H; K; M
Iso Code ISO 13399
Standards ISO 13399
(Description).

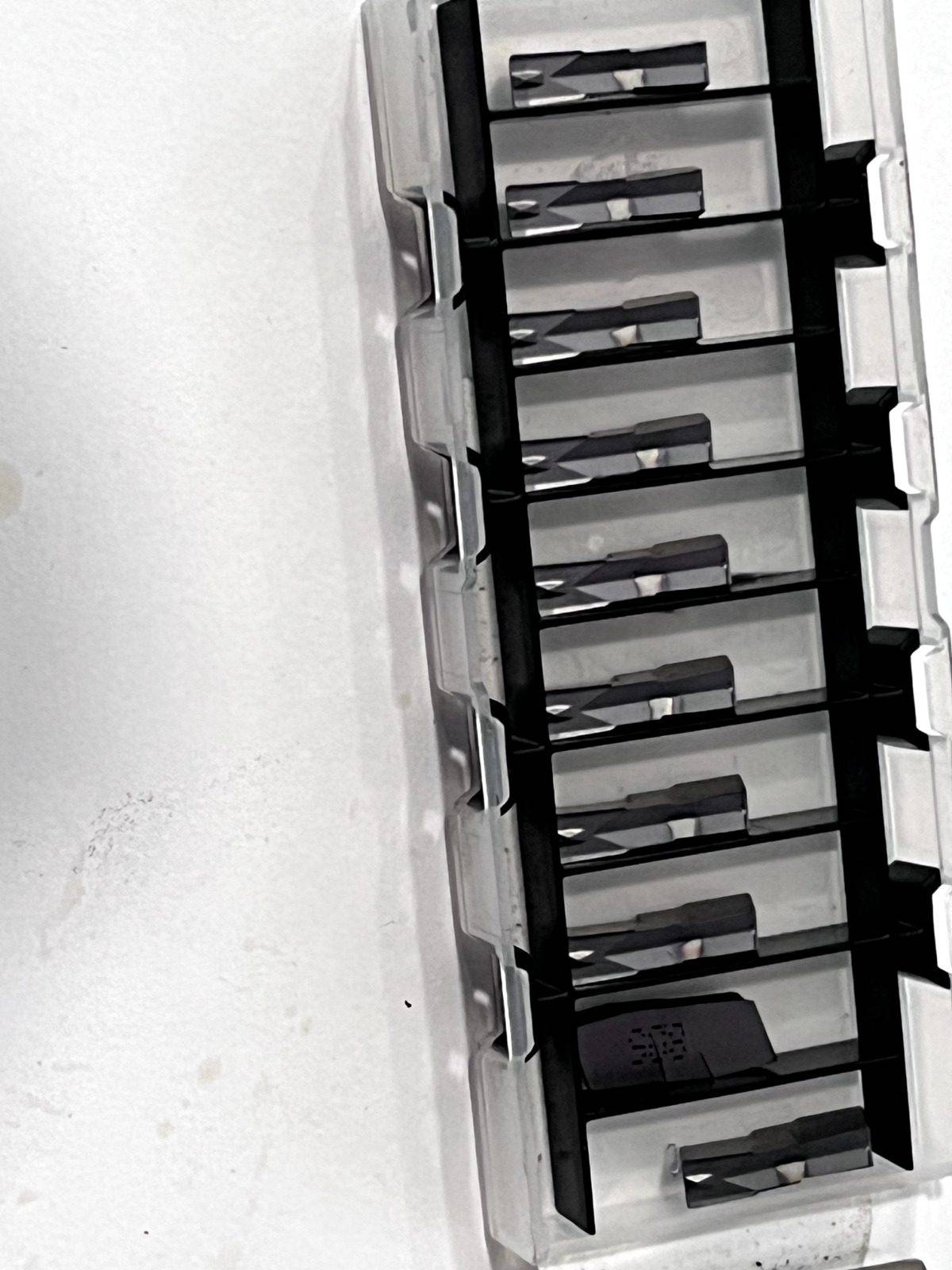

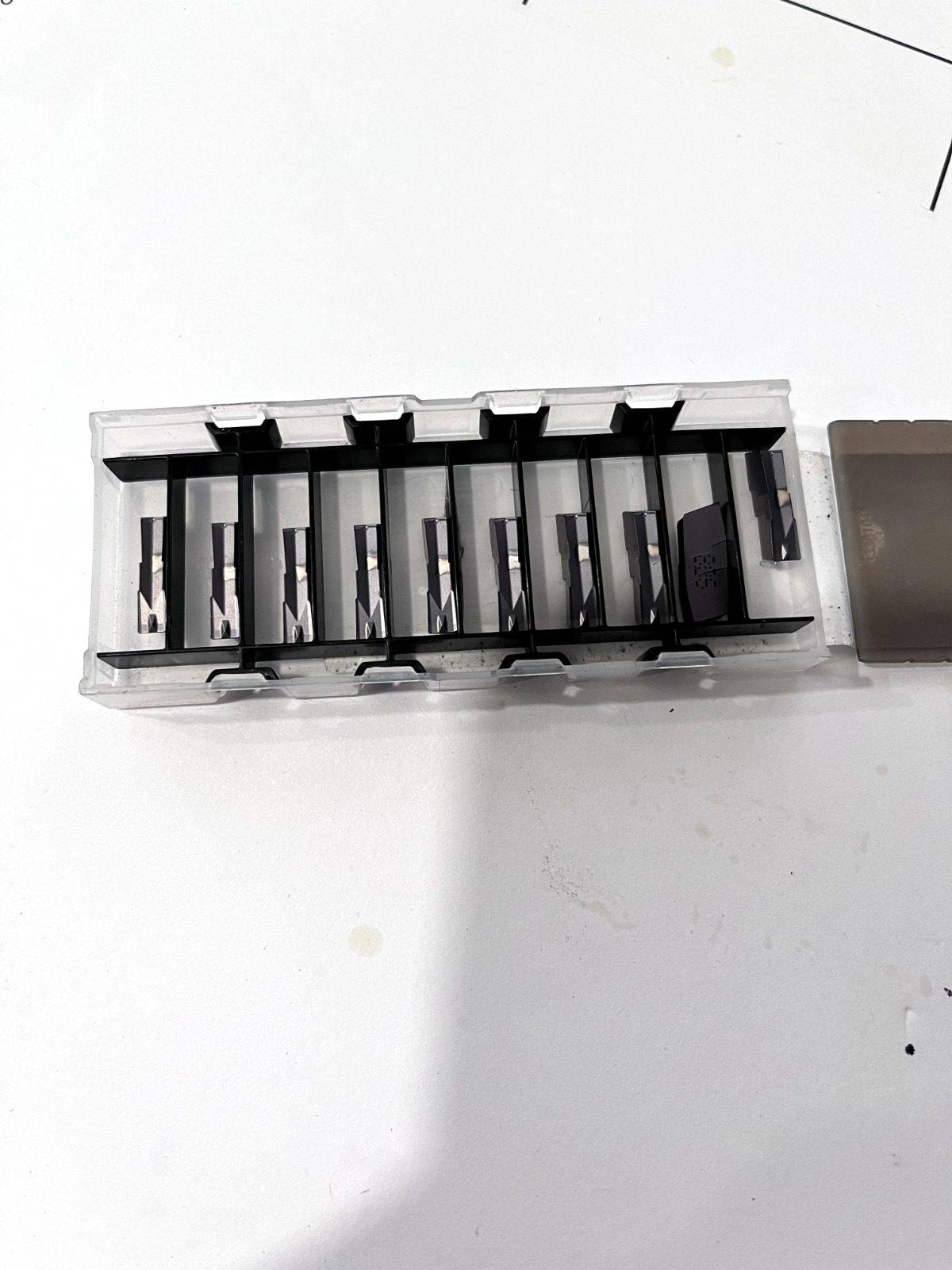

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Nov 05 24
Lister#CM 14305
LocOzzy 7
BRAND: ISCAR
INSERT MATERIAL: Carbide
MPN: does not apply
INSERT TYPE: Grooving Insert
