Description
Isccar
MSRP: $200
Model: 4504939
Description:
Collet System ER
Collet Series ER40
Taper Size HSKFM63
Shank Type Hollow Taper
Projection (mm) 80.00
Projection (Decimal Inch) 3.1500
Through Coolant Yes
Minimum Collet Capacity (Decimal Inch) 0.1181
Minimum Collet Capacity (mm) 3.00
Maximum Collet Capacity (mm) 26.00
Maximum Collet Capacity (Decimal Inch) 1.0236
Nose Diameter (mm) 63.00
Nose Diameter (Decimal Inch) 2.4803
Balanced to (RPM) 30000
TIR (Decimal Inch) 0.0001
TIR (mm) 0.0030
Coolant Type Through-Spindle
*OPEN PACKAGE FOR PICTURE ONLY

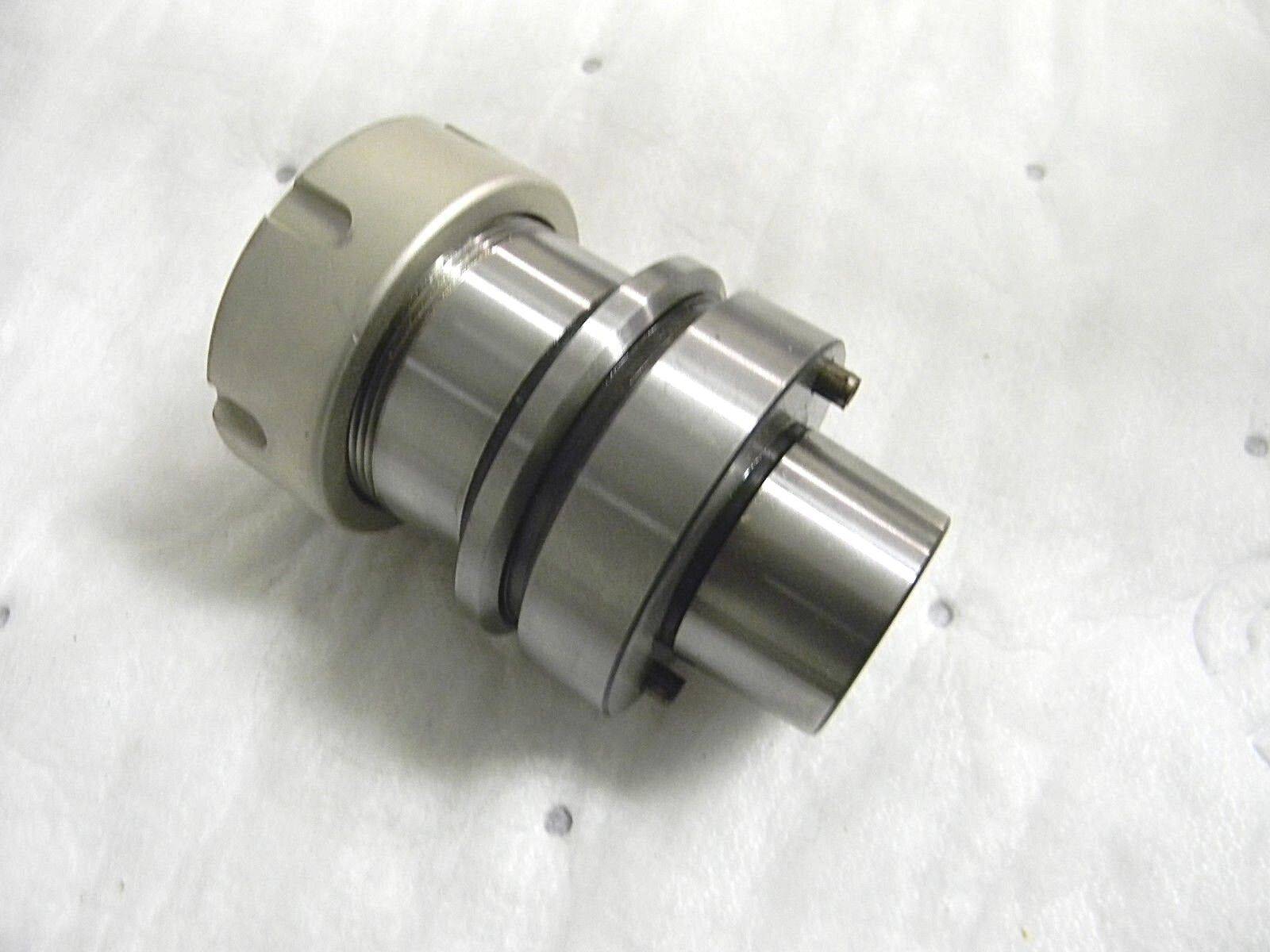

This listing is for One ER40 Collet Chuck that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian December 04 2019
VM6911
Green Bin 26
LOCATION: VM6911greenbin26
MPN: Does Not Apply
MSRP: $200
COUNTRY/REGION OF MANUFACTURE: Unknown
MODEL: 4504939
BRAND: Isccar
SHANK TYPE: Taper Shank
