Description
ISCAR Corner Radius End Mill: 6 mm Dia 5621111
MSRP: $50
- Mill Diameter (Decimal Inch) 0.2362
- Mill Diameter (mm) 6.00
- Number Of Flutes 3
- Length of Cut (mm) 13.00
- Single Or Double End Single
- End Mill Material Solid Carbide
- Coating/Finish AlTiN
- Centercutting No
- Flute Direction Right Hand
- Corner Radius (Decimal Inch) 0.0394
- Variable Index No
- Variable Helix No
- Cutting Direction Right Hand
- Corner Radius (mm) 1.00
- Overall Length (mm) 57.00
- Coolant Through No
- Pitch Coarse
- Chipbreaker No
- End Type Corner Radius
- Length Of Cut (Decimal Inch – 4 Decimals) 0.5118
- Length Type Standard
- Flute Type Spiral
- Extended Reach No
- Shank Type Straight-Cylindrical
- Material Removal Type Roughing & Finishing
- Shank Diameter (mm) 6
- Mill Diameter Tolerance e8
- Shank Diameter Tolerance h6
- Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; H; K; M
- UNSPSC Code 27112803
- Material Grade Submicron
- Series EC-B-3/3R
- Material Application Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Coating Classification PVD
- For Use With. Toolholders
- Helix Style High
(Description).

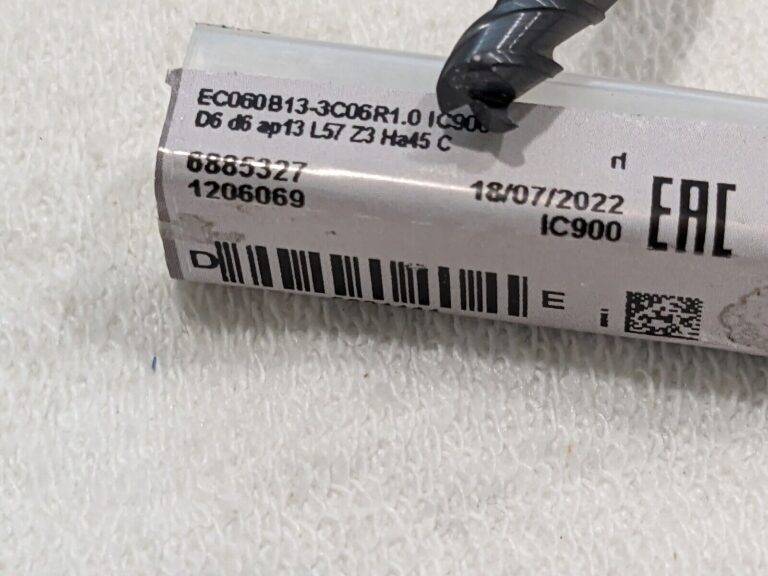

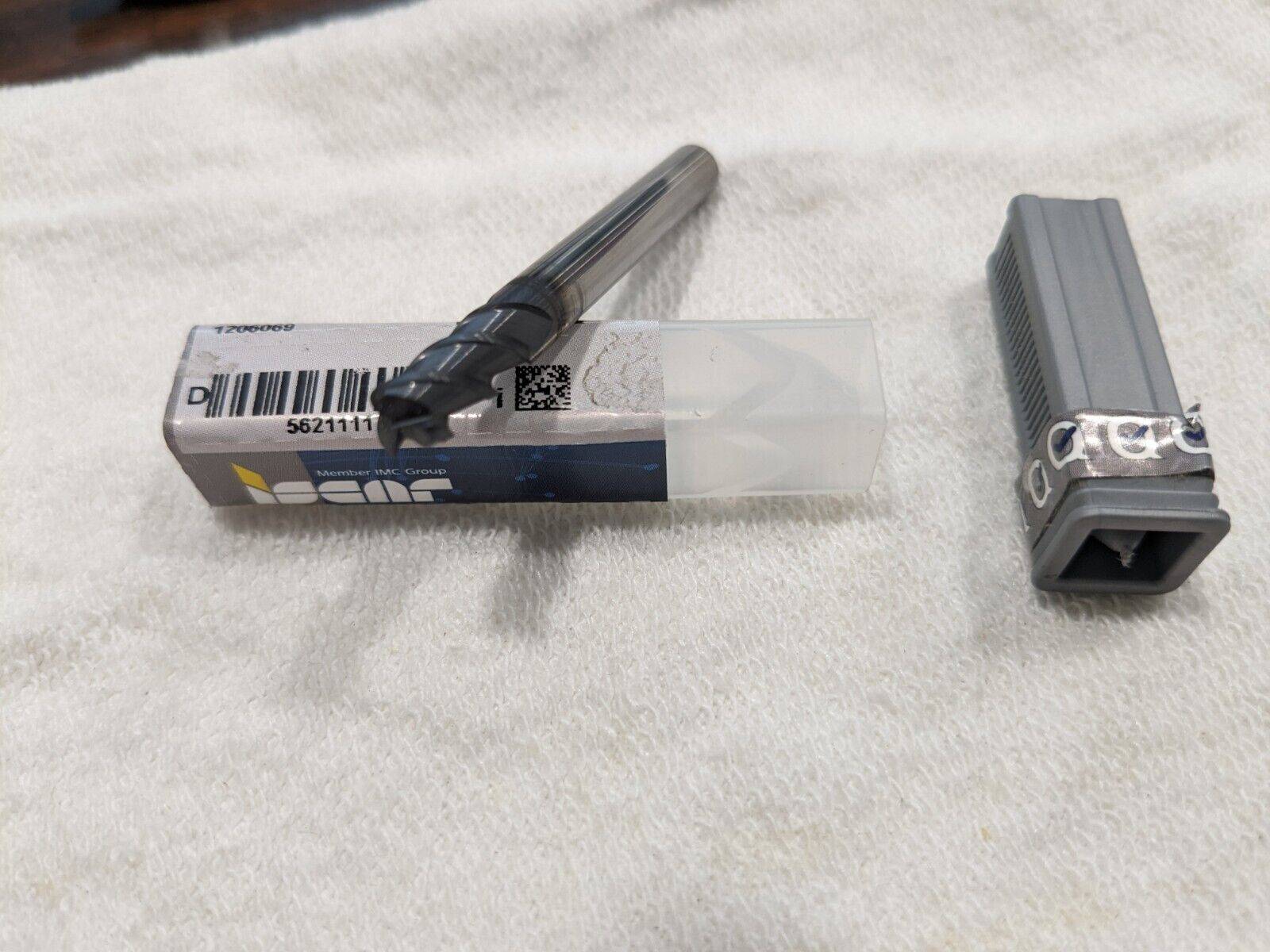

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
may 28 24
HS5505
padme D
END MILL TYPE: Corner Radius End Mill
MPN: 5621111
