Description
Iscar
1 Pack of 10 Carbide Turning Inserts
MSRP: $200
- Insert Style WOMG
- Insert Size Code 554
- Insert Shape Trigon
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.6250
- Corner Radius (Decimal Inch) 0.0625
- Insert Material Carbide
- Manufacturer Grade IC8150
- Coating/Finish TiCN; TiN; Al2O3
- Relief Angle 0
- Insert Thickness (Decimal Inch) 0.3125
- Insert Shape Code W
- Corner Radius (Inch) 1/16
- Maximum Depth of Cut (mm) 2.79
- Maximum Depth of Cut (Decimal Inch) 0.1100
- Inscribed Circle (Inch) 5/8
- Insert Holding Method Lever Lock
- Insert Thickness (Inch) 5/16
- Clearance Code O
- Tolerance Code M
- Series Isoturn
- Coating Process CVD
- Length Range (Decimal Inch) 0.4000 – 0.5000
- Insert Length (Decimal Inch) 0.4280
- Insert Length (mm) 10.87
- Primary Workpiece Material Cast Iron; Steel
- Primary Workpiece Material Code P; K
- Iso Code WOMG 554-T3P-IQ
- Standards ISO 13399
- UNSPSC Code 23242105
- Chip Breaker T3P
- Full Radius No

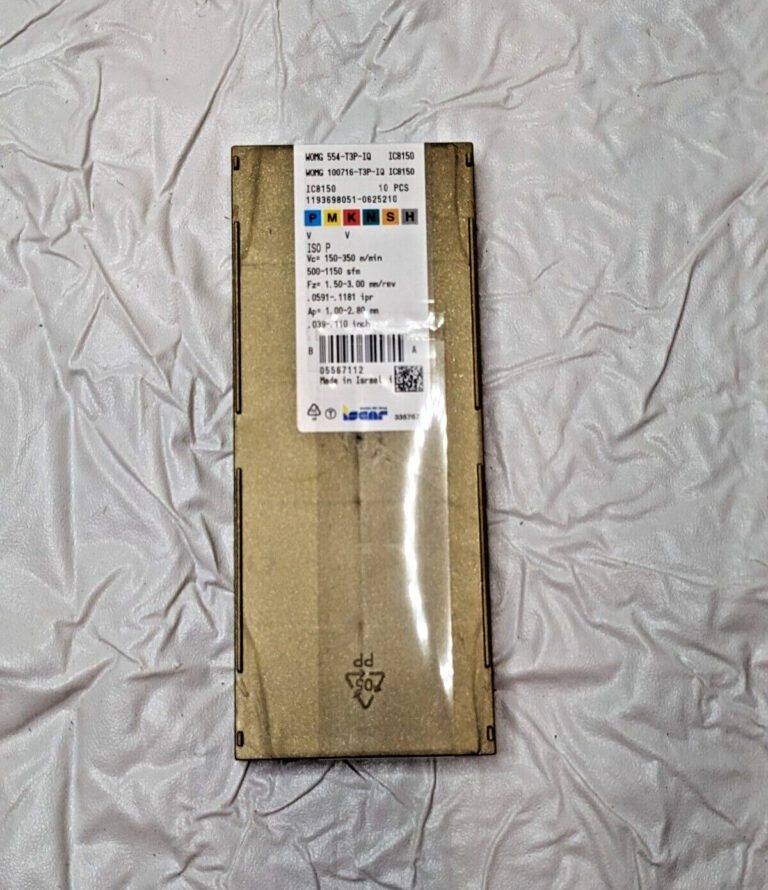

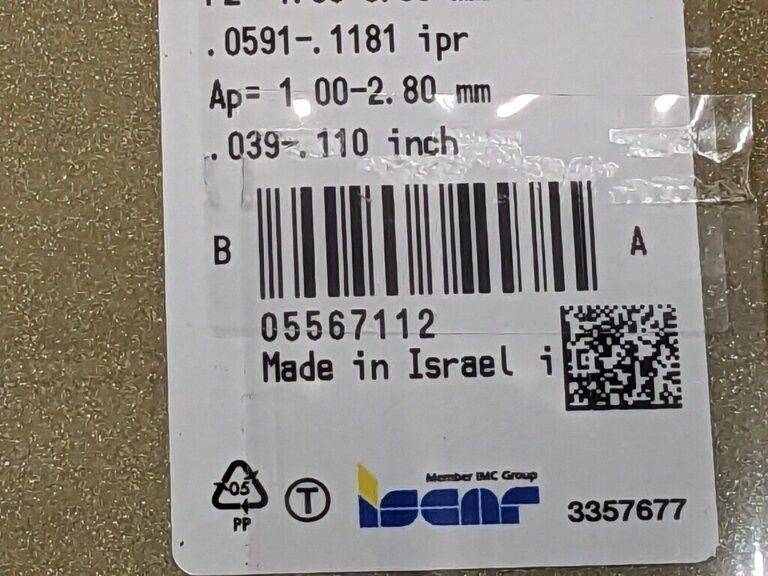

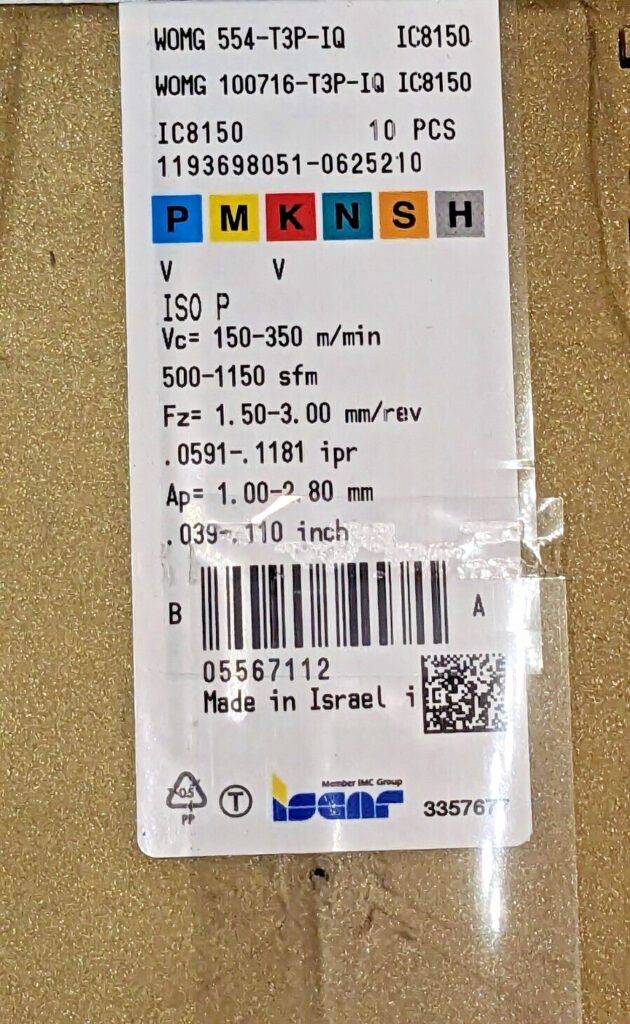

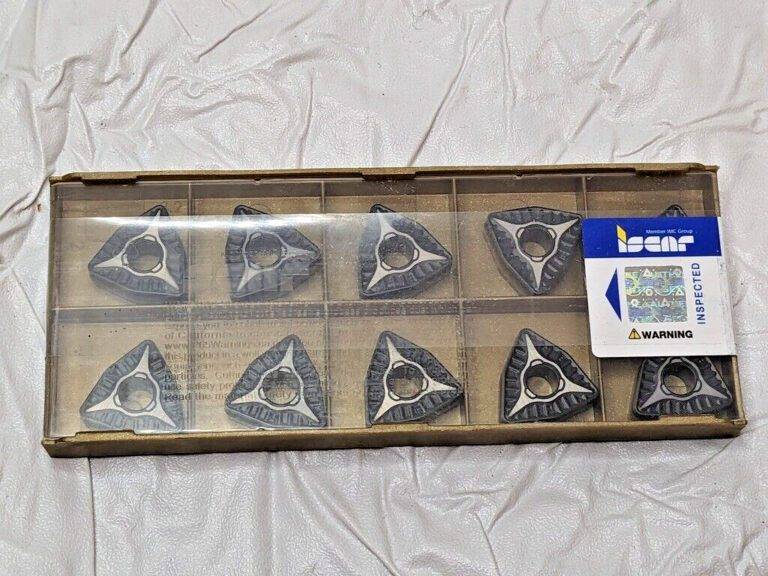

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
June 20 2024
VM13161
Shelf O Floor
BRAND: ISCAR
MSRP: $200
INSERT MATERIAL: Carbide
MODEL: WOMG 554-T3P-IQ IC8150
MPN: 5567112
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Israel
