Description
Iscar
MSRP: $100.00
Model: 5507009
Description:
Insert Style TPMR
Insert Size 321
Material Carbide
Length (mm) 16.50
Length (Decimal Inch) 0.6496
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Manufacturer’s Grade IC907
Coating TiAlN
Material Grade Submicron
Chip Breaker PF
Rake Positive
Relief Angle 11
Coating Process PVD
Included Angle 60
Series Isoturn
Maximum Depth of Cut (mm) 3.50
Maximum Depth of Cut (Decimal Inch) 0.1378
Insert Holding Method Clamp
Shape Triangle

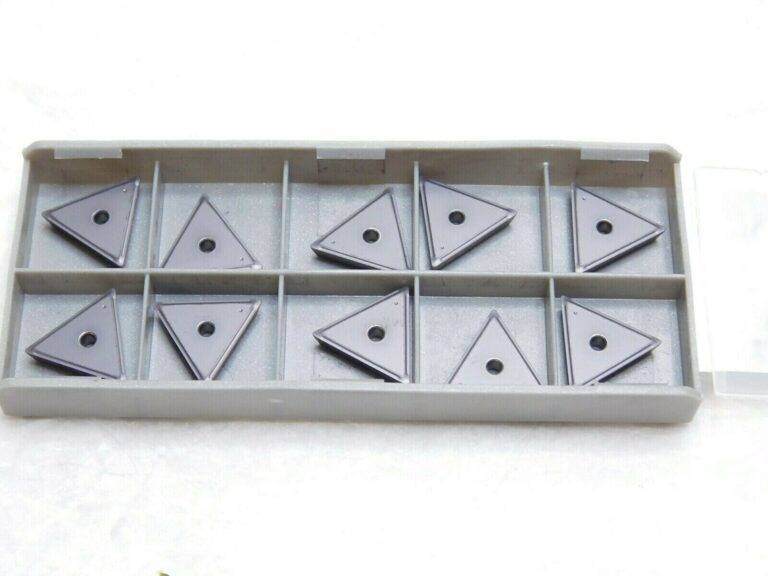

This listing is for One Pack of 10 Carbide Turning Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Vivian March 01 2021
VM9672
Cab Fishsticks Bin 69
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Israel
MSRP: $100
MODEL: 5507009
LOCATION: VM9672cabfishsticksbin69
MPN: Does Not Apply
BRAND: ISCAR
INSERT MATERIAL: Carbide
