Description
Iscar
MSRP: $130
Model: 5506606
Description:
Insert Style LNMX
Insert Size 150608
Material Carbide
Length (mm) 15.00
Length (Decimal Inch) 0.5906
Thickness (Decimal Inch) 0.5276
Thickness (mm) 13.40
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0313
Manufacturer’s Grade IC907
Coating TiAlN
Material Grade Submicron
Chip Breaker HM
Rake Positive
Relief Angle 0
Coating Process PVD
Included Angle 90
Cutting Direction Left Hand
Series Heliturn
Maximum Depth of Cut (mm) 6.00
Maximum Depth of Cut (Decimal Inch) 0.2362
Insert Holding Method Screw
Shape Rectangle

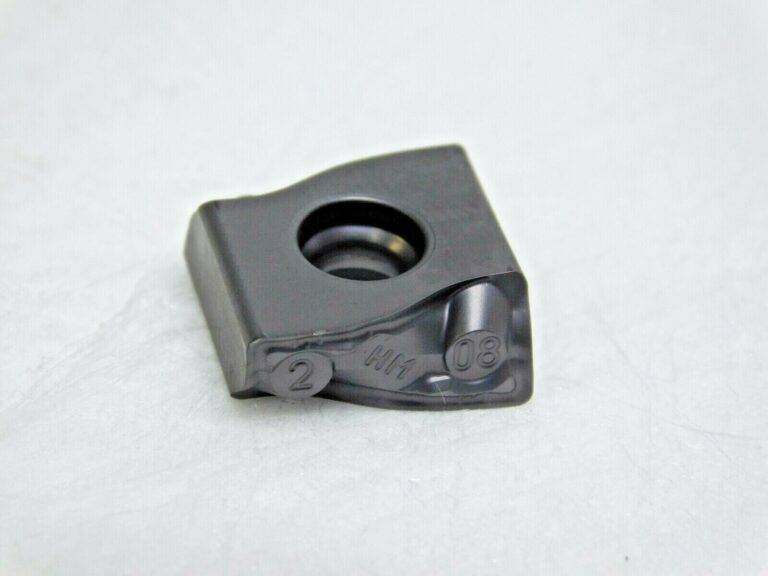

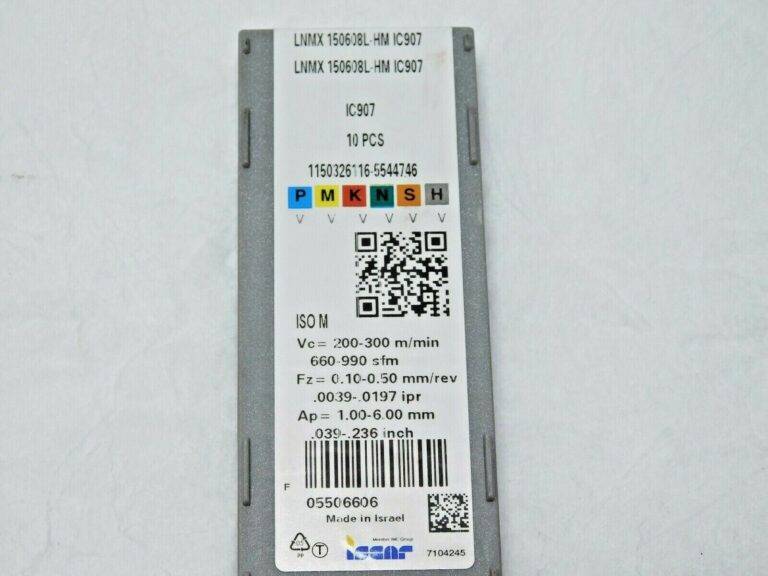

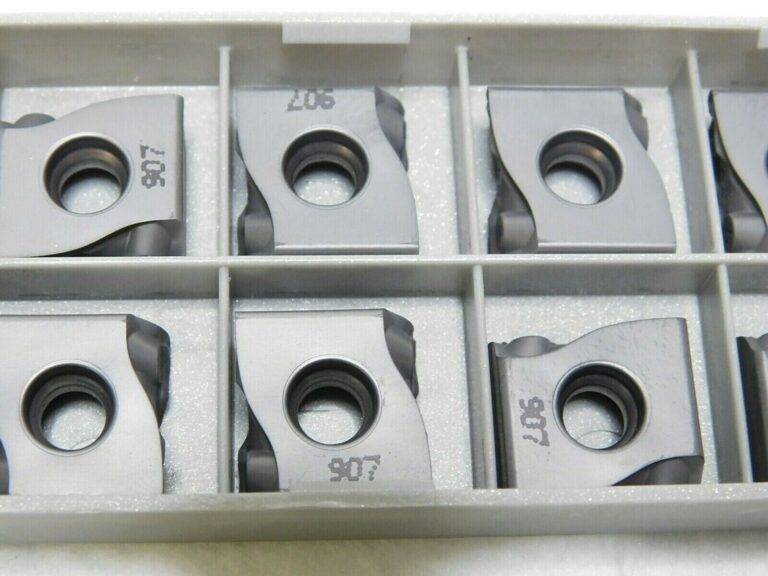

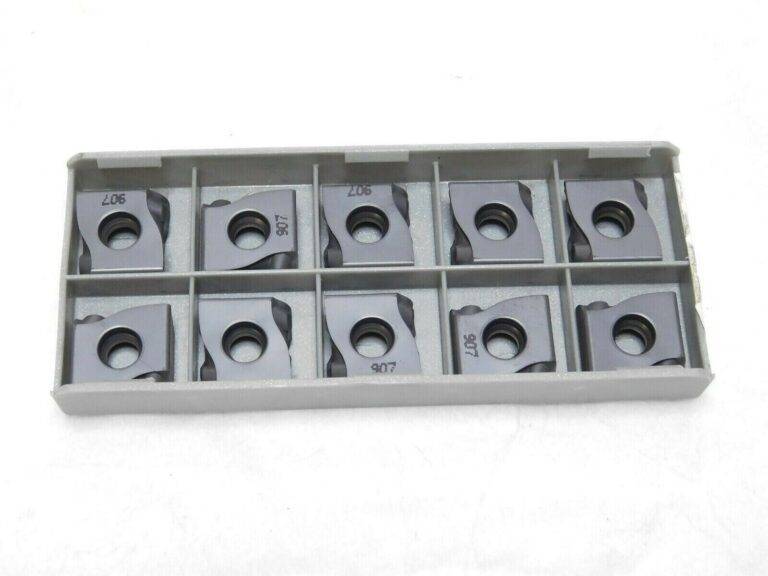

This listing is for One Pack of 10 Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Vivian November 11 2020
VM9134
Cab Chuck Bin 19
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Israel
MPN: Does Not Apply
BRAND: ISCAR
INSERT MATERIAL: Carbide
LOCATION: VM9134cabchuckbin19
MSRP: $130
MODEL: 5506606
