Description
ISCAR
Carbide End Mill
MSRP: $500
- Cutting Diameter (DC) 1″
- Application Helical Interpolation | Rampdown | Shouldering | Slotting
- Connection Diameter Machine Side (DCONMS) 1″
- Corner Radius (RE) 1/4″
- Depth of Cut Maximum (APMX) 2″
- Ramping Angle Maximum (RMPX) 5 Degrees
- Overall Length (OAL) 5″
- Grade IC608
- Cutting Edge Material Carbide
- Tool Type Solid carbide non center cutting endmills 90 Degrees
- Coating AlTiCrSiN
- Coolant Supply Property (CSP) External
- Flute Count (NOF) 5
- Body Material Carbide
- Flute Helix Angle (FHA) 37 Degrees
- Decimal Equivalent 1″
- Shank Type Round
- Measurement Type Inch
- End Shape Corner Radius
- Connection Code Machine Side (CCMS) Cylindrical
- Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys |

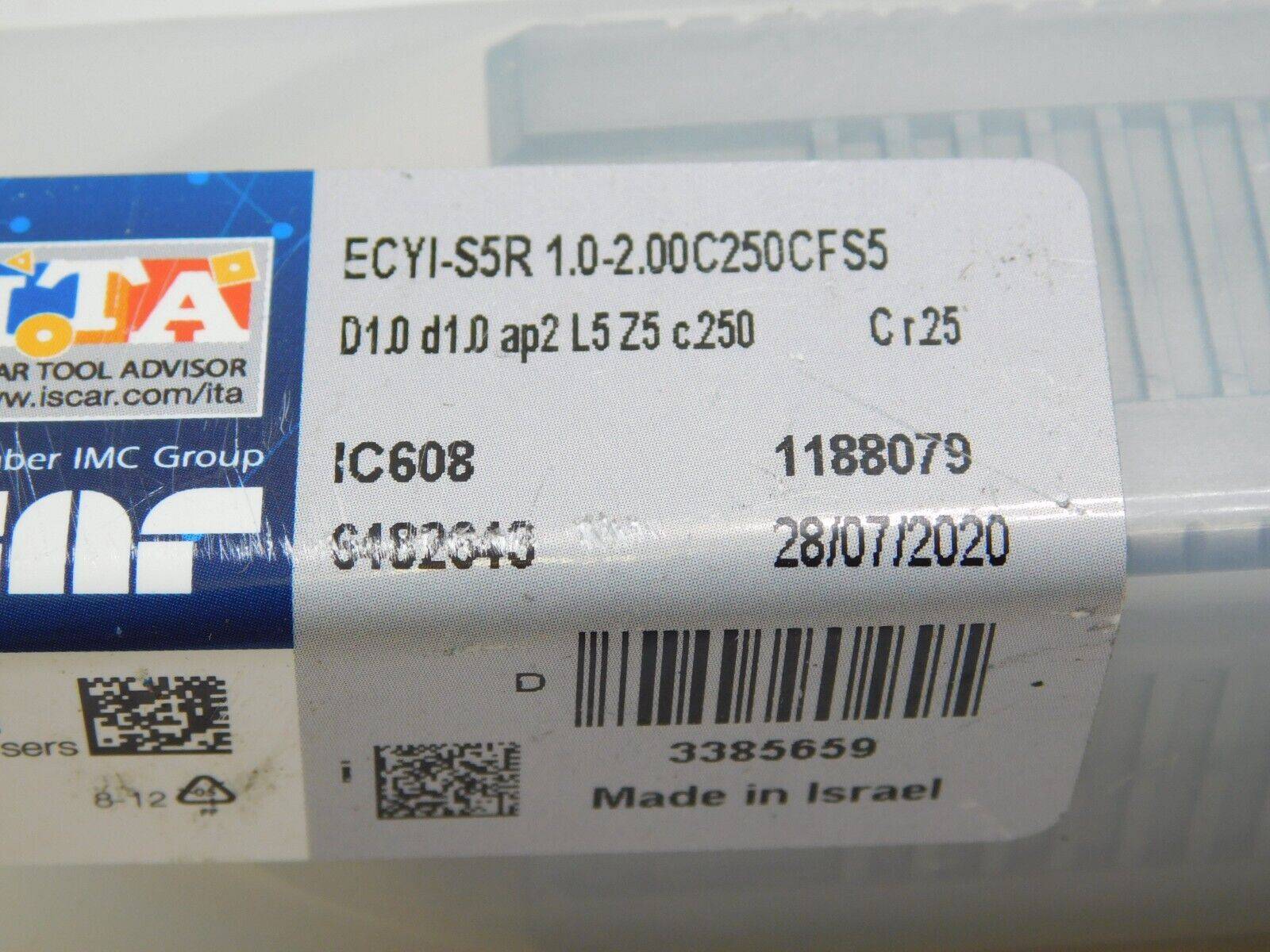

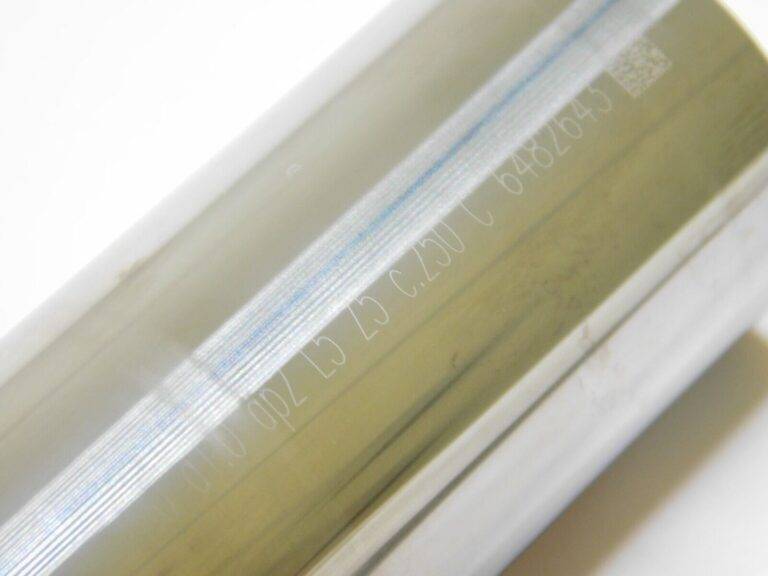

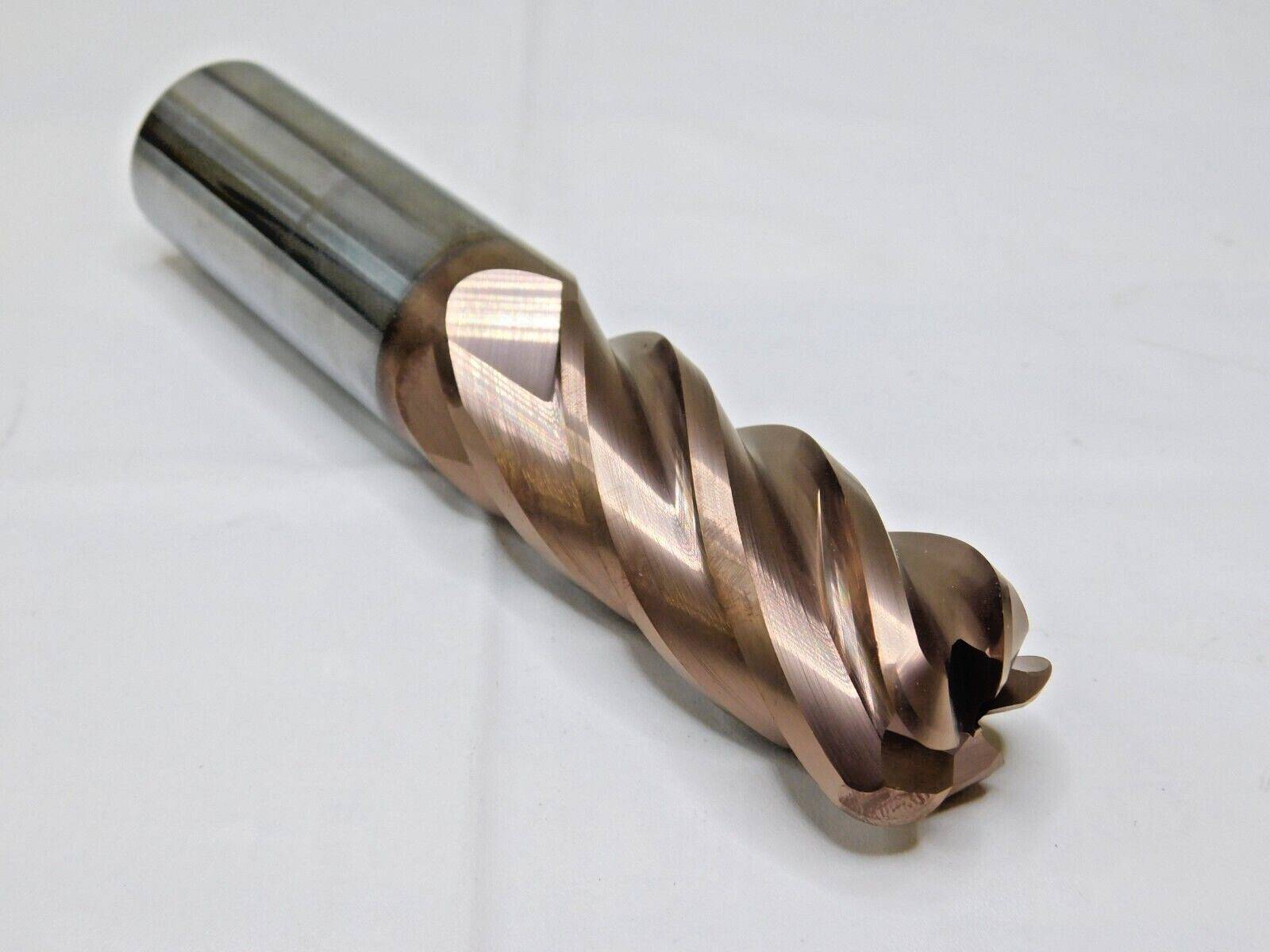

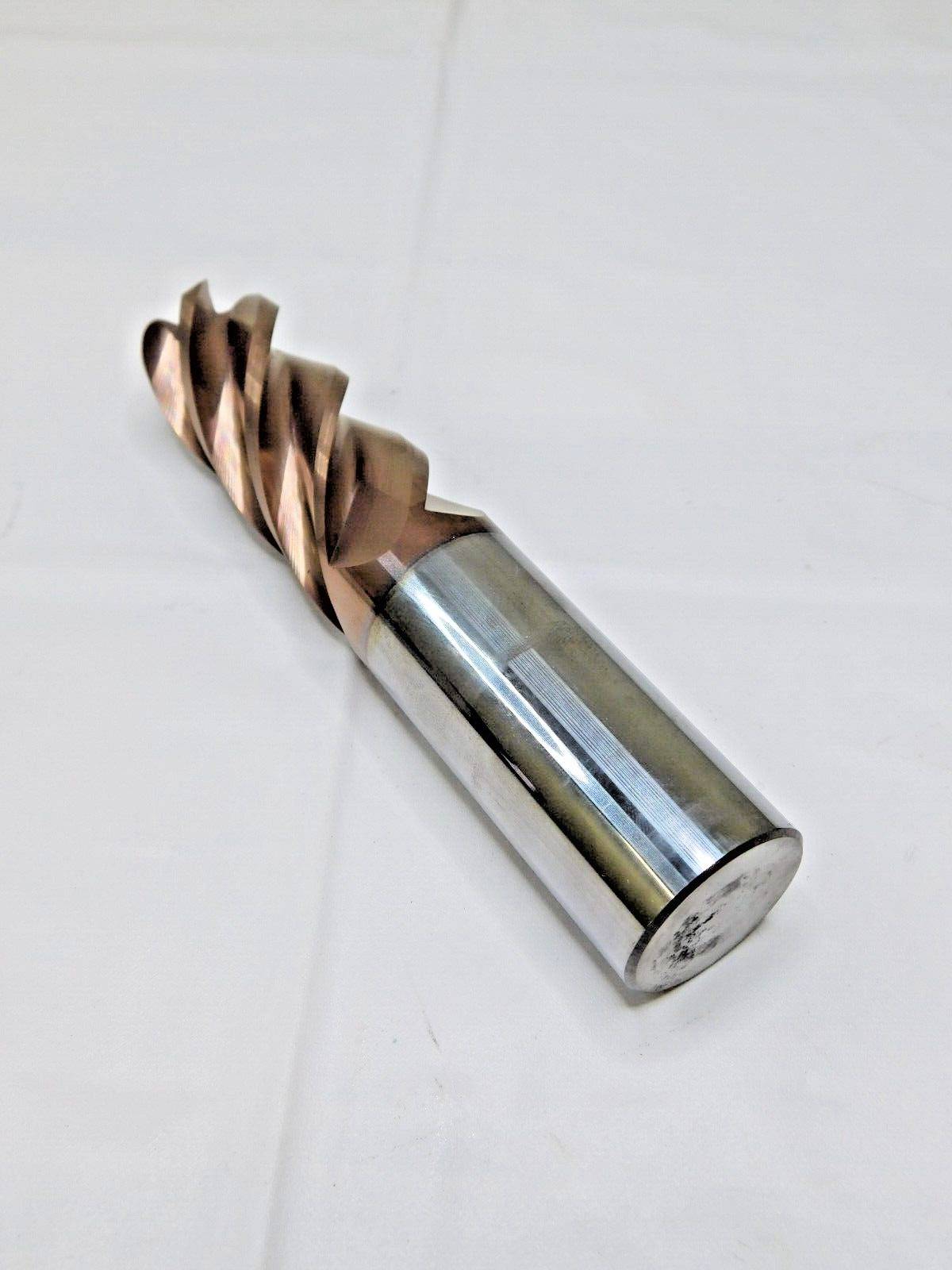

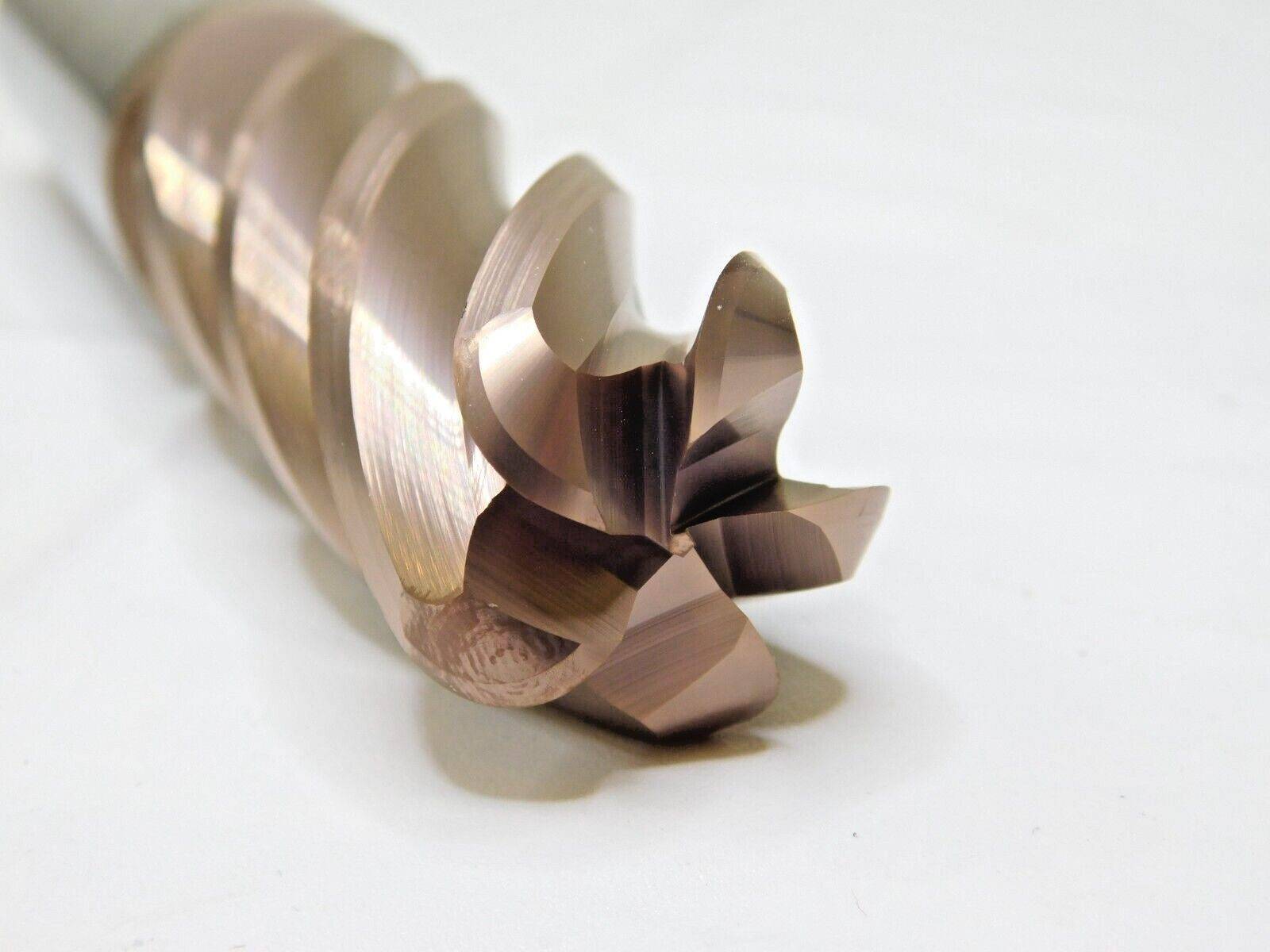

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 04 2023
VM11719
Cab Fire Bin 12
BRAND: ISCAR
MSRP: $500
MPN: 3385659
ITEM TYPE: non center cutting endmill
COUNTRY/REGION OF MANUFACTURE: Israel
LOCATION: VM1111719Cabfirebin12
