Description
BRAND Iscar
Item
MSRP: $550.00
- specs
Maximum Cutting Diameter (mm) 50.00
Maximum Depth of Cut (mm) 10.00
Arbor Hole Diameter (mm) 22.00
Arbor Hole Diameter (Inch) 22
Arbor Hole Diameter (Decimal Inch) 22.0000
Compatible Insert Size Code AP 1003
Maximum Ramping Angle 1.40

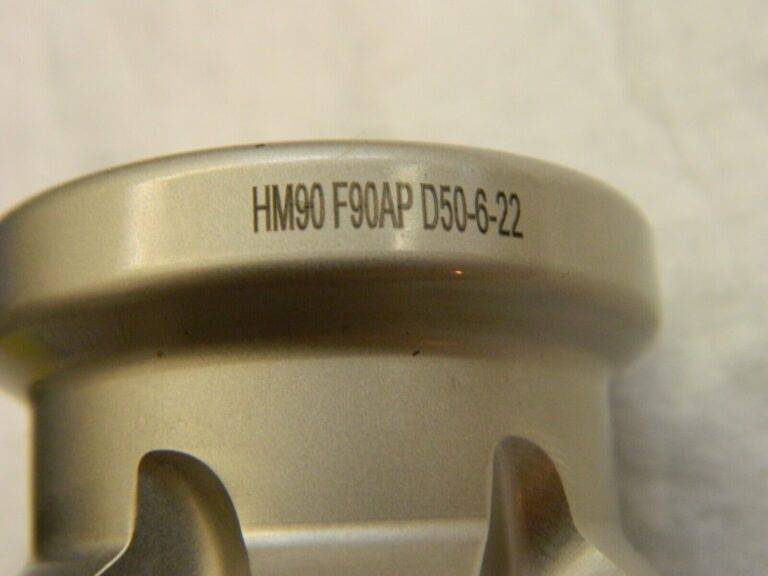

Cutter Style HM90 F90AP-10
Insert Holding Method Screw
Lead Angle 0/90
Series Heli2000
Overall Height (Mm – 5 Decimals) 40.00
Keyway Width (mm) 10.40
Keyway Width (Decimal Inch) 10.4000
Hub Diameter (mm) 48.40
Maximum RPM 28284
Standards ISO
Cutting Edge Length (Decimal Inch) 0.3940
Minimum Insert Radius (Decimal Inch) 0.0080
Counterbore Diameter (Decimal Inch) 0.7090
Complete Insert Compatibility AP..10..
Maximum Insert Radius (Decimal Inch) 0.1570
Coolant Through No
Number Of Cutter Inserts 6
Number Of Flutes 6
(Description).

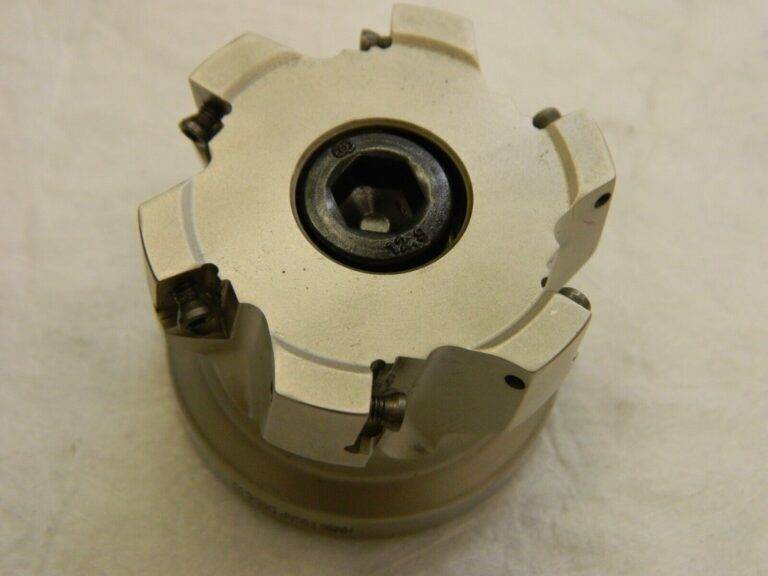

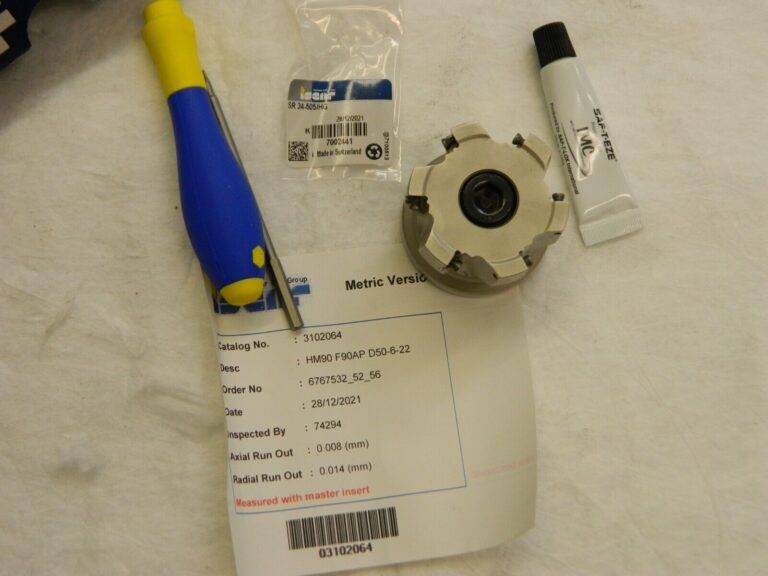

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date april 13 23CM 13344
Lister#Bullet 3
Loc
BRAND: Iscar
MPN: does not apply
