Description
MSRP: $200.00
Model: 6402731
Description:
Insert Style GIA
Insert Size 500K080
Material Carbide
Cutting Width (mm) 5.00
Cutting Width (Decimal Inch) 0.1969
Maximum Depth of Cut (mm) 13.00
Maximum Depth of Cut (Decimal Inch) 0.5118
Manufacturer’s Grade IC428
Coating TiC/Al2O3
Insert Hand Neutral
Relief Angle 7
Multi-Use Application Turning
Multi-Use Tool Yes
Corner Radius (mm) 0.80
Corner Radius (Decimal Inch) 0.0315
Coating Process CVD
Overall Length (mm) 15.30
Overall Length (Decimal Inch) 0.6024
Series Cut Grip
Rake Angle 15
Rake Positive
Overall Width (mm) 5.00
Overall Width (Decimal Inch) 0.1969

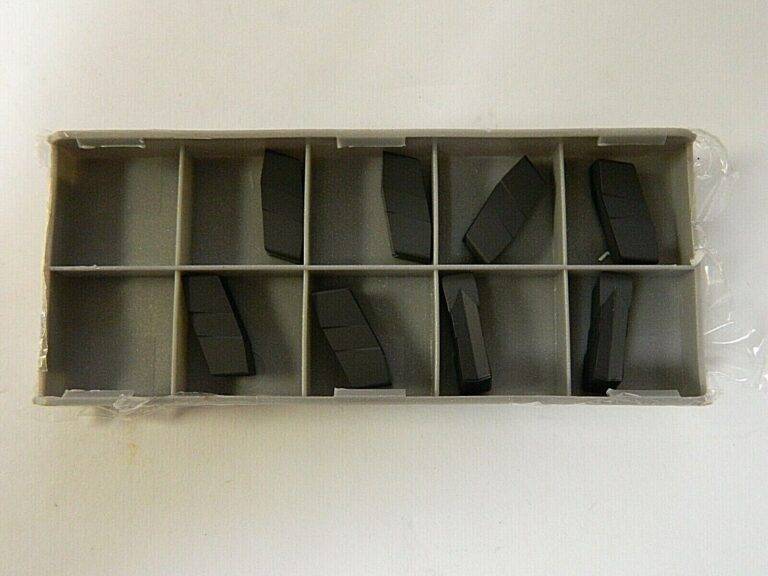

This listing is for One Pack of 8 that is in the picture as well as described. Please ask any questions prior to buying!
Cristy August 03 2020
CM 8642
Vikki 10
INSERT TYPE: Grooving Insert
BRAND: ISCAR
INSERT MATERIAL: Carbide
MSRP: 200.00
