Description
ISCAR
2pk Replaceable Drill Tips: ICP0740 IC908 18.80 mm Dia 5508601
MSRP: $280
- Cutting Diameter (Decimal Inch) 0.7400
- Cutting Diameter (mm) 18.80
- Tip Material Solid Carbide
- Manufacturer Grade IC908
- Material Grade Submicron
- Series ICP
- Coating Process PVD
- Insert Geometry P
- Insert Seat Size 18
- Functional Length (Decimal Inch) 0.3002
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium
- Secondary Workpiece Material Code S; H; K; M
- Standards ISO 13399
- Height (Decimal Inch) 0.413
- Height (mm) 11.00
- Overall Length/Projection (Decimal Inch) 0.4137
- Web Thinning Web Thinned
- Drill Point Angle 140
- Flute Type Helical
- Insert Holding Method Clamp
- ISO Number ICP 188
- Coolant Through No
- Flute Length (mm) 8.00
- Point Type Standard
- Spiral Type Regular Spiral
- Style ICP
- UNSPSC Code 23242105
- Applications Drilling; Chamfering; Gundrills; Hole Making
- Coating/Finish TiAlN
- Included Angle Degree 140
- Number Of Flutes 2
- Country of Origin Israel
(Description).

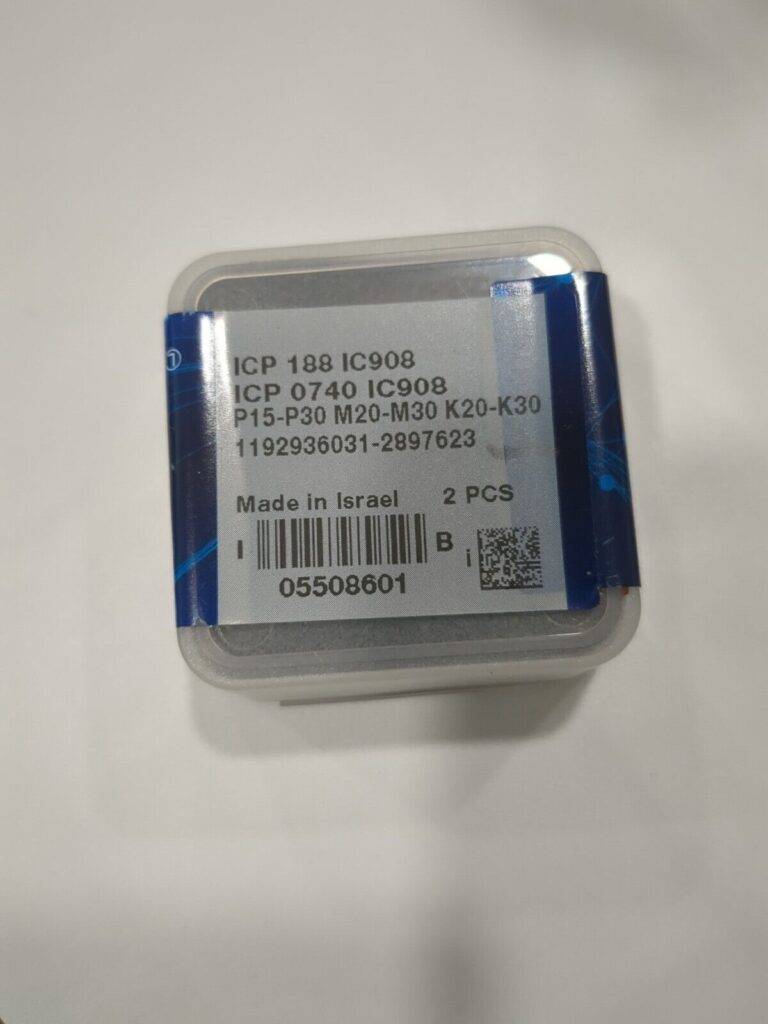

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 12 24
HS 7986
pete 19
BRAND: ISCAR
UNIT TYPE: Unit
INSERT MATERIAL: See description
MPN: 5508601
INSERT TYPE: See description
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: see description
CALIFORNIA PROP 65 WARNING: See description
