Internal Tool Chamfer Mill: 3/16″ Dia Carbide Single End 2Fl 64-2850-C

INTERNAL TOOL Chamfer Mill: 3/16″ Dia carbide Single End 2fl 64-2850-C

MSRP: $30

• Cutter Head Diameter (Fractional Inch) 3/16
• Cutter Head Diameter (Decimal Inch) 0.1875
• End Type Single
• Shank Diameter (Decimal Inch) 0.1875
• Shank Diameter (Inch) 3/16
• Shank Length (Decimal Inch) 2.4100
• Overall Length (Inch) 2-1/2
• Tool Application Chamfering; Countersinking
• Number Of Flutes 2
• Cutting Direction Right Hand
• Series 64
• Tapered No
• Coolant Through No
• Chamfer Mill Material Solid Carbide
• Material Application Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy
• Length Of Cut (Decimal Inch – 4 Decimals) 0.0900
• Coating/Finish AlTiN
• Included Angle 90.00
• UNSPSC Code 23241600

This internal tool chamfer mill is perfect for your metalworking needs. It features a single end design with two flutes and a diameter of 3/16 inches. Made of solid carbide material, this unit is built to last and provide optimal performance. The overall length of this unit is 2-1/2 inches, and it is manufactured in the United States. It is suitable for use in finishing end mills and end mills, and is a great addition to your metalworking supplies. This product comes with a California Prop 65 Warning, so be sure to use it with caution.

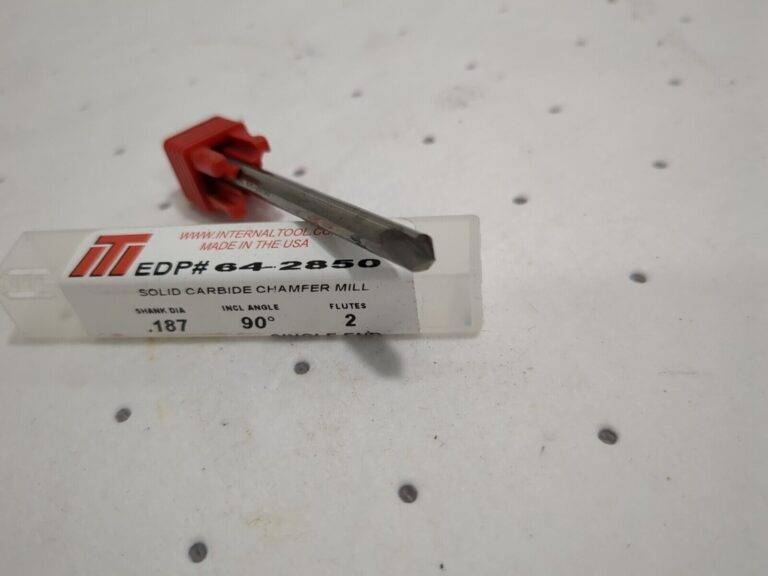

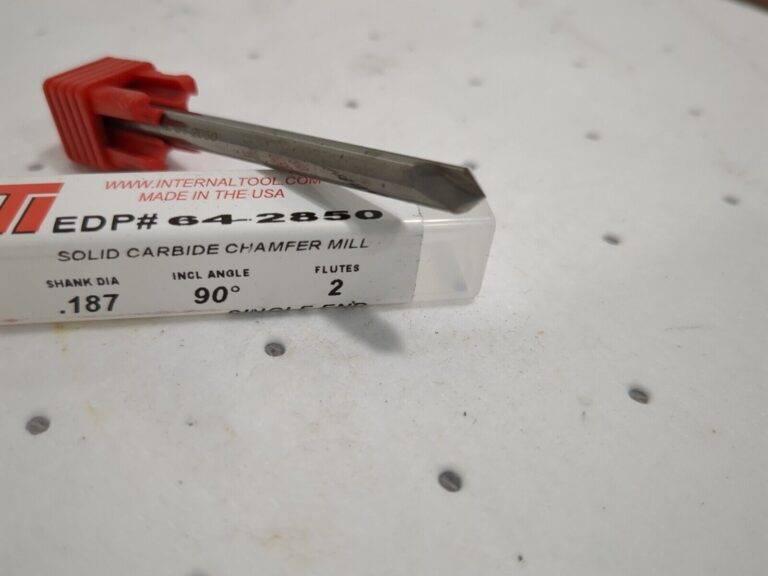

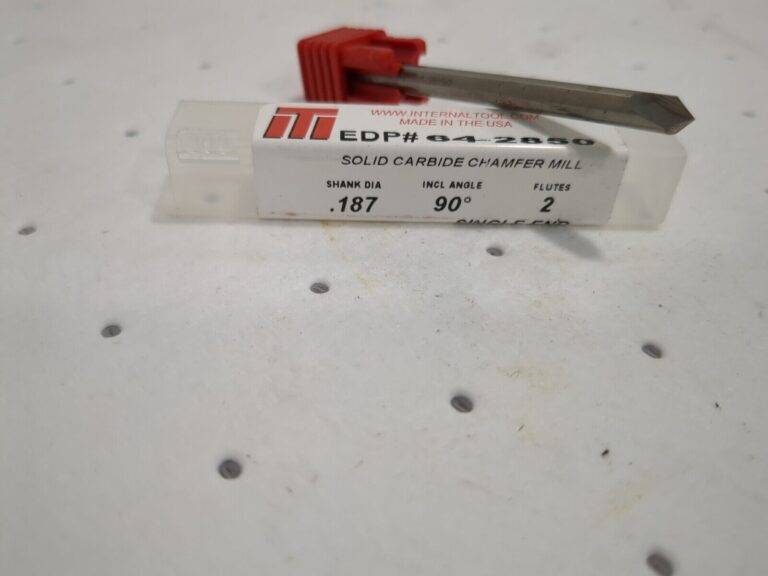

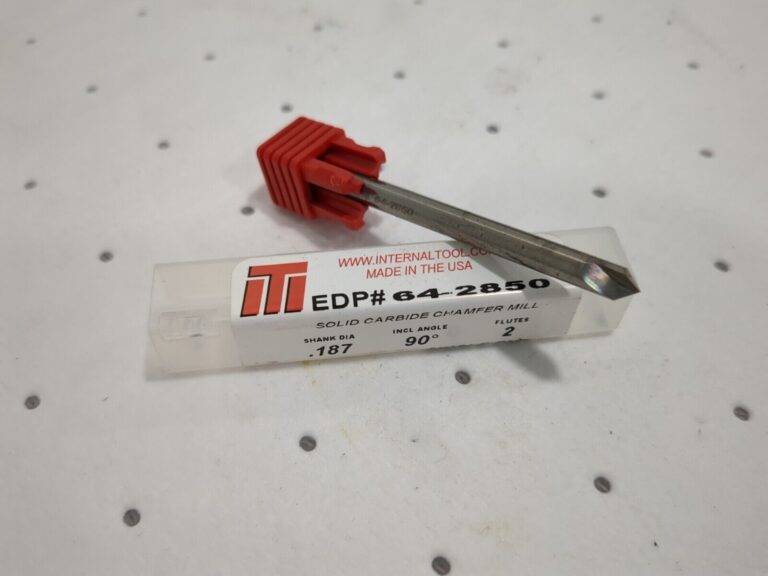

Please review photos, comes as shown.
