Description
Ingersoll
1 Lot of 2 Replaceable Drill Tips
MSRP: $140.00
- Cutting Diameter (Inch) 33/64
- Cutting Diameter (Decimal Inch) 0.5157 in
- Cutting Diameter (mm) 13.10
- Tip Material Solid Carbide
- Manufacturer Grade IN2005
- Material Grade P15; P30
- Cutting Direction Right Hand
- Series YAB
- Coating Process PVD
- Insert Seat Size 13
- Functional Length (Decimal Inch) 0.1430
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Standards ANSI
- Height (Decimal Inch) 0.237
- Height (mm) 6.00
- Overall Length/Projection (Decimal Inch) 0.2370
- Drill Point Angle 140
- Flute Type Helical
- Insert Holding Method Clamp
- ISO Number NXXF51R02 IN2005
- Coolant Through No
- Flute Length (mm) 4.00
- Point Type Standard
- Overall Length/Projection (mm) 0.24
- Spiral Type Regular Spiral
- Style YAB
- UNSPSC Code 23242105
- Applications Spot Drilling
- Coating/Finish TiAlN
- Included Angle Degree 140
- Number Of Flutes 2
These items appear to be new and in good condition. SOLD AS IS.

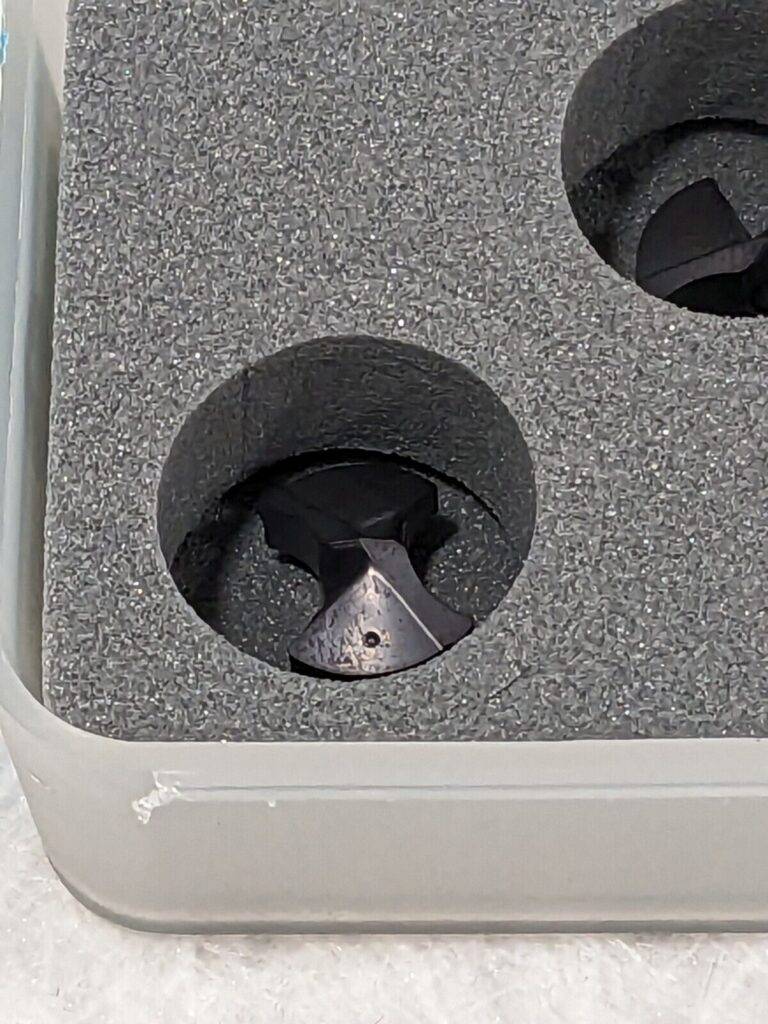

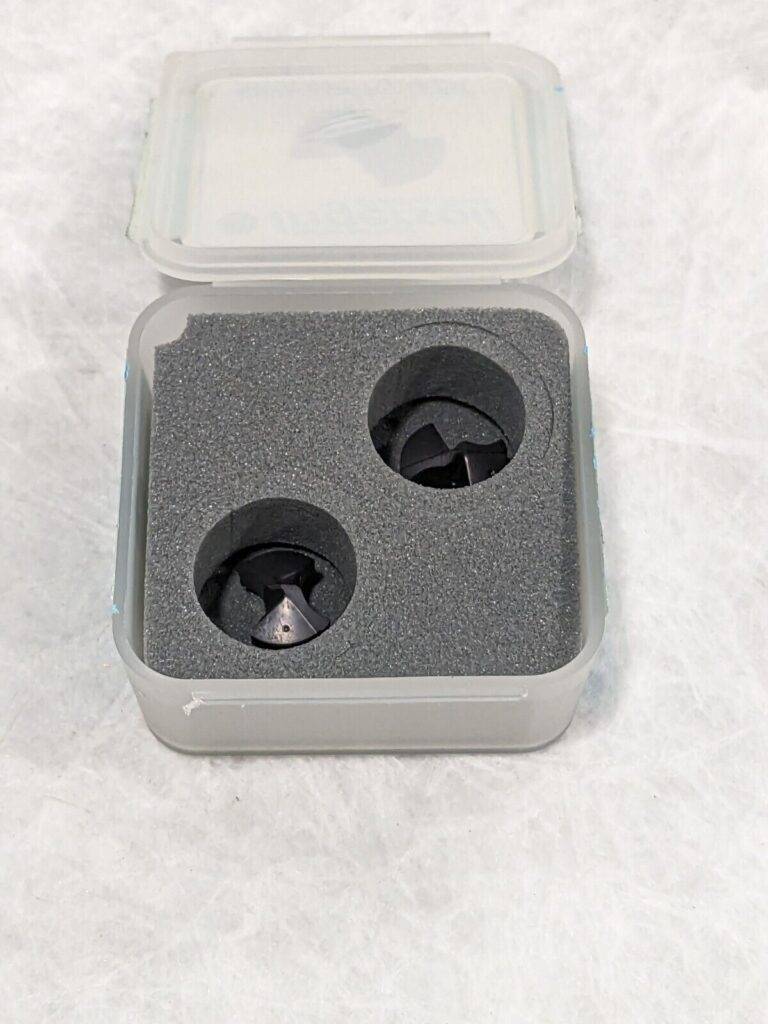

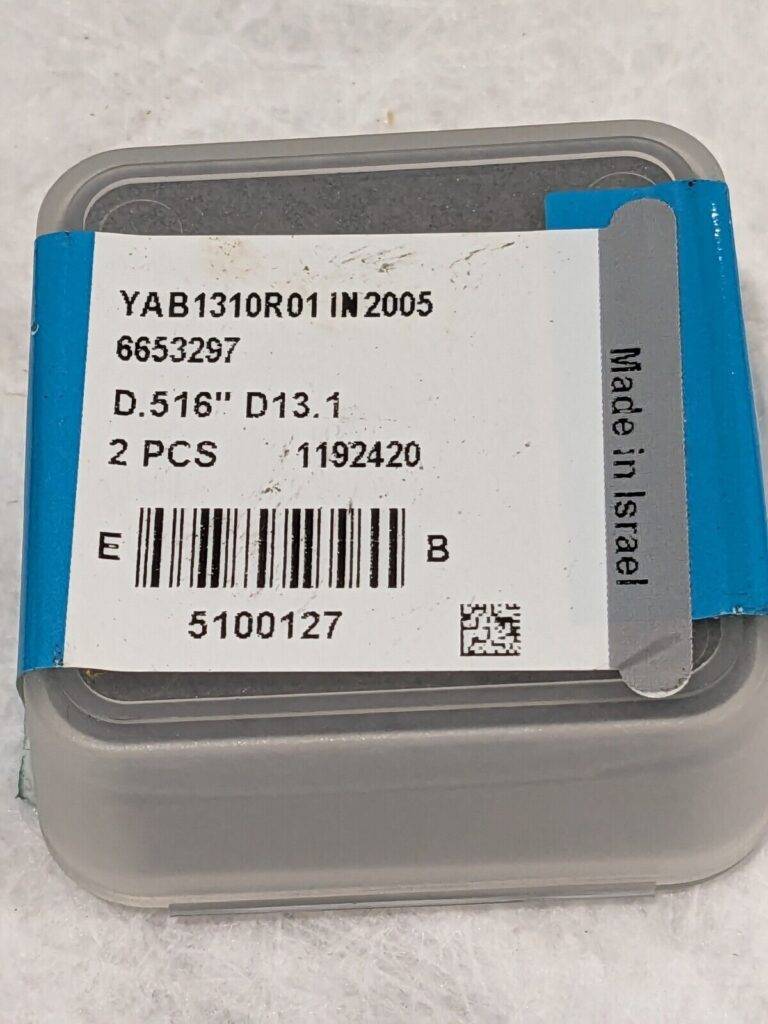

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 22 2024
TB 16767
Cab Rain Bin 15
LOCATION: TB16767CabRainBin15
MPN: Does Not Apply
MSRP: $140.00
COUNTRY/REGION OF MANUFACTURE: Unknown
MODEL: 5100127
BRAND: Ingersoll
