Description
HERTEL Turning Inserts 10ct : CNMA 433 HC305T, Carbide 1001830
MSRP: $170
- Insert Style CNMA
- Insert Size Code 433
- Insert Shape Diamond
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.5000
- Corner Radius (Decimal Inch) 0.0469
- Insert Material Carbide
- Manufacturer Grade HC305T
- Coating/Finish Al2O3
- Relief Angle 0
- Insert Thickness (Decimal Inch) 0.1875
- Insert Shape Code C
- Corner Radius (Inch) 3/64
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Hole Diameter (Decimal Inch) 0.2031
- Inscribed Circle (Inch) 1/2
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 3/16
- Clearance Code N
- Tolerance Code M
- Coating Process CVD
- Rake Positive
- Primary Workpiece Material Code K
- Iso Code CNMA120412
- Material Grade HC305T
- Proprietary Coating Designation FF
- UNSPSC Code 23242105
- Chip Breaker A
- Cutting Edge Style Honed
(Description).

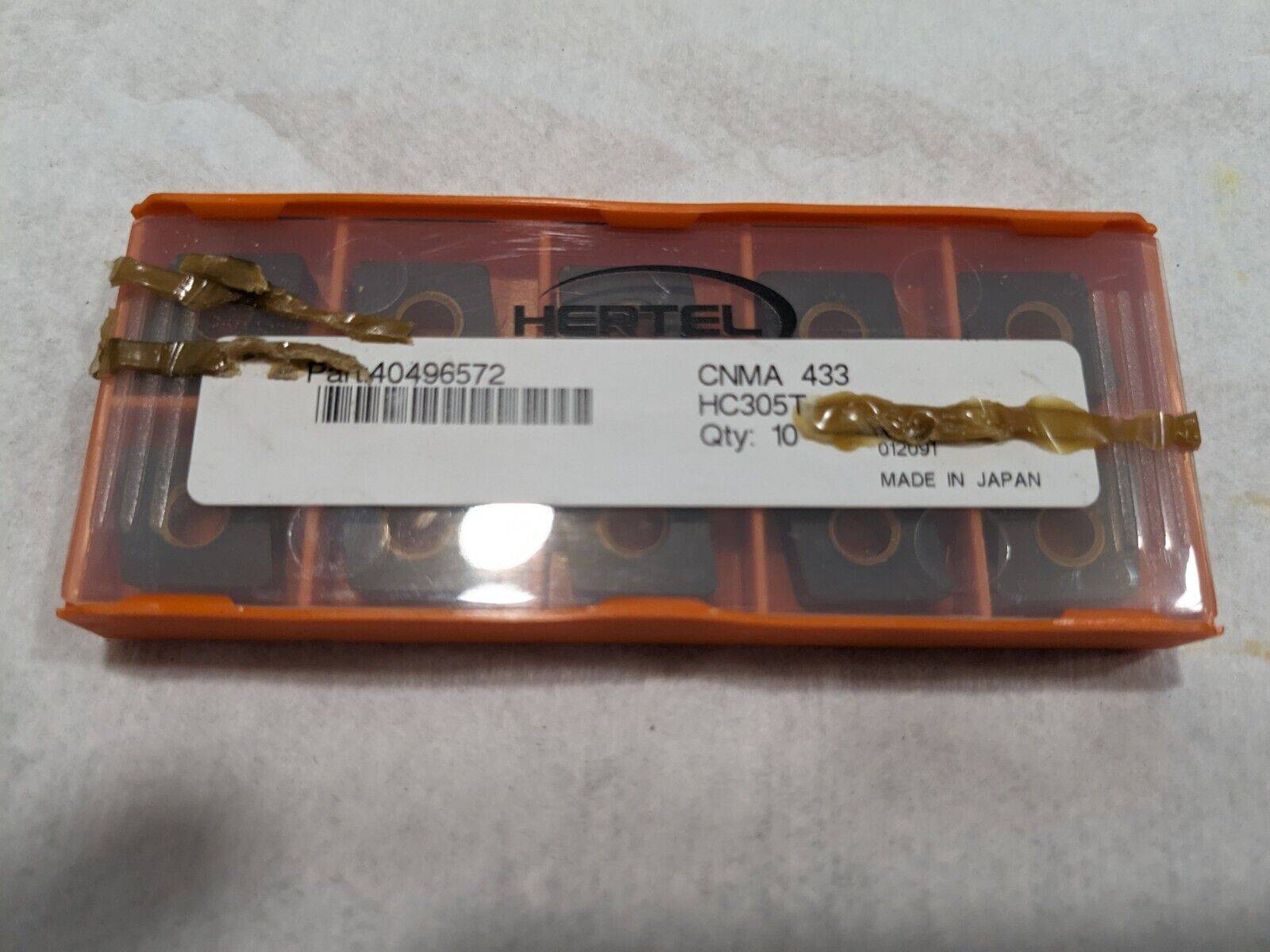

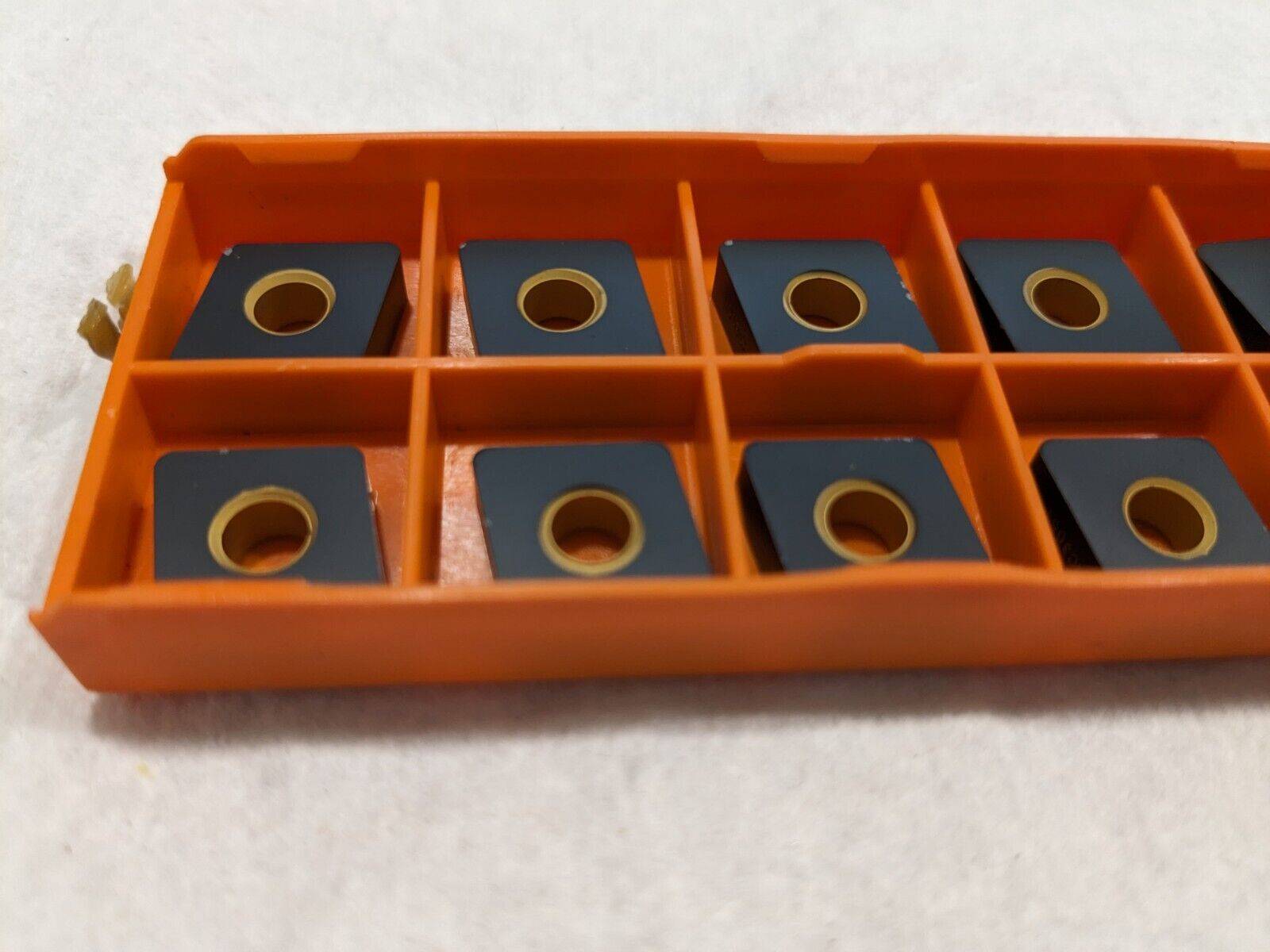

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
may 30 24
HS5534
earth 101
BRAND: Hertel
INSERT MATERIAL: Carbide
MPN: 1001830
INSERT TYPE: Turning Insert
