Hertel Indexable Grooving Toolholder Lh 1-1/4″ Sd A20iel3 3000059

Hertel
Indexable Grooving Toolholder

MSRP: $150

• Internal or External: Internal
• Toolholder Type: Non-Face Grooving
• Hand of Holder: Left Hand
• Maximum Depth of Cut (Decimal Inch): 0.0000
• Maximum Depth of Cut (mm): 0.00
• Minimum Groove Width (Decimal Inch): 0.1950
• Toolholder Style: A-IE
• Overall Length (Inch): 14
• Overall Length (Decimal Inch): 14.0000
• Insert Compatibility: I_3R
• Shank Height (Decimal Inch): 0.0000
• Shank Width/Diameter (Decimal Inch): 1.2500
• Series: HertelNotch Top Notch
• Through Coolant: Coolant Through
• Multi-use Tool: Yes
• Multi-Use Tool: Yes
• Multi-Use Application: Boring
• Coolant Hole Diameter (Decimal Inch): 0.2500
• Insert Holding Method: Clamp
• Number of Inserts Used on Toolholder: 1
• Minimum Hole Diameter (Decimal Inch): 1.7500
• Center to Cutting Edge (Decimal Inch): 1.1250
• Shank Length (Inch): 14
• Shank Length (Decimal Inch): 14.0000
• Toolholder Material: Steel; Steel
• *INSERT NOT INCLUDED*

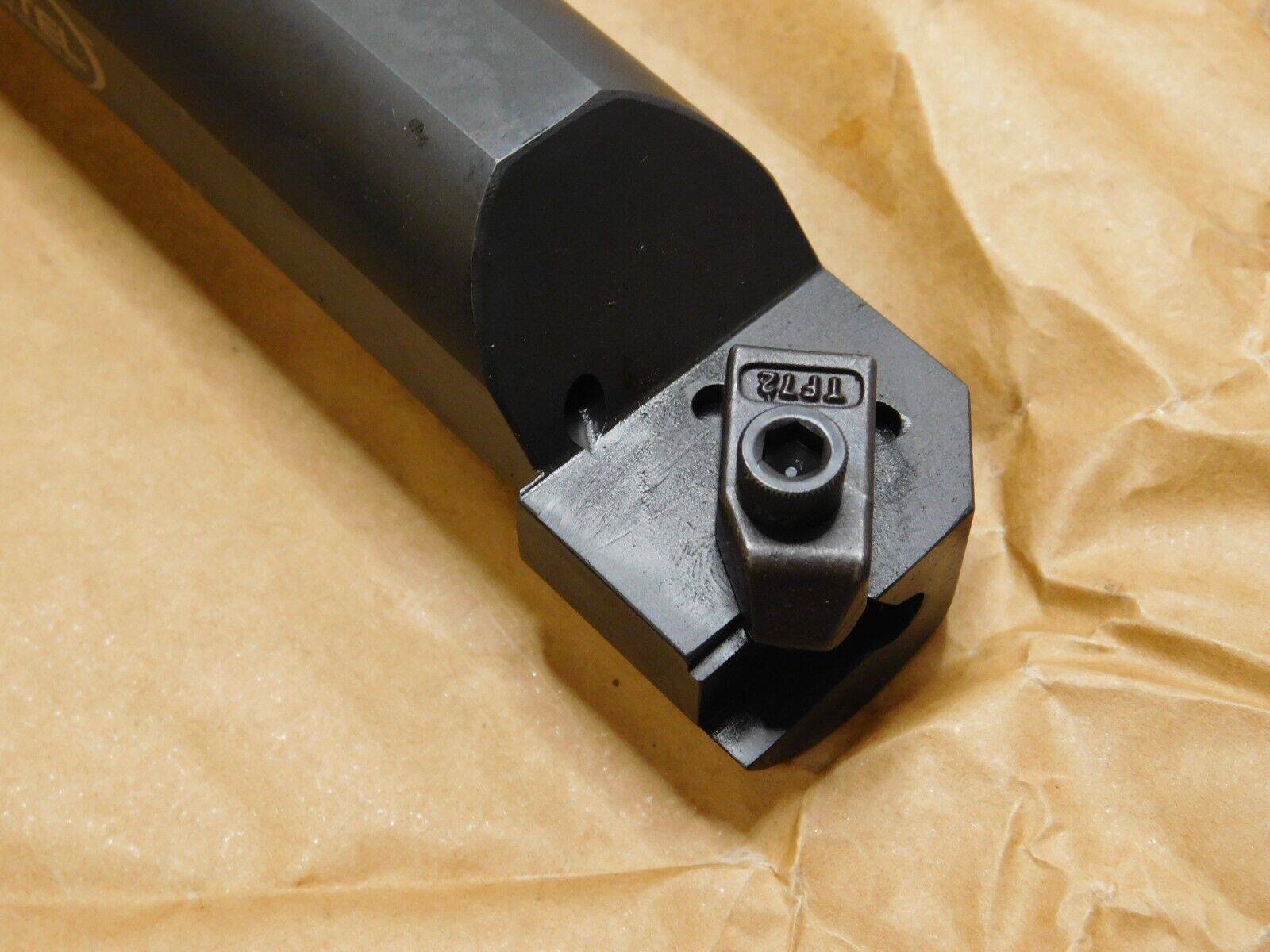

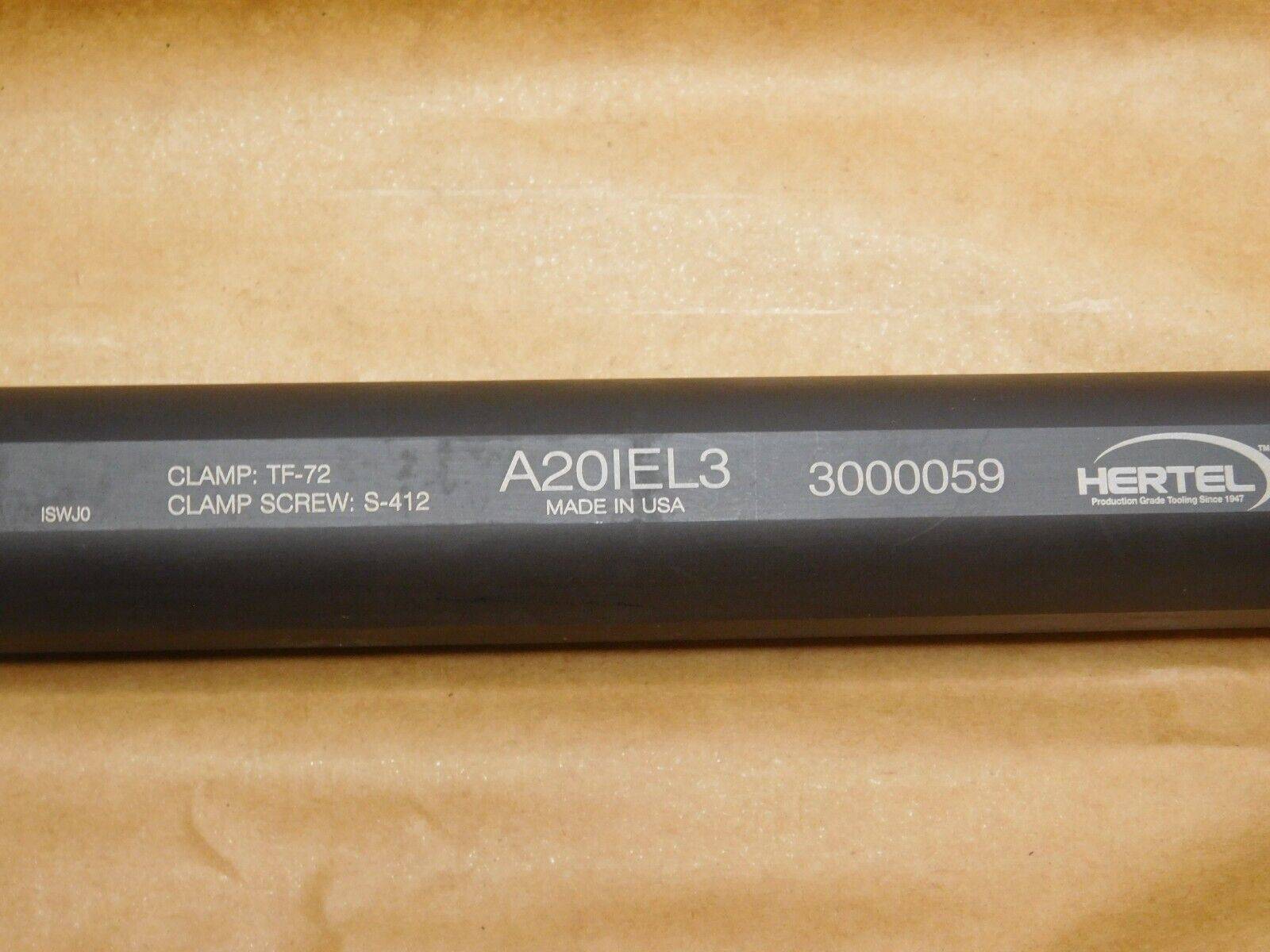

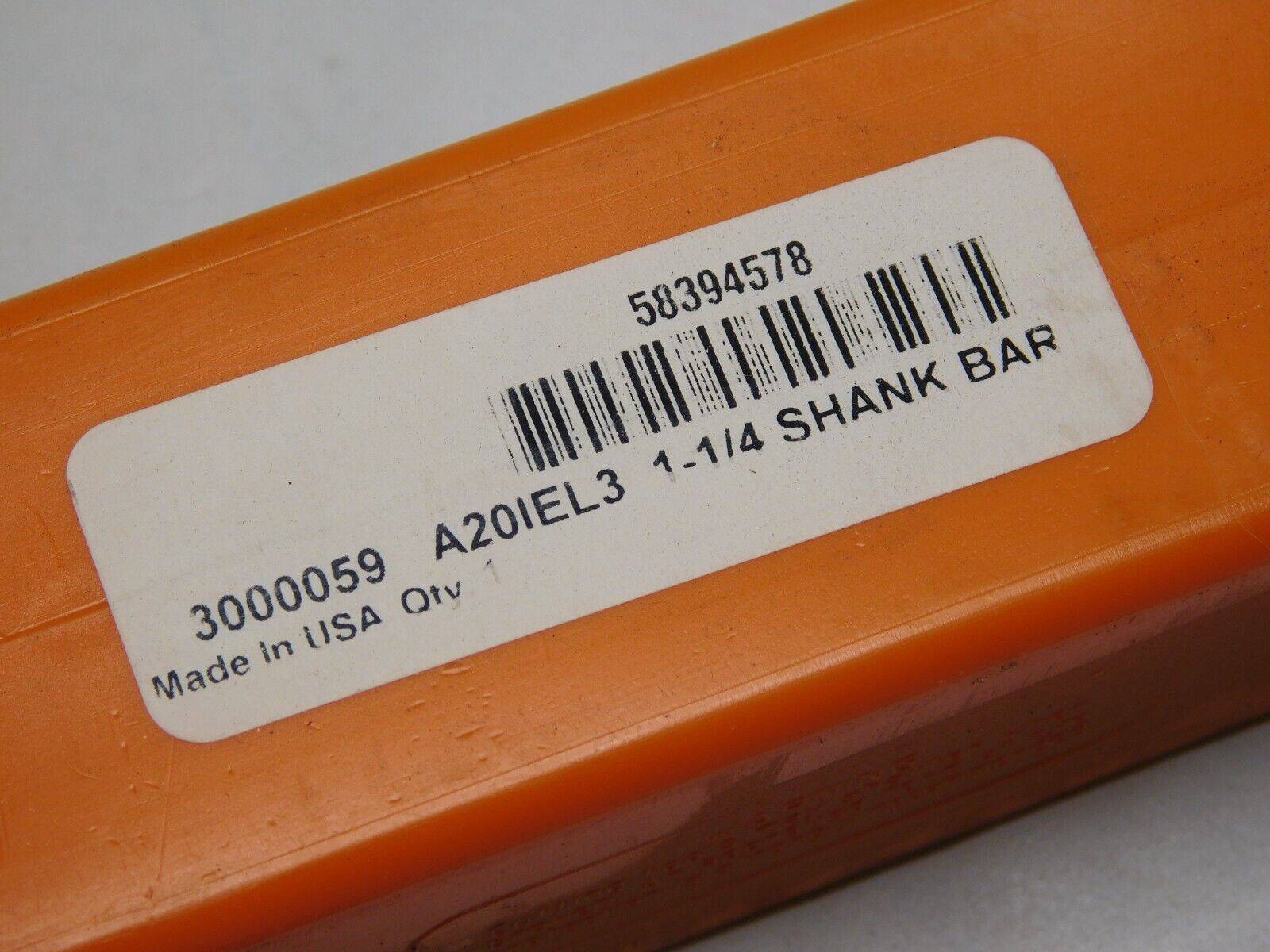

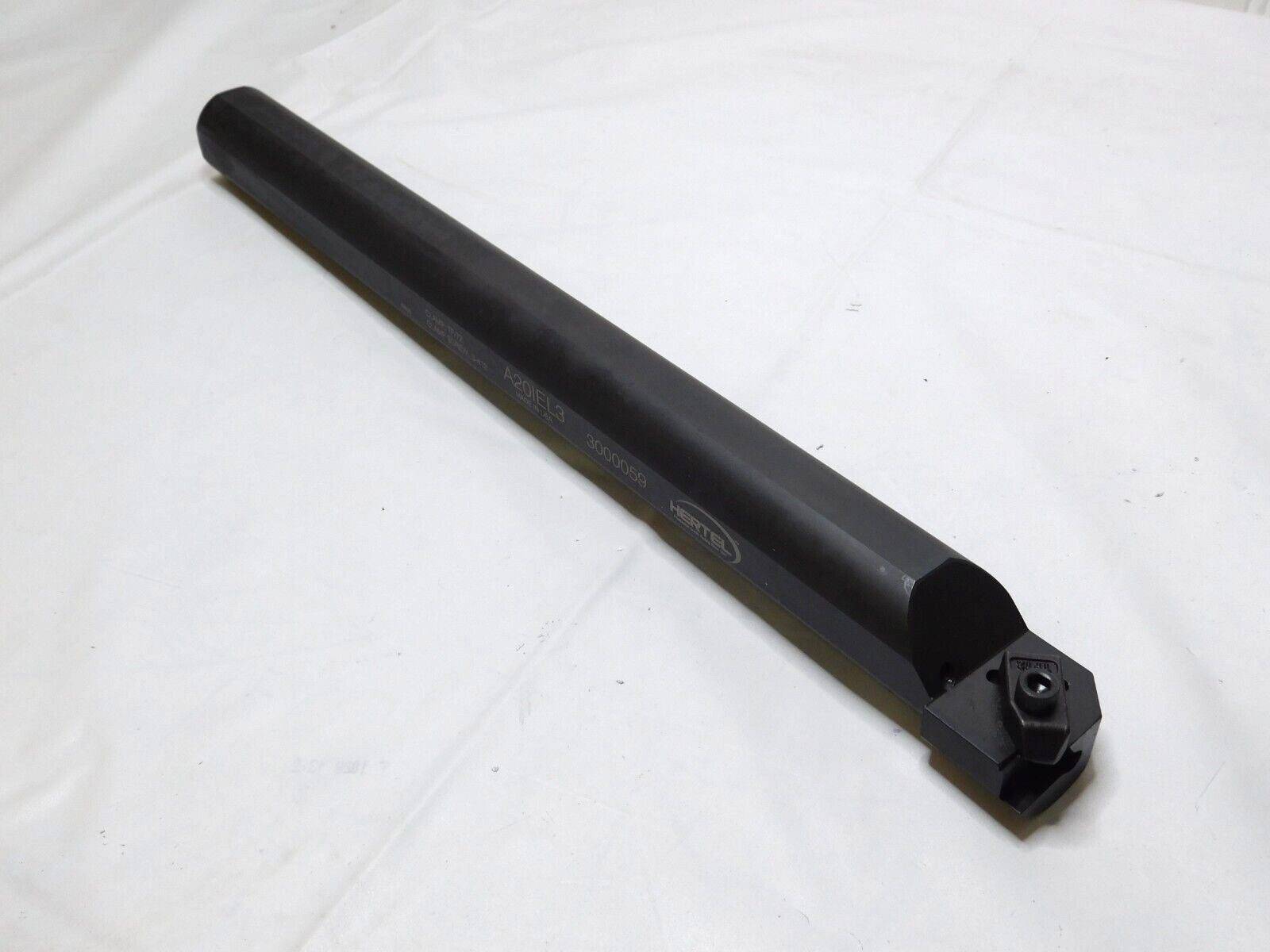

Please review photos, comes as shown.
