Description
Hertel
MSRP: $200.00
Model: HCX31725D
Description:
Insert Style: SNMG
Insert Size: 644
Material: Carbide
Inscribed Circle (Decimal Inch) : 0.7500
Inscribed Circle (Inch) : 3/4
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Corner Radius (Inch) : 1/16
Corner Radius (Decimal Inch) : 0.0630
Manufacturer’s Grade: HC335
Coating: TiC/TiCN/TiN
Material Grade: C5/C6
Chip breaker: M1
Hole Diameter (Decimal Inch): 0.3150
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: P
Secondary Workpiece Material: M
Included Angle: 90
Insert Hand: Neutral
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Pin & Clamp
Shape: Square

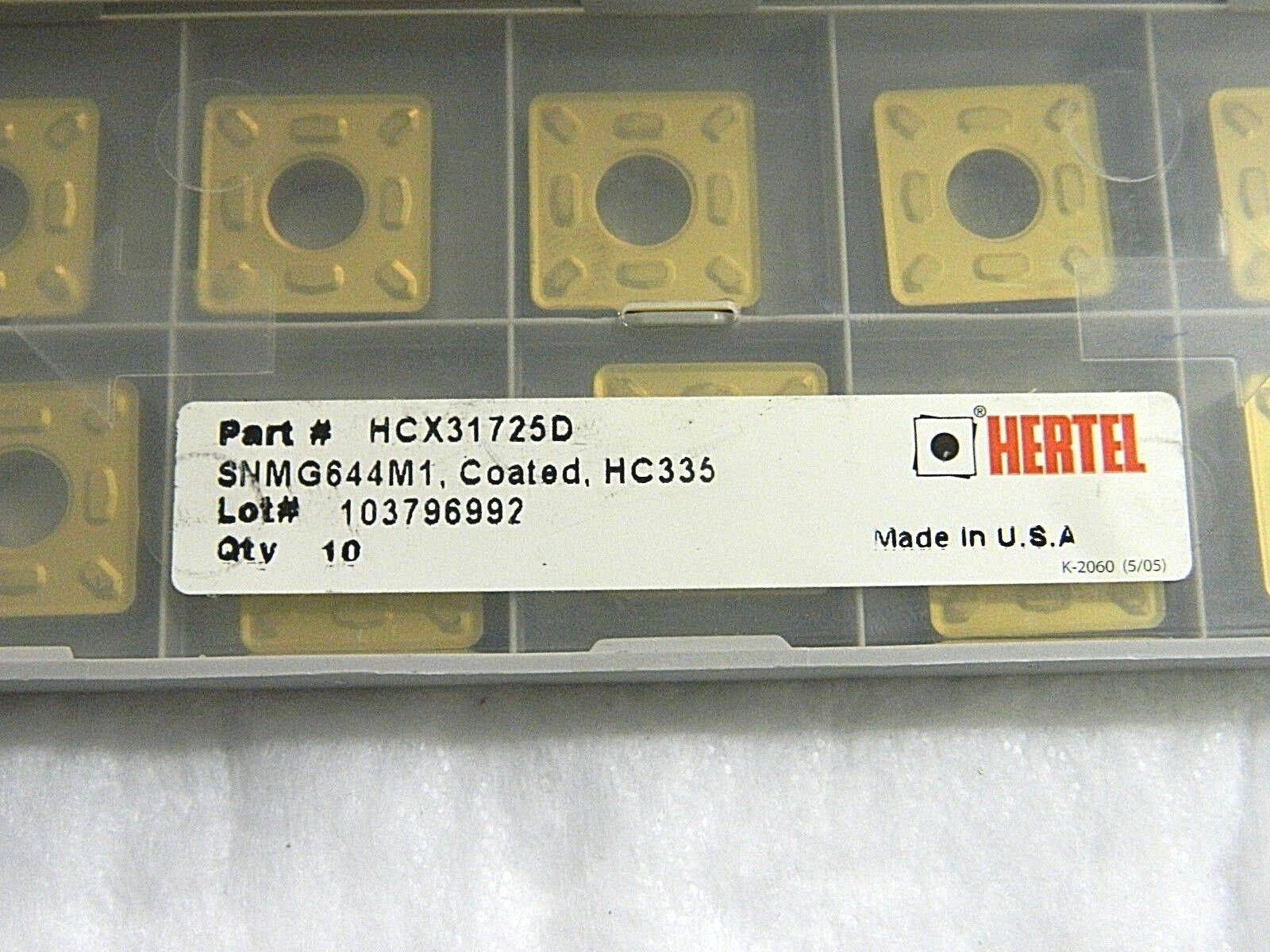

This listing is for One Box of 10 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Tina June 04 2020
TB 5200
Cab Logan Bin 1
LOCATION: TB5200CabLoganBin1
MPN: Does Not Apply
MSRP: 200.00
COUNTRY/REGION OF MANUFACTURE: United States
INSERT MATERIAL: Carbide
GRADE: HC335
MODEL: HCX31725D
BRAND: Hertel
