Description
BRAND harvey tool
Item
MSRP: $260.00
| Mill Diameter (Decimal Inch) |
0.5000 |
| Mill Diameter (Inch) |
1/2 |
| Number Of Flutes |
4 |
| End Mill Material |
Solid Carbide |
| Length of Cut (Decimal Inch) |
0.7500 |
| Length of Cut (Inch) |
3/4 |
| Shank Diameter (Inch) |
7/16 |
| Shank Diameter (Decimal Inch) |
0.4375 |
| Overall Length (Decimal Inch) |
6.0000 |
| Overall Length (Inch) |
6 |
| Single Or Double End |
Single |
| Coating/Finish Family |
AlTiN |
| Centercutting |
Yes |
| Cutting Direction |
Right Hand |
| Flute Direction |
Right Hand |
| Extended Reach |
No |
| Coolant Through |
No |
| Helix Angle |
30 |
| Primary Workpiece Material |
Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code |
P; C; K; M; N |
| Coating/Finish |
AlTiN |
| Variable Helix |
No |
| Variable Index |
No |
| Chipbreaker |
No |
| Flute Type |
Spiral |
| Shank Type |
Reduced |
| Length Of Cut Range (Decimal Inch) |
0.7000 – 0.8000 |
| Series |
End Mills – Square – Reduced Shank |
| System Of Measurement |
Fractional Inch |
| UNSPSC Code |
27112803 |
| Country of Origin |
UNITED STATES |
| Ordered as Part # |
943232-C3 |
(Description).

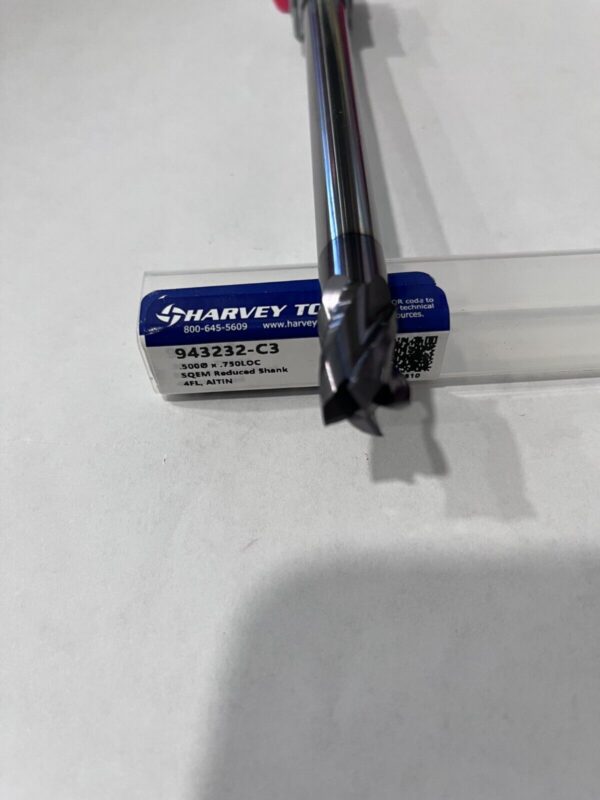

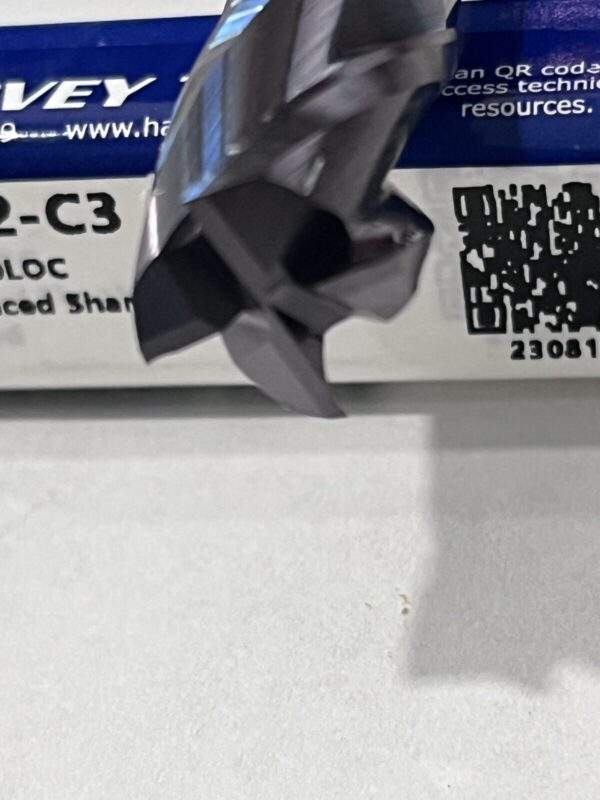

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Harvey
NUMBER OF FLUTES: 4
END MILL TYPE: Square End Mill
OVERALL LENGTH: 6 in
MATERIAL: Solid Carbide
LENGTH OF CUT: 3/4 in
