Harvey Tool Corner Radius End Mill: 1/8″ Dia 4 Fl Solid Carbide 32430

HARVEY TOOL

Corner Radius End Mill: 1/8″ Dia 4 Fl Solid Carbide 32430

MSRP: $30

• Mill Diameter (Inch) 1/8
• Mill Diameter (Decimal Inch) 0.1250
• Number Of Flutes 4
• Length of Cut (Inch) 1/2
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish Bright/Uncoated
• Overall Length (Inch) 1-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0300
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 1.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch – 4 Decimals) 0.5000
• Length Type Long
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Corner Radius Tolerance 0.0010 to -0.0010 in
• Mill Diameter Tolerance 0.0000/-0.0020 in
• Overall Length Tolerance 0.0100/-0.0000 in
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; K; M; N; O
• Series Miniature End Mills – Corner Radius – Stub & Standard; Miniature End Mills
• Material Application Wood; Composite; Aluminum; Stainless Steel; Cast Iron; Steel
• Coating Classification Uncoated
• Proprietary Coating Designation Uncoated
• For Use With. Toolholders
• Country of Origin UNITED STATES
• Ordered as Part # 32430

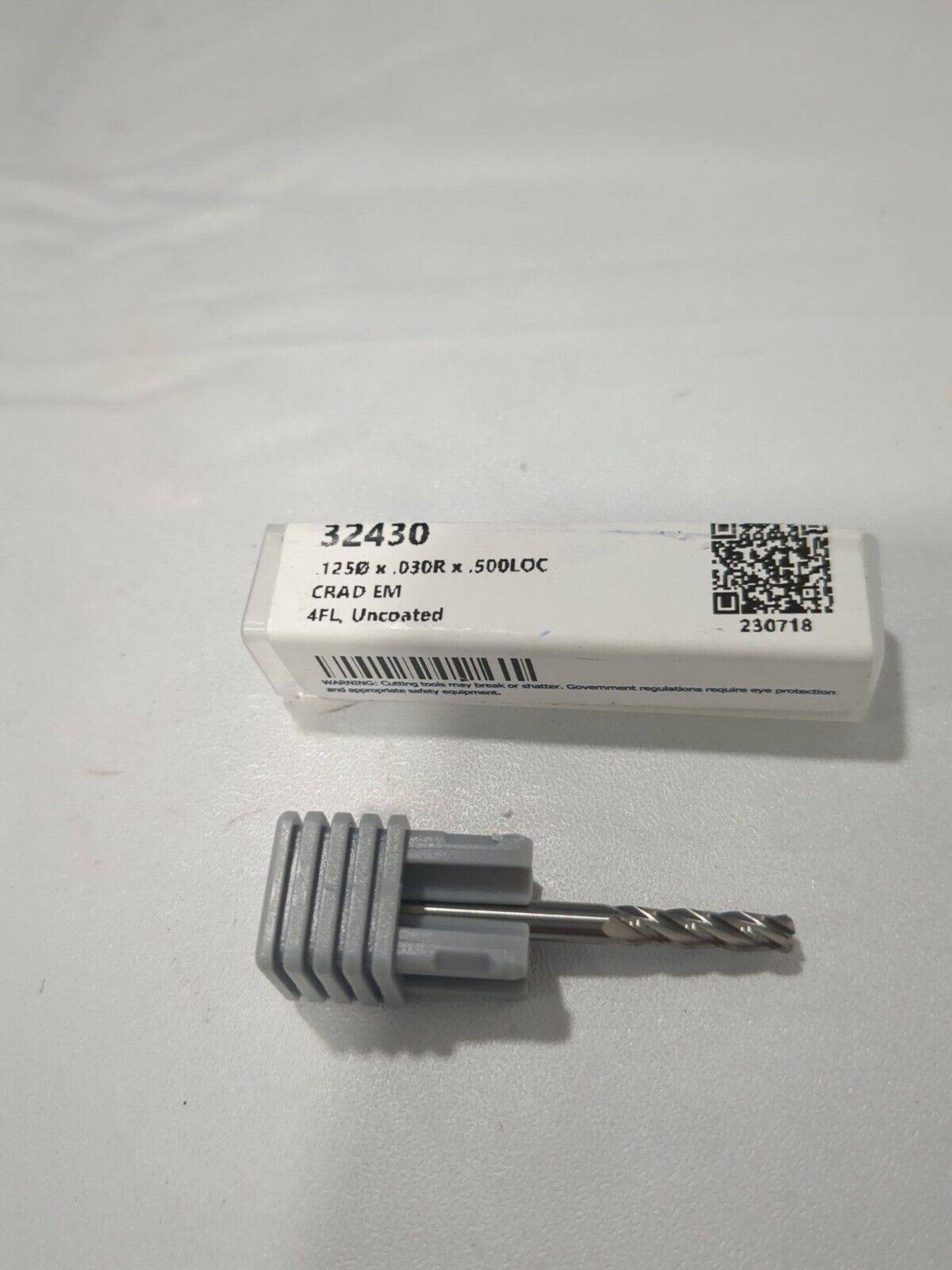

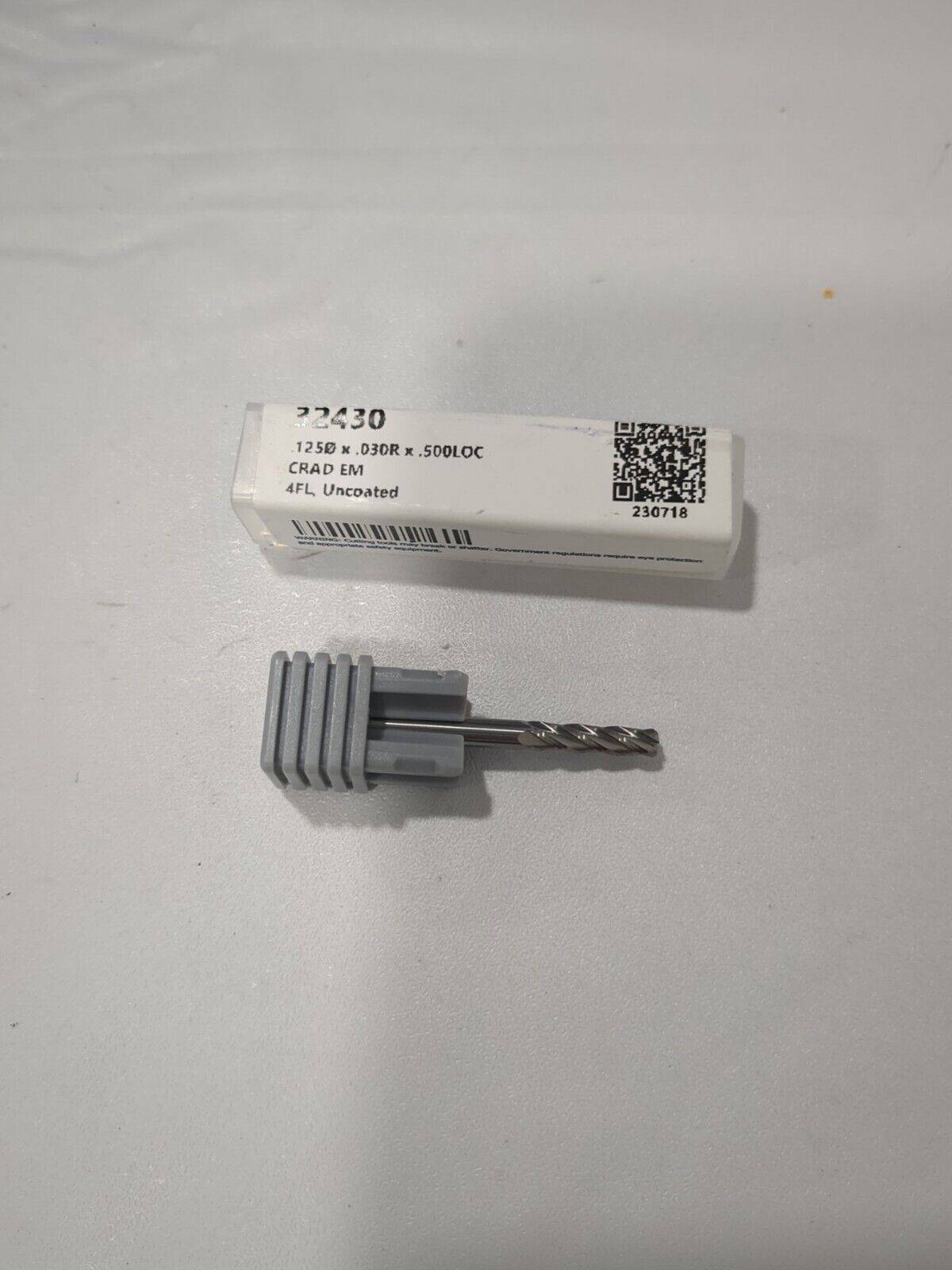

Please review photos, comes as shown.
