HARVEY TOOL
Corner Radius End Mill 0.0930″Dia 3 Fl Solid Carbide 54893-C6
MSRP: $55
- Mill Diameter (Decimal Inch) 0.0930
- Number Of Flutes 3
- Length of Cut (Inch) 9/64
- Single Or Double End Single
- End Mill Material Solid Carbide
- Chipbreaker No
- Coating/Finish AlTiN
- Overall Length (Inch) 2-1/2
- Centercutting Yes
- Flute Direction Right Hand
- Corner Radius (Decimal Inch) 0.0100
- Variable Index No
- Variable Helix Yes
- Cutting Direction Right Hand
- Coolant Through No
- Pitch Normal
- Overall Length (Decimal Inch) 2.5000
- End Type Corner Radius
- Length Of Cut (Decimal Inch – 4 Decimals) 0.1400
- Length Type Extended
- Flute Type Spiral
- Extended Reach Yes
- Shank Type Straight-Cylindrical
- Material Removal Type Roughing & Finishing
- Shank Diameter (Decimal Inch) 0.1250
- Shank Diameter (Inch) 1/8
- Reach Length (Decimal Inch) 0.7500
- Reach Length (Inch) 3/4
- Corner Radius Tolerance 0.0010 to -0.0010 in
- Mill Diameter Tolerance 0.0005/-0.0005 in
- Shank Diameter Tolerance h6
- Overall Length Tolerance 0.0100/-0.0000 in
- Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
- UNSPSC Code 27112803
- Primary Workpiece Material Code P; H; K; M
- Series Material Specific End Mills; Variable Helix End Mills for High Temp Alloys – Corner Radius – Long Reach; Stub Flute
- Material Application Stainless Steel; Cast Iron; Hard Alloy; Steel
- Coating Classification PVD
- For Use With. High Precision Toolholders
- Country of Origin UNITED STATES
- Ordered as Part # 54893-C6

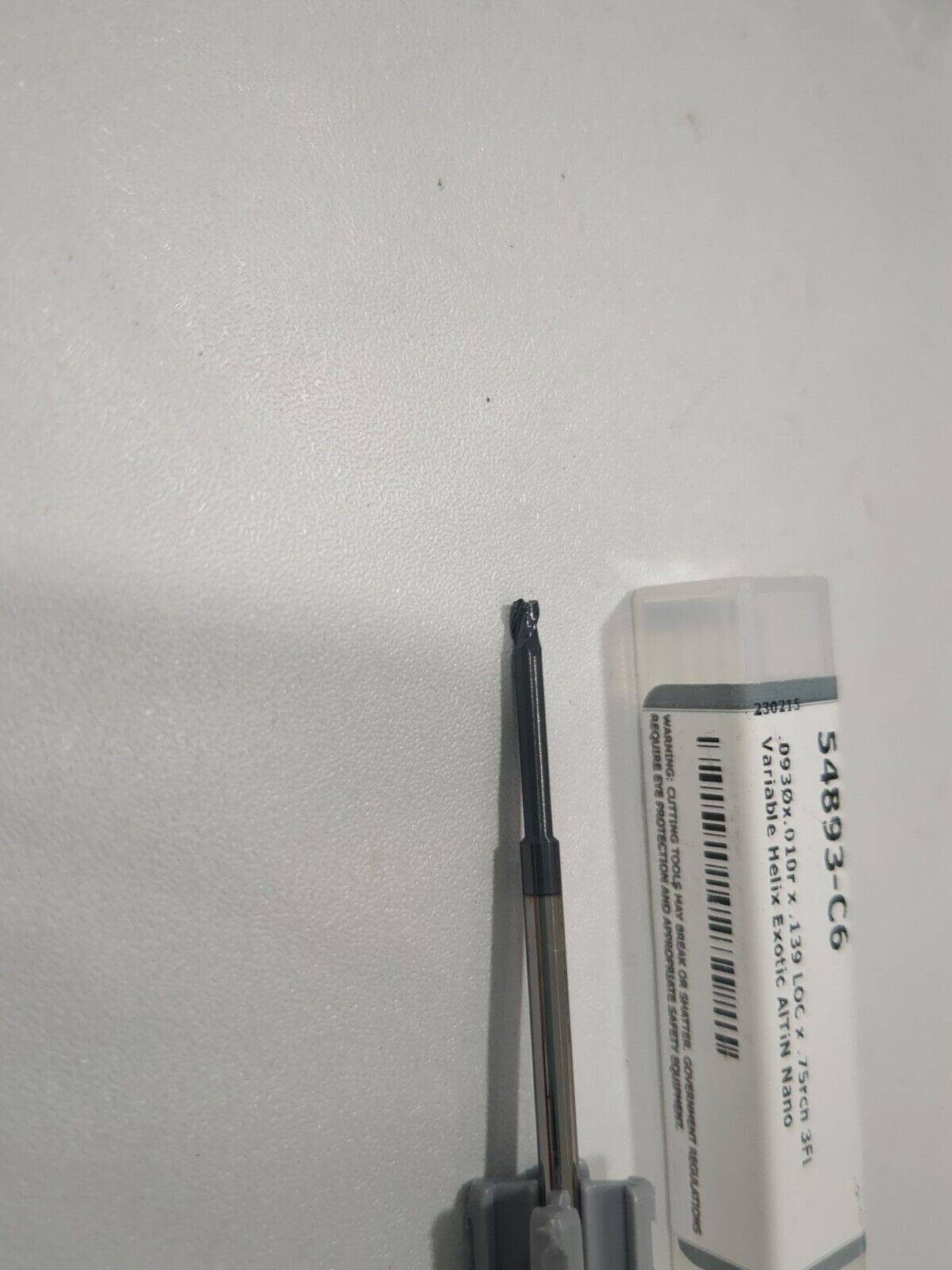

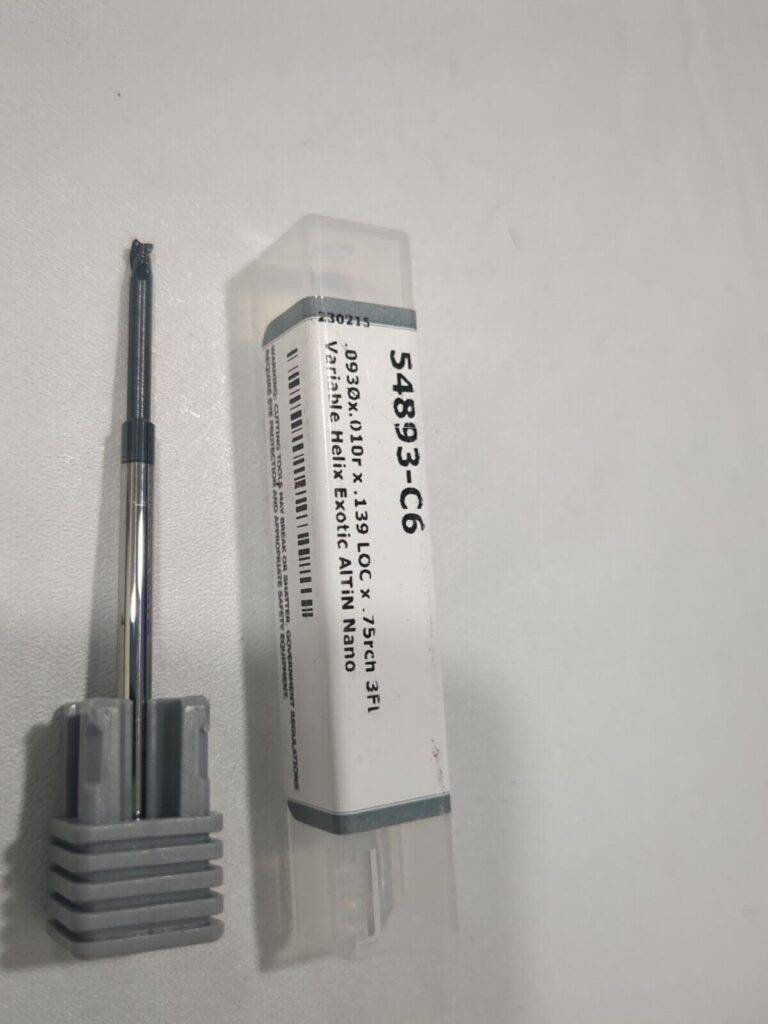

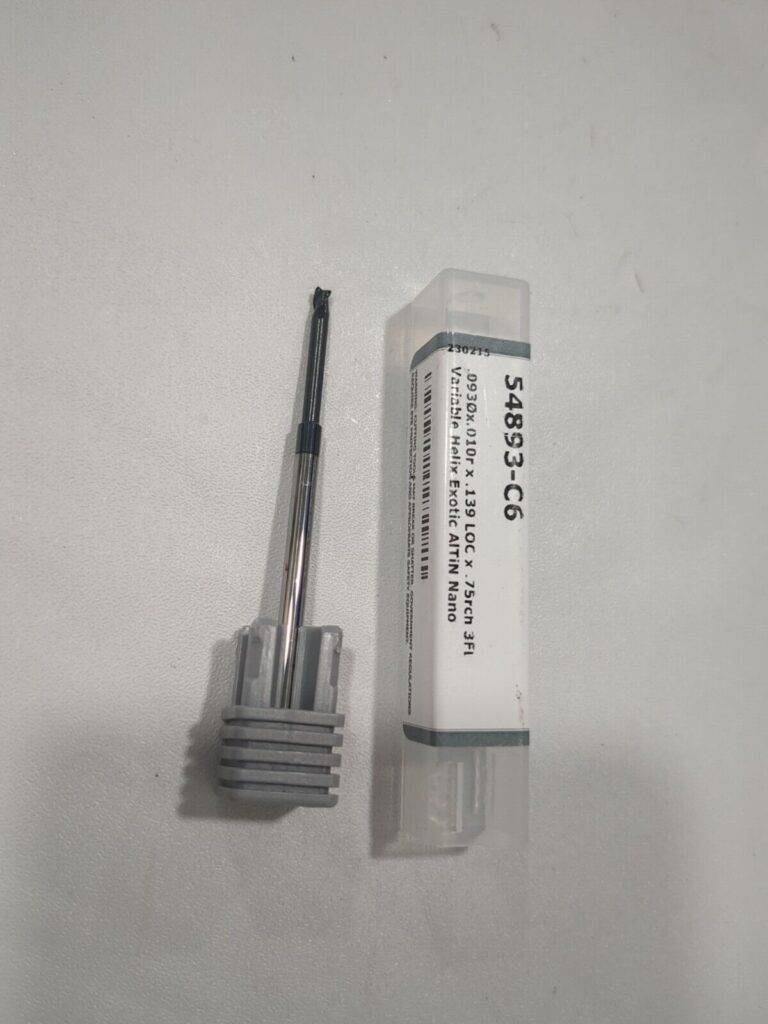

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 15th 2025
HS 8181
Polar 21
NUMBER OF FLUTES: See description
END MILL TYPE: Corner Radius End Mill
OVERALL LENGTH: See description
MATERIAL: Solid Carbide
MPN: 54893-C6
MILL DIAMETER: See description
SHANK DIAMETER: See description
CALIFORNIA PROP 65 WARNING: See description
BRAND: Harvey Tool
END TYPE: See description
UNIT TYPE: Unit
COUNTRY/REGION OF MANUFACTURE: United States
UNIT QUANTITY: see description
LENGTH OF CUT: See description
