Description
HARVEY TOOL
Ball End Mill: 0.0930″ Dia 3 Fl Solid Carbide 34093
MSRP: $35
- Mill Diameter (Inch) 3/32
- Mill Diameter (Decimal Inch) 0.0930
- Number Of Flutes 3
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 0.7500
- Length of Cut (Inch) 3/4
- Shank Diameter (Decimal Inch) 0.1250
- Shank Diameter (Inch) 1/8
- Overall Length (Decimal Inch) 2.5000
- Overall Length (Inch) 2-1/2
- Single Or Double End Single
- Coating/Finish Family Bright/Uncoated
- Centercutting No
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 20
- Primary Workpiece Material Stainless Steel; Cast Iron; Steel
- Primary Workpiece Material Code P; K; M
- Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
- Secondary Workpiece Material Code P; K; M
- Coating/Finish Bright/Uncoated
- Variable Helix Yes
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Material Grade Carbide
- Length Type Extra Long
- Coating Classification Uncoated
- Helix Style Variable
- Nose Radius (Decimal Inch) 0.0465
- Reach Length (Inch) 3/4
- Reach Length (Decimal Inch) 0.7500
- Mill Diameter Tolerance +0.0005/-0.0005 in
- Shank Diameter Tolerance h6
- Series Miniature End Mills – Ball – Long Flute, Miniature End Mills
- System Of Measurement Decimal Inch
- Manufacturers Catalog Number 34093
- Material Removal Type Finishing
- UNSPSC Code 27112803
- Country of Origin UNITED STATES
- Ordered as Part # 34093

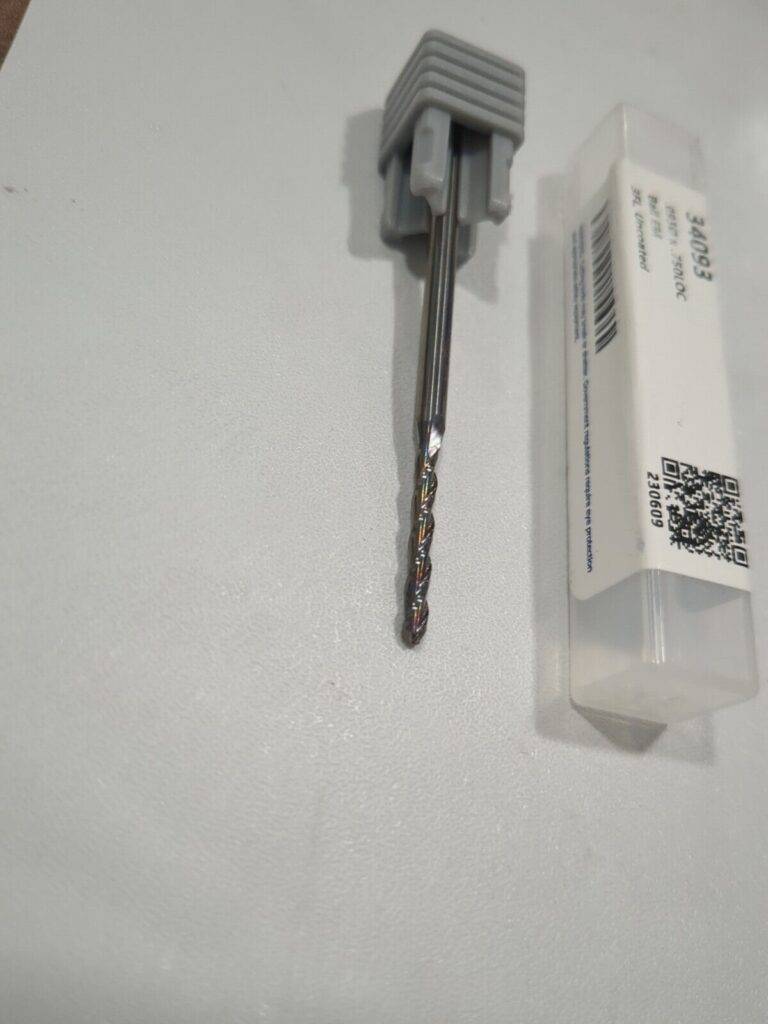

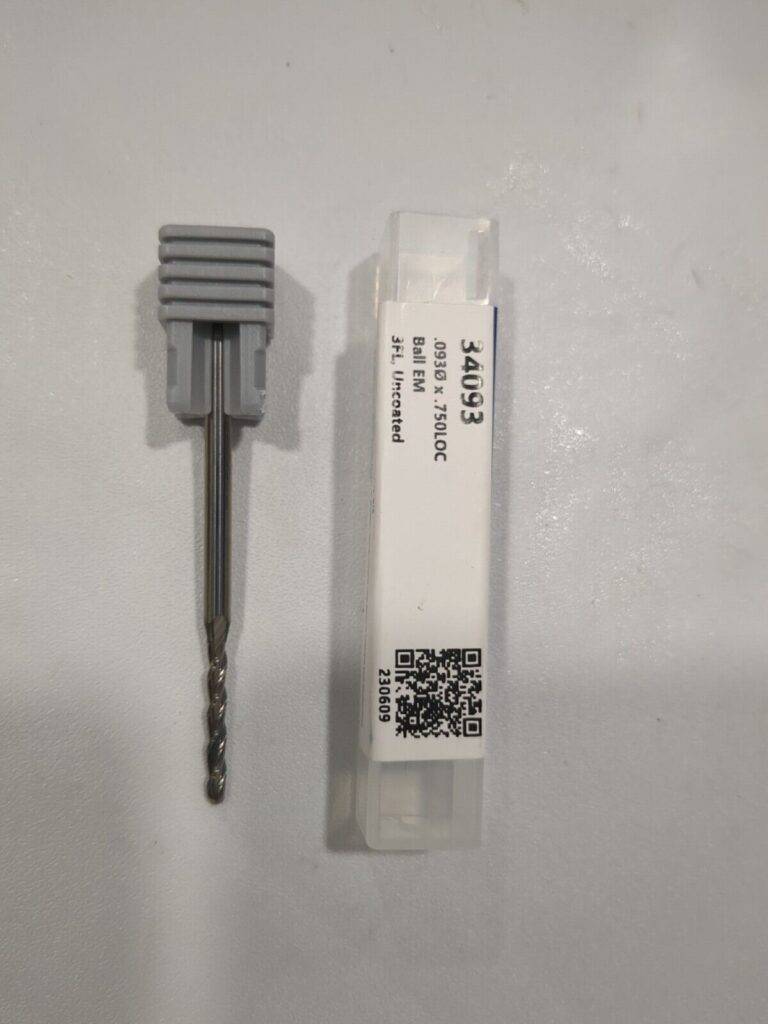

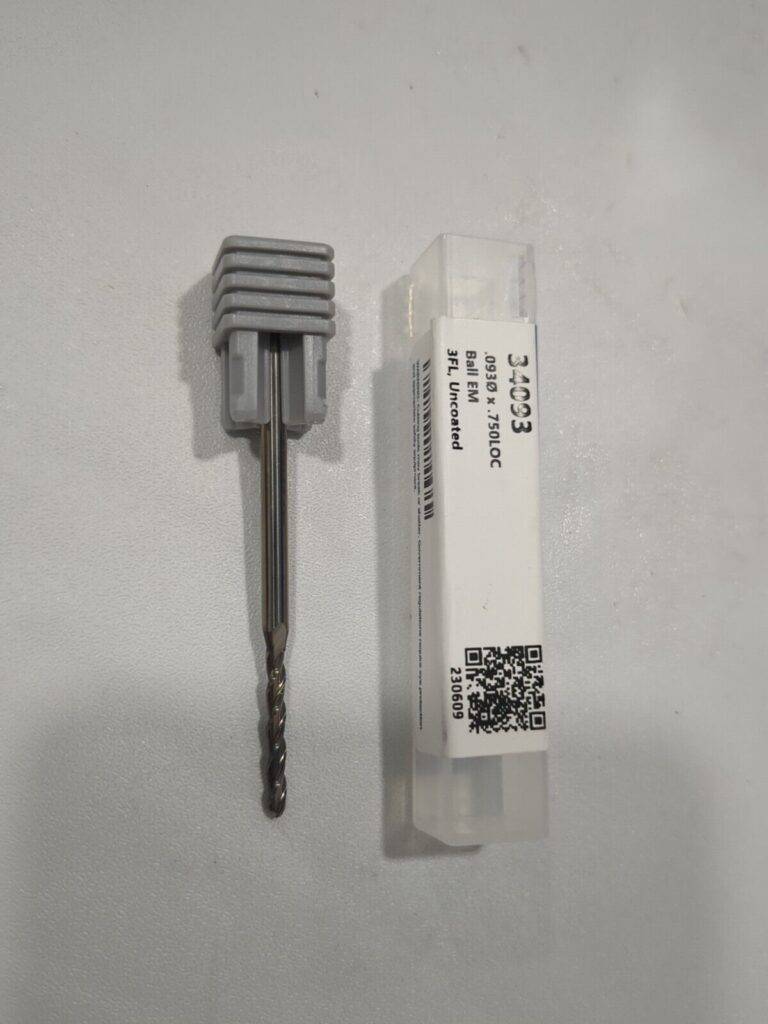

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 16th 2025
HS 8208
Polar 14
NUMBER OF FLUTES: See description
END MILL TYPE: Ball End Mill
OVERALL LENGTH: See description
MATERIAL: Solid Carbide
MPN: 34093
MILL DIAMETER: See description
SHANK DIAMETER: See description
CALIFORNIA PROP 65 WARNING: See description
BRAND: Harvey Tool
END TYPE: See description
UNIT TYPE: Unit
COUNTRY/REGION OF MANUFACTURE: United States
UNIT QUANTITY: see description
LENGTH OF CUT: See description
