GUHRING Screw Machine Length Drill Bit: 8.10 mm Dia, 140 deg Pt 9012420081000
MSRP: $130
- Drill Bit Size (mm) 8.10
- Drill Bit Size (Decimal Inch) 0.3189
- Tool Material Solid Carbide
- Cutting Direction Right Hand
- Coating/Finish TiN
- Number Of Flutes 2
- Spiral Type Regular
- Flute Type Regular Spiral
- Drill Point Angle 140
- Coolant Through No
- Shank Type Straight
- Shank Diameter (Decimal Inch) 0.3189
- Overall Length (mm) 79.00
- Overall Length (Decimal Inch) 3.1102
- Point Type Cone Relief
- Series 1242
- Web Thinning Web-Thinned
- Web Configuration Parallel
- Drill Length Type Screw Machine
- Maximum Drilling Depth (Decimal Inch) 0.9780
- Maximum Drilling Depth (mm) 24.85
- Shank Length (Decimal Inch) 1.6535
- Shank Length (mm) 42.00
- Flute By Diameter Ratio 3xD
- Tool Performance High Performance
- Drill Bit Diameter Tolerance +0.006 to +0.021 mm
- Standards DIN 6539
- Flute Length (mm) 37.00
- Drill Bit Size Range (Decimal Inch) 0.3000 to 0.3500
- Drill Bit Size Range (mm) 8.00 – 9.50
- Specification Number DIN 6539
- Specification Designation DIN
- Material Grade Submicron
- UNSPSC Code 23241635
(Description).

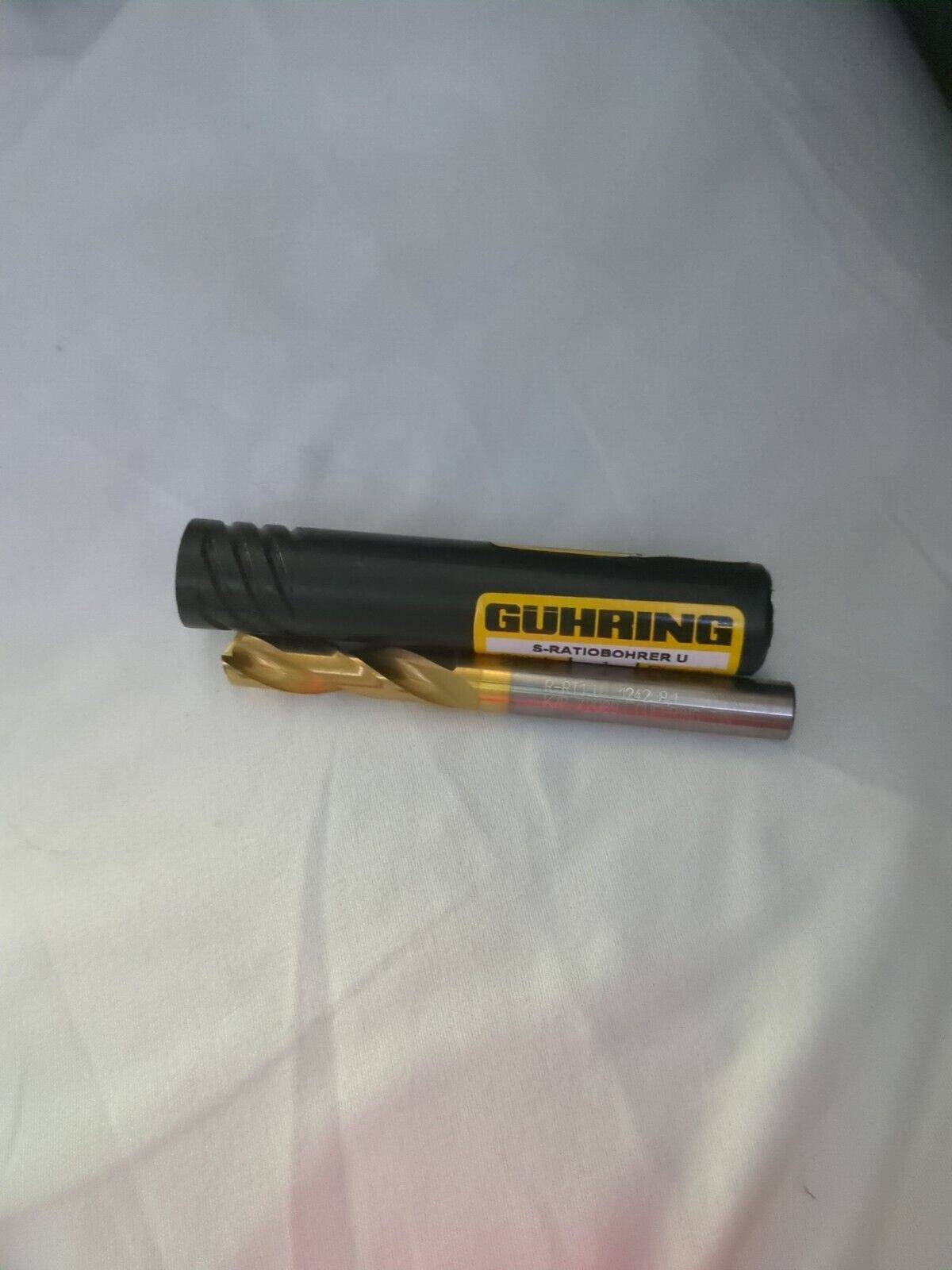

Please review photos, comes as shown.
