Description
GUHRING Replaceable Drill Tip: 4115 41/64, 0.6406″ Dia 9041150162700
MSRP: $120
- Cutting Diameter (Inch) 41/64
- Cutting Diameter (Decimal Inch) 0.6406 in
- Tip Material Solid Carbide
- Manufacturer Grade K/P
- Cutting Direction Right Hand
- Series 4115
- Coating Process PVD
- Insert Geometry Relieved Cone
- Insert Seat Size 160
- Functional Length (Decimal Inch) 0.3152
- Functional Length (mm) 11.00
- Primary Workpiece Material Stainless Steel
- Primary Workpiece Material Code M
- Secondary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
- Secondary Workpiece Material Code P; S; K
- Height (mm) 11.00
- Overall Length/Projection (Decimal Inch) 0.4334
- Web Thinning Web-Thinned
- Drill Point Angle 140
- Flute Type Helical
- Insert Holding Method Screw; Clamp
- Coolant Through No
- Flute Length (mm) 8.00
- Point Type Two Facet
- Spiral Type Regular Spiral
- Style 4115
- UNSPSC Code 23242105
- Coating/Finish nano-A
- Included Angle Degree 140
- Number Of Flutes 2

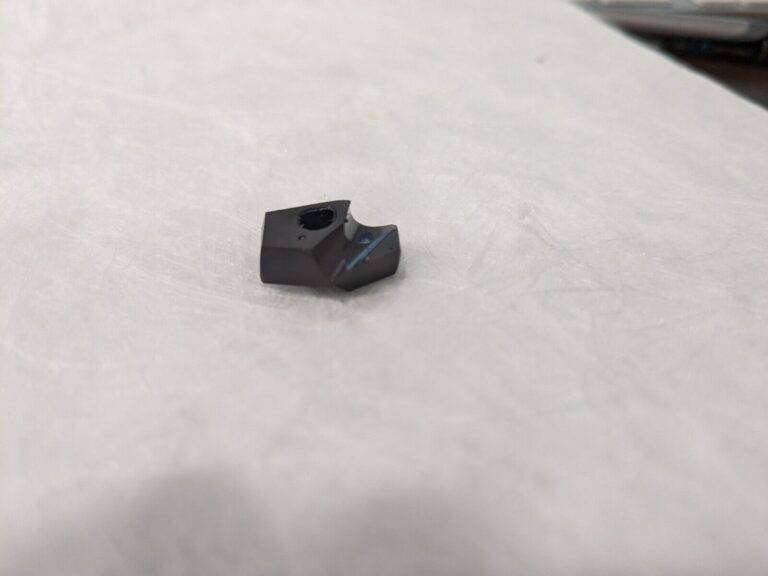

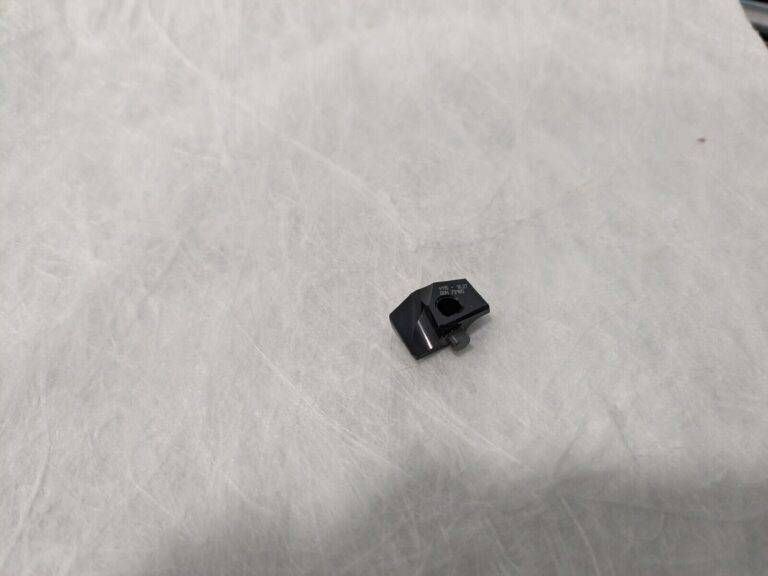

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
march 27 24
HS4840
ozzy 2
BRAND: Guhring
UNIT TYPE: Unit
MPN: 9041150162700
UNIT QUANTITY: n/a
COUNTRY/REGION OF MANUFACTURE: Unknown
INSERT TYPE: n/a
CALIFORNIA PROP 65 WARNING: n/a
