Description
GUHRING
pk of 8 Jobber Drills: 17/64″ Dia, 118 deg Point, Cobalt 9055230067500
MSRP: $85
- Drill Bit Size (Inch) 17/64
- Drill Bit Size (Decimal Inch) 0.2656
- Drill Bit Material Cobalt
- Drill Point Angle (Degrees) 118
- Coating/Finish Bright/Uncoated
- Flute Type Regular Spiral
- Cutting Direction Right Hand
- Point Type 4 Facet
- Primary Workpiece Material Aluminum & Non-Ferrous; Cast Iron; Steel
- Specification Number DIN 338
- Coolant Through No
- Flute Length (Decimal Inch) 2.7165
- Flute Length (mm) 69.00
- Number of Flutes 2
- Primary Workpiece Material Code P; K; M; N
- Shank Diameter (Decimal Inch) 0.2656
- Overall Length (mm) 109.00
- Overall Length (Decimal Inch) 4.2913
- Spiral Type Regular
- Series 5523
- Flute By Diameter Ratio 5xD
- Shank Diameter (Inch) 17/64
- Shank Diameter (mm) 6.75
- Maximum Drilling Depth (Decimal Inch) 2.3180
- Maximum Drilling Depth (mm) 58.88
- Shank Length (mm) 40
- Drill Bit Diameter Tolerance +0.000 to -0.022 mm
- Web Thinning Web-Thinned
- Web Configuration Tapered
- Shank Type Straight
- Standards DIN 338
- Drill Bit Grade General Purpose
- Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000
- Material Grade M35
- Specification Designation DIN
- UNSPSC Code 23241634
- Country of Origin Germany

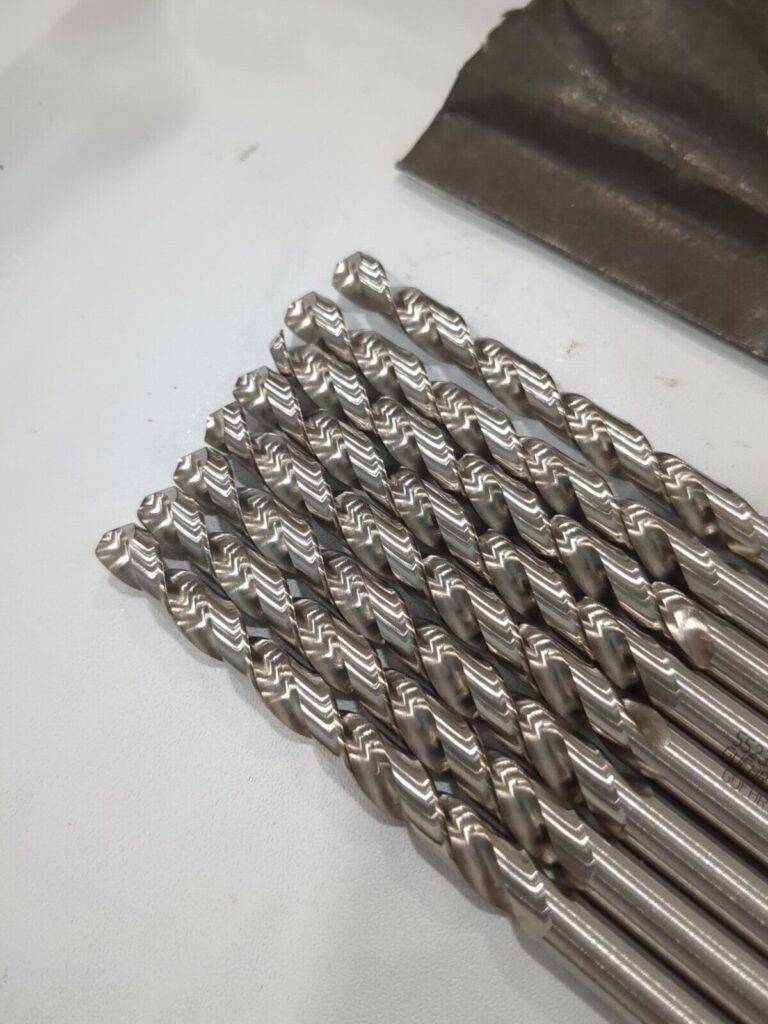

This is a pack of 8 jobber drills by Guhring, with a diameter of 17/64 inches, a 118-degree point angle, and made of cobalt. The drills are designed for metalworking applications.
Please review photos, comes as shown.
