Description
Guhring
MSRP: $140
Model: 9006570088000
Description:
Drill Bit Size (mm) 8.80
Drill Bit Size (Decimal Inch) 0.3465
Drill Point Angle 130
Drill Bit Material Cobalt
Drill Bit Finish/Coating TiN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 81.00
Flute Length (Decimal Inch) 3.1890
Overall Length (mm) 125.00
Overall Length (Decimal Inch) 4.9213
Flute Length x Diameter Ratio 5xD
Point Type Split Point
Shank Diameter (mm) 8.80
Shank Diameter (Decimal Inch) 0.3465
Maximum Drilling Depth (Decimal Inch) 3.1890
Maximum Drilling Depth (mm) 81.00
Spiral Type Regular Spiral
Shank Length (mm) 44.00
Shank Length (Decimal Inch) 1.7323
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) +0.000 to -0.022
Number of Flutes 2
Web Thinning Web-Thinned
Specification Number DIN 338
Material Grade M35
Series/List 657

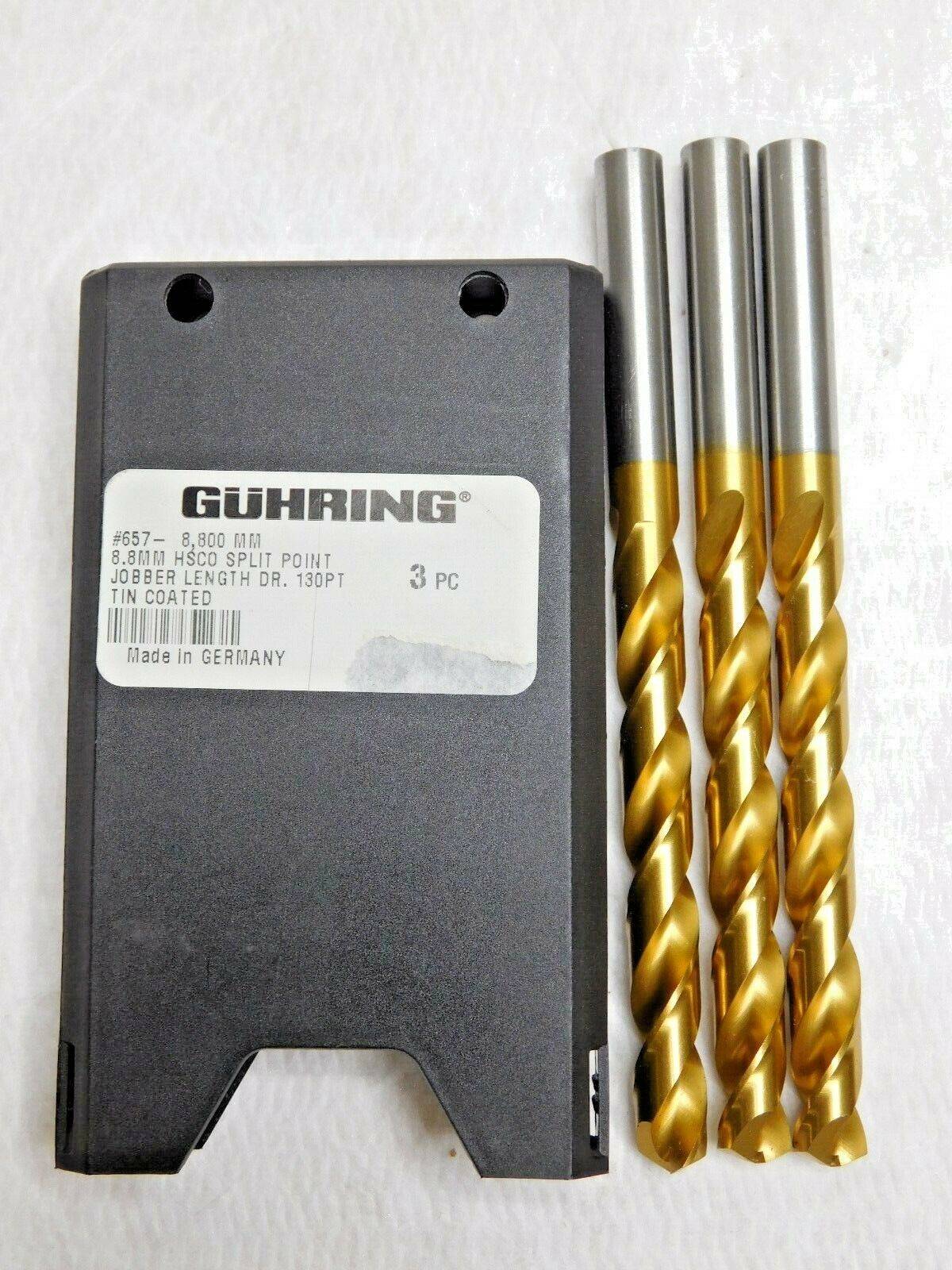

This listing is for One Lot of 3 Jobber Length Drills that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian July 15 19
VM5566
Cab Zeus Bin 8
COUNTRY/REGION OF MANUFACTURE: Germany
MPN: 9006570088000
BRAND: Guhring
LOCATION: VM5566cabzeusbin8
MSRP: $140
