Description
Greenfield Threading
MSRP: $245
Model: 308556
Description:
Tap Type Standard Hand Tap
Thread Size (Inch) 1-1/4 – 7
Class of Fit 3/3B
Thread Limit H4
Number of Flutes 4
Chamfer Plug
Material High Speed Steel
Finish/Coating Bright
Thread Direction Right Hand
Through Coolant NonThrough Coolant
Thread Standard UNC
Overall Length (Decimal Inch) 5.75000
Overall Length (Inch) 5-3/4
Overall Length (mm) 146.05
Oversize No
Series/List 3105
Thread Length (Decimal Inch) 2.5600
Thread Length (Inch) 2-9/16
Thread Length (mm) 65.09
Shank Diameter (Decimal Inch) 1.0210
Shank Diameter (mm) 25.93
Square Length (Inch) 1
Square Size (Decimal Inch) 0.7660
Square Size (mm) 19.46
Material Application Alloy Steel; Aluminum Alloys; Carbon Steel; Cast Iron; Copper Alloys; Graphites & Carbons; High Temperature Alloys; Magnesium; Plastics; Stainless Steel; Titanium; Tool Steel; Zinc Alloys

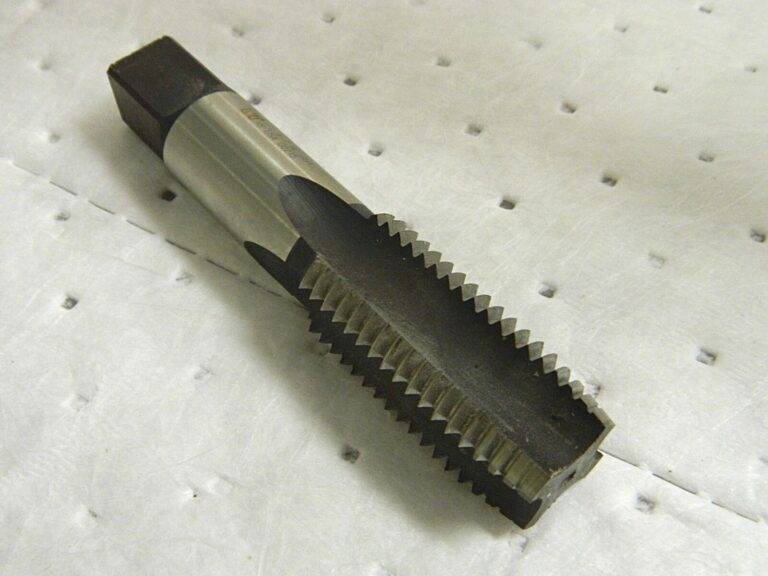

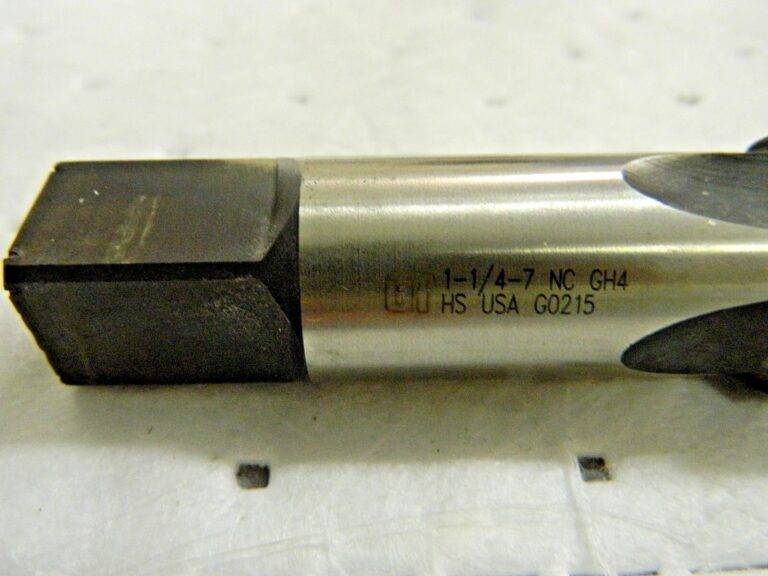

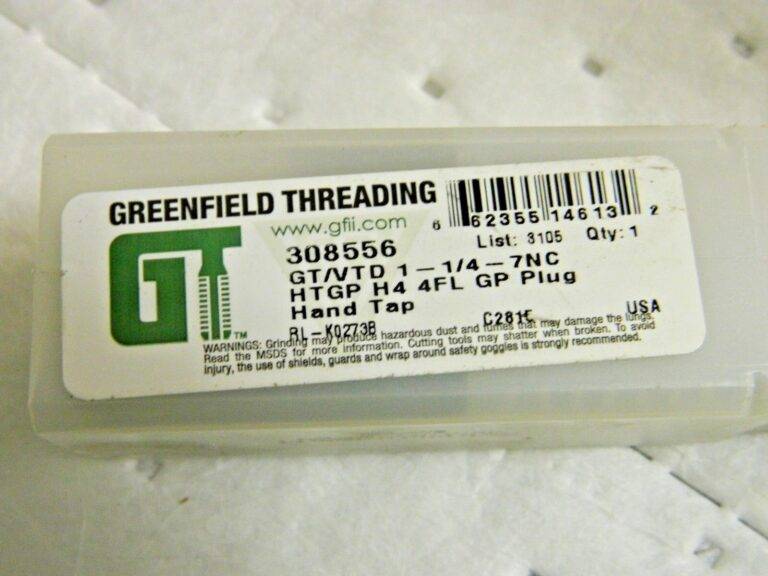

This listing is for One Standard Hand Tap that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian August 2818
VM3822
Cab Zola Bin 9
INCLUDED ATTACHMENTS: Does Not Apply
LOCATION: VM3822cabzolabin9
MPN: 308556
MSRP: $245
COUNTRY/REGION OF MANUFACTURE: United States
MODEL: 308556
TOOL TYPE: Standard Pipe Tap
BRAND: Greenfield Threading
THREAD STANDARD: UNC
