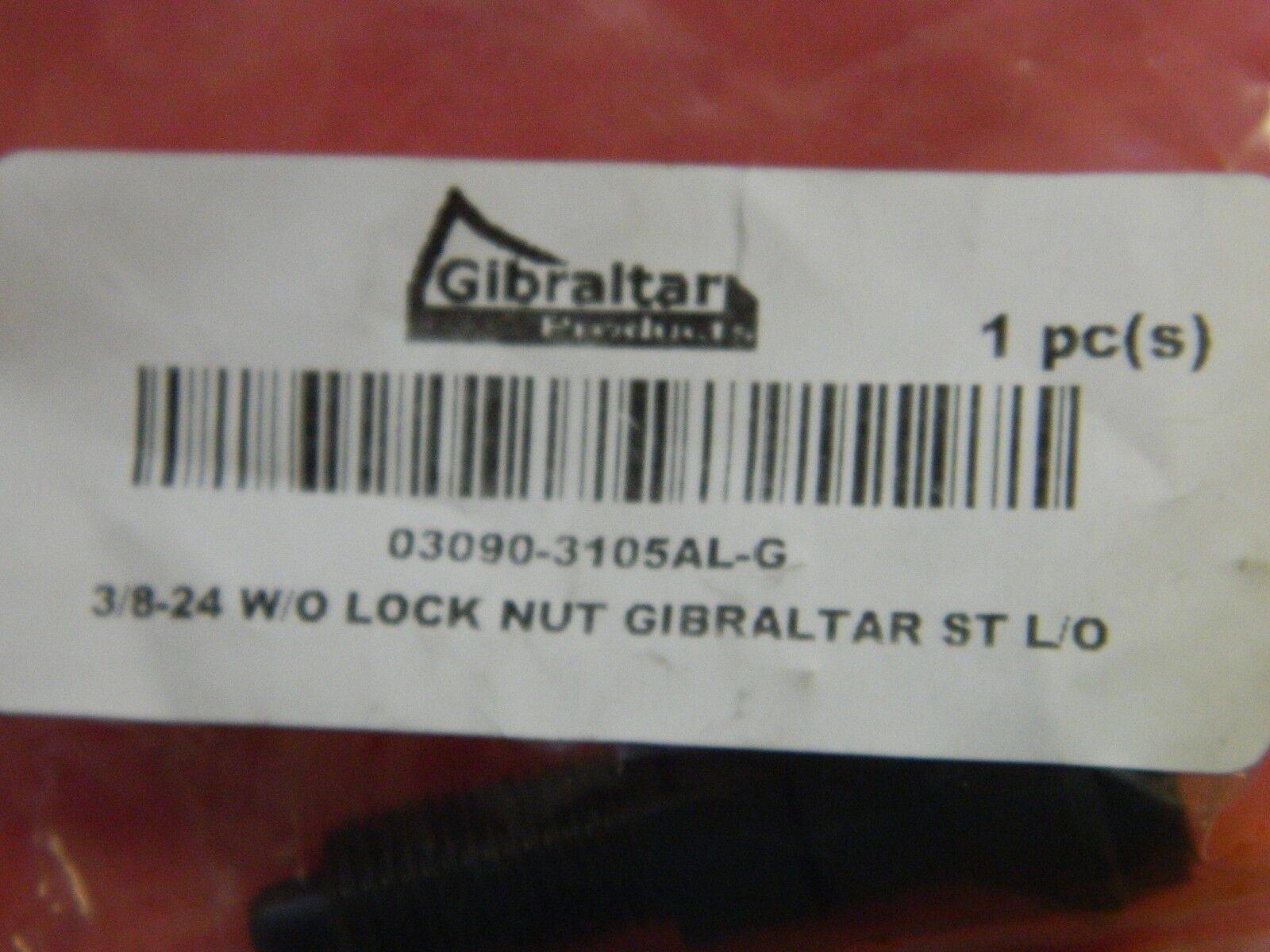

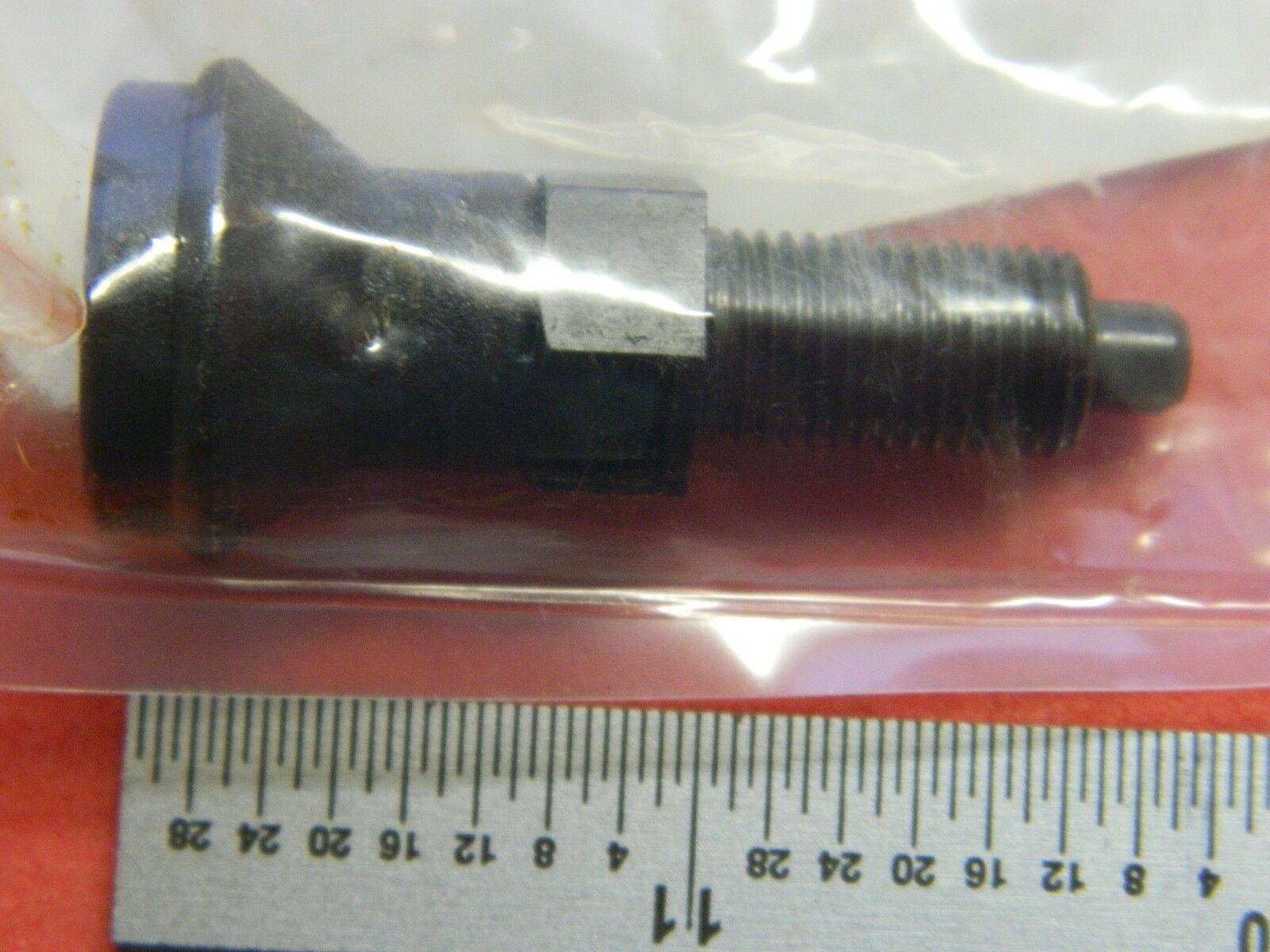

Gibraltar 03090-3105Al-G 3/8″ – 24 Knob-Handle Indexing Plungers Thread Qty 2

MSRP: $50.00

Description:

Thread Size 3/8-24

Thread Length (mm) 15.00

Thread Length (Decimal Inch) 0.5906

Plunger Diameter (mm) 5.00

Plunger Diameter (Decimal Inch) 0.1969

Body Length (mm) 17.00

Body Length (Decimal Inch) 0.6693

Plunger Type Lockout

Indexing Plunger Style Code C

Lock Nut (Yes/No) No

Plunger Projection (mm) 5.00

Plunger Projection (Decimal Inch) 0.1969

Initial End Force (N) 5.00

Final End Force (N) 12.00

Knob Diameter (mm) 21.00

Knob Diameter (Decimal Inch) 0.8268

Distance Across Nut Flats (mm) 13.00

Distance Across Nut Flats (Decimal Inch) 0.5118

Nut Height (mm) 7.00

Nut Height (Decimal Inch) 0.2756

Overall Length (mm) 47.00

Overall Length (Decimal Inch) 1.8504

Tolerance (Decimal Inch) -0.0010

Material Steel

Finish/Coating Black Oxide

This listing is for One Lot of 2  that is in the picture as well as described. Please ask any questions prior to buying!
