Description
FYH
MSRP: $45
Model: 69973022
Description:
Type Pillow Block
Inside Diameter (Decimal Inch) 1.5000
Inside Diameter (Inch) 1-1/2
Width (Decimal Inch) 2.1250
Overall Length (Inch) 7-1/4
Overall Length (Decimal Inch) 7.2500
Overall Height (Inch) 3-31/32
Overall Height (Decimal Inch) 3.9688
Static Load Capacity (Pounds) 4001.00
Dynamic Load Capacity (Pounds) 6541
Distance Between Mounting Hole Centers (Decimal Inch) 5.4063
Distance Between Mounting Hole Centers (Inch) 5-13/32
Material Thermoplastic Housing with Zinc Chromate Plated Bearing Insert
Distance Between Base And Center (Decimal Inch) 1.9375
Distance Between Base And Center (Inch) 1-15/16
Lock Type Set Screw
Bolt Size (Inch) 1/2
Bolt Size (Decimal Inch) 0.5000

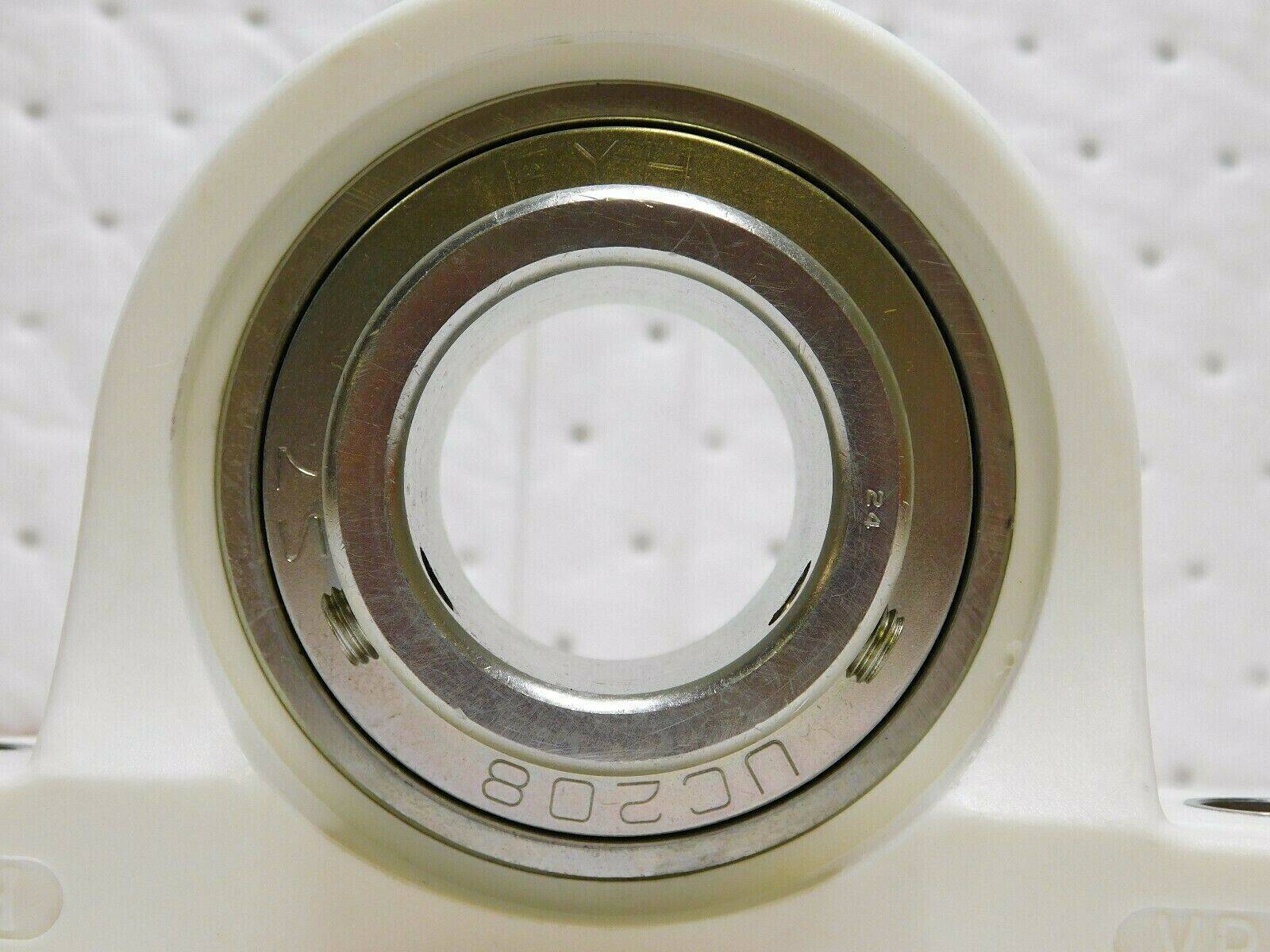

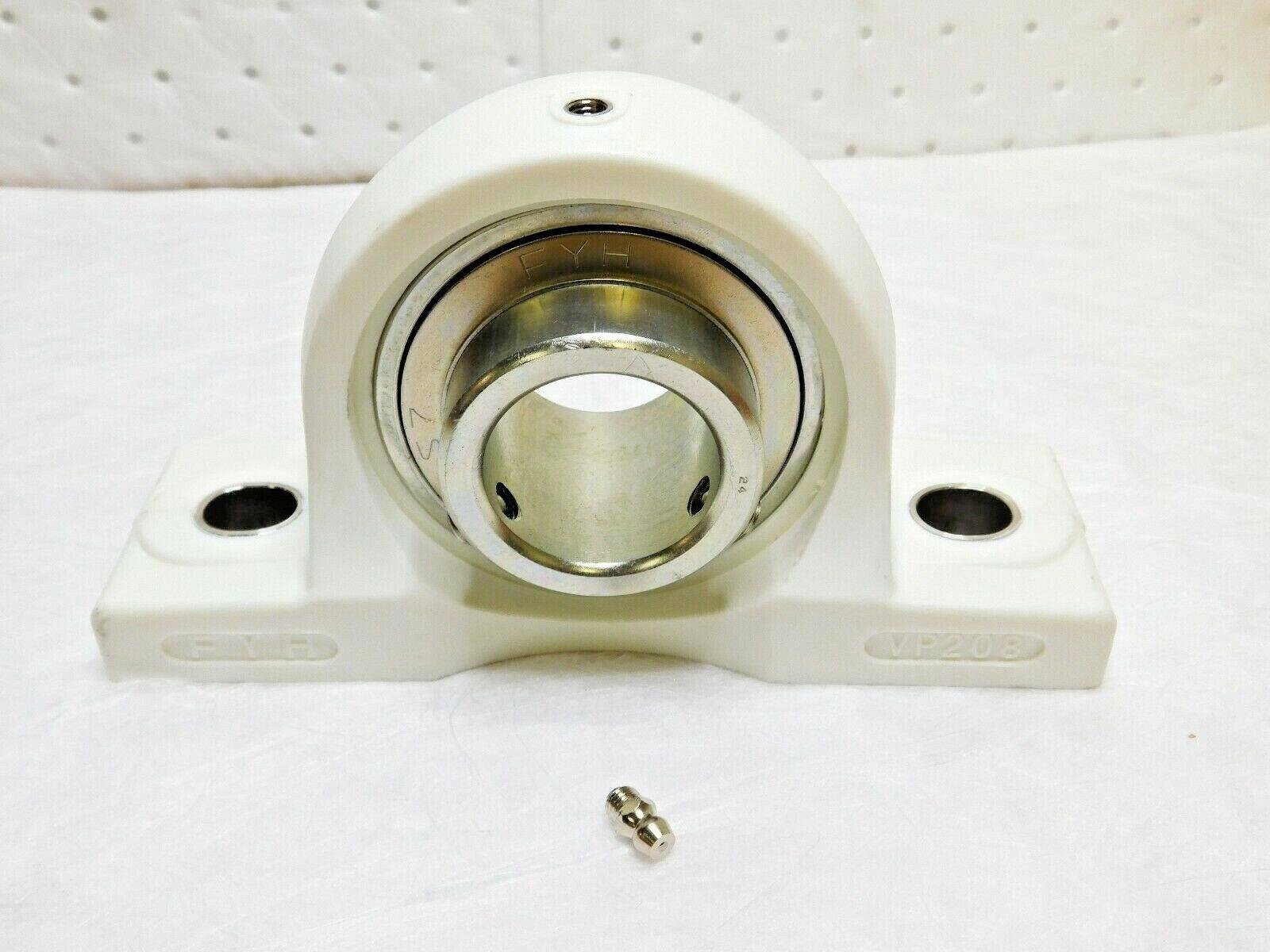

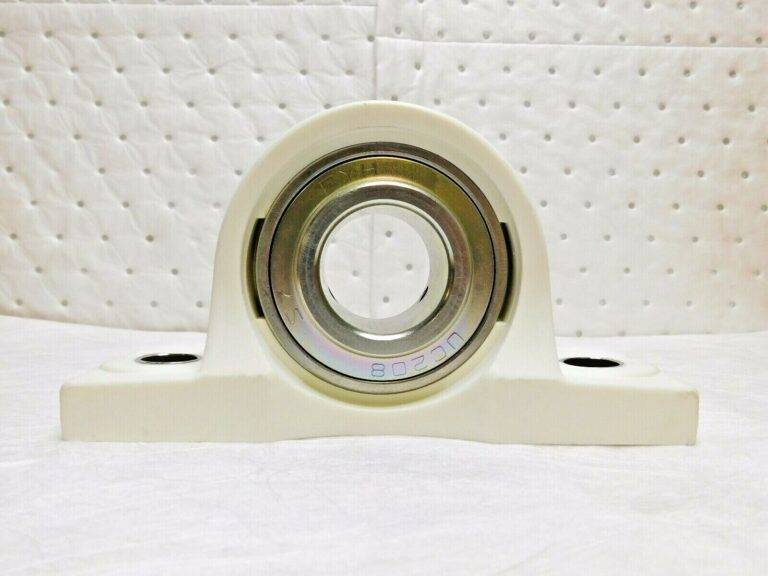

This listing is for One Pillow Block that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Vivian January 20 2021
VM7617
Pallet 11 G
MODEL: 69973022
COUNTRY/REGION OF MANUFACTURE: Unknown
BEARING & BUSHING PART TYPE: Pillow Block
MPN: Does Not Apply
BRAND: FYH
LOCATION: VM7617pallet11g
MSRP: $45
