Fullerton Tool
5/8″x5/8″x3/4″x3-1/2″ Solid Carbide Radius End Mill 36214
MSRP: $130
- Cutting Diameter (Decimal Inch) 0.6250″
- Cutting Diameter (mm) 15.88mm
- Cutting Diameter (Inch) 5/8″
- Cutting Flute Length (Decimal Inch) 0.7500″
- Cutting Flute Length (mm) 19.05mm
- Cutting Flute Length (Inch) 3/4″
- Shank Diameter (Decimal Inch) 0.6250″
- Shank Diameter (mm) 15.88mm
- Shank Diameter (Inch) 5/8″
- Overall Length (Decimal Inch) 3.5000″
- Overall Length (mm) 88.90mm
- Overall Length (Inch) 3-1/2″
- Coating/Finish FC20
- Metric/Inch Inch
- Number of Flutes 9
- Helix Angle (Degrees) Variable
- Flute Spiral Direction Right Hand
- Direction of Cut Right Hand
- Point End Type Corner Radius
- End Type Character Designation R
- Radius (Decimal Inch) 0.0300″
- Radius (mm) 0.76mm
- End Type Single End
- Coolant Through Non Coolant Through
- Weldon Flat No
- Length Stub
- Length Designator STB
It produces excellent surface finishes and chip control and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium
The 3600 Force is stocked with FC-20 coating

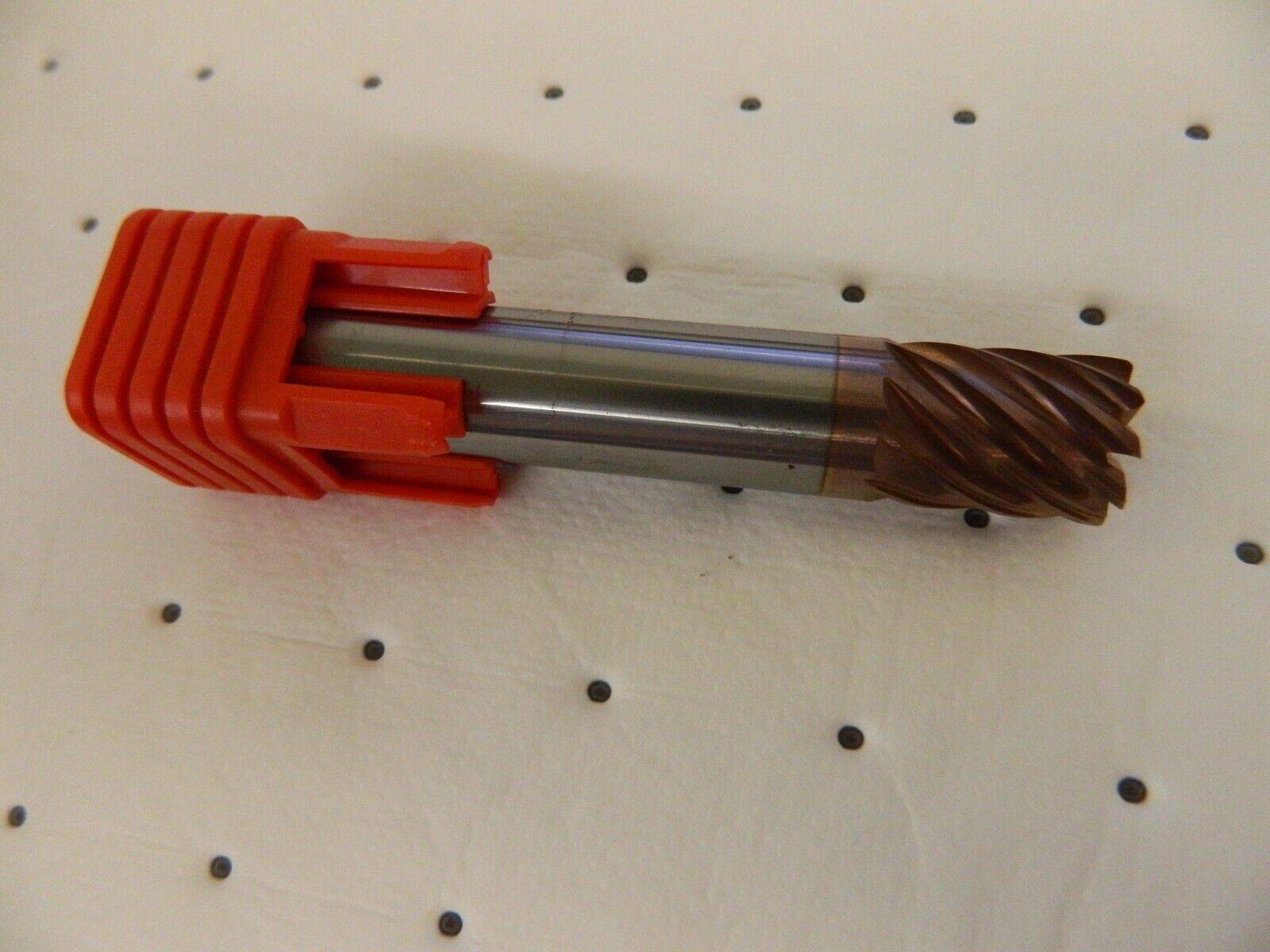

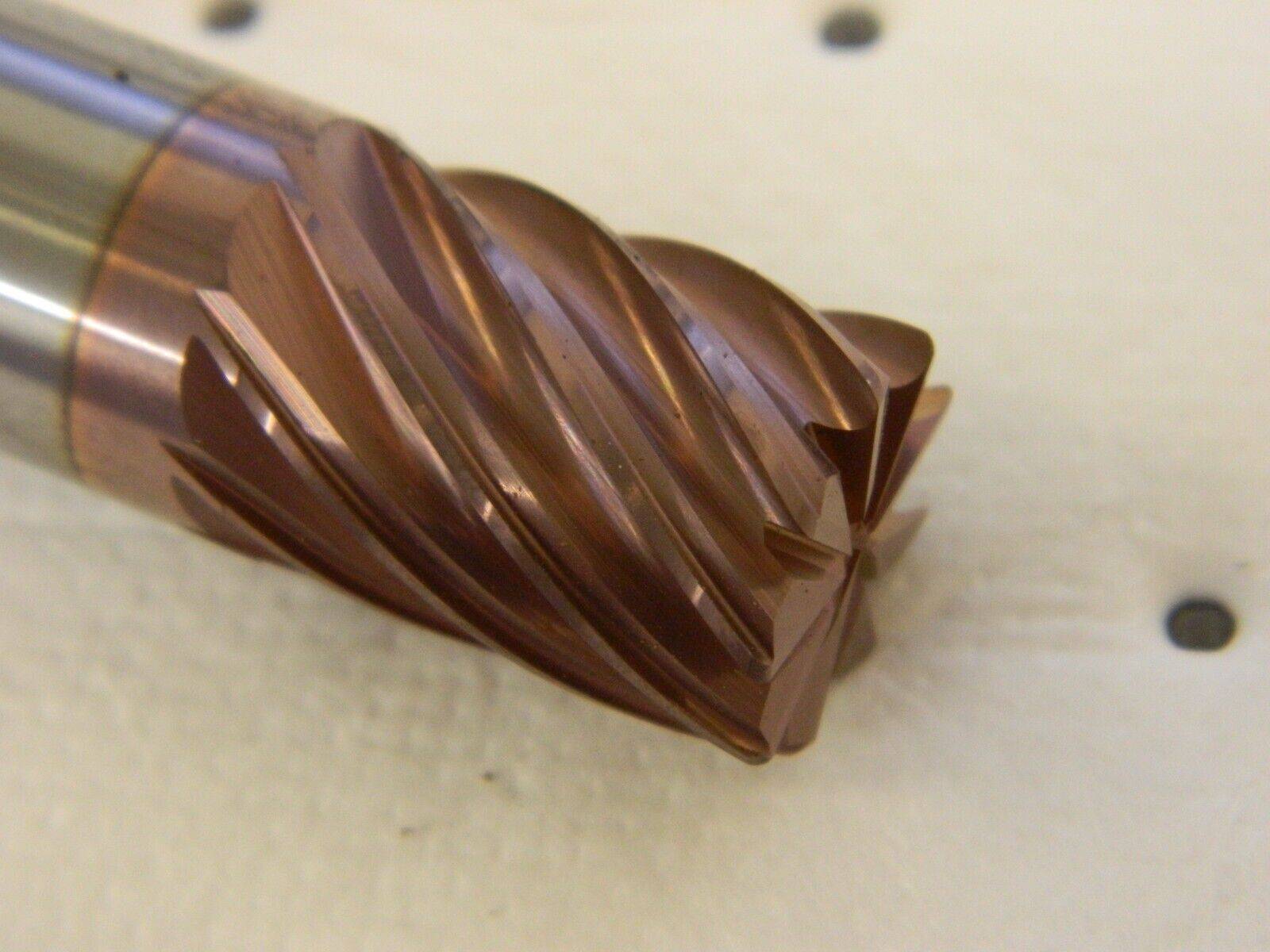

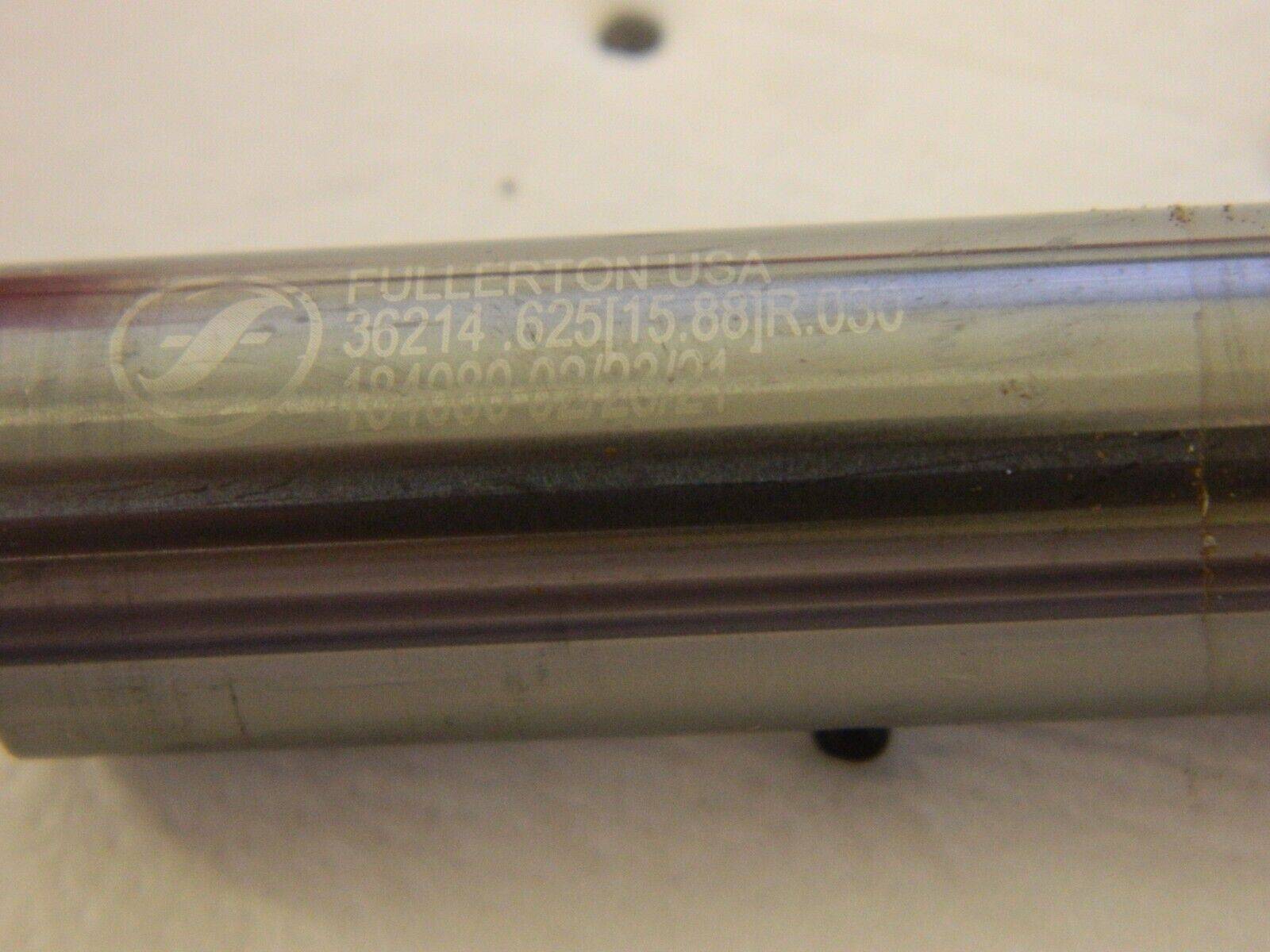

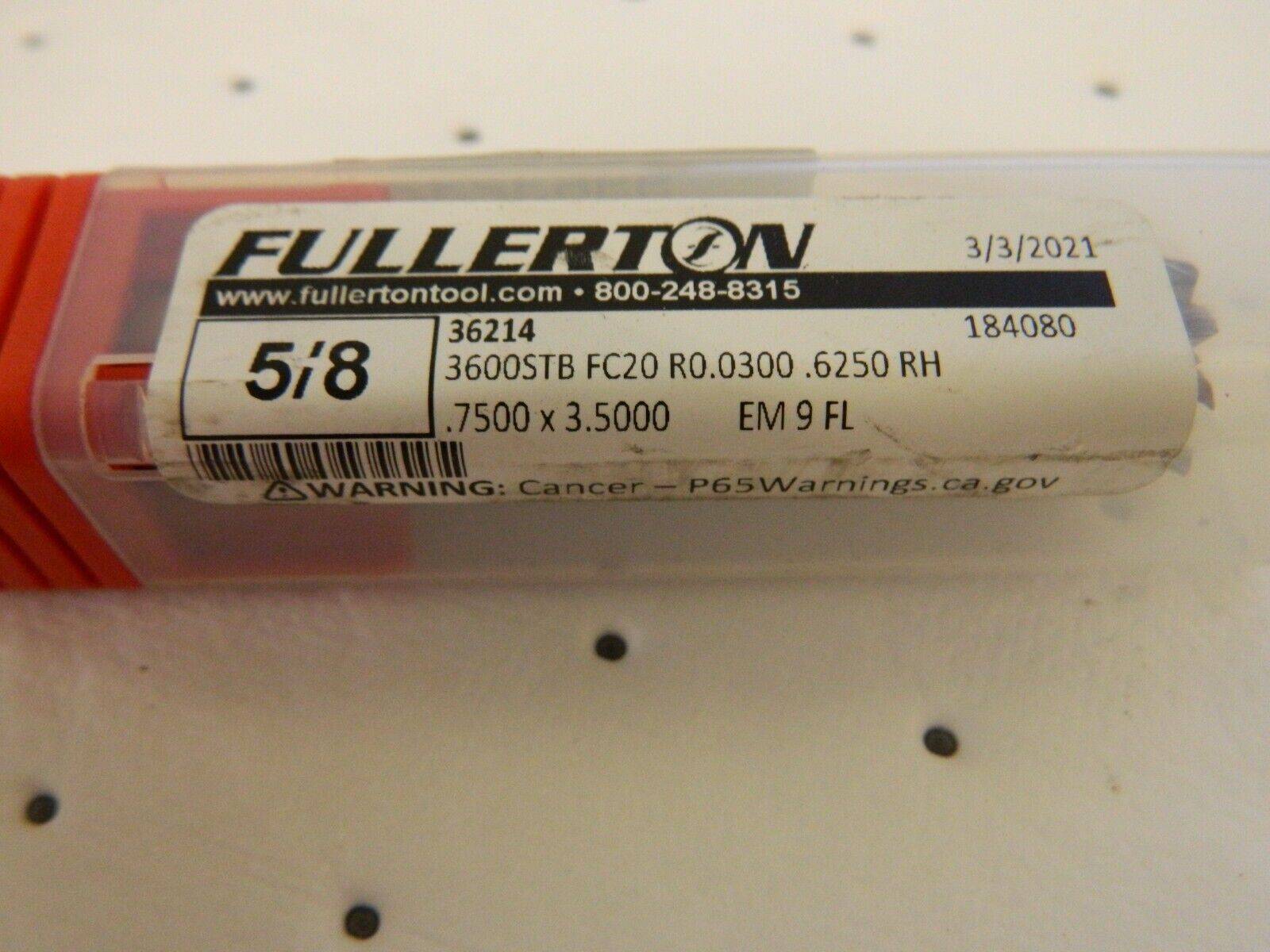

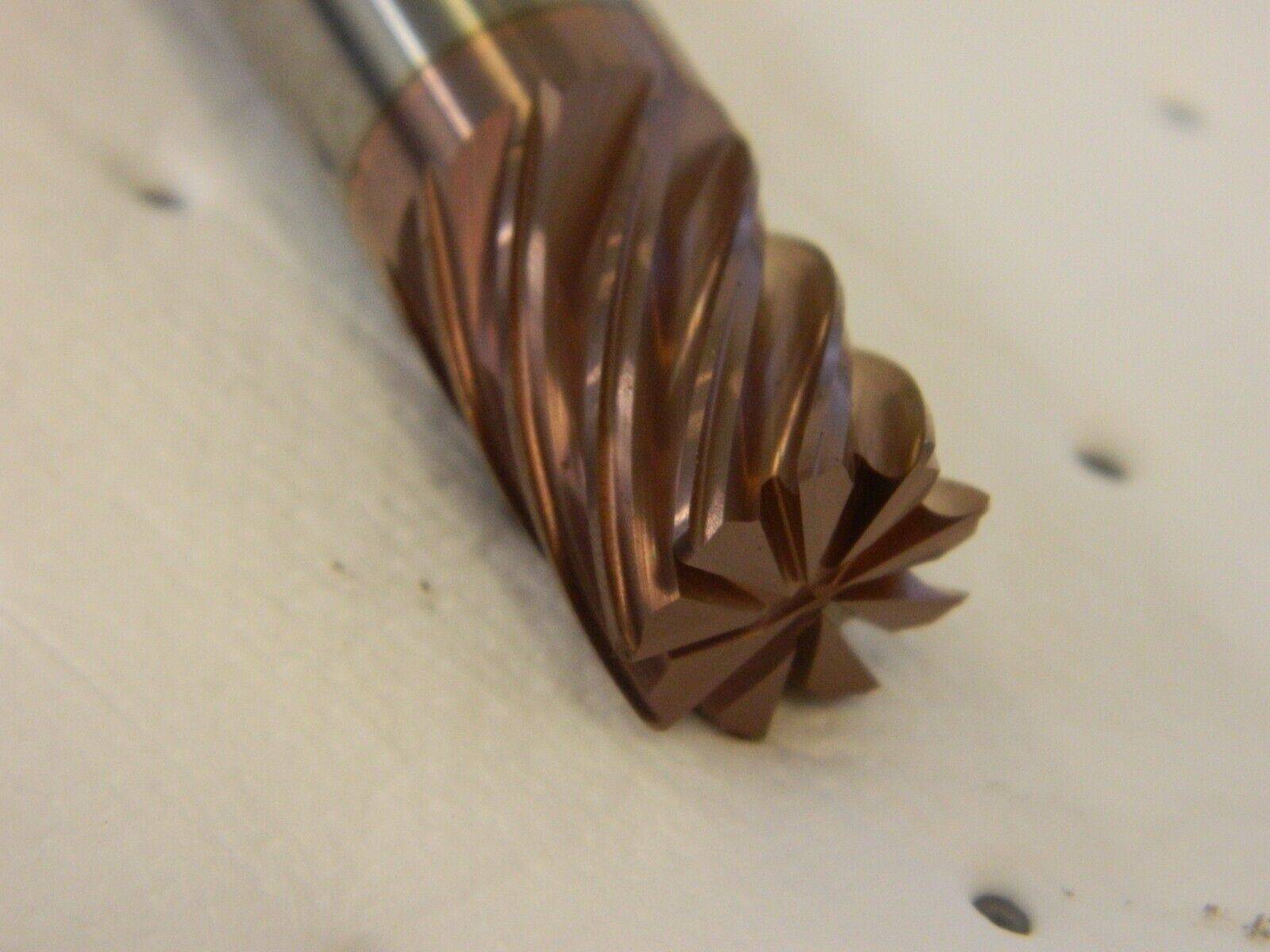

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Apr 18 23
HS1812
WHSE1
MATERIAL: Solid Carbide
MPN: 36214
MSRP: $130
