Description

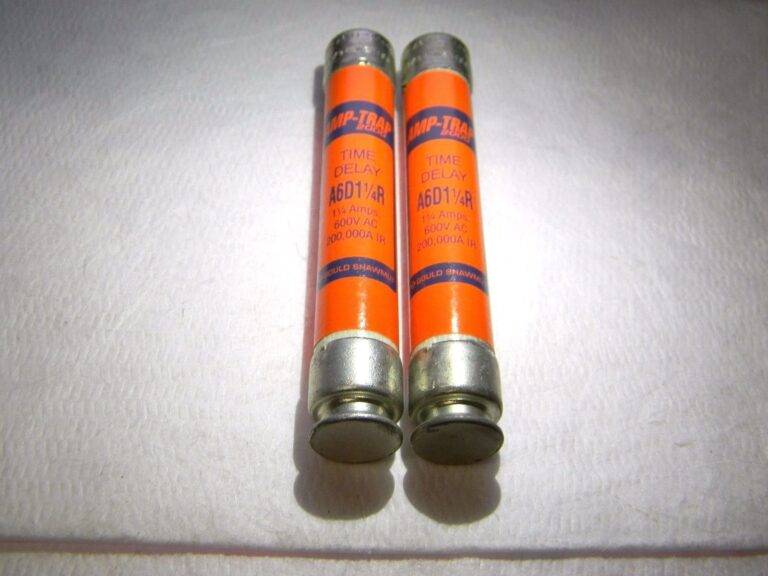

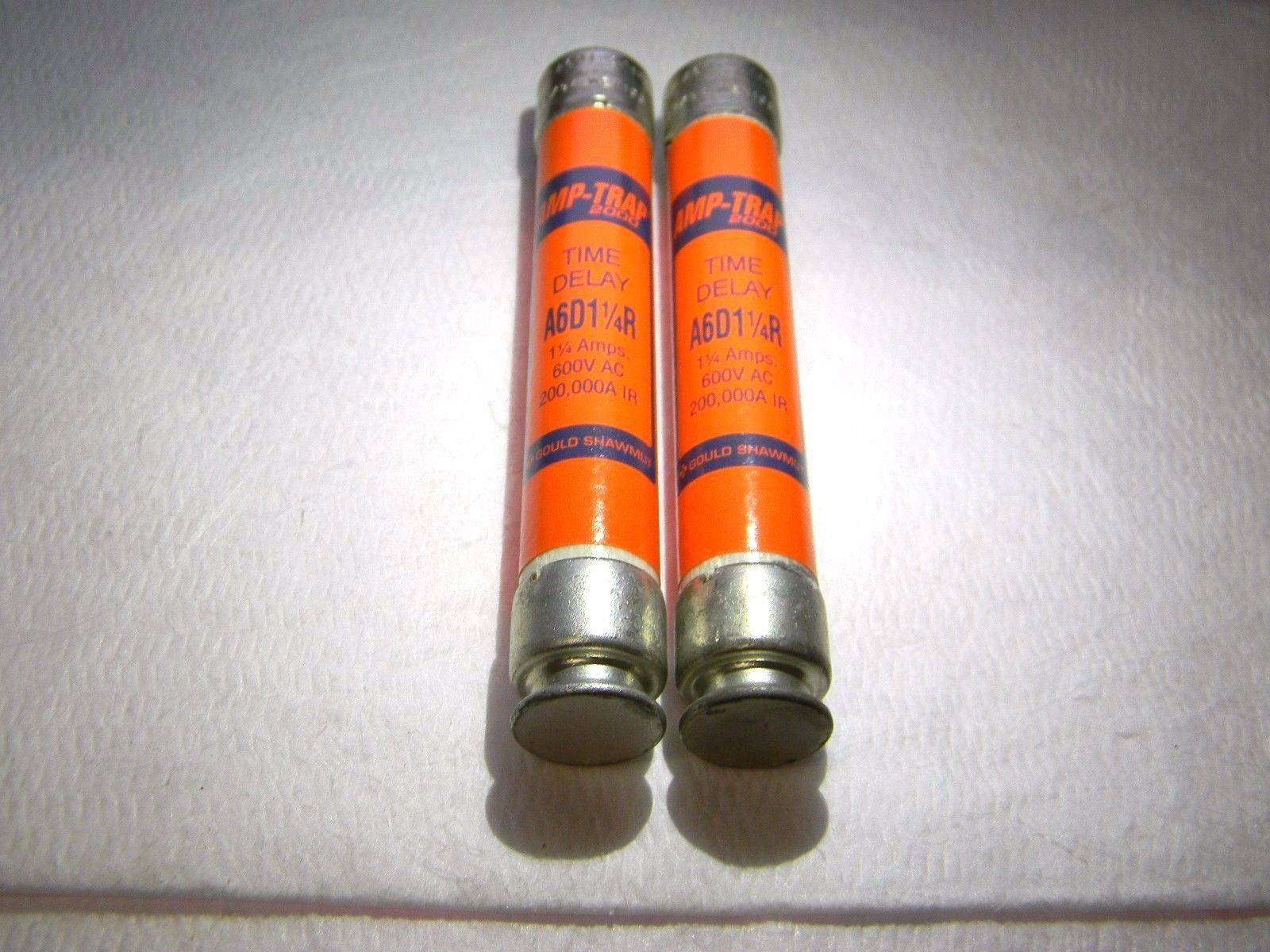

Ferraz Shawmut General Purpose Fuses 600VAC/VDC 1.25A Qty. 2 #A6D1-1/4R
Ferraz Shawmut
Model: A6D1-1/4R
Fuse Type: General Purpose
Fuse Class: RK1
Amperage: 1.25
Voltage: 600 VAC/VDC
Fuse Timing: Time Delay
Fuse Body Type: Cylindrical
Overall Length (Decimal Inch): 5.0000
Material: Fiberglass; Polyester
Mounting Type: Clip
Indicating Information: Indicating
Rejection Setting: Rejecting
Interrupting Rating (kA): 100 @ DC; 200 @ AC
Overall Diameter (mm): 21.00
Overall Diameter (Inch): 13/16
Overall Diameter (Decimal Inch): 0.8100
Overall Length (mm): 127
Standards Met: CSA C22.2 No. 248.12 Certified; UL 248; UL Listed 248-12 File E2137
Fuse Class: RK1
Amperage: 1.25
Voltage: 600 VAC/VDC
Fuse Timing: Time Delay
Fuse Body Type: Cylindrical
Overall Length (Decimal Inch): 5.0000
Material: Fiberglass; Polyester
Mounting Type: Clip
Indicating Information: Indicating
Rejection Setting: Rejecting
Interrupting Rating (kA): 100 @ DC; 200 @ AC
Overall Diameter (mm): 21.00
Overall Diameter (Inch): 13/16
Overall Diameter (Decimal Inch): 0.8100
Overall Length (mm): 127
Standards Met: CSA C22.2 No. 248.12 Certified; UL 248; UL Listed 248-12 File E2137
Modified By Kimmy 12/10/2018
BRAND: Ferraz Shawmut
COUNTRY/REGION OF MANUFACTURE: Mexico
MPN: Does Not Apply
TYPE: Fuses
MSRP: 60.00
LOCATION: Cab Dustin Bin 4
AC VOLTAGE RATING: 1.25A
DC VOLTAGE RATING: 600V
