Description
Erickson
Collet Chuck
MSRP: $125.00
- Collet System ER
- Collet Series ER32
- Shank Type Taper
- Taper Size CAT40
- Projection (Decimal Inch) 2.7500
- Projection (Inch) 2-3/4
- Through Coolant Yes
- Minimum Collet Capacity (mm) 2.03
- Minimum Collet Capacity (Decimal Inch) 0.0800
- Maximum Collet Capacity (mm) 20.00
- Maximum Collet Capacity (Decimal Inch) 0.7874
- Overall Length (Decimal Inch) 5.4370
- Actuator Type Wrench
- Nose Diameter (Decimal Inch – 4 Decimals) 1.9700
- Coolant Type Through-Spindle & DIN Flange
- Collet Nut Diameter (mm) 50.01
- Collet Nut Diameter (Decimal Inch) 1.9690
- Product Service Code 5136
- Balanced To Rpm 12000
This item appears to be new and in great condition. SOLD AS IS.

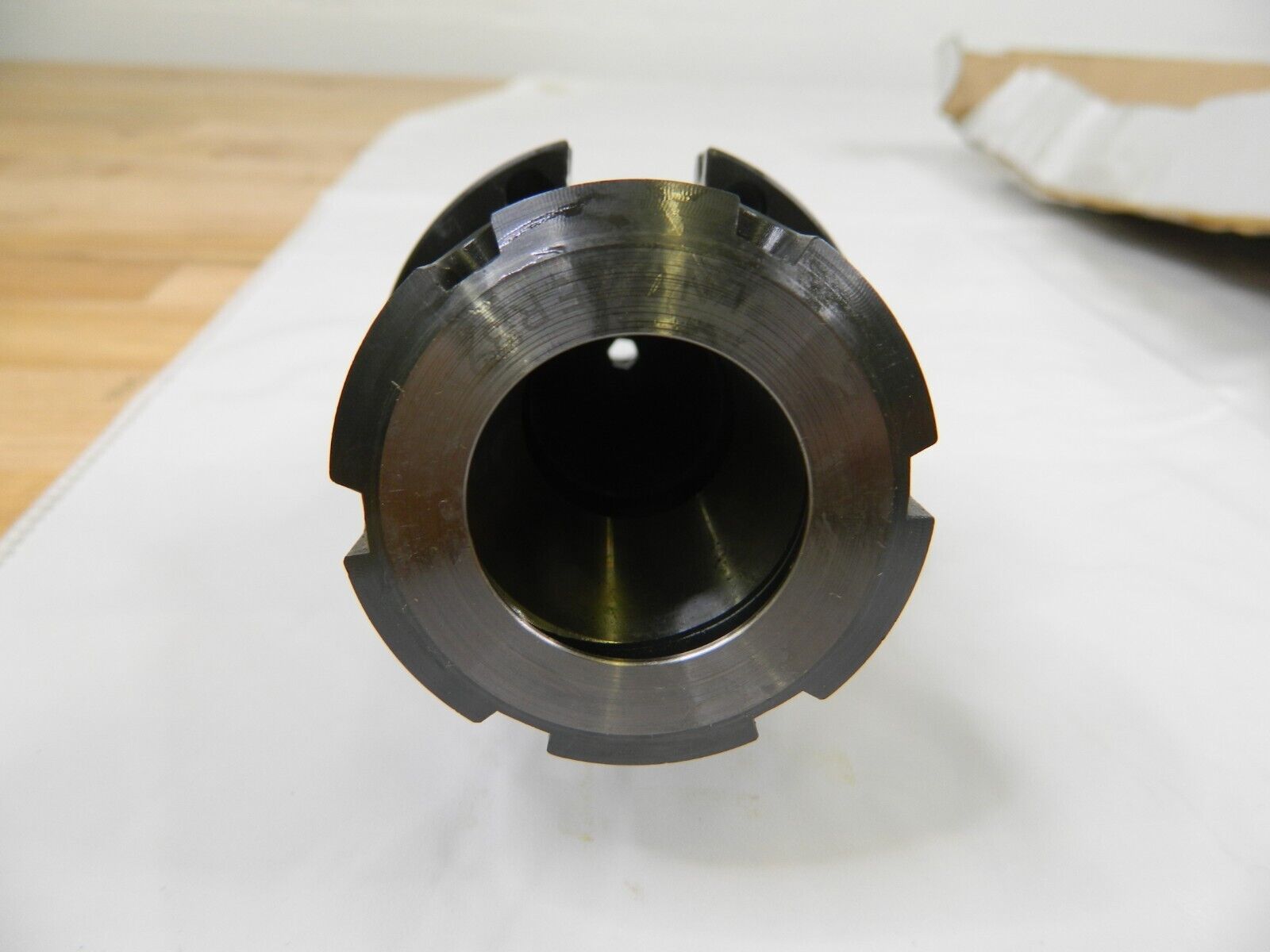

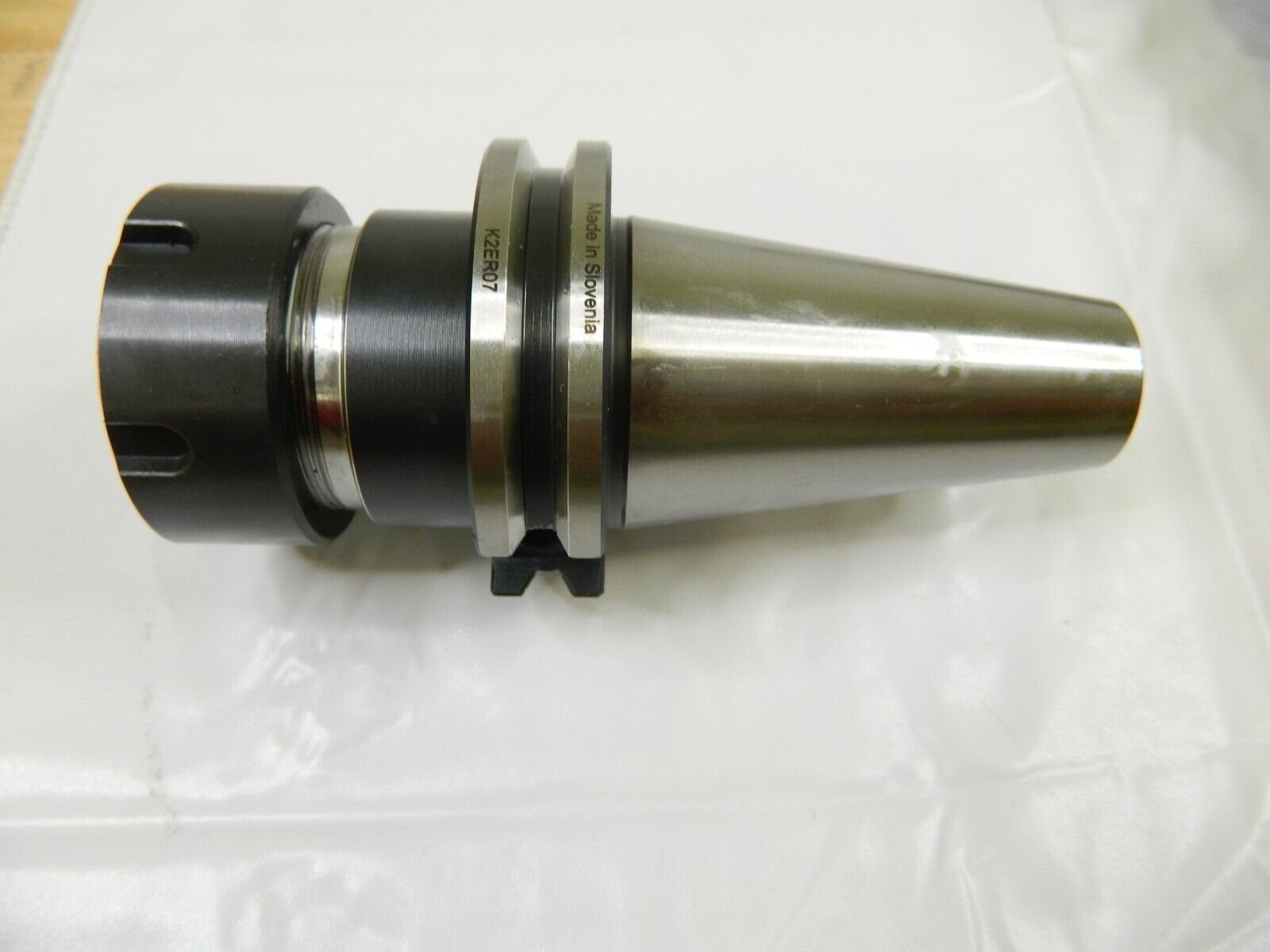

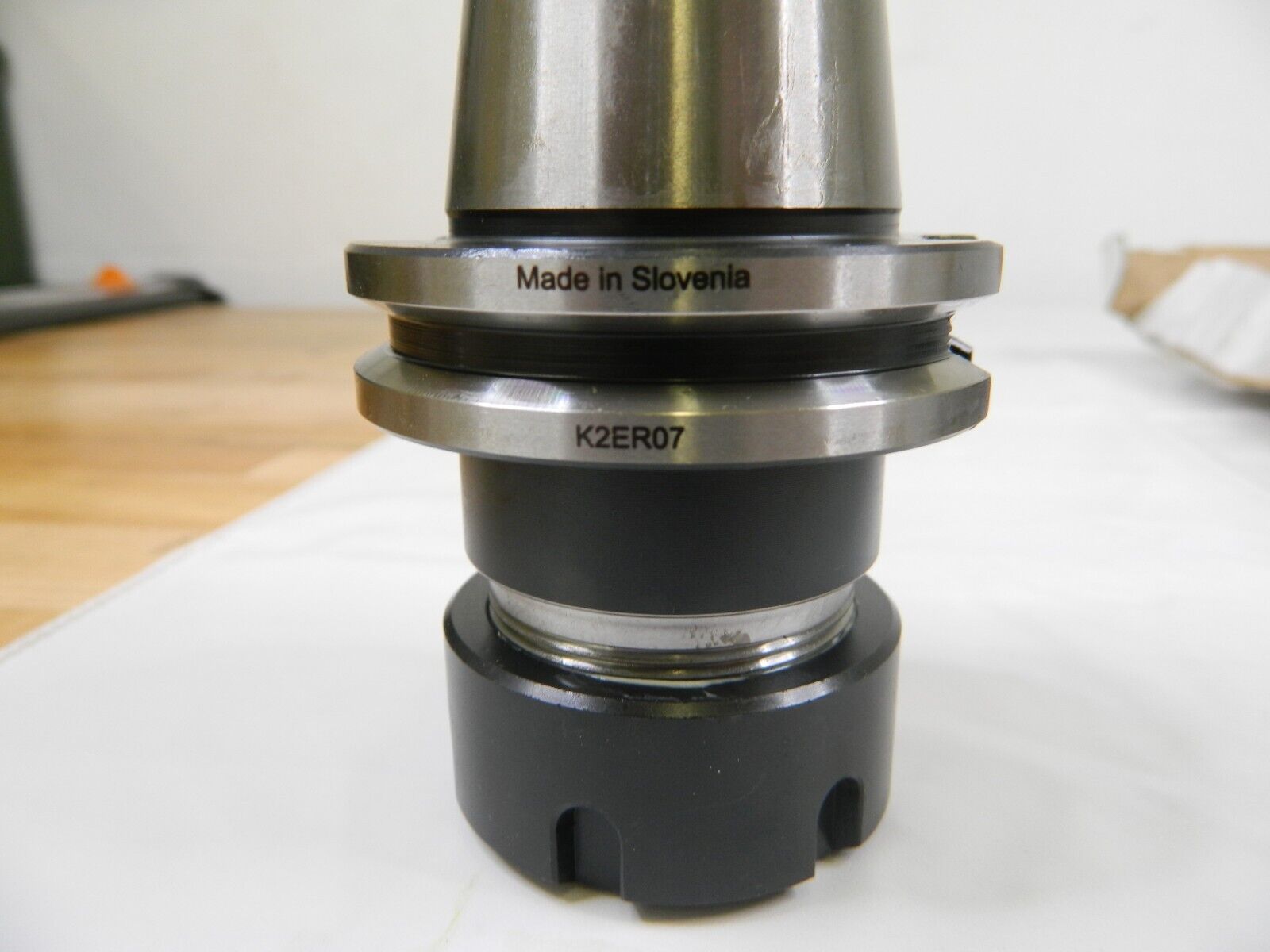

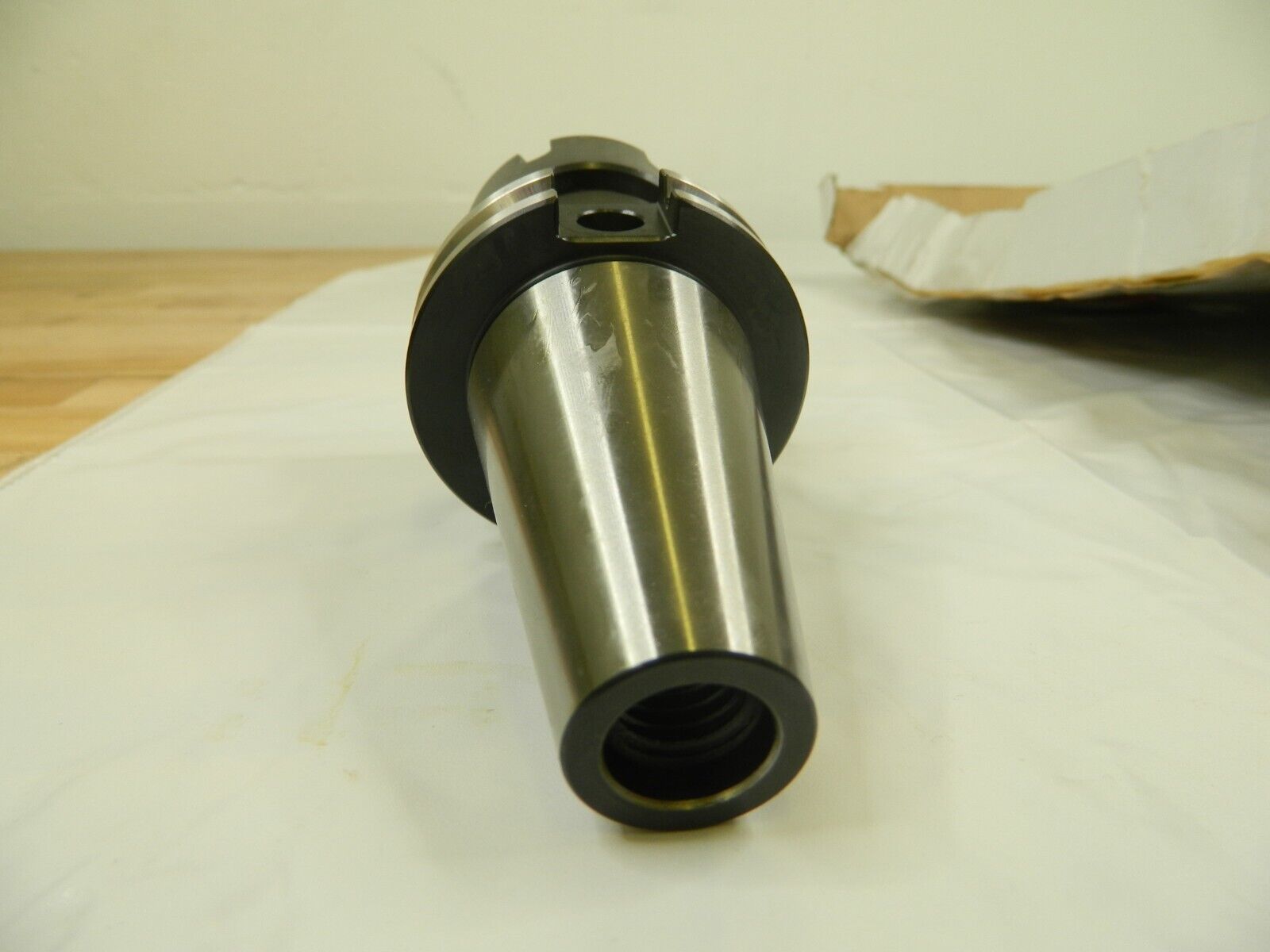

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 04 2025
TB 18946
Cab Bay Bin 15
MSRP: $125.00
BRAND: Erickson
COLLET CHUCK TYPE: N/A
UNIT TYPE: Unit
MODEL: 1261619
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Slovenia
SHANK TYPE: Taper Shank
UNIT QUANTITY: N/A
LOCATION: TB18946CabBayBin15
