Description
ENCO
9″x49″ Knee Milling Machine *Repair / Parts / Missing Motor*
- Minimum Spindle to Column Distance: 7 in
- Minimum Spindle to Table Distance: 2 in
- Maximum Spindle to Table Distance: 16 in
- Minimum Spindle Speed: 65 RPM
- Maximum Spindle Speed: 4500 RPM
- Table Width: 9 in
- Table Length: 49 in
- Forward Head Tilt: 45 Deg
- Backward Head Tilt: 45 Deg
- Left-hand Head Tilt: 90 Deg
- Right-hand Head Tilt: 90 Deg
- Cross Travel: 12.0 in
- Longitudinal Travel: 33 in
- Knee Travel: 14.0 in
- Quill Diameter: 3.375 in
- Horsepower: 3 HP *Missing Motor*
- Voltage Requirements: 220V / 440V 3ph
- Table Load Capacity: 552 LBS
- Ram Turret Swivel: 360 Deg
- Ram Travel Length: 12 in
- Spindle Speed Control: Variable Speed Pulley
- Spindle Taper Size: R8
- Spindle Travel Length: 5 in
- Number Of T-slots: 3
- Overall Height: 79 in
- Overall Length: 65 in
- Overall Depth: 55 in
- Maximum Spindle To Column Distance (Inch): 19
- Minimum Spindle to Column Distance: 7 in
- Minimum Spindle to Table Distance: 2 in
- Maximum Spindle to Table Distance: 16 in
- Minimum Spindle Speed: 65 RPM
- Maximum Spindle Speed: 4500 RPM
- Table Width: 9 in
- Table Length: 49 in
- Forward Head Tilt: 45 Deg
- Backward Head Tilt: 45 Deg
- Left-hand Head Tilt: 90 Deg
- Right-hand Head Tilt: 90 Deg
- Cross Travel: 12.0 in
- Longitudinal Travel: 33 in
- Knee Travel: 14.0 in
- Quill Diameter: 3.375 in
- Horsepower: 3 HP *Missing Motor*
- Voltage Requirements: 220V / 440V 3ph
- Table Load Capacity: 552 LBS
- Ram Turret Swivel: 360 Deg
- Ram Travel Length: 12 in
- Spindle Speed Control: Variable Speed Pulley
- Spindle Taper Size: R8
- Spindle Travel Length: 5 in
- Number Of T-slots: 3
- Overall Height: 79 in
- Overall Length: 65 in
- Overall Depth: 55 in
- Maximum Spindle To Column Distance (Inch): 19
MSRP $15,000.00
*For Repair or Parts, Missing Motor & Pulley*

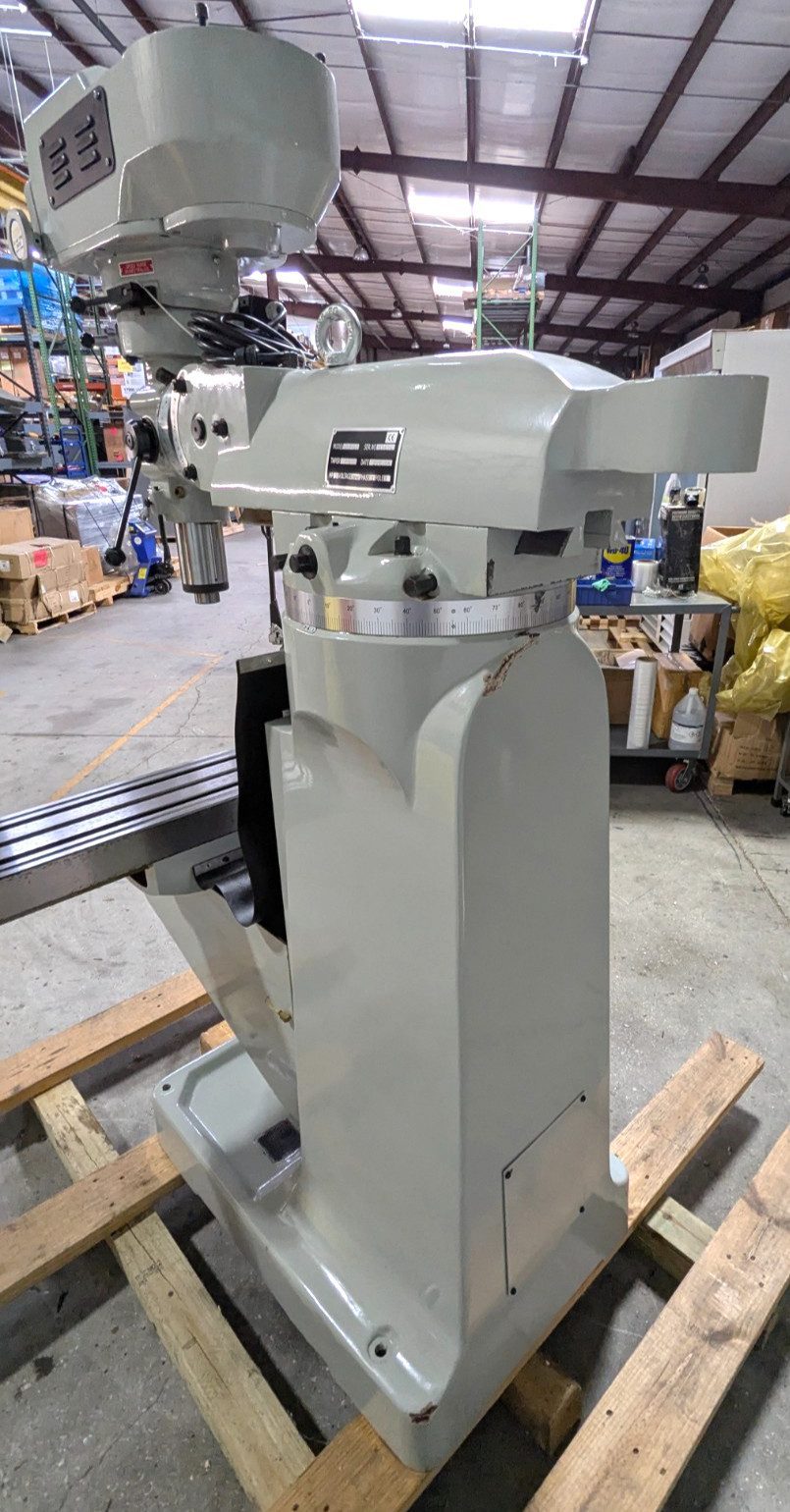

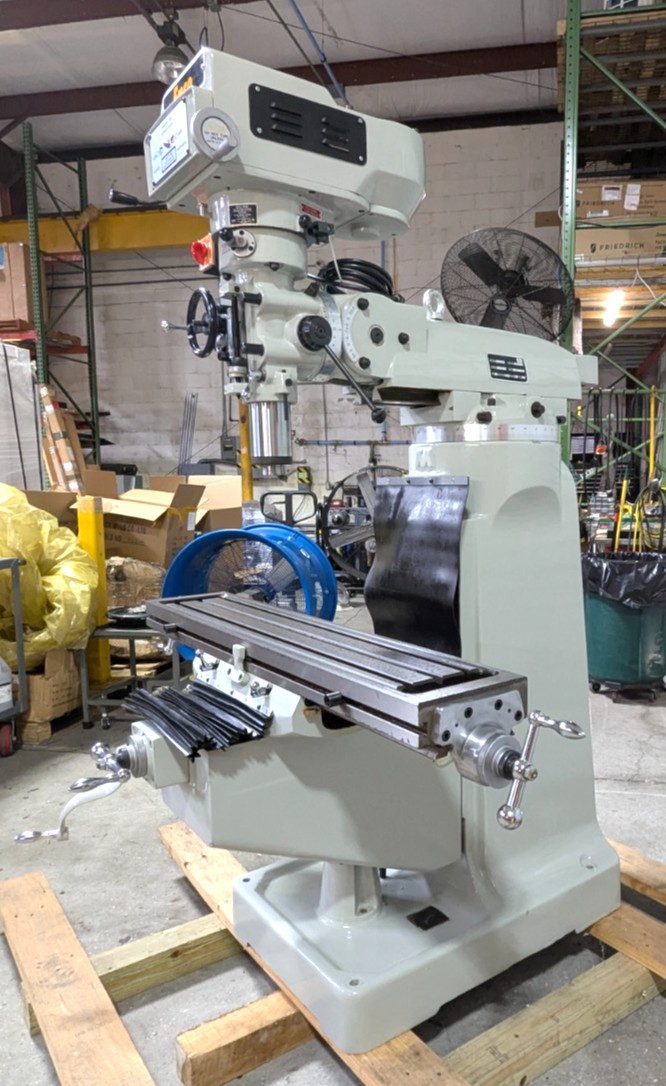

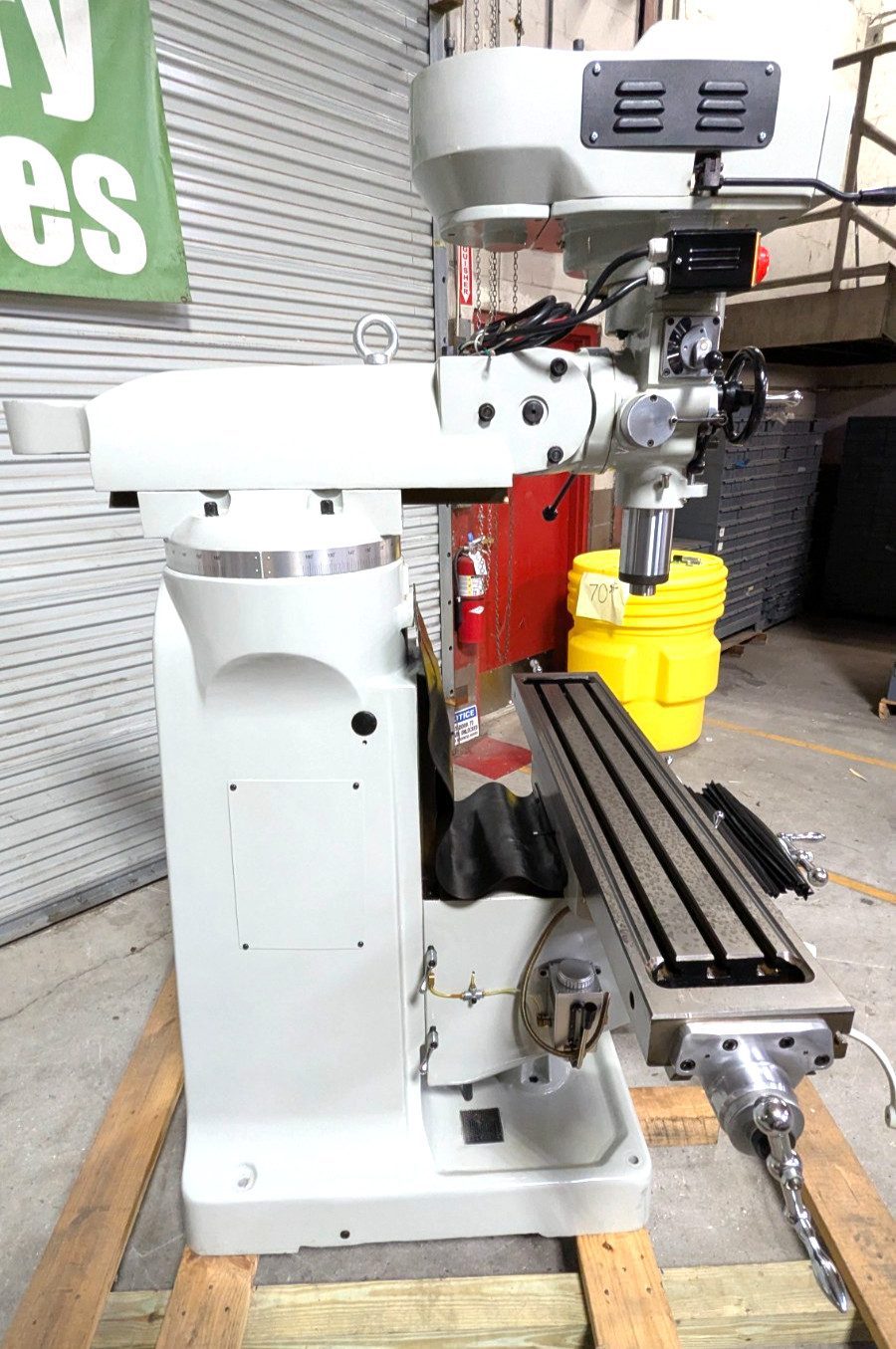

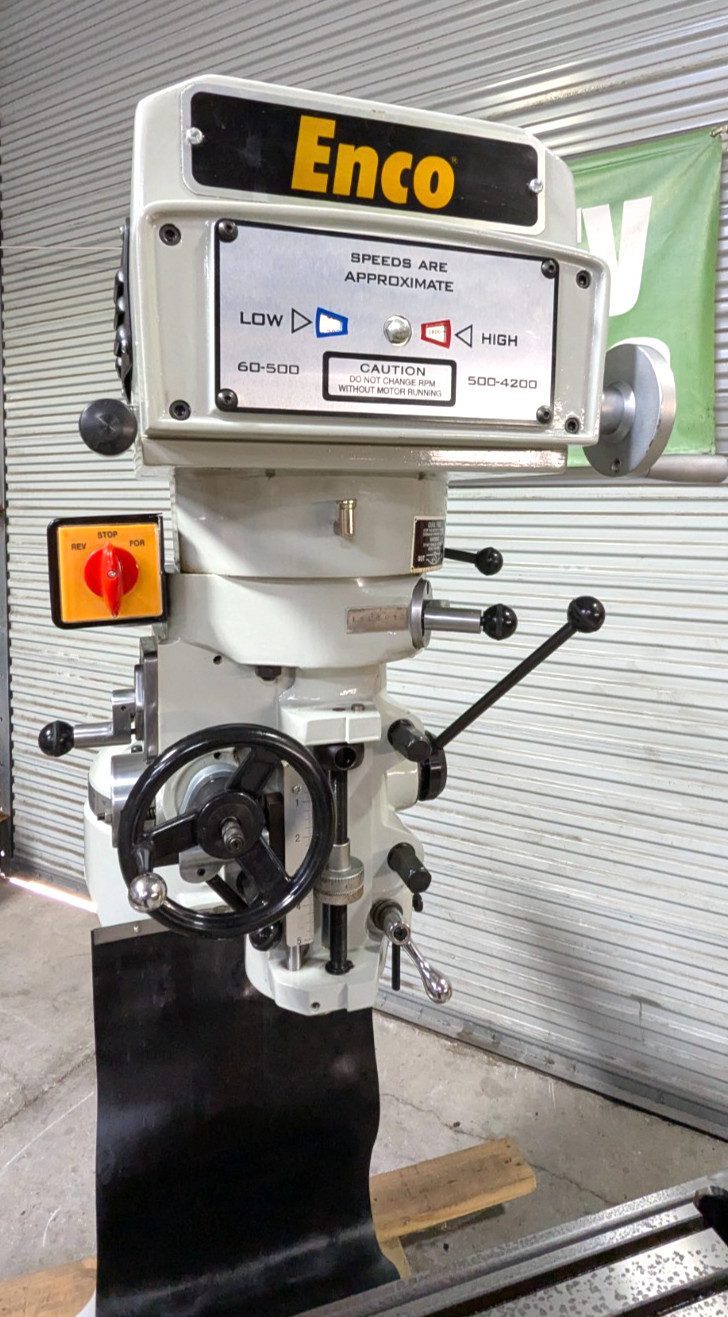

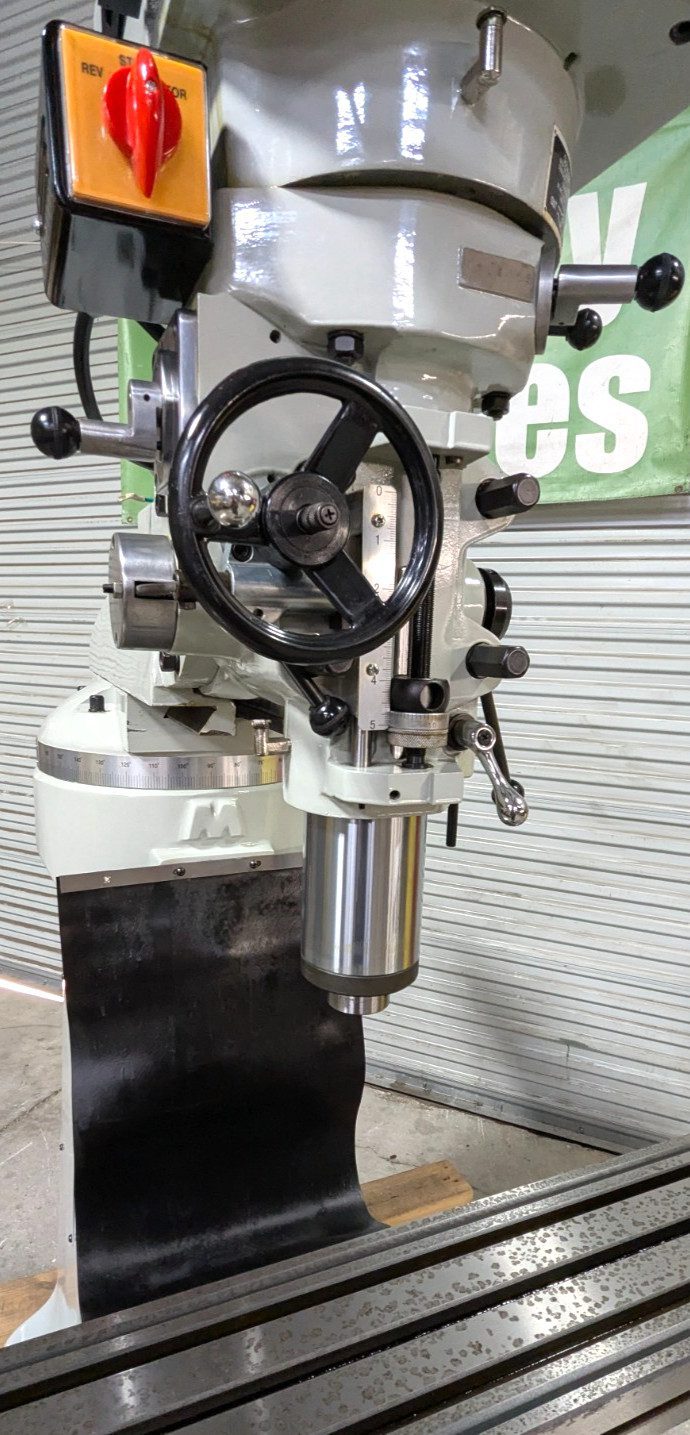

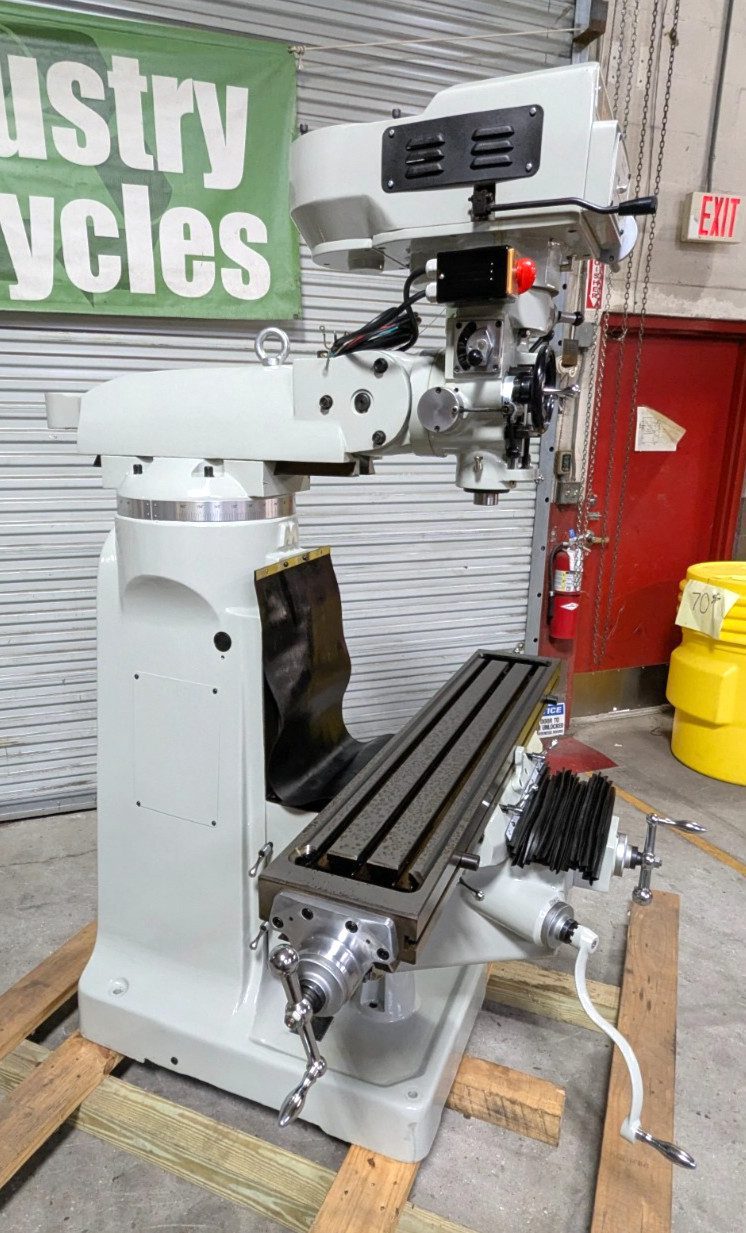

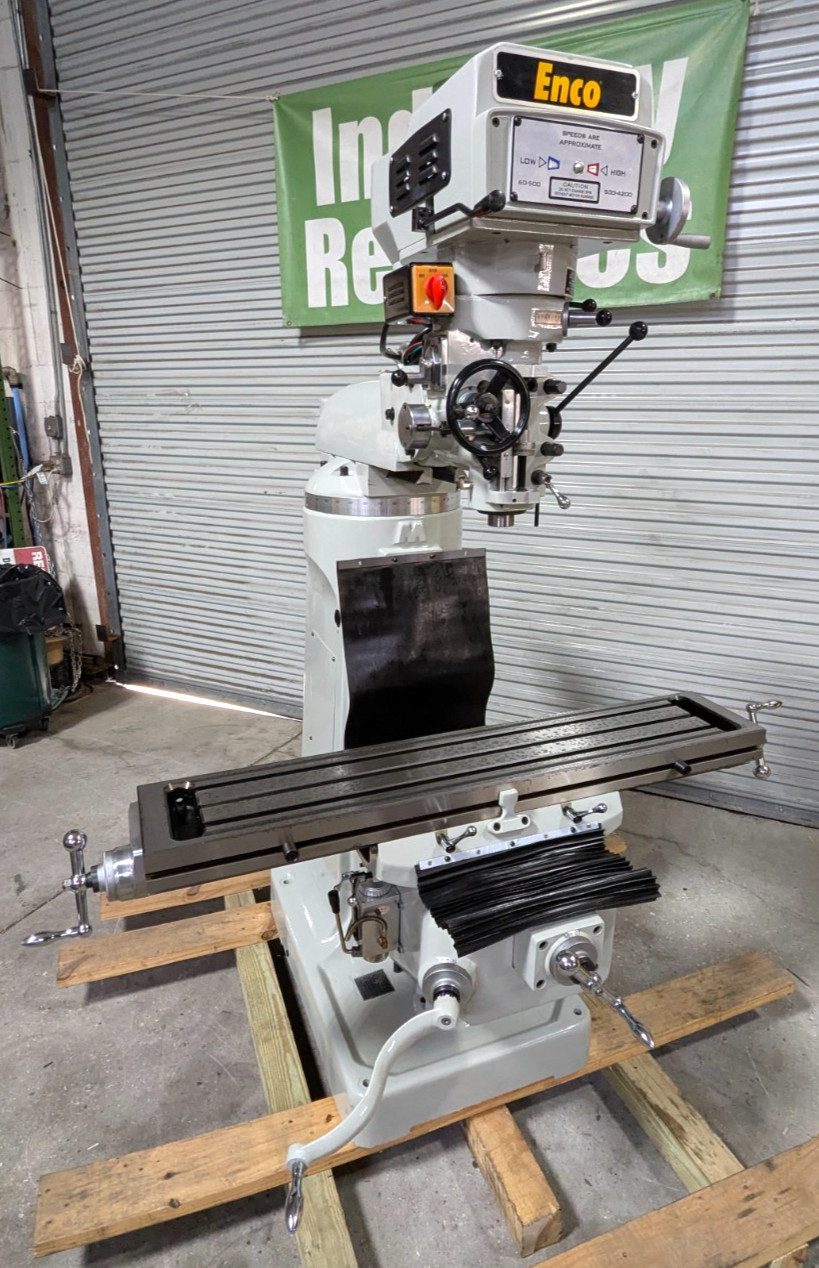

This Enco 9″x49″ Milling Machine is being sold As Is, for Repair / Parts. This machine has never been used. Missing the motor and variable speed motor pulley. It has been stored under plastic since new. There is some light surface rust on the table.
The ways are in good shape. The X, Y and Z axis all move smoothly with zero backlash. The spindle rotates by hand, travels Up/Down smoothly and locks as it should. The rest of the machine is complete. The base has a couple of big dings, scuffs and stains but still cleans up well.
Includes all handles, drawbar, tools/toolbox and manual as shown in our photos.
Please carefully review photos and ask any questions you may have prior to submitting an offer.
Comes exactly as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct
Venice, FL 34285
Shipping Weight: 2030 Lbs.
Shipping Dimensions: 64 in L x 72 in W x 72 in H
FREIGHT ITEMS
Comes exactly as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct
Venice, FL 34285
Shipping Weight: 2030 Lbs.
Shipping Dimensions: 64 in L x 72 in W x 72 in H
This item will be shipped freight. Message us for a quote today! To get a quote please answer the following questions in this order.
- Will this be shipped to a commercial or residential address
- Will there be a loading dock or forklift
- Your full shipping address
- Name of business
- Will this be shipped to a commercial or residential address
- Will there be a loading dock or forklift
- Your full shipping address
- Name of business
September 9, 2025
MJ571
Test Area
September 9, 2025
MJ571
Test Area
SPINDLE HORSEPOWER: 3 hp
MSRP: $15,000.00
MACHINE TYPE: Milling Machine
POWER SOURCE: Electric
TABLE LENGTH: 49 in
MPN: 949-PH3-E
SPINDLE TAPER: R8
TABLE WIDTH: 9 in
Z-AXIS TRAVEL BED: 14 in
BRAND: ENCO
FUNCTION: Milling, Drilling, Tapping
X-AXIS TRAVEL BED: 33 in
CONTROL: Manual
MODEL YEAR: 2016
MAX SPINDLE SPEED (RPM): 4500 RPM
VOLTAGE: 220/440V
MODEL: 949-PH3-E
Y-AXIS TRAVEL BED: 12 in
LOCATION: MJ571TestArea
