Description
Dorian
MSRP: $50.00
Model: 47131545
Description:
Insert Style DCMT
Insert Size 21.51
Material Carbide
Inscribed Circle (Decimal Inch) 0.2500
Inscribed Circle (Inch) 1/4
Thickness (Inch) 3/32
Thickness (Decimal Inch) 0.0938
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Manufacturer’s Grade DPC25UT
Coating Al2O3/TiCN/Al2O3/TiCN
Material Grade C5/C6
Chip Breaker PEM
Insert Length (Decimal Inch) 0.2500
Hole Diameter (mm) 2.72
Hole Diameter (Decimal Inch) 0.1070
ISO Number DCMT-070204-PEM-DPC25UT
Rake Positive
Rake Angle 7
Relief Angle 7
Coating Process CVD
Manufacturers Catalog Number DCMT-21.51-PEM-DPC25UT
Included Angle 55
Cutting Direction Neutral
Maximum Depth of Cut (mm) 5.99
Maximum Depth of Cut (Decimal Inch) 0.2360
Insert Holding Method Screw
Cutting Edge Style Honed
MultiUseTool No
Shape Diamond

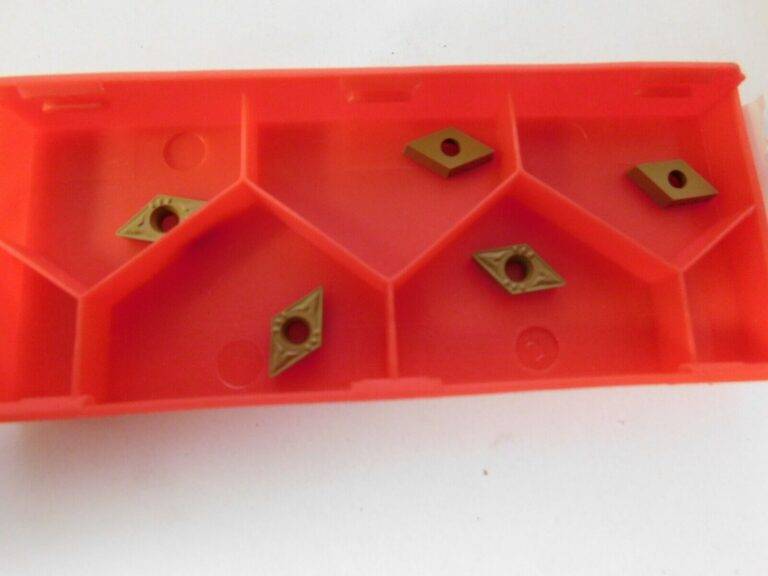

This listing is for One Pack of 5 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy April 14 2020
CM 7220
XB 9
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
MPN: Does Not Apply
BRAND: Dorian
INSERT MATERIAL: Carbide
MODEL: 47131545
LOCATION: CM7220CabXBBin9
MSRP: 50.00
