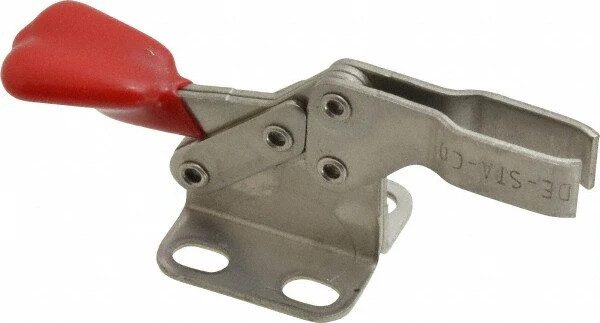

Destaco Hold-Down Toggle Clamp Horizontal 100.00 Lb Capacity 206-Hss *Qty 2*

DESTACO
Hold-Down Toggle Clamp Horizontal 100.00 lb Capacity  *QTY 2*

MSRP: $60.00

• Handle Orientation      Horizontal
• Bar Style      U-Bar
• Base Style Flanged
• Bar End Type      Fixed Spindle
• Holding Capacity (N) 440.00
• Holding Capacity (Lb.) 100.00
• Length Distance Between Mount Holes         0.63 in; 16 mm
• Width Distance Between Mount Holes     0.63 in; 16 mm
• Height Under Bar       0.7600in; 19.30 mm
• Overall Length (mm)  69.60
• Overall Length (Decimal Inch) 2.7400
• Overall Height (Decimal Inch)       1.0600
• Overall Height (Decimal Inch)       26.92
• Base Length (mm)       23.88
• Base Width (Inch)     0.9400
• Base Width (mm)     23.88
• Handle Style    Straight
• Material      Stainless Steel
• Handle Color     Red
• Bar Opening (Degrees)     90
• Handle Movement (Degrees)       90
• Maximum Mechanical Advantage      03:01; 05:01
• Spindle Thread Size    8-32
• Spindle Length (Decimal Inch) 0.8600
• Spindle Travel (Inch) 0.3500
• Spindle Travel (mm) 8.89
• Bar Width (mm)    7.87
• Bar Width (Decimal Inch) 0.3100
• Handle Width (Decimal Inch)       0.6200
• Front Of Base To Toggle Tip       0.95 in
• Includes      (2) Nuts; (1) Spindle; (2) Washers
• Front of Base To Tip Of Toggle Bar (Decimal Inch) 0.9500
• Front of Base To Tip Of Toggle Bar (mm) 24.13
• Number Of Mounting Holes    4
• Finish Coating         Zinc
• Country of Origin    UNITED STATES
• Quantity           2

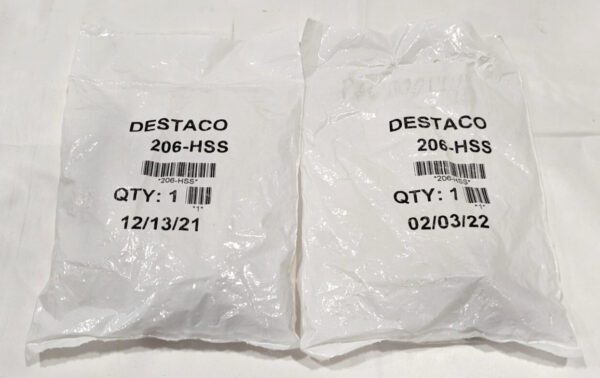

*This is item is being sold as NEW / OPEN BOX.   Sale is for QTY 2.  Original packaging has been opened for demonstration.  All included hardware is there.   You get exactly what you see in the pictures.  If you have any questions, please contact us!  SOLD AS IS, WITHOUT WARRANTY.

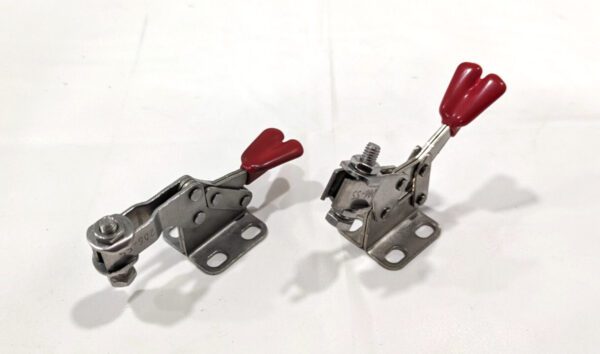

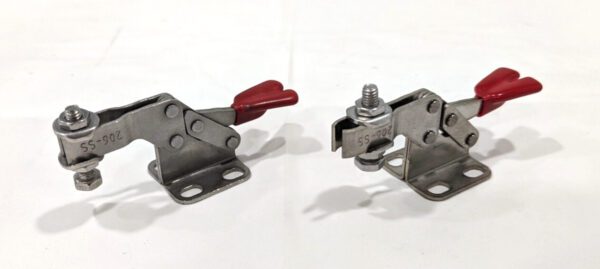

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
