Description
DE-STA-CO

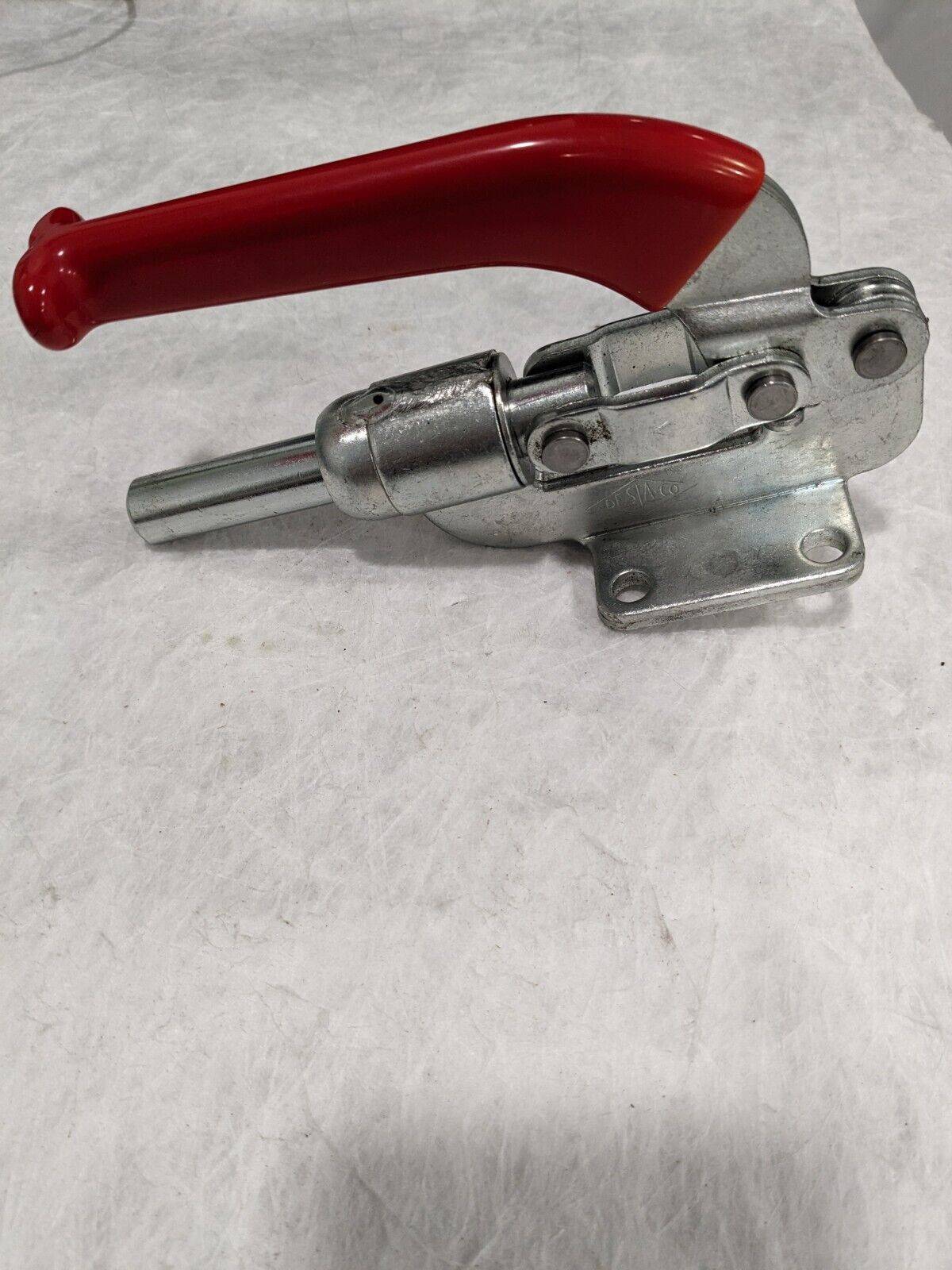

Straight Line Clamp
MSRP: $40.00
- Load Capacity (Lb. – 3 Decimals) 800.00
- Load Capacity (N) 3558.58
- Load Capacity 3558.58 N; 800 lb
- Plunger Travel (Decimal Inch) 1.6300
- Plunger Travel 1.63 in; 41.4 mm
- Plunger Travel (mm) 41.40
- Plunger Shape Round
- Plunger Thread Style Internal
- Plunger Thread Size 3/8-16
- Plunger Centerline Height (mm) 43.18
- Plunger Centerline Height (Decimal Inch) 1.7000
- Plunger Centerline Height 1.7 in; 43.18 mm
- Plunger Diameter (mm) 15.75
- Plunger Diameter (Decimal Inch) 0.6200
- Base Style Flanged
- Handle Style Whale Tail
- Clamp Material Carbon Steel
- Material Carbon Steel
- Overall Length (Decimal Inch) 6.7200
- Overall Length (mm) 170.69
- Overall Height (Mm – 5 Decimals) 112.01
- Overall Height (Decimal Inch) 4.4100
- Base Length (Inch) 2-1/4
- Base Length (mm) 57.15
- Base Length (Decimal Inch) 2.2500
- Base Width (Inch) 2.2500
- Base Width 57.15
- Handle Color Red
- Length Distance Between Mount Holes (mm) 41.40
- Length Distance Between Mount Holes (Inch) 1.6300
- Width Distance Between Mount Holes (Decimal Inch) 1.6300
- Width Distance Between Mount Holes (mm) 41.40
- Mounting Hole Diameter (mm) 9.65
- Maximum Mechanical Advantage 70:1 (Pulling); 51:1 (Pushing)
- UNSPSC Code 27112100
- Industry Number 610
- Front Of Base To Tip Of Toggle Bar 2.4400
- Number Of Mounting Holes 4
This item appears to be new and in good condition. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
July 11 2024
TB 17205
Cab Chris Bin 105
BRAND: DE-STA-CO
MSRP: $40.00
MODEL: 610
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: TB17205CabChrisBin105
