Description
DE-STA-CO
Pull-Action Latch Clamp: Horizontal, 4,000 lb U-Hook, Flanged Base 375
MSRP: $80
- Clamping Orientation Horizontal
- Bar Style U-Hook
- Load Capacity (N) 17792.90
- Load Capacity (Lb. – 3 Decimals) 4000.00
- Load Capacity 17792.9 N; 4000 lb
- Base Style Flanged
- Material Carbon Steel
- Body Material Carbon Steel
- Handle Style Straight
- Overall Length (Decimal Inch) 10.1900
- Overall Length (mm) 258.83
- Overall Height (Mm – 5 Decimals) 106.43
- Overall Height (Decimal Inch) 4.1900
- Drawing Movement (mm) 88.90
- Drawing Movement (Decimal Inch) 3.5000
- Handle Color Red
- Base Length 3.44
- Base Length (mm) 87.38
- Base Width (Inch) 3.1300
- Base Width 79.50
- Mounting Hole Diameter (mm) 10.41
- Mounting Hole Diameter 0.4100
- Width Distance Between Mount Holes (Inch) 2-1/4
- Width Distance Between Mount Holes (mm) 57.15
- Length Distance Between Mount Holes (Inch) 2-1/4
- Length Distance Between Mount Holes (Decimal Inch) 2.2500
- Length Distance Between Mount Holes (mm) 57.15
- Bar Width (Decimal Inch) 1.7500
- Bar Width 44.45 mm; 1.75 in
- Bar Thickness (Decimal Inch) 0.3900
- Bar Thickness (mm) 9.91
- Base to Center of Bar (mm) 28.70
- Base to Center of Bar (Decimal Inch) 1.1300
- Includes Threaded U-Hook; Patented Thumb Control Lever
- Industry Number 375
- Width Distance Between Mounting Holes 2.2500

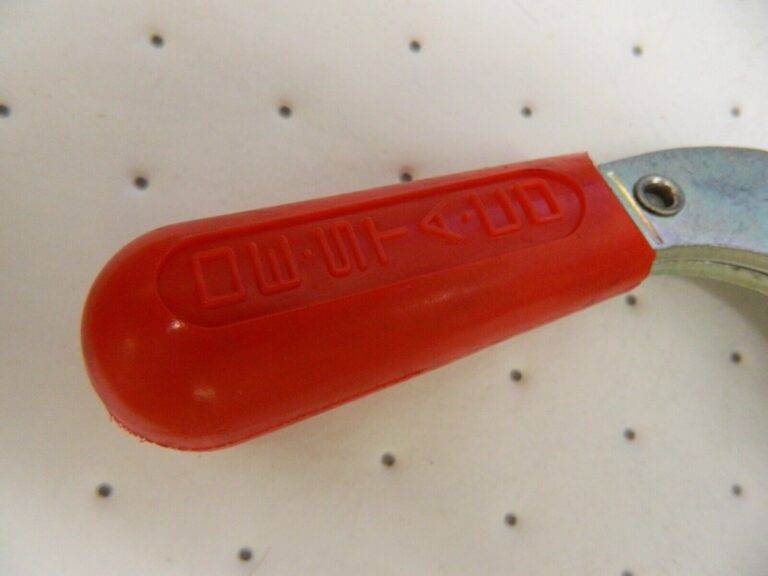

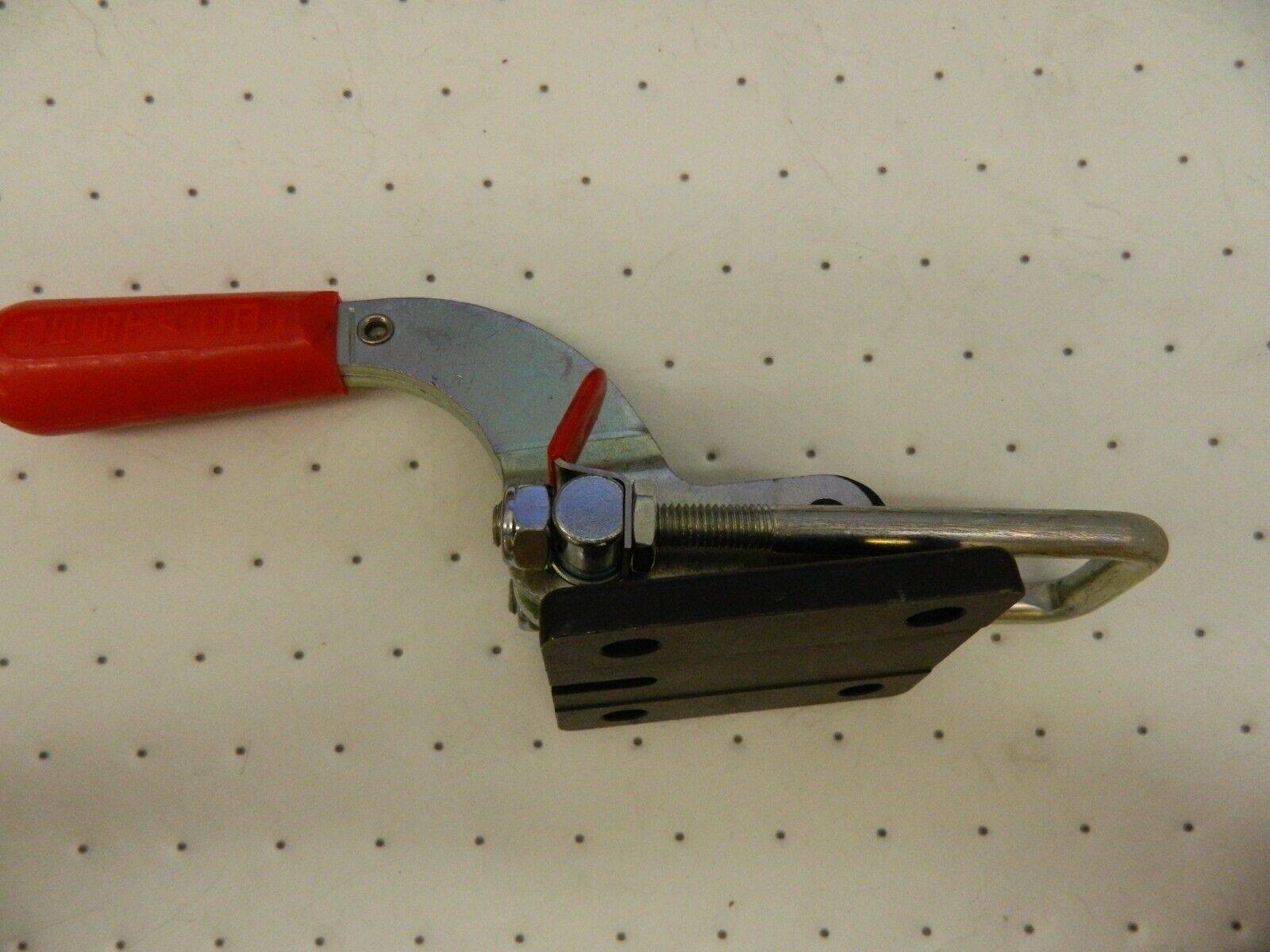

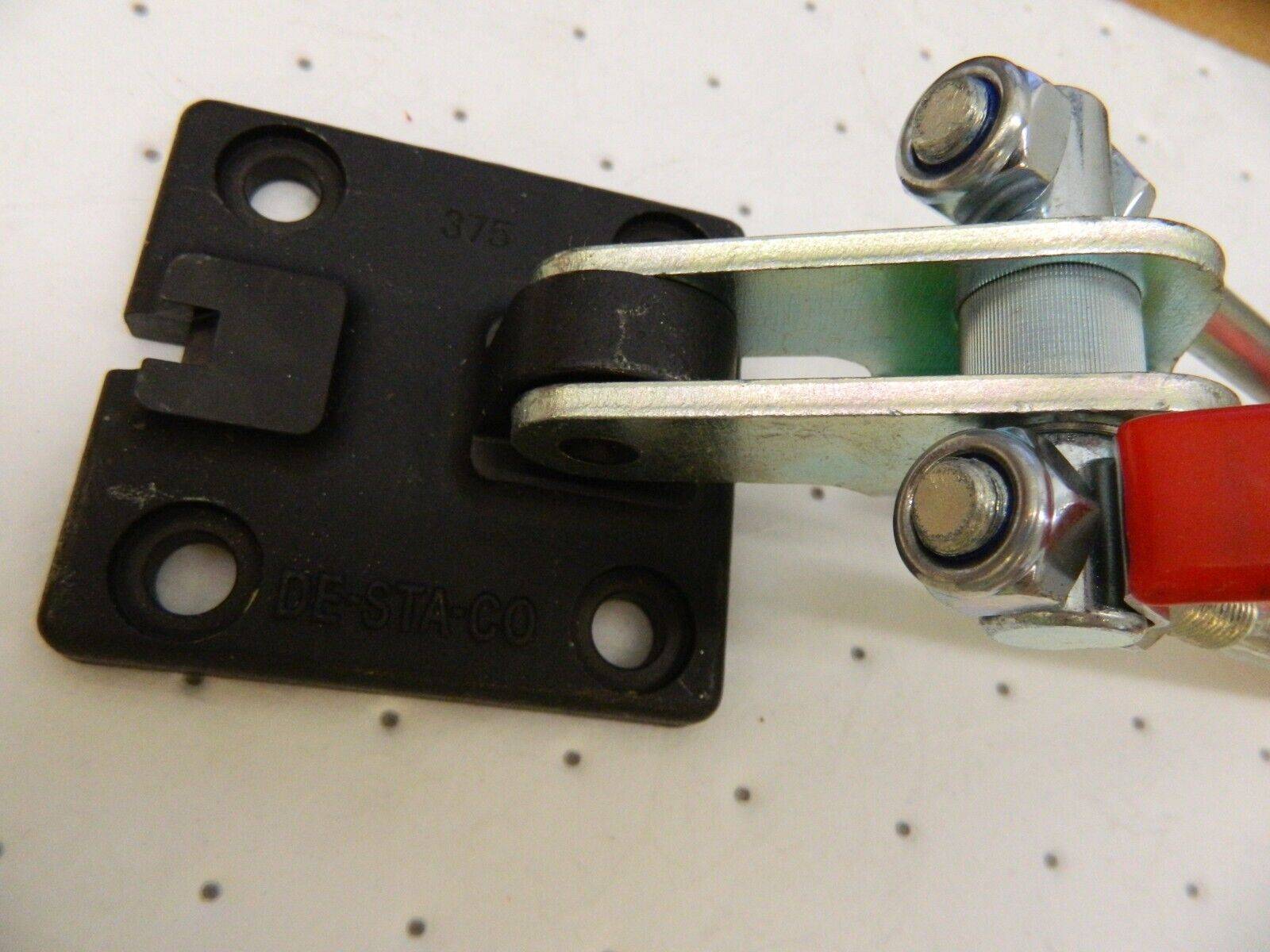

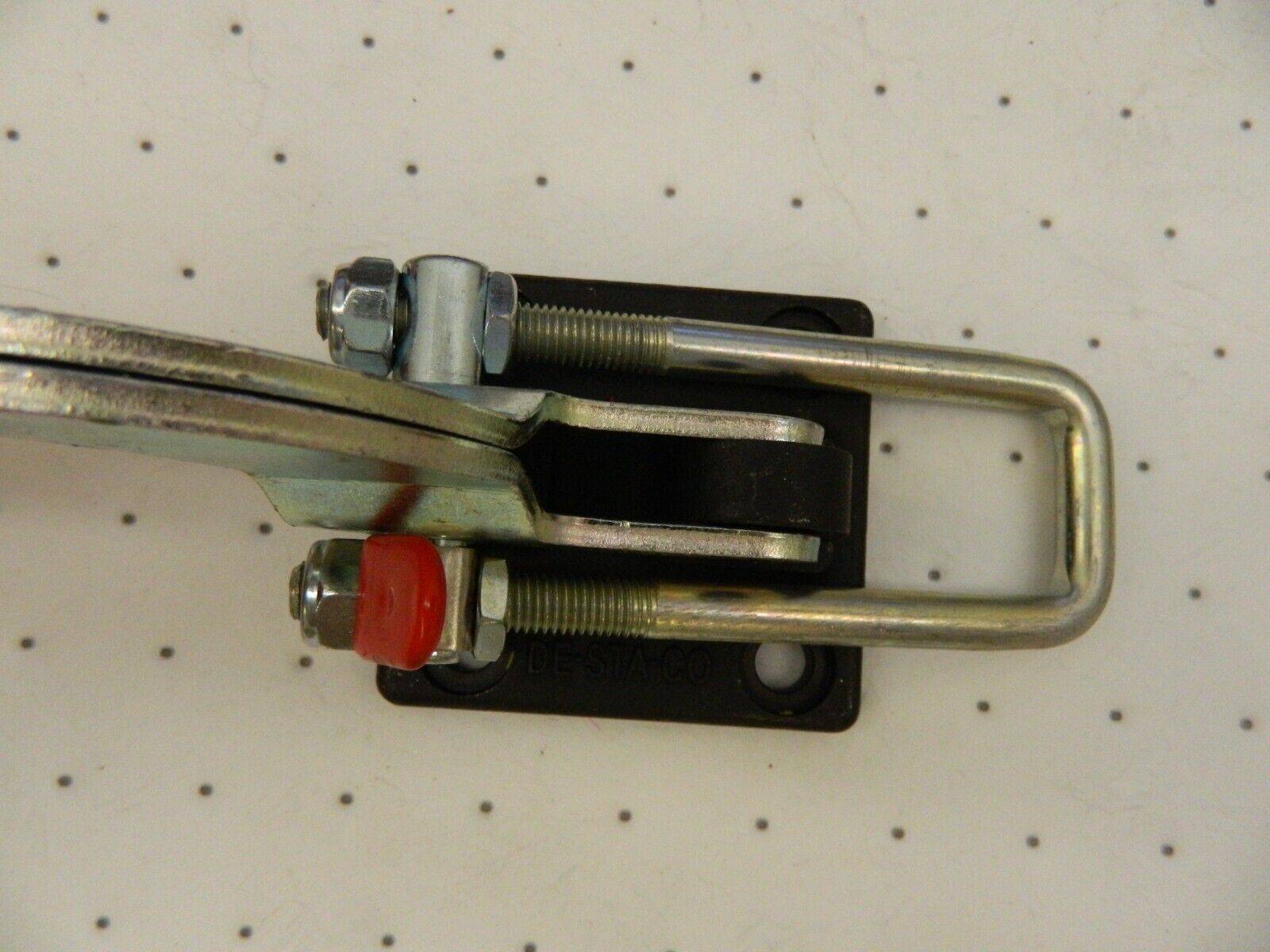

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Feb 24 23
HS1247
Micrometer E
BRAND: DESTACO
CLAMP TYPE: Latch Clamp
MSRP: $80
MPN: 375
