Description
De-Sta-Co
MSRP: $600
Model: 030-1-S-4000-R
Description:
Operation Type Hydraulic
Action Type Single-Acting
Swing Direction Right Hand
Clamping Force (Lb.) 4000.00
Clamping Force (kg) 1814.37
Operating Volume (Cu. In.) 1.22 (Clamp)
Port Size SAE #4
Total Stroke Distance (Decimal Inch) 1.0700
Vertical Stroke Distance (Decimal Inch) 0.4500
Mounting Type Threaded Body
Rod Diameter (Decimal Inch) 1.2600
Effective Clamping Area (Sq. In.) 1.10
Maximum Operating Pressure (bar) 344.74
Maximum Operating Pressure (psi) 5000.00
Body Length (Decimal Inch) 4.0900
Body Thread Size 2-1/2 – 16

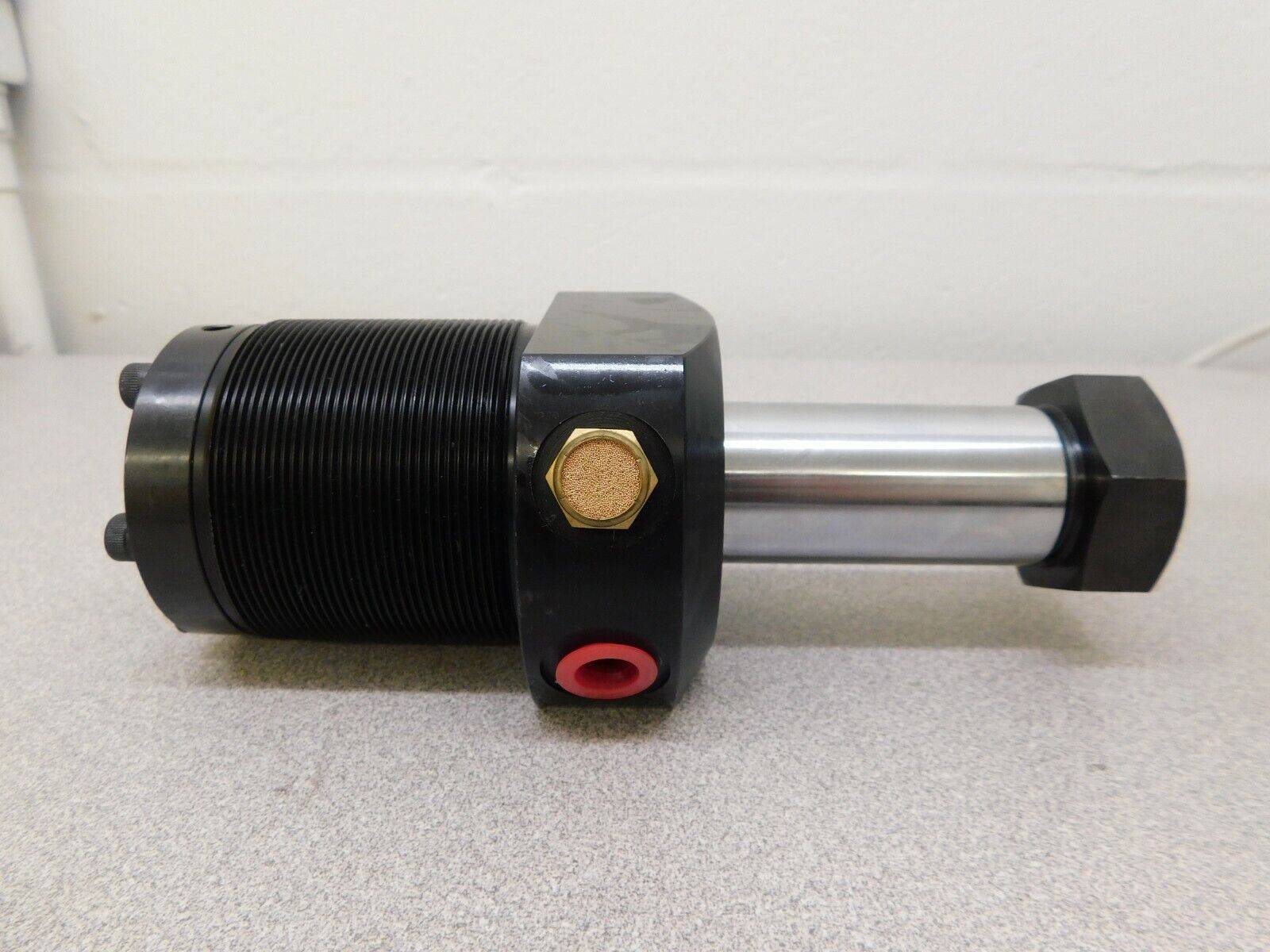

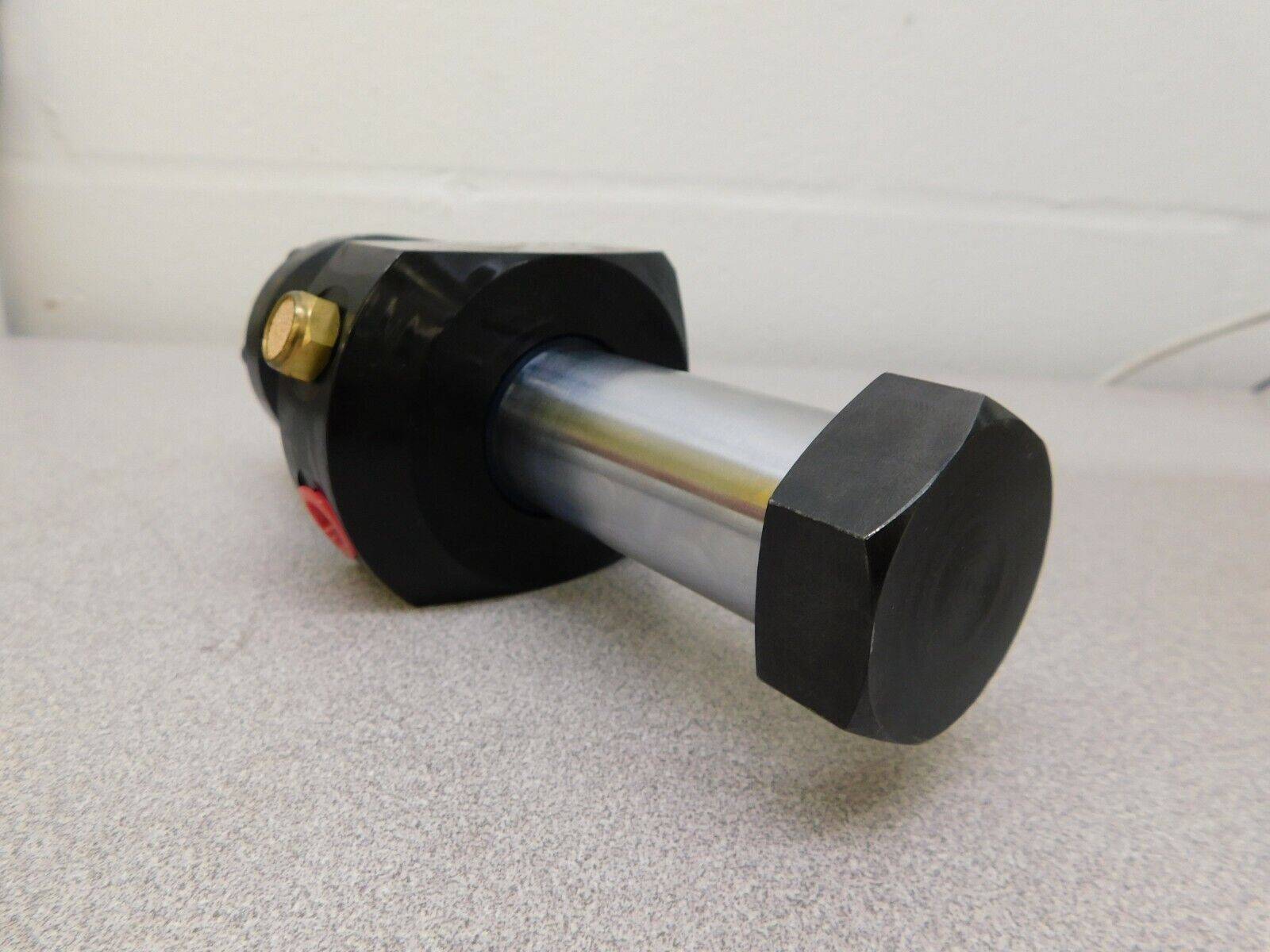

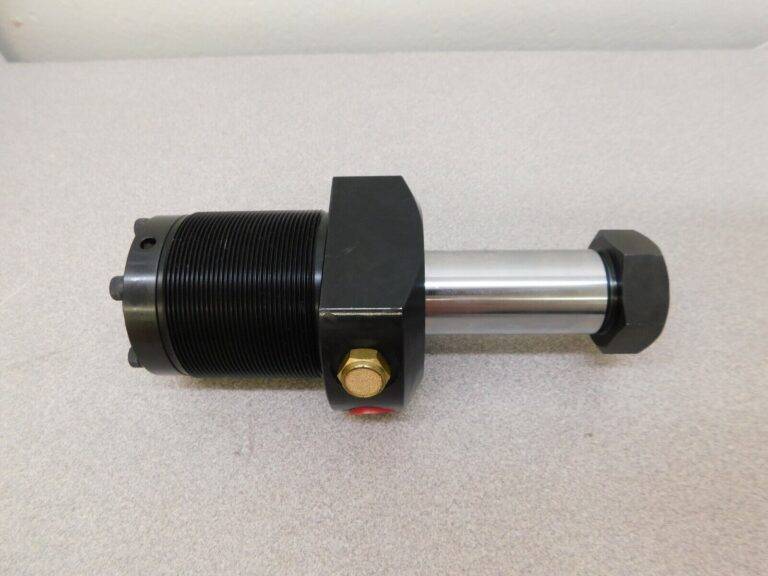

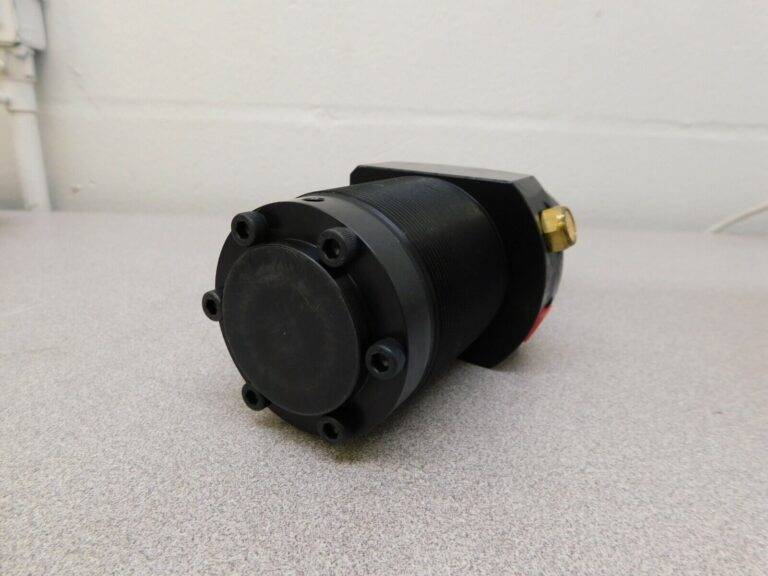

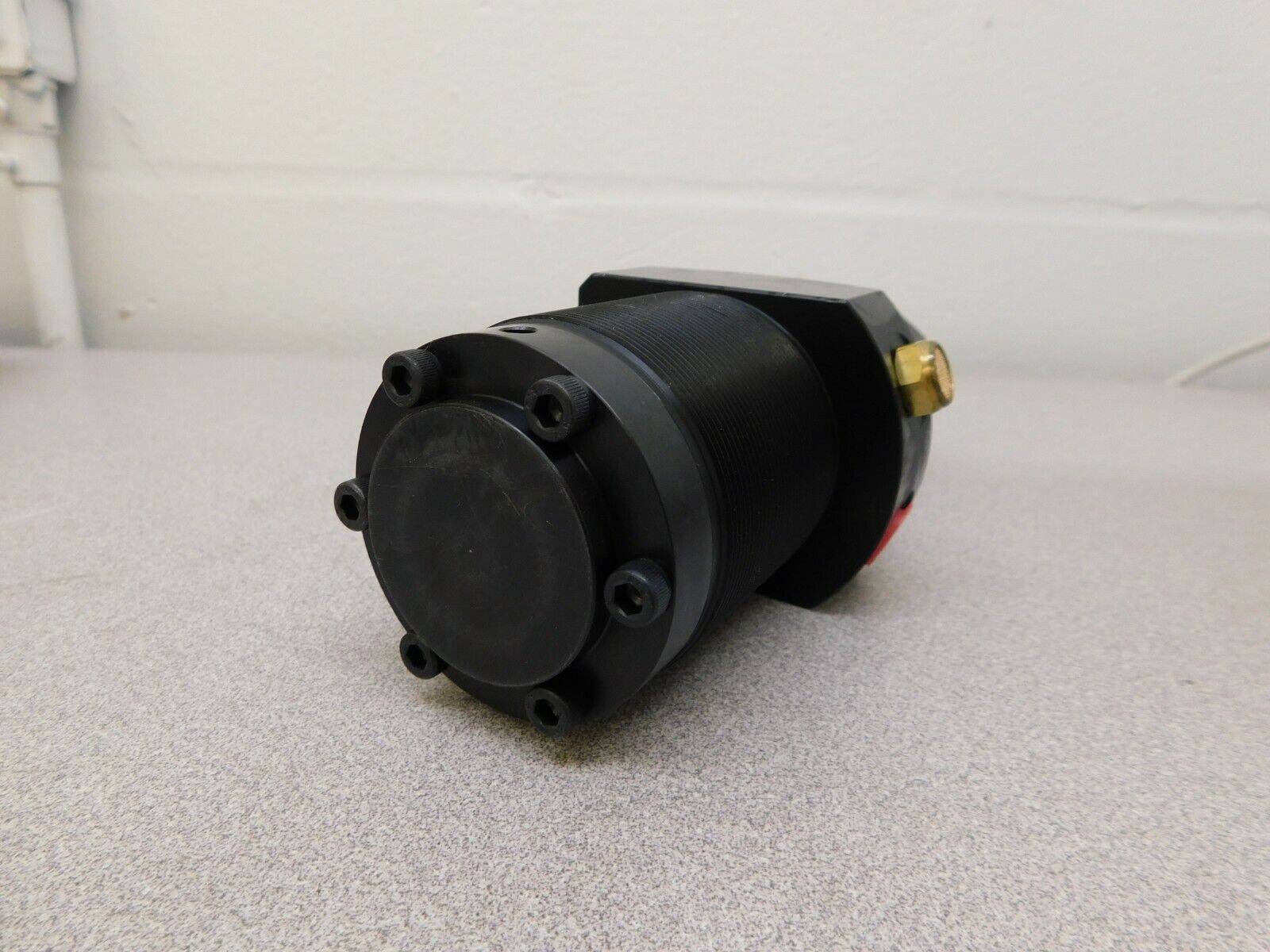

This listing is for One Hydraulic Swing Pull Clamp that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
aug 26 24
HS6397
tropic 7
BRAND: DESTACO
TOOL TYPE: na
UNIT TYPE: Unit
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: na
CALIFORNIA PROP 65 WARNING: na
