Description
BRAND De-sta-co
Item
MSRP: $380.00
- specs
Operation Type Air
Action Type Single-Acting
Swing Direction Adjustable (Right, Left, Straight)
Clamping Force (N) 97.86
Clamping Force 22 lb; 97.86 N
Operating Volume 4.90 (Clamp) cc; 6.60 (Unclamp) cc
Effective Clamping Area 4.9 cm?
Mount Type Flange
Port Size M5
Total Stroke Distance 0.83in; 21mm
Total Stroke Distance (mm) 21.00
Body Length 4.15in; 105.41mm
Body Diameter 0.79in; 20.07mm
Vertical Stroke Distance 0.39in; 10mm
Rod Diameter 0.39in; 9.91mm
Arm Length 0.32in; 8.13mm
Clamp Arm Compatibility 8JG-215-1 Standard Clamping Arm; 8MA-084-1 Blank Clamping Arm
Body Length (Decimal Inch) 4.1500
Body Width/Diameter (Decimal Inch) 0.7900
Body Width/Diameter (mm) 20.07
Maximum Operating Pressure 10bar; 145psi
Maximum Operating Pressure (psi) 145.00
Minimum Operating Pressure 2.07bar
Features Robust Design; Sensor Ready
Vertical Stroke Distance (Decimal Inch) 0.3900
Rod Diameter (mm) 9.91
Rod Diameter (Inch) 0.39in; 9.91mm
Maximum Operating Pressure (PSIG) 145.00
Minimum Operating Pressure (PSIG) 30.00
Minimum Operating Pressure (bar) 2.07
Arm Length (mm) 8.13
(Description).

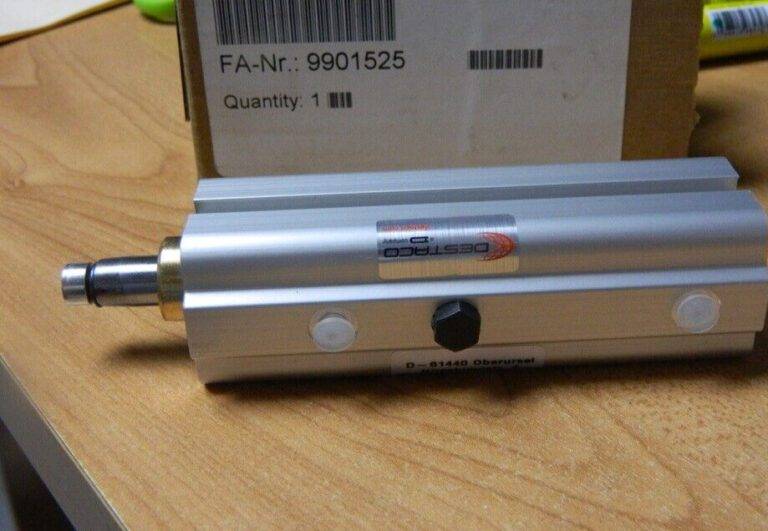

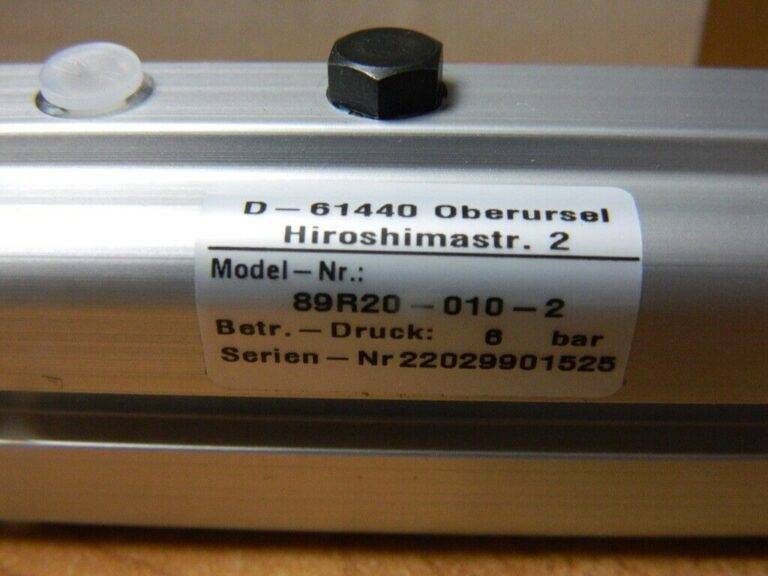

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Nov 11 22
Lister#CM 12926
Locdustin 3
BRAND: DESTACO
MPN: Does Not Apply
