Description
Collet Chuck: 0.5 to 10 mm Capacity, ER Collet, Dual Contact Taper Shank 771434
MSRP: $300
- Collet System ER
- Collet Series ER16
- Shank Type Dual Contact Taper
- Taper Size CAT50
- Projection (Decimal Inch) 6.0000
- Projection (Inch) 6
- Through Coolant Yes
- Minimum Collet Capacity (mm) 0.50
- Minimum Collet Capacity (Decimal Inch) 0.0190
- Maximum Collet Capacity (mm) 10.00
- Maximum Collet Capacity (Decimal Inch) 0.3930
- Overall Length (mm) 254.00
- Overall Length (Inch) 10
- Overall Length (Decimal Inch) 10.0000
- Nose Diameter (Decimal Inch – 4 Decimals) 1.2600
- Nose Diameter (Mm) ( – 2 Decimals) 32.00
- Maximum RPM 25000
- TIR (mm) 0.0050
- TIR (Decimal Inch) 0.000200
- Coolant Type Through-Spindle & DIN Flange
- Collet Nut Diameter (mm) 32.00
- Collet Nut Diameter (Decimal Inch) 1.2600
- Product Service Code 5136

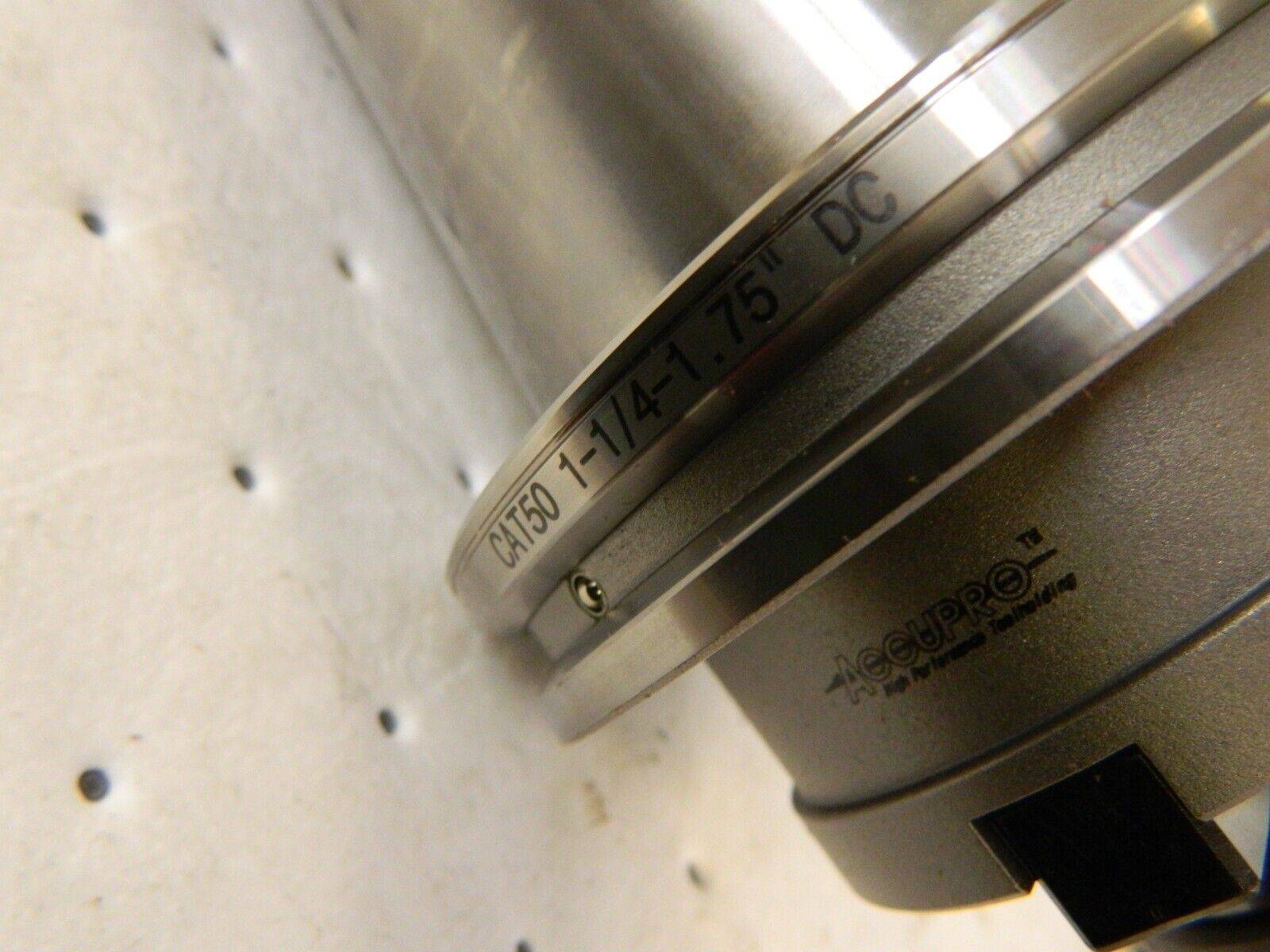

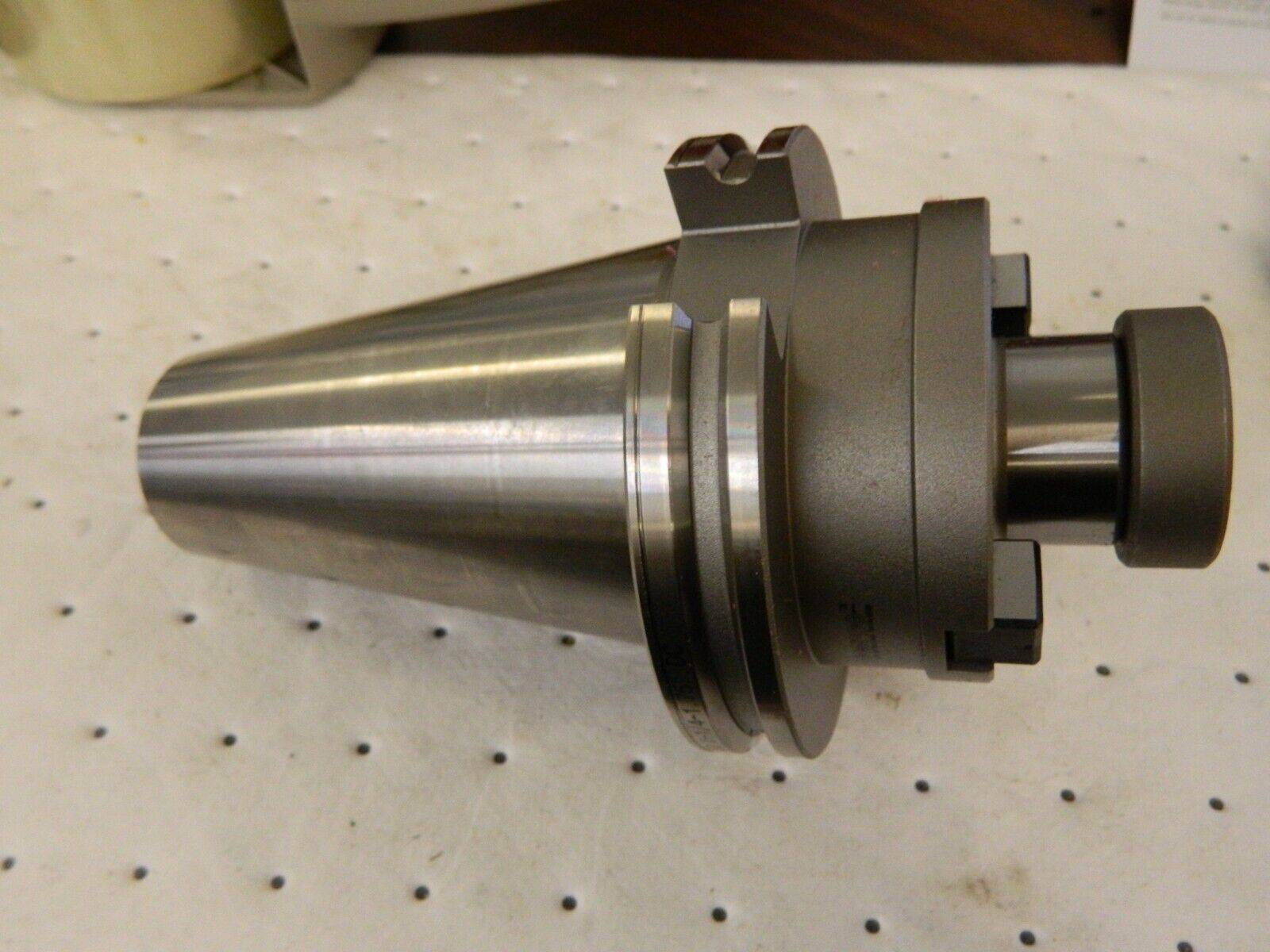

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 08 23
HS2066
Green8
BRAND: Accupro
MPN: 771434
SHANK TYPE: Taper Shank
MSRP: $300
