Description
CEJN
MSRP: $50
Model: 10-310-3402
Description:
Nominal flow diameter: 7/32″ (5.3 mm)
Air flow @ 100 PSI: 32.6 CFM (925 l/min)
Max. working pressure: 232 PSI (16 bar)
Min. burst pressure: 2030 PSI (140 bar)
Connection force: 70.7 N
Temperature range: -4°F — +212°F (-20°C — +100°C)
Material coupling: Zinc-plated steel/brass
Material nipple: Hardened zinc-plated steel
Interchangeable with: Atlas Copco QIC8, Rectus 23/24, Tema 1400/1423, Prevost ISC06/ISI06, Foster 3003, Oetiker B1, Hansen 3000
Flow capacity is measured at 100 PSI (6.9 bar) inlet pressure, and pressure drop at 6 PSI (0.4 bar)
Series: 310

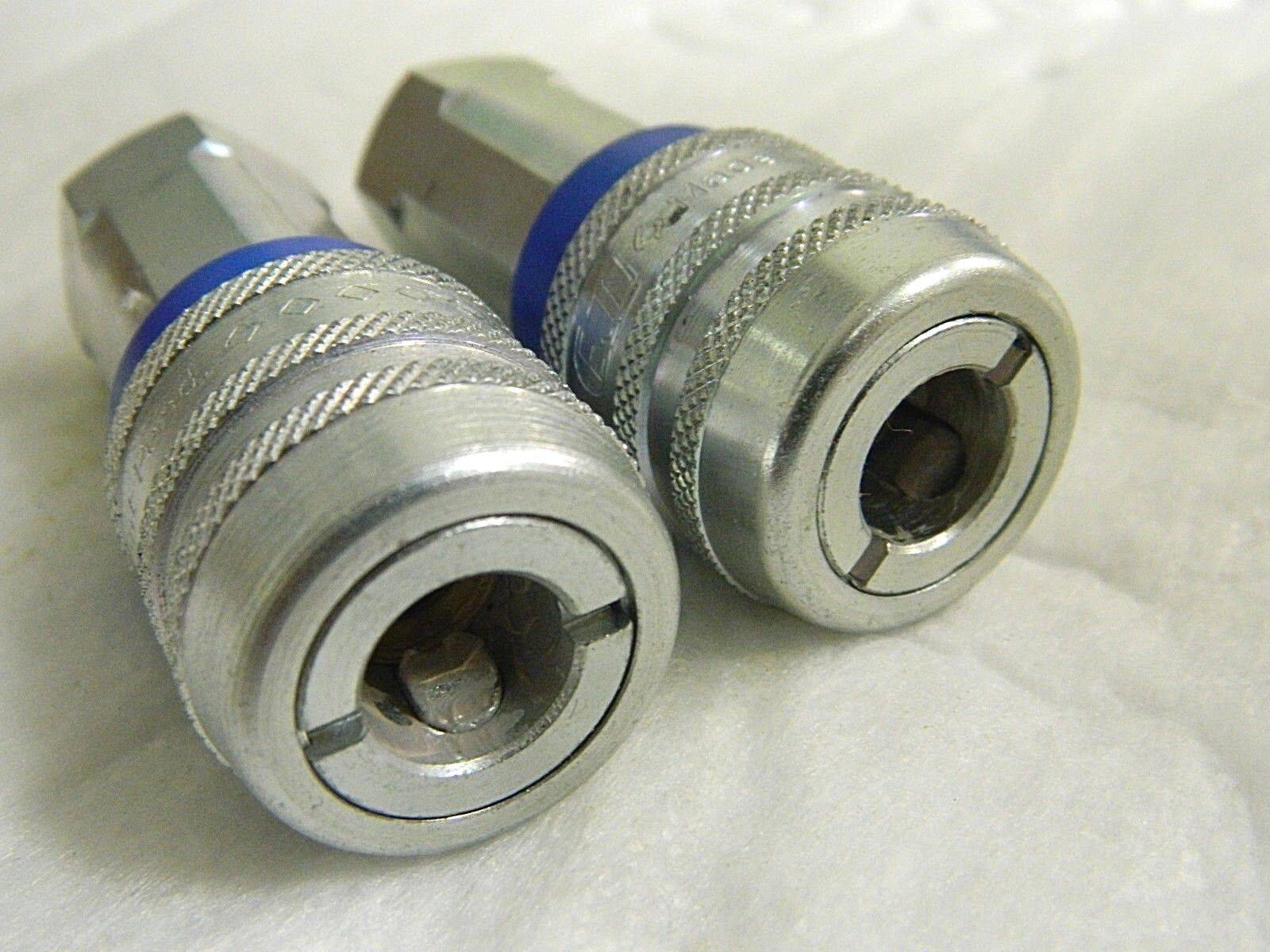

This listing is for One Lot of 2 Quick Disconnect Couplers that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian July 3118
VM3428
Cab Fitzy Bin 13
Tina 071219

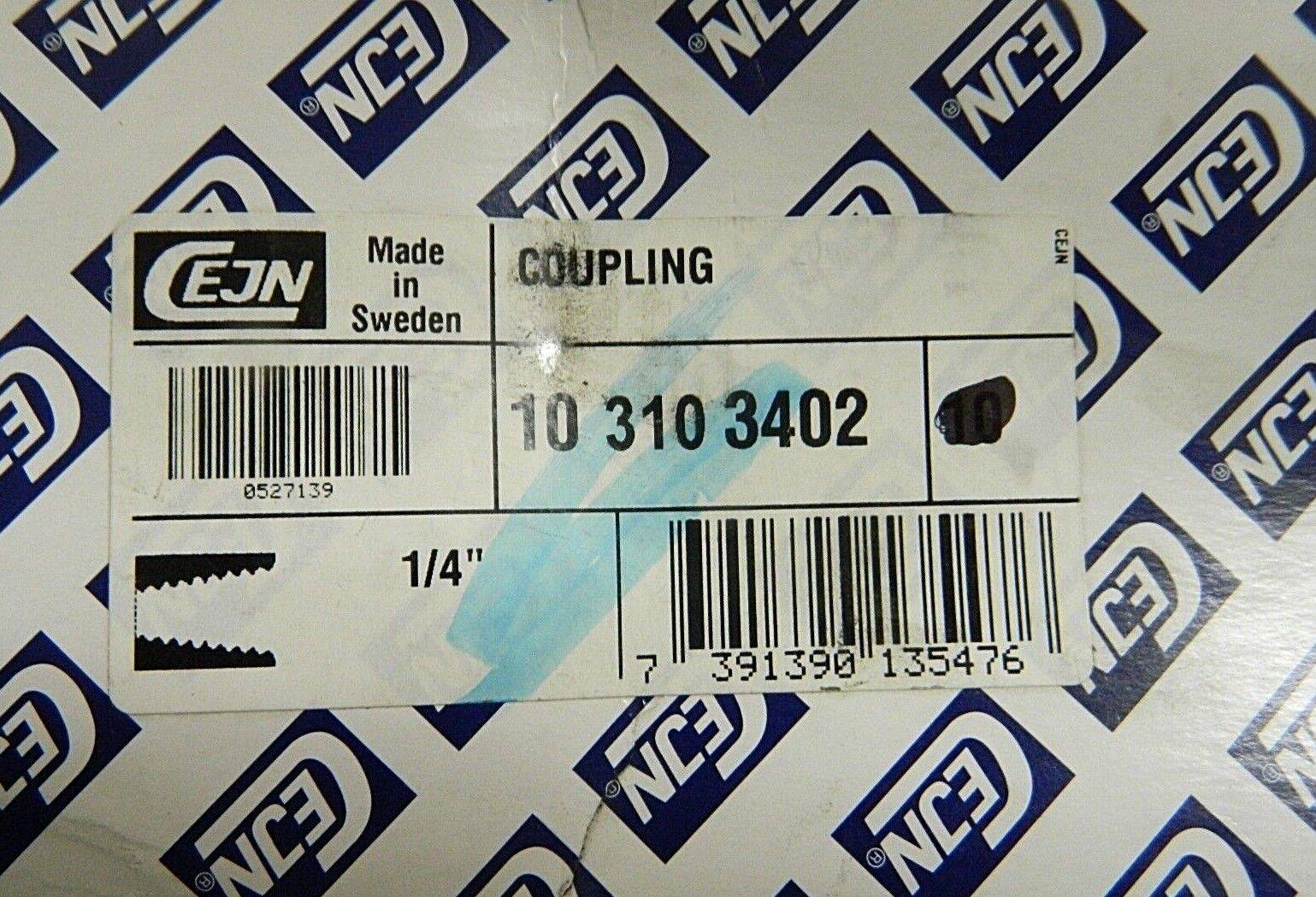

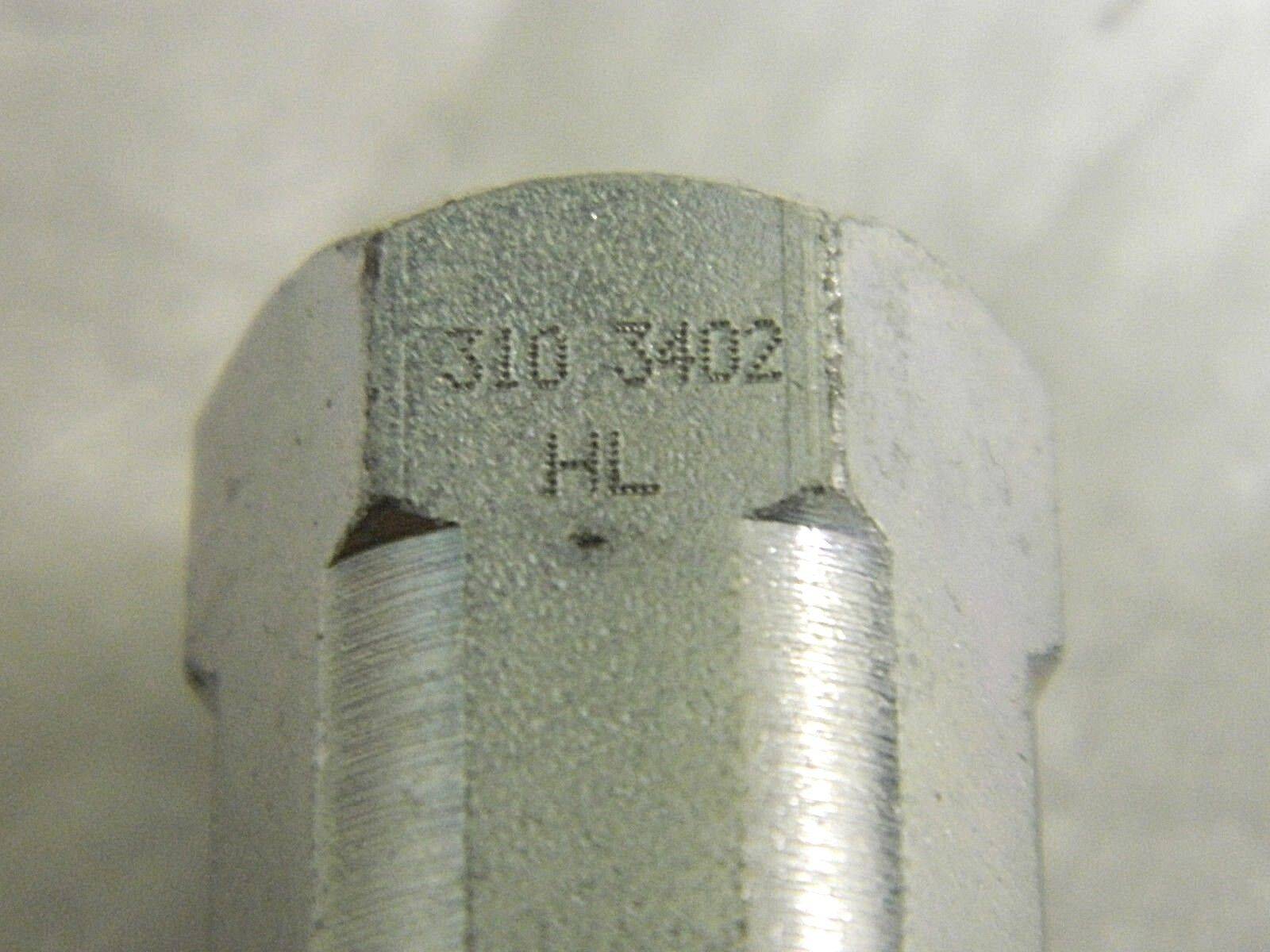

MODEL: 10-310-3402
COUNTRY/REGION OF MANUFACTURE: Sweden
MPN: Does Not Apply
BRAND: CEJN
LOCATION: VM3428cabfitzybin13
MSRP: 50.00
