Description
BRIDGEPORT
9″ X 49″ Series 1 Knee Mill: 2hp, 230V 3ph
With Newall X&Y DRO and Servo 200-140 X-axis Power Feed
- Power: 230 / 460V 3ph
- Horsepower: 2.0
- Minimum Spindle to Table Distance: 3.00″
- Table Length: 49.00″
- Table Width: 9.00″
- Minimum Spindle Speed: 60 RPM
- Maximum Spindle Speed: 4200 RPM
- Forward Head Tilt: 45 Deg
- Backward Head Tilt: 45 Deg
- Left-Hand Head Tilt: 90 Deg
- Right-Hand Head Tilt: 90 Deg
- Cross Travel: 12.00″
- Longitudinal Travel: 36.00″
- Knee Travel: 16.00″
- Quill Diameter: 3.375″
- Table Load Capacity: 750.00 Lbs
- Ram Travel Length: 12.00″
- Spindle Speed Control: Variable Speed Pulley
- Spindle Taper Size: R8
- Spindle Travel Length: 5.00″
- Number Of T-slots: 3
- Overall Height: 81.625″
- Overall Length: 98.50″
- Overall Depth: 63.625″
- Includes: Servo 200-140 X-Axis Power Feed; Newall DP700 DRO
- Power: 230 / 460V 3ph
- Horsepower: 2.0
- Minimum Spindle to Table Distance: 3.00″
- Table Length: 49.00″
- Table Width: 9.00″
- Minimum Spindle Speed: 60 RPM
- Maximum Spindle Speed: 4200 RPM
- Forward Head Tilt: 45 Deg
- Backward Head Tilt: 45 Deg
- Left-Hand Head Tilt: 90 Deg
- Right-Hand Head Tilt: 90 Deg
- Cross Travel: 12.00″
- Longitudinal Travel: 36.00″
- Knee Travel: 16.00″
- Quill Diameter: 3.375″
- Table Load Capacity: 750.00 Lbs
- Ram Travel Length: 12.00″
- Spindle Speed Control: Variable Speed Pulley
- Spindle Taper Size: R8
- Spindle Travel Length: 5.00″
- Number Of T-slots: 3
- Overall Height: 81.625″
- Overall Length: 98.50″
- Overall Depth: 63.625″
- Includes: Servo 200-140 X-Axis Power Feed; Newall DP700 DRO
MSRP $33,000.00
Don’t miss this deal!!!

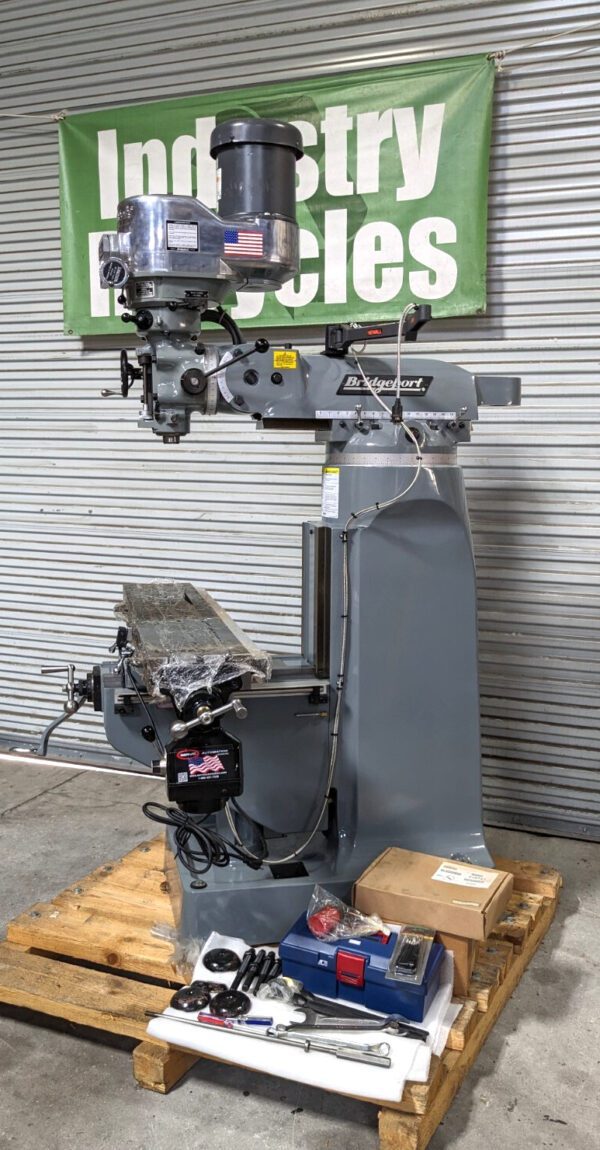

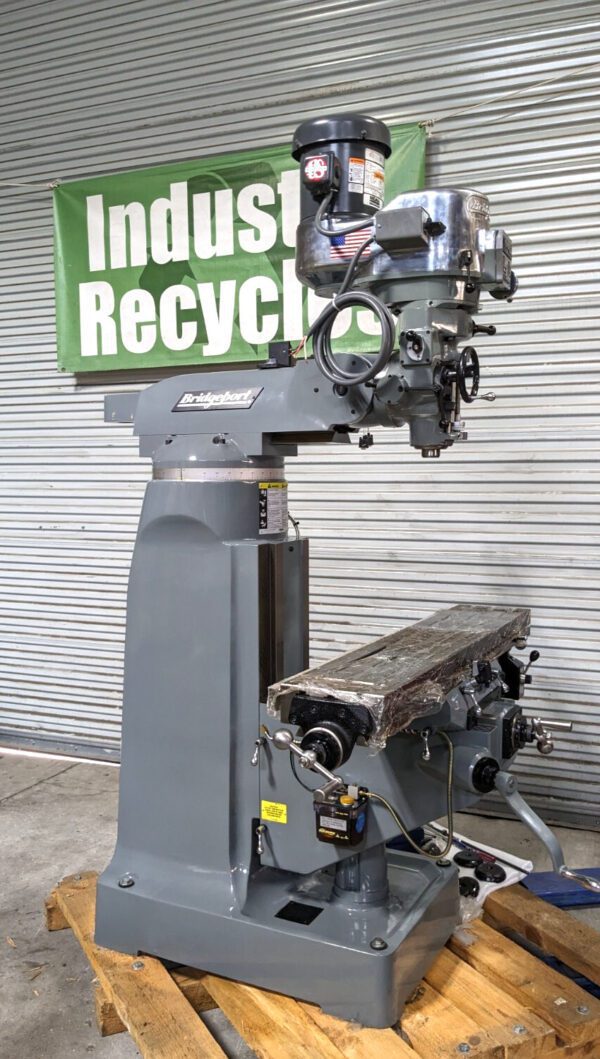

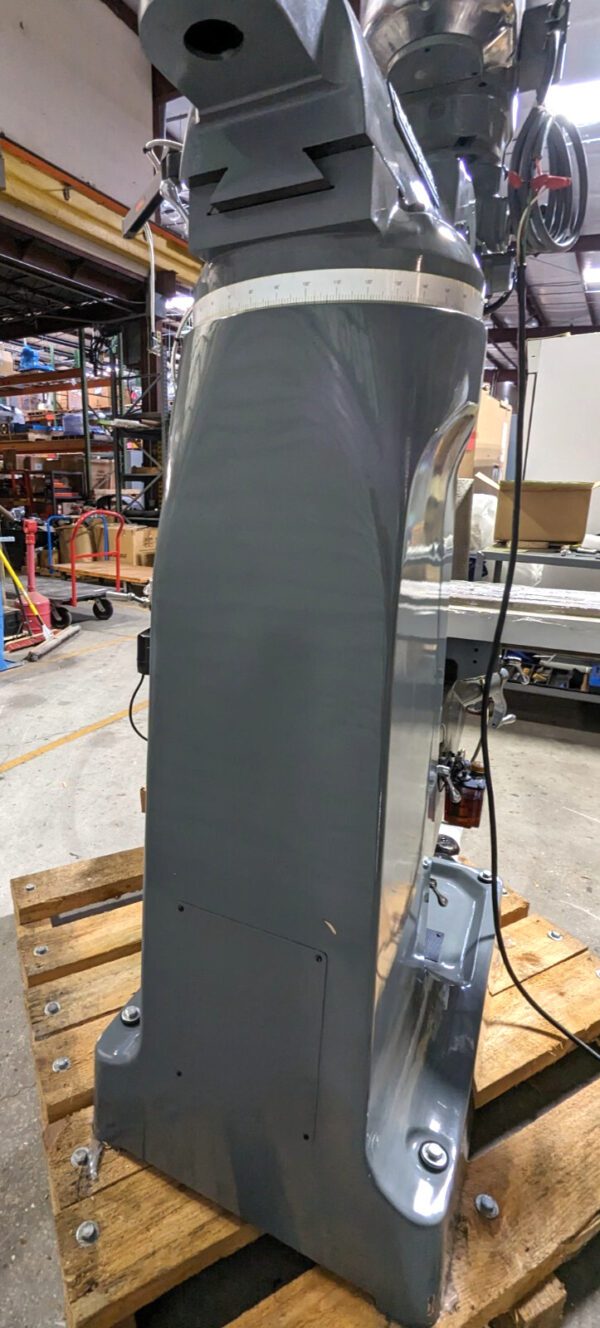

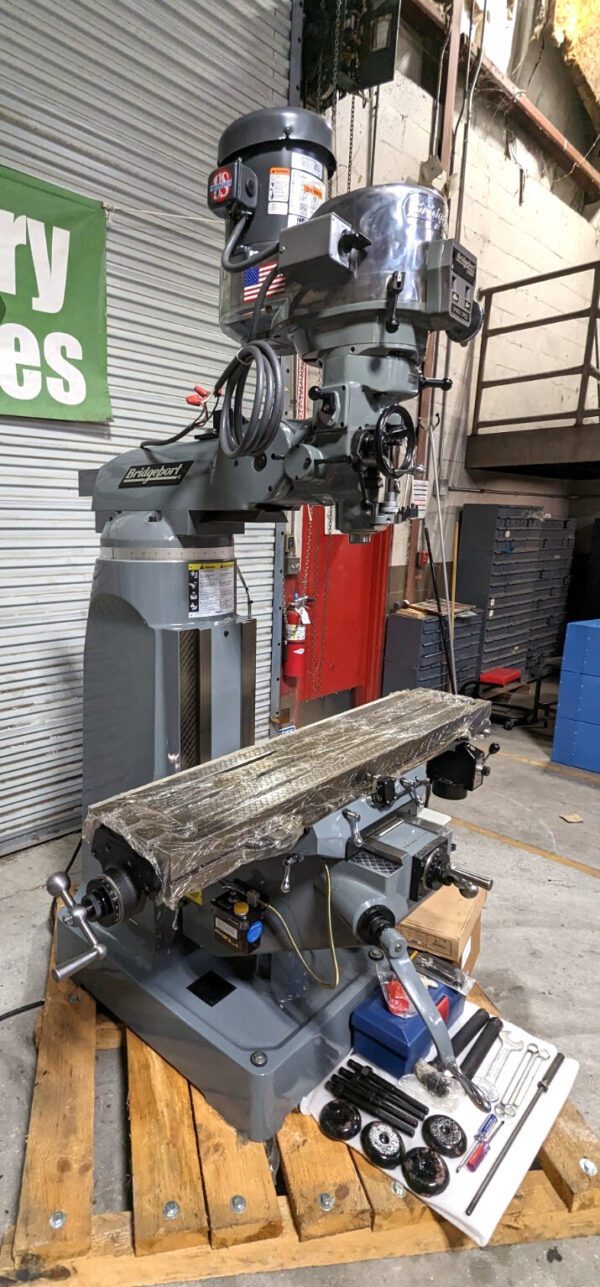

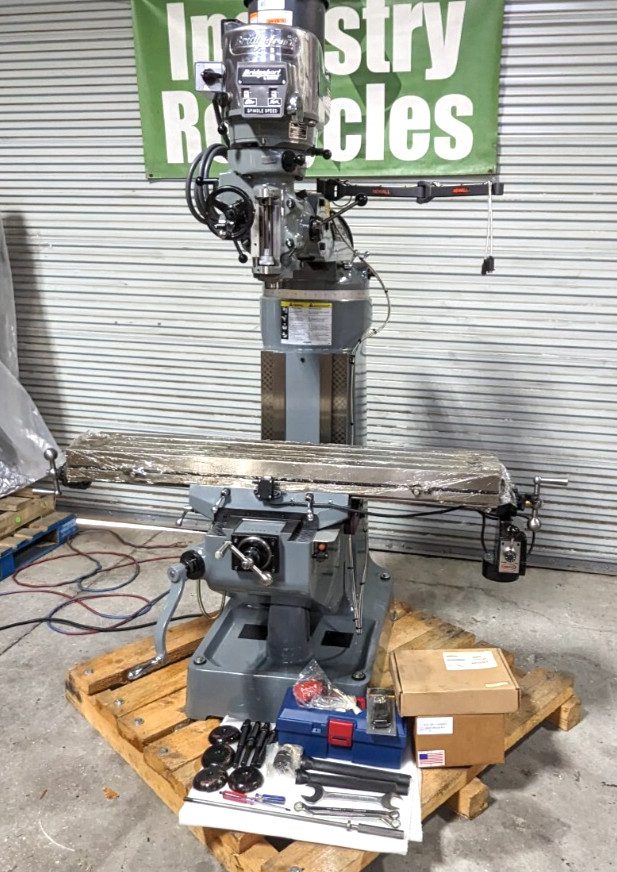

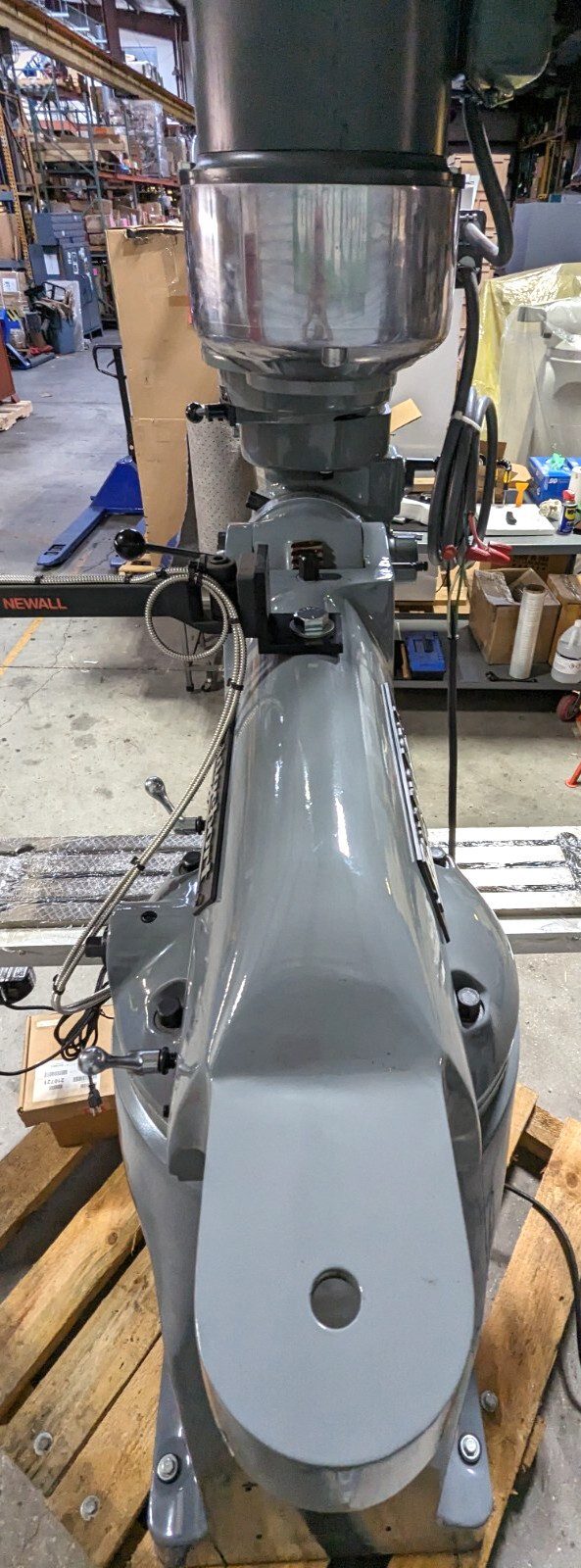

This listing is for a New / Open Box Bridgeport Series 1, 9″ x 49″ Milling Machine. This machine was a Display/Demo model and has never had any actual use. The manufacturers plastic is still on the table.
The ways and table surface are in NEW condition. The quill moves smoothly and the quill feed works as it should. X, Y & Z axis move smoothly with zero backlash. Includes prewired X & Y axis Newall DRO.
This machine does have a few cosmetic flaws, as shown in our pictures. There are some minor scuffs on painted surfaces, small scratches and dings on the motor fan shroud and very light surface rust on X / Y handles and foot pads.
Please review photos carefully and contact us with any questions you may have prior to submitting an offer.
Comes exactly as shown.
Sold as is, without warranty.
Don’t miss this deal!!!
This listing is for a New / Open Box Bridgeport Series 1, 9″ x 49″ Milling Machine. This machine was a Display/Demo model and has never had any actual use. The manufacturers plastic is still on the table.
The ways and table surface are in NEW condition. The quill moves smoothly and the quill feed works as it should. X, Y & Z axis move smoothly with zero backlash. Includes prewired X & Y axis Newall DRO.
This machine does have a few cosmetic flaws, as shown in our pictures. There are some minor scuffs on painted surfaces, small scratches and dings on the motor fan shroud and very light surface rust on X / Y handles and foot pads.
Please review photos carefully and contact us with any questions you may have prior to submitting an offer.
Comes exactly as shown.
Sold as is, without warranty.
Bridgeport Milling Machine PM7980
Video will open in a new window
Using the eBay App? Paste link into a browser window:
[isdntekvideo]
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct
Venice, FL 34285
Shipping Weight: 2150 Lbs.
Shipping Dimensions: 55 in L x 52 in W x 78 in H
This item will be shipped freight. Message us for a quote today! To get a quote please answer the following questions in this order.
- Will this be shipped to a commercial or residential address
- Will there be a loading dock or forklift
- Your full shipping address
- Name of business
- Will this be shipped to a commercial or residential address
- Will there be a loading dock or forklift
- Your full shipping address
- Name of business
June 19, 2025
MJ420
P408
SPINDLE HORSEPOWER: 2 hp
MSRP: $33,000.00
MACHINE TYPE: Milling Machine
POWER SOURCE: Electric
TABLE LENGTH: 49″
MPN: 0195011
SPINDLE TAPER: R8
Z-AXIS TRAVEL BED: 16″
TABLE WIDTH: 9″
BRAND: Bridgeport
FUNCTION: Drilling,Milling,Tapping
X-AXIS TRAVEL BED: 36″
CONTROL: Manual
MAX SPINDLE SPEED (RPM): 4200
VOLTAGE: 230 V
MODEL: Series 1
Y-AXIS TRAVEL BED: 12″
LOCATION: MJ420P408
