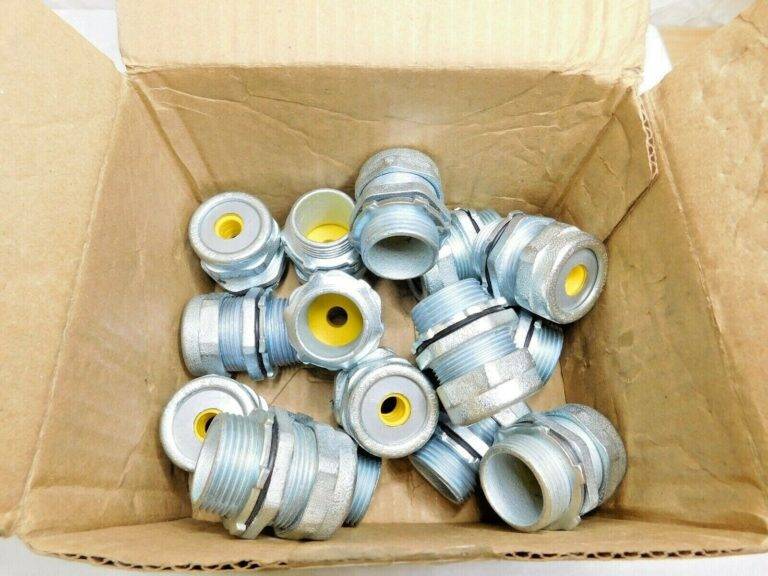

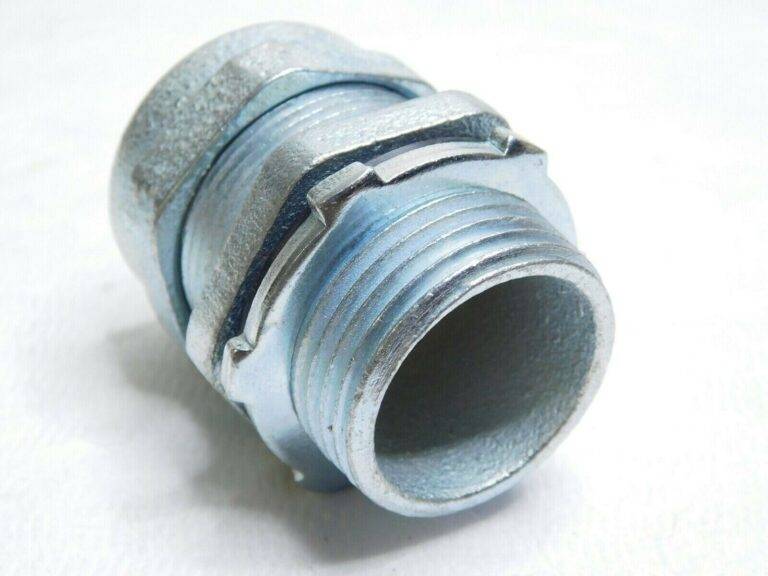

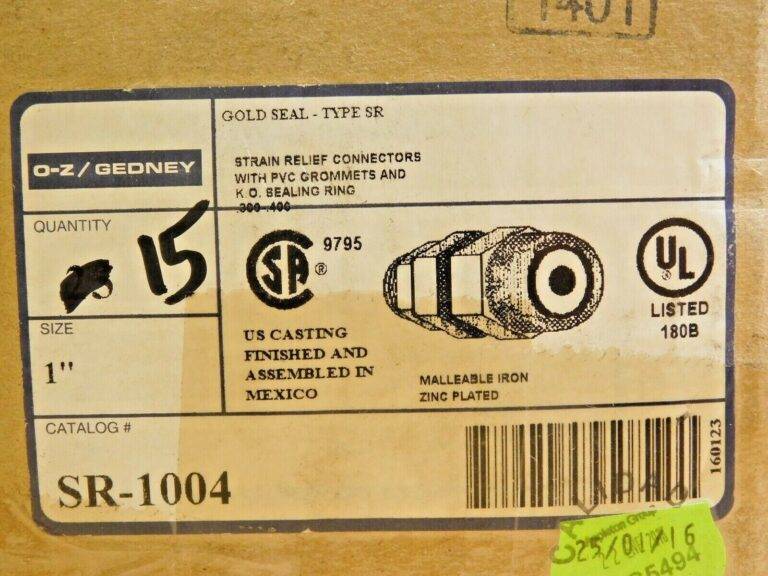

Box Of 15 O-Z/Gedney Gold Seal Strain Relief Connectors 1″ Thread Sr-1004

Commodity Code: 24900

UNSPSC: 39121419

Model: SR

Type: Straight Male

Thread Size: 1 Inch

Material: Zinc Plated Malleable Iron Body, PVC Grommet

Cord Size: 0.3 to 0.4 Inch

Size: 1-5/8 Inch Dia x 1-1/4 Inch L

Approval: CSA

Application: Oiltight, Watertight, Strain Relief, Hazardous Location

Additional Information: Throat Inner Diameter 0.96 Inch; Temperature Rating 90 Deg C

Commodity Description: Cable & Cord Grips

Long Description: CORD CONNECTOR, STRAIGHT MALE TYPE; ZINC PLATED MALLEABLE IRON BODY, PVC GROMMET MATERIAL; 1-5/8 INCH DIA X 1-1/4 INCH L SIZE; CSA APPROVAL; OILTIGHT, WATERTIGHT, STRAIN RELIEF, HAZARDOUS LOCATION APPLICATION; 1 INCH THREAD SIZE

Catalog Number: SR-1004

CATALOG DESCRIPTION: STRAIN RELIEF CONNECTOR, TYPE STRAIGHT MALE, THREAD SIZE 1 INCH, MATERIAL ZINC PLATED MALLEABLE IRON BODY, PVC GROMMET, CORD SIZE 0.3 TO 0.4 INCH, SIZE 1-5/8 INCH DIA X 1-1/4 INCH L, APPROVAL UL 514B, CSA C22.2, APPLICATION OILTIGHT, WATERTIGHT, HAZARDOUS LOCATION, THROAT INNER DIAMETER 0.96 INCH, TEMPERATURE RATING 90 DEG C

Category: Cable & Cord Grips

Commodity Code: 2490

Commodity Description: Non-Metallic Cable-Sec-Flex Fittings

Full Size Image

Full Technical Description: Straight Male Type; Zinc Plated Malleable Iron Body, PVC Grommet Material; 1-5/8 Inch Dia X 1-1/4 Inch L Size; CSA Approval; Oiltight, Watertight, Strain Relief, Hazardous Location Application; 1 Inch Thread Size; 0.3 to 0.4 Inch Cord Size; Throat Inner Diameter 0.96 Inch; Temperature Rating 90 Deg C; SR Model

Manufacturer: O-Z Gedney

Product Description: OZ-G SR-1004 1IN STRAIN RELIEF FTG

Sub-Category: Flexible Cord/Cable Connector

UNSPSC Commodity: Cable gland connector

Unique Product Key: 5920294
