Description
BRAND Niagara
Item
MSRP: $113.00
| Mill Diameter (Inch) |
7/16 |
| Mill Diameter (Decimal Inch) |
0.4375 |
| Number Of Flutes |
4 |
| End Mill Material |
Solid Carbide |
| Length of Cut (Decimal Inch) |
0.8750 |
| Length of Cut (Inch) |
7/8 |
| Shank Diameter (Decimal Inch) |
0.4375 |
| Shank Diameter (Inch) |
7/16 |
| Overall Length (Decimal Inch) |
4.0000 |
| Overall Length (Inch) |
4 |
| Single Or Double End |
Single |
| Coating/Finish Family |
AlTiN |
| Centercutting |
Yes |
| Cutting Direction |
Right Hand |
| Flute Direction |
Right Hand |
| Extended Reach |
Yes |
| Coolant Through |
No |
| Helix Angle |
40 |
| Primary Workpiece Material |
High-Temp Alloy; Stainless Steel; Hardened Materials |
| Primary Workpiece Material Code |
S; H; M |
| Coating/Finish |
AlTiN |
| Variable Helix |
Yes |
| Variable Index |
No |
| Chipbreaker |
No |
| Flute Type |
Spiral |
| Shank Type |
Weldon Flat |
| Material Grade |
Micrograin |
| Length Type |
Extended |
| Coating Classification |
PVD |
| Helix Style |
Variable |
| Nose Radius (Decimal Inch) |
0.2188 |
| Neck Length (Decimal Inch) |
0.4380 |
| Neck Diameter (Decimal Inch) |
0.4200 |
| Neck Diameter (mm) |
0.42 |
| Reach Length (Inch) |
1-5/16 |
| Reach Length (Decimal Inch) |
1.3130 |
| Mill Diameter Tolerance |
+0.0000/-0.0020 in |
| Overall Length Tolerance |
+0.0600/-0.0600 in |
| Shank Diameter Tolerance |
-0.0001/-0.0004 in |
| TIR Maximum (Decimal Inch) |
0.0005 |
| Series |
STBN440.2 |
| System Of Measurement |
Fractional Inch |
| Manufacturers Catalog Number |
STBN440.2-0.438-E2-B.3-Z4 |
| Material Removal Type |
Roughing & Finishing |
| UNSPSC Code |
27112803 |
| Country of Origin |
UNITED STATES |
(Description).

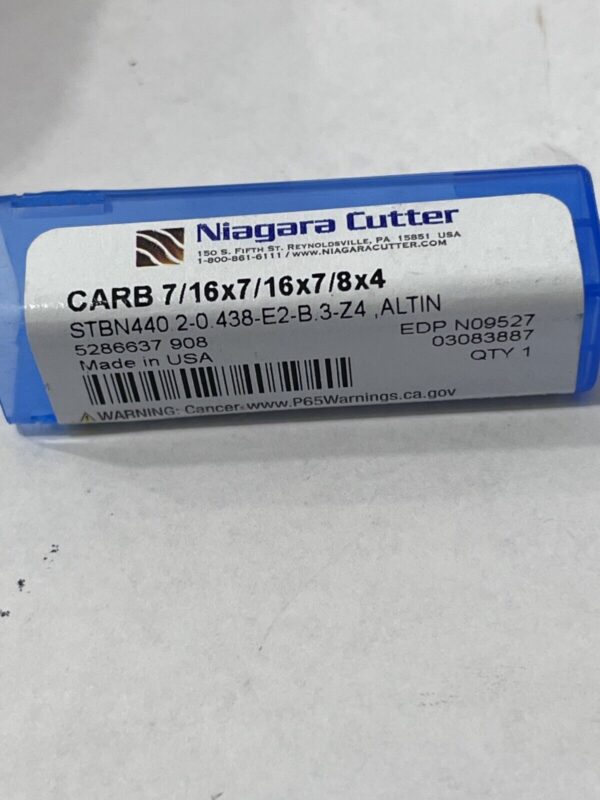

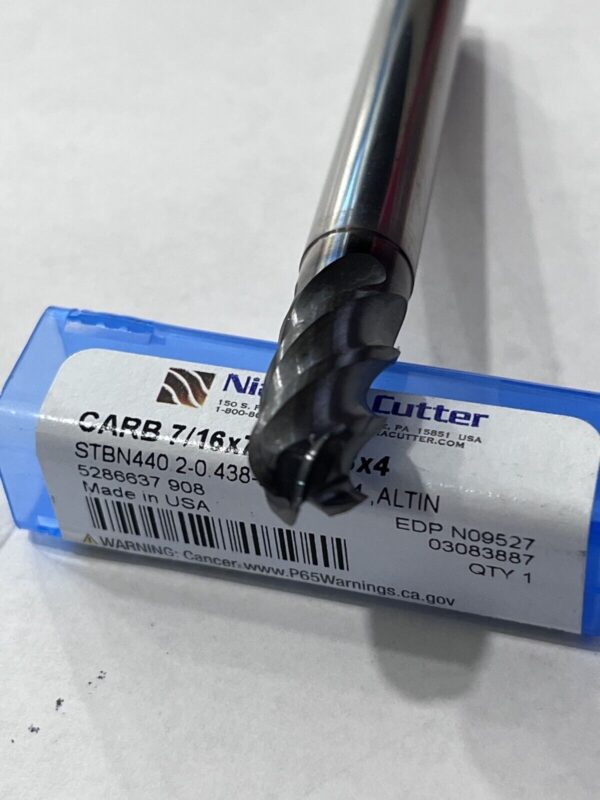

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
NUMBER OF FLUTES: 4
END MILL TYPE: Ball End Mill
MATERIAL: Solid Carbide
