Description

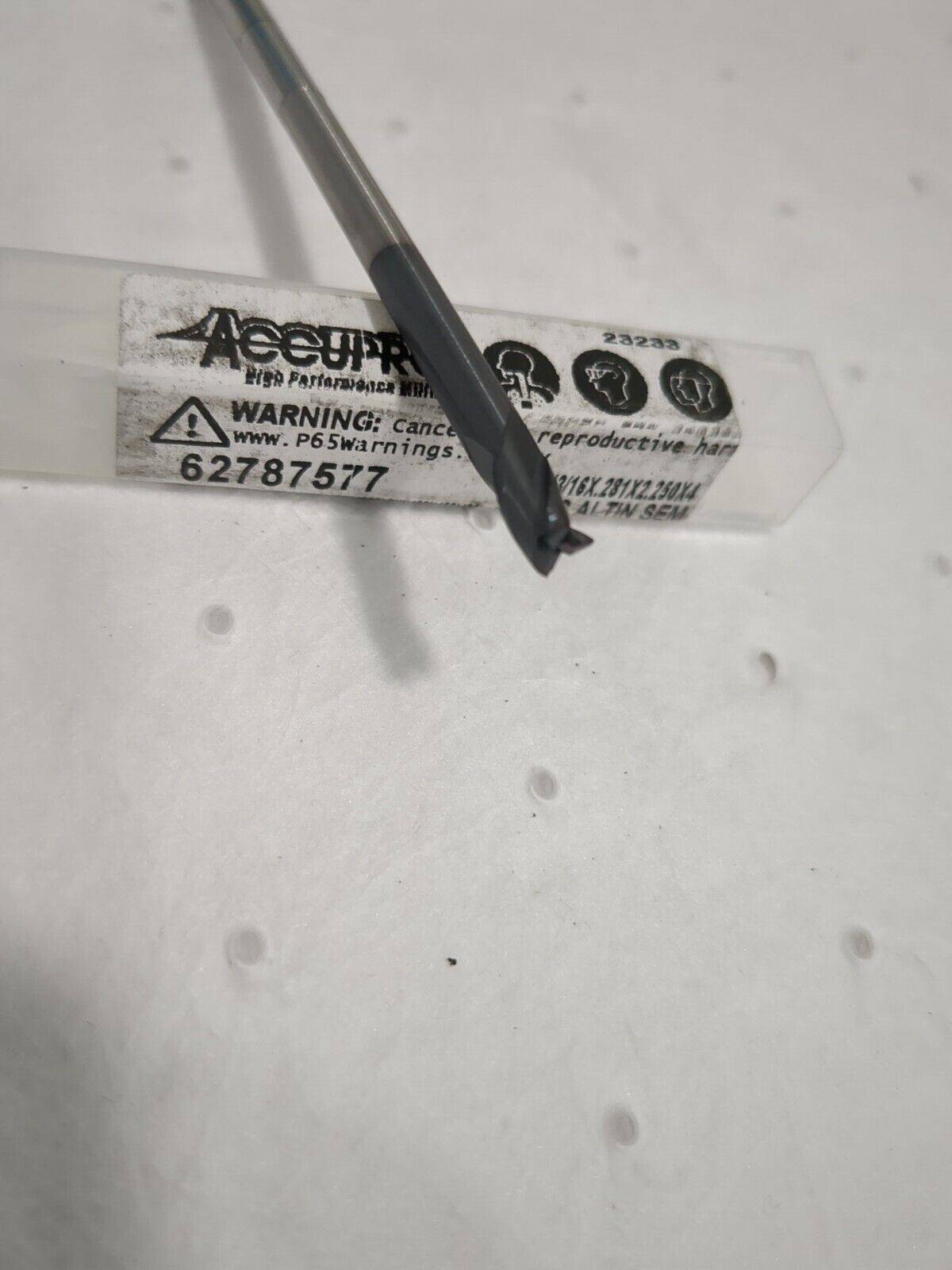

ACCUPRO Square End Mill: 3/16″ Dia 3 Fl Solid Carbide 14797324
MSRP: $40
- Mill Diameter (Decimal Inch) 0.1875
- Mill Diameter (Inch) 3/16
- Number Of Flutes 3
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 0.2810
- Length of Cut (Inch) 9/32
- Shank Diameter (Inch) 3/16
- Shank Diameter (Decimal Inch) 0.1875
- Overall Length (Decimal Inch) 4.0000
- Overall Length (Inch) 4
- Single Or Double End Single
- Coating/Finish Family AlTiN
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach Yes
- Coolant Through No
- Helix Angle 30
- Coating/Finish AlTiN
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Material Grade Micrograin
- Neck Length (Decimal Inch) 2.8120
- Reach Length (Decimal Inch) 2.2500
- Length Of Cut Range (Decimal Inch) 0.2000 – 0.3000
- Mill Diameter Tolerance +0.0000/-0.0010 in
- Shank Diameter Tolerance -0.0001/-0.0003 in
- Series ASQSC3-AT-CCER
- System Of Measurement Decimal Inch
- UNSPSC Code 27112803
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
oct 23 24
HS7229
dex9
MPN: 14797324
END MILL TYPE: Square End Mill
SHANK DIAMETER: 3/16 in
MATERIAL: Solid Carbide
END TYPE: Square
BRAND: Accupro
