Description
ACCUPRO
3/4″ Diam 4 Flute Carbide 0.06″ Corner Radius End Mill 6504424
MSRP: $360
- Mill Diameter (mm) 19.05
- Mill Diameter (Inch) 3/4
- Mill Diameter (Decimal Inch) 0.7500
- End Type Corner Radius
- Corner Radius (Decimal Inch) 0.06
- Number of Flutes 4
- Material Carbide
- Finish/Coating AlCrTiN
- Length of Cut (mm) 38.1000
- Length of Cut (Inch) 1-1/2
- Length of Cut (Decimal Inch) 1.5000
- Shank Diameter (mm) 19.0500
- Shank Diameter (Inch) 0.75
- Overall Length (mm) 101.6000
- Overall Length (Inch) 4
- Flute Type Helical
- Cutting Direction Right Hand
- Helix Angle Variable
- Variable Index Yes
- Variable Helix Yes
- Material Grade Micrograin
- Single or Double End Single
- Minimum Helix Angle 30
- Maximum Helix Angle 32
- Length Type Regular
- Centercutting Yes
- Flute Direction Right Hand
- Mill Diameter Tolerance (mm) +0.000 to -0.025
- Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.001
- Shank Diameter Tolerance (mm) h6
- Shank Diameter Tolerance (Decimal Inch) h6
- Extended Reach No
- Overall Length Tolerance (Decimal Inch) +0.040 to -0.000
- Shank Type Straight
- TIR Maximum (Decimal Inch) 0.0013
- TIR Maximum (mm) 0.18
- Series/List VS
- Chipbreaker No

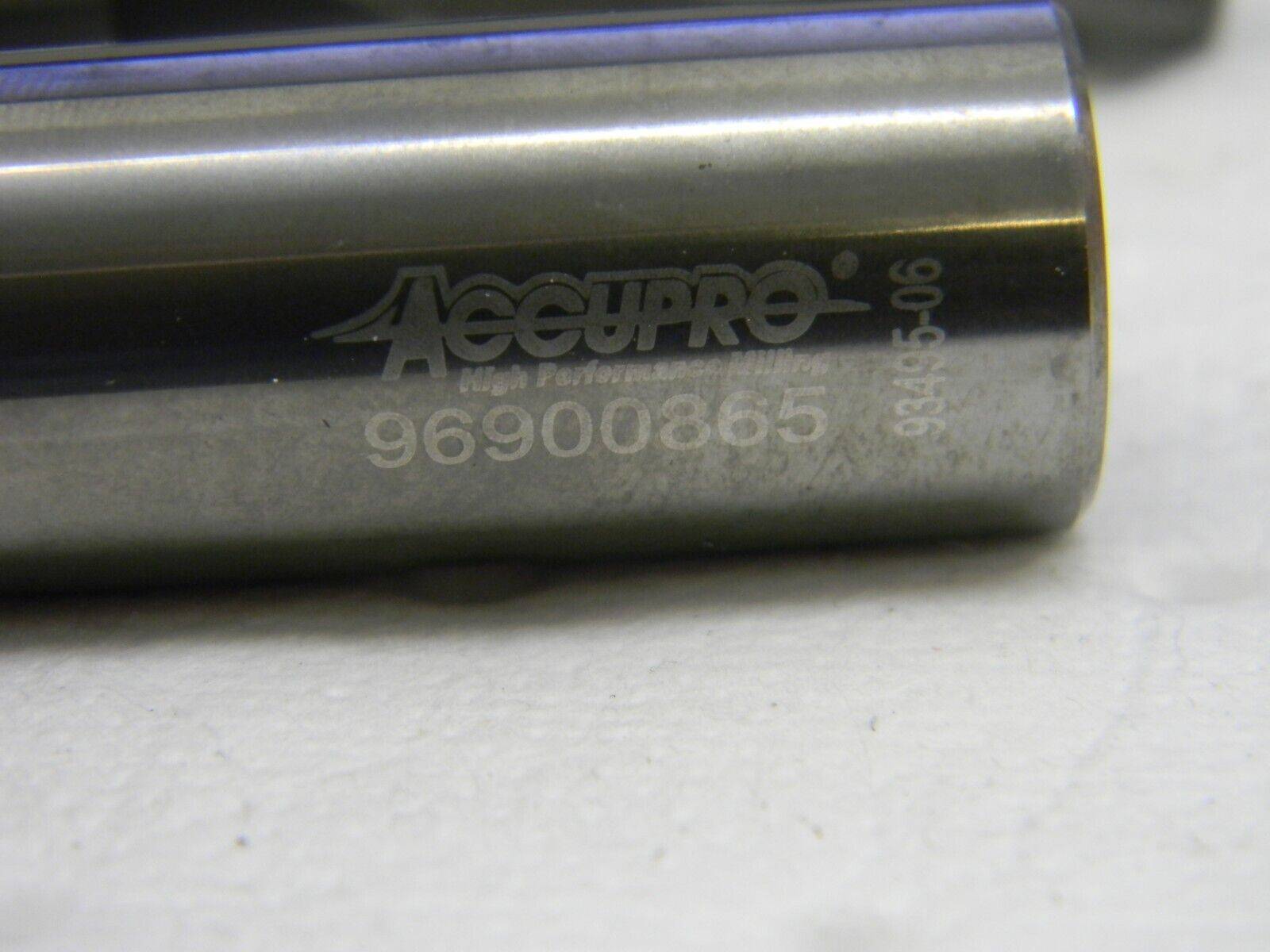

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Dec 02 22
HS170
Ice 76
NUMBER OF FLUTES: 4
MPN: 6504424
MSRP: $360
END MILL TYPE: Corner Radius End Mill
BRAND: Accupro
