Abbott Workholding Products Soft Lathe Chuck Jaw: Serrated Ktt8a1sq

ABBOTT WORKHOLDING PRODUCTS Soft Lathe Chuck Jaw: Serrated KTT8A1SQ

MSRP: $50

• Jaw Shape Square
• Jaw Interface Type Serrated
• Material Aluminum
• Maximum Compatible Chuck Diameter (mm) 8.00
• Maximum Compatible Chuck Diameter (Decimal Inch) 8.0000
• Distance Between Mount Hole Centers (Decimal Inch) 0.9843
• Distance Between Mount Hole Centers (mm) 25.00
• Fastener Size (mm) 12.00
• Fastener Size (Decimal Inch) 0.4724
• Slot Width (Decimal Inch) 0.5510
• Groove Width (mm) 14.00
• Groove Width (Decimal Inch) 0.5512
• Overall Height (Decimal Inch) 3.0000
• Overall Height (Mm – 5 Decimals) 76.20
• Overall Length (Inch) 4
• Overall Length (Decimal Inch) 4.0000
• Material Grade 6061-T6
• Overall Width/Diameter (Decimal Inch) 1.5000
• Overall Width/Diameter (Inch) 1-1/2
• Number Of Jaws 3
• UNSPSC Code 31162902
•

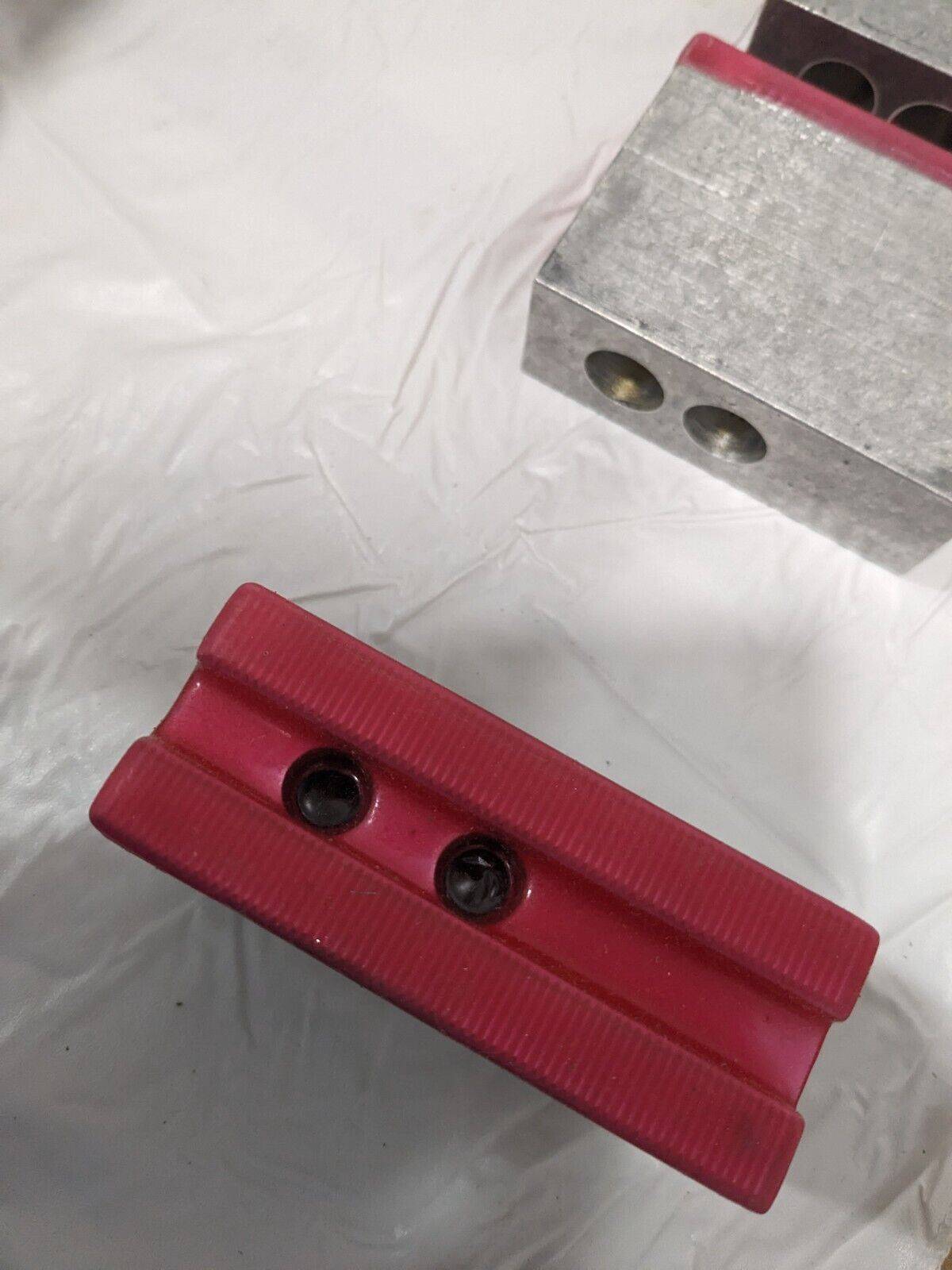

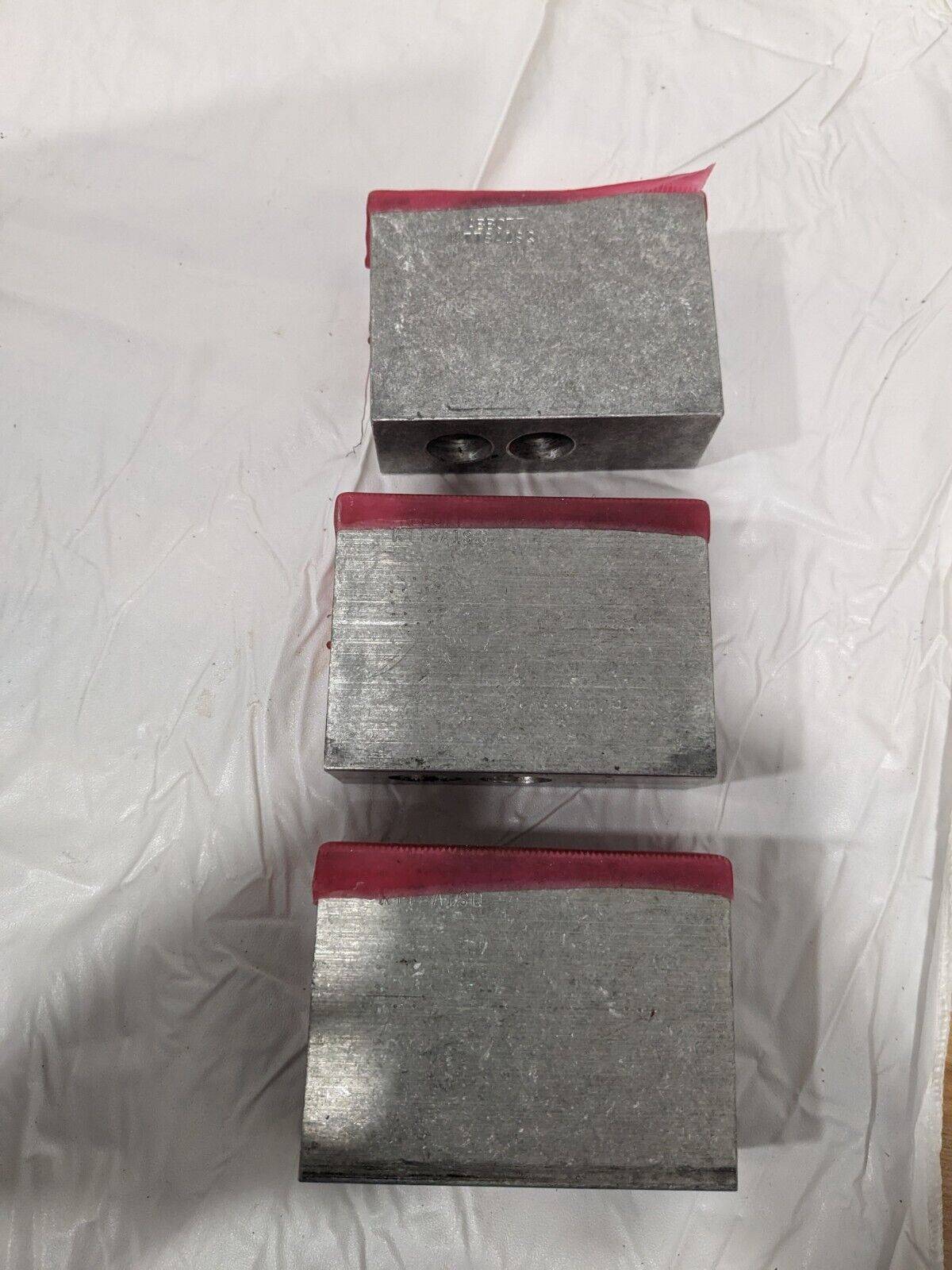

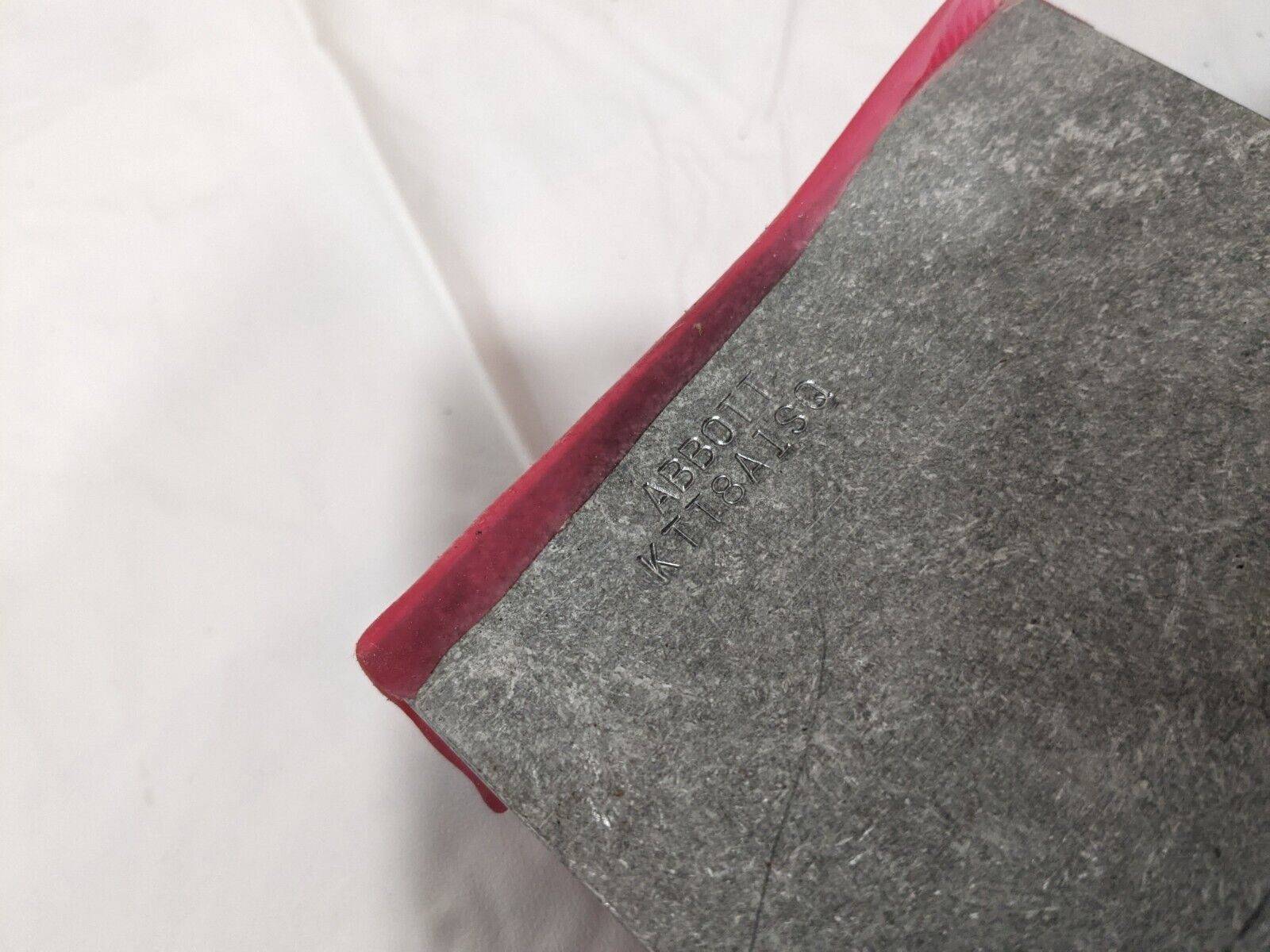

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
