Description
MSRP: $50.00

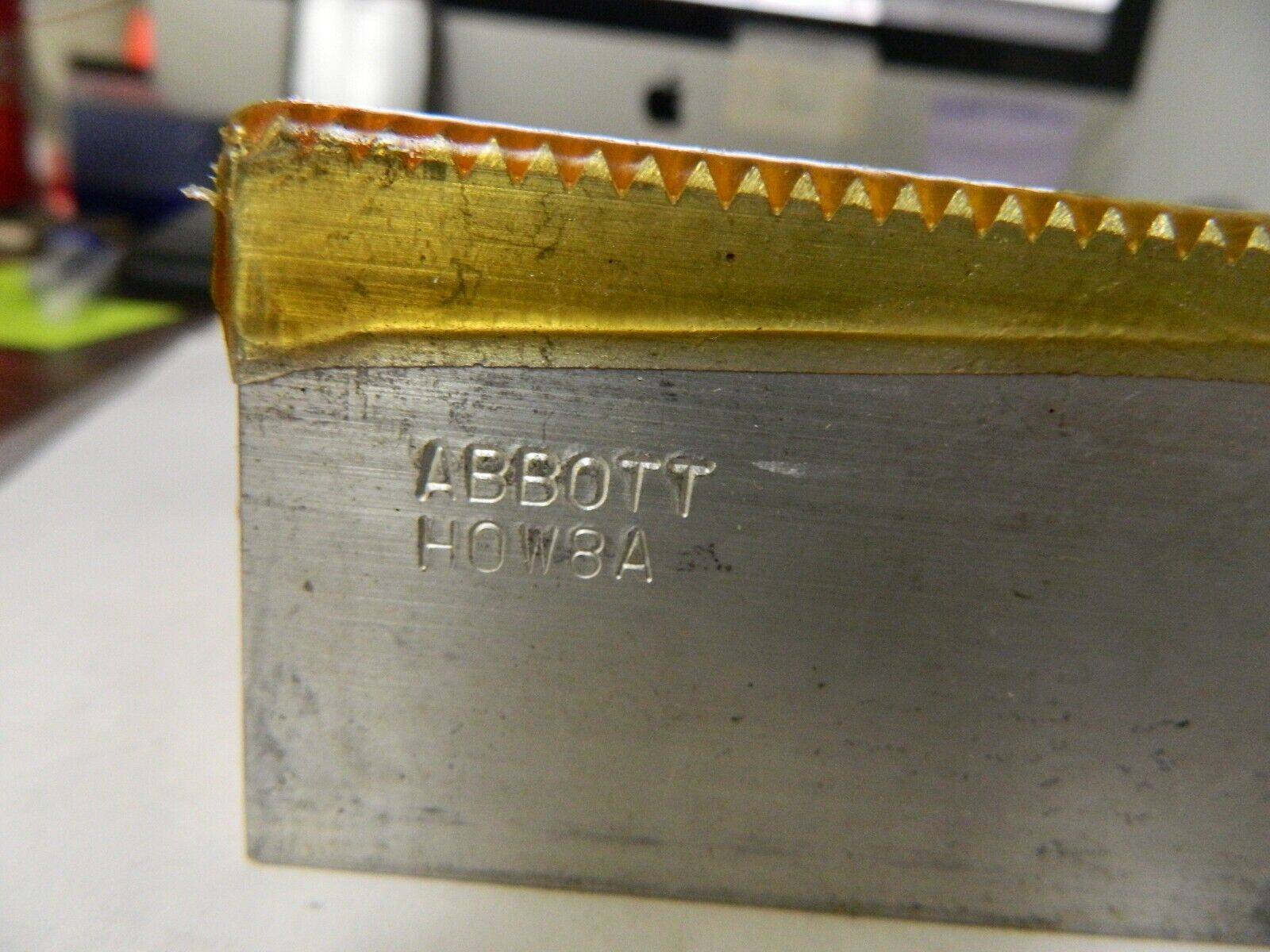

Model: HOW8A
Description:
Jaw Type Square
Material Aluminum
Jaw Interface Type 3mm x 60 Serrated
Maximum Compatible Chuck Diameter (Inch) 8
Maximum Compatible Chuck Diameter (Decimal Inch) 8.0000
Maximum Compatible Chuck Diameter (mm) 203.20
Overall Height (mm) 50.80
Overall Height (Inch) 2
Groove Width (mm) 14.00
Groove Width (Decimal Inch) 0.5512
Distance Between Mount Hole Centers (mm) 25.00
Distance Between Mount Hole Centers (Decimal Inch) 0.9843
Jaw End Shape Pointed
Fastener Size (mm) 12.00
Fastener Size (Decimal Inch) 0.4724
Number of Jaws 3
Overall Width/Diameter (mm) 38.10
Overall Width/Diameter (Inch) 1-1/2
Overall Width/Diameter (Decimal Inch) 1.5000
Overall Length (Inch) 4
Overall Length (Decimal Inch) 4.0000
Overall Length (mm) 101.60
Material Grade 6061-T6

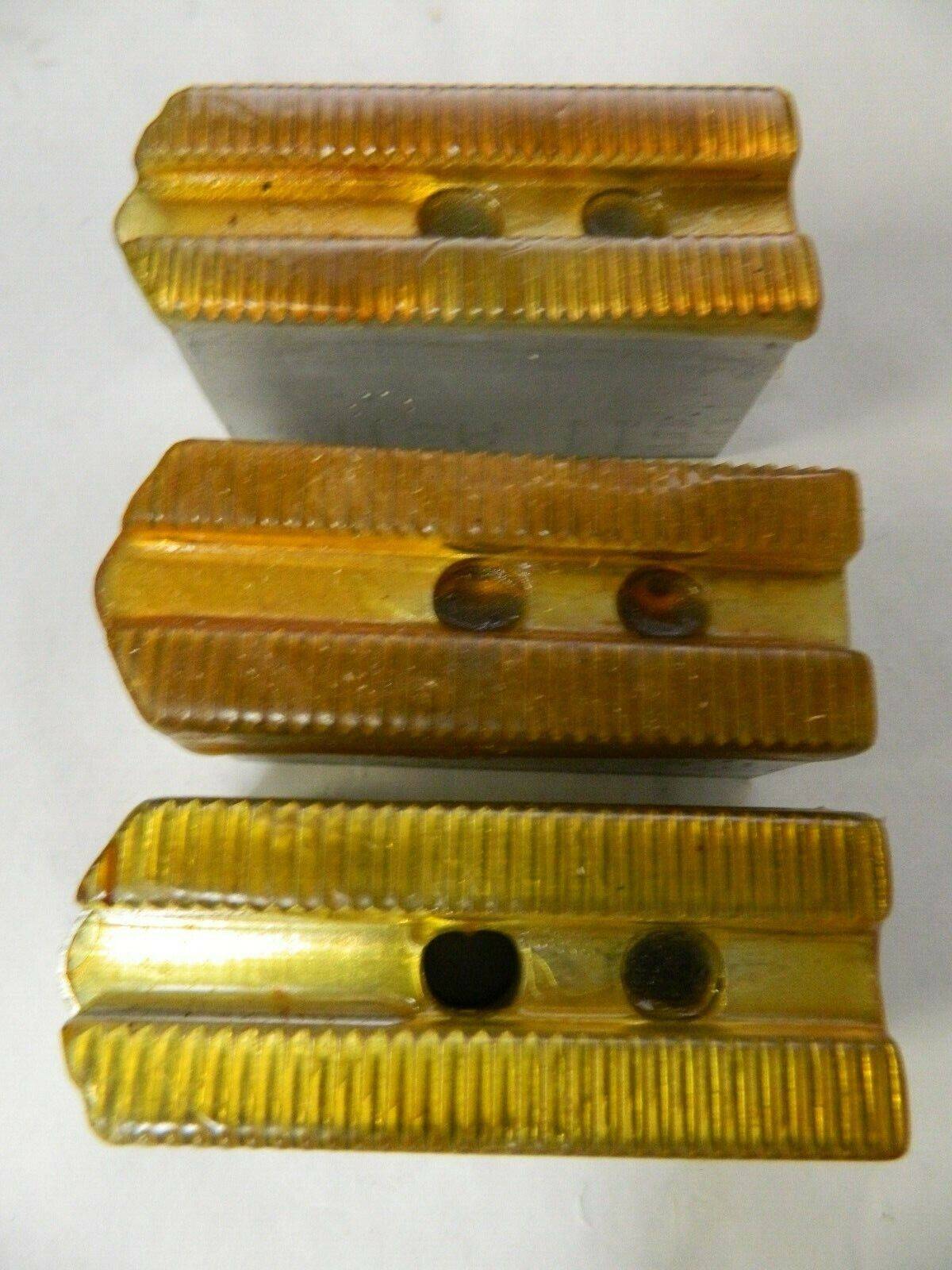

This listing is for One Set of 3 that is in the picture as well as described. Please ask any questions prior to buying!
January 13 2023
CM 7620
Ming 2
BRAND: Abbott
MSRP: 50.00
JAW TYPE: Soft Jaw
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: CM7620Ming2
