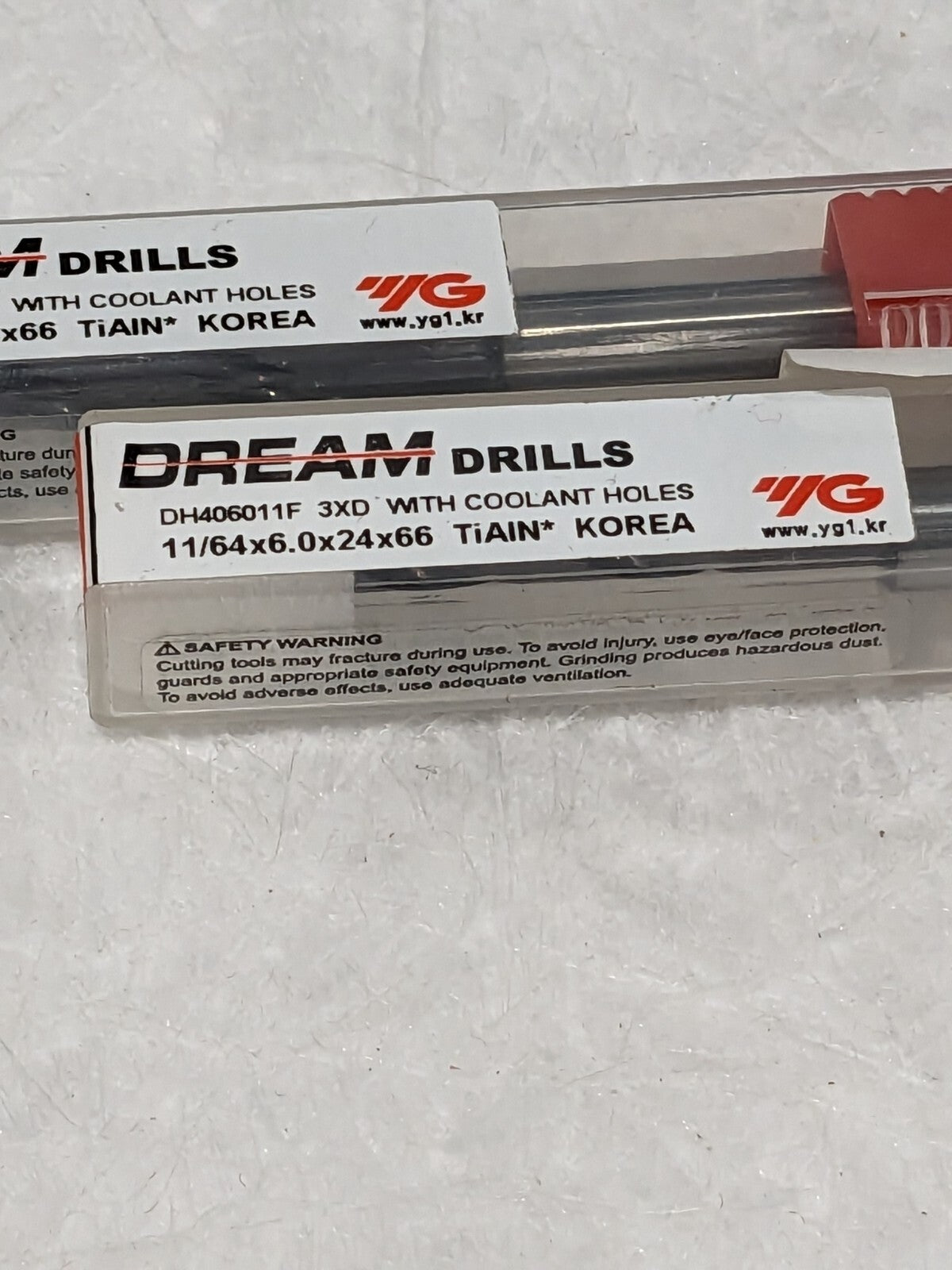

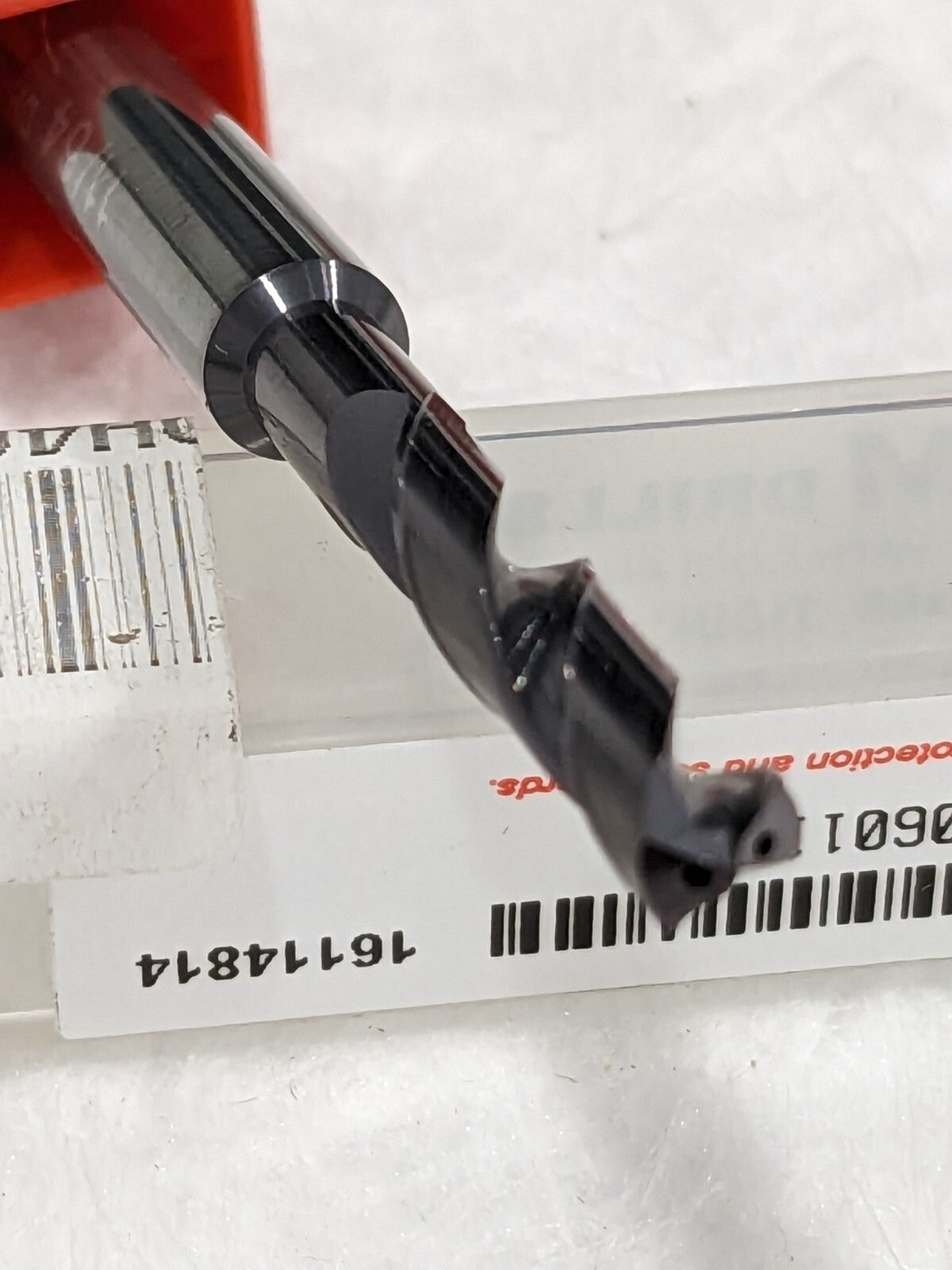

YG-1 Drill Bit 0.1700" Diam. 0.2362" Shank, 2.5984" OAL, 2 FL Qty 2 DH406011F

YG-1

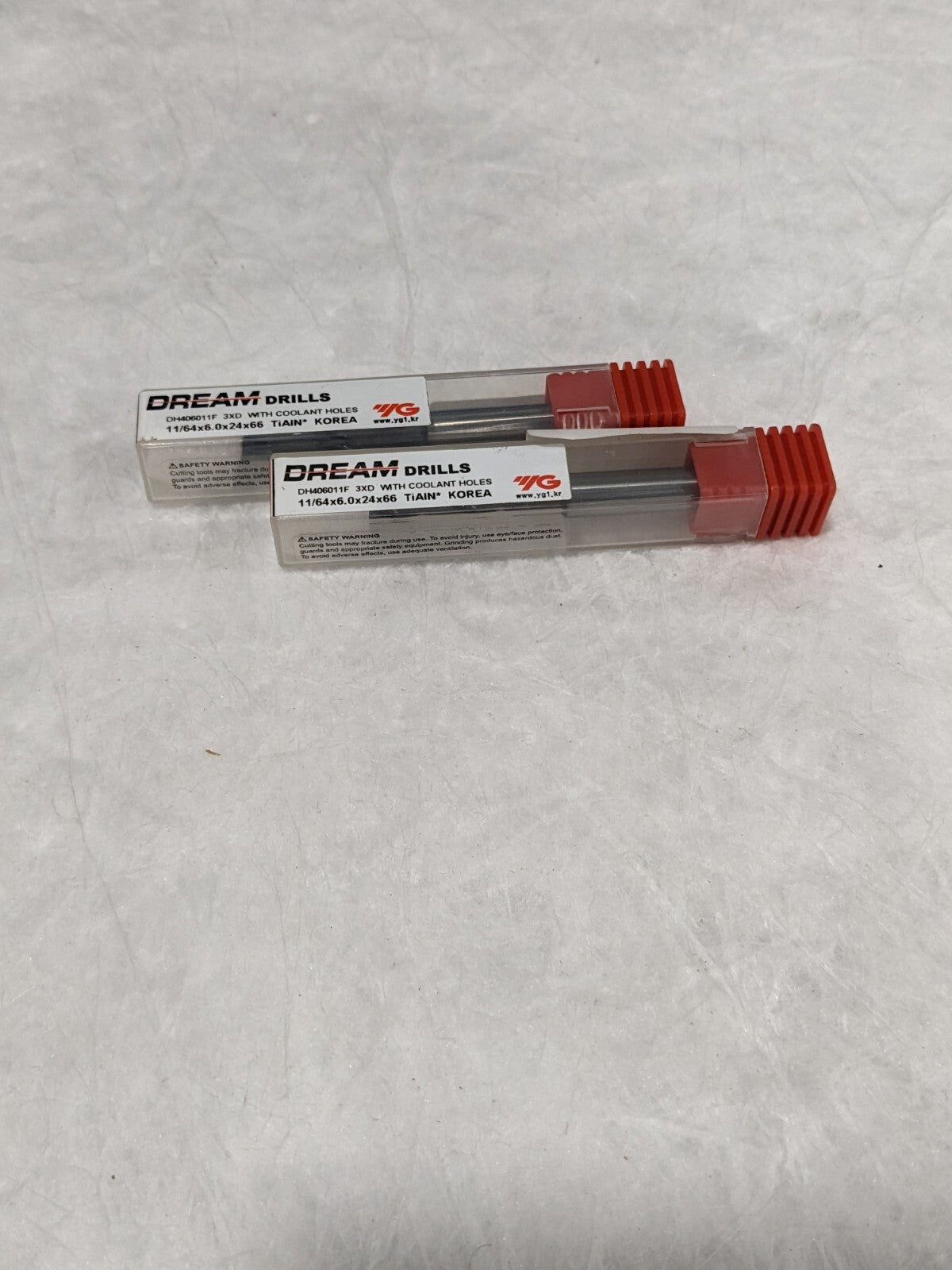

1 Lot of 2 Drill Bits

MSRP: $50.00

• Diameter (Decimal Inch) DH406011F
• Diameter (Decimal Inch) 0.1700"
• Diameter (Inch) 11/64"
• Diameter (mm) 4.37mm
• Shank Diameter (Decimal Inch) 0.2362"
• Shank Diameter (Inch) 13/55"
• Shank Diameter (mm) 6.00mm
• Flute Length (Decimal Inch) 0.9449"
• Flute Length (Inch) 17/18"
• Flute Length (mm) 24.00mm
• Overall Length (Decimal Inch) 2.5984"
• Overall Length (Inch) 2-3/5"
• Overall Length (mm) 66.00mm
• Point Length (Decimal Inch) 0.0313"
• Point Length (mm) 0.79mm
• Point Angle (Degree) 140 Degree
• Helix Angle (Degree) 30 Degree
• Length/Diameter 3
• Shank Tolerance h6
• Coolant Through Yes
• Coolant Pressure 20 Bar
• Hole Tolerance m7
• Blank Standard DIN 6537
• Coating TiAlN
• Material Carbide
• Cutting Direction Right
• Application P
• Type Dream Drill Bit

These items are new and in good condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
