YG-1 Carbide jobber Length Drill Bits Letter F (0.2570) Dia 140 deg 80153620

YG-1
Carbide jobber Length Drill Bits

MSRP: $120

• Drill Bit Size (Letter) F
• Drill Bit Size (mm) 6.53
• Drill Bit Size (Decimal Inch) 0.2570
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 140
• Coating/Finish RCH
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Self Centering
• Primary Workpiece Material Cast Iron; Steel
• Coolant Through Yes
• Number of Flutes 2
• Flute Length (mm) 55.96
• Flute Length (Decimal Inch) 2.2031
• Primary Workpiece Material Code P; K
• Shank Diameter (Decimal Inch) 0.2656
• Overall Length (mm) 109.14
• Overall Length (Inch) 4-19/64
• Spiral Type Regular
• Overall Length (Decimal Inch) 4.2969
• Series DTX418
• Tool Application Drilling
• Flute By Diameter Ratio 8xD
• Shank Diameter (Inch) 17/64
• Shank Diameter (mm) 6.75
• Maximum Drilling Depth (Decimal Inch) 2.2031
• Maximum Drilling Depth (Inch) 2-13/64
• Shank Length (Decimal Inch) 2.0938
• Shank Length (Inch) 2-3/32
• Number of Flats 0
• Drill Bit Diameter Tolerance h6
• Web Thinning R-Thinned
• Shank Type Cylindrical
• Tool Performance General Purpose
• Double Margin No
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch)

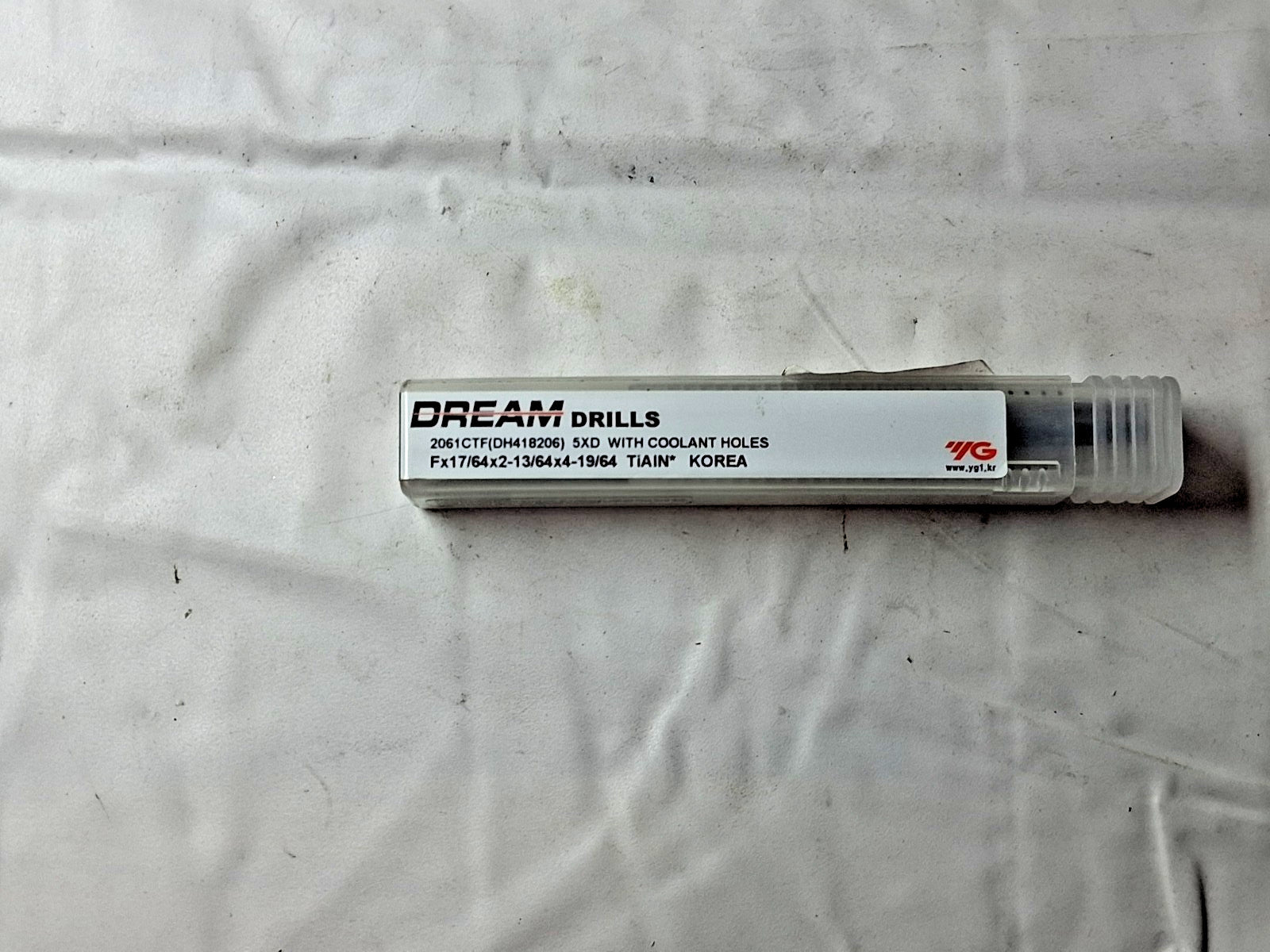

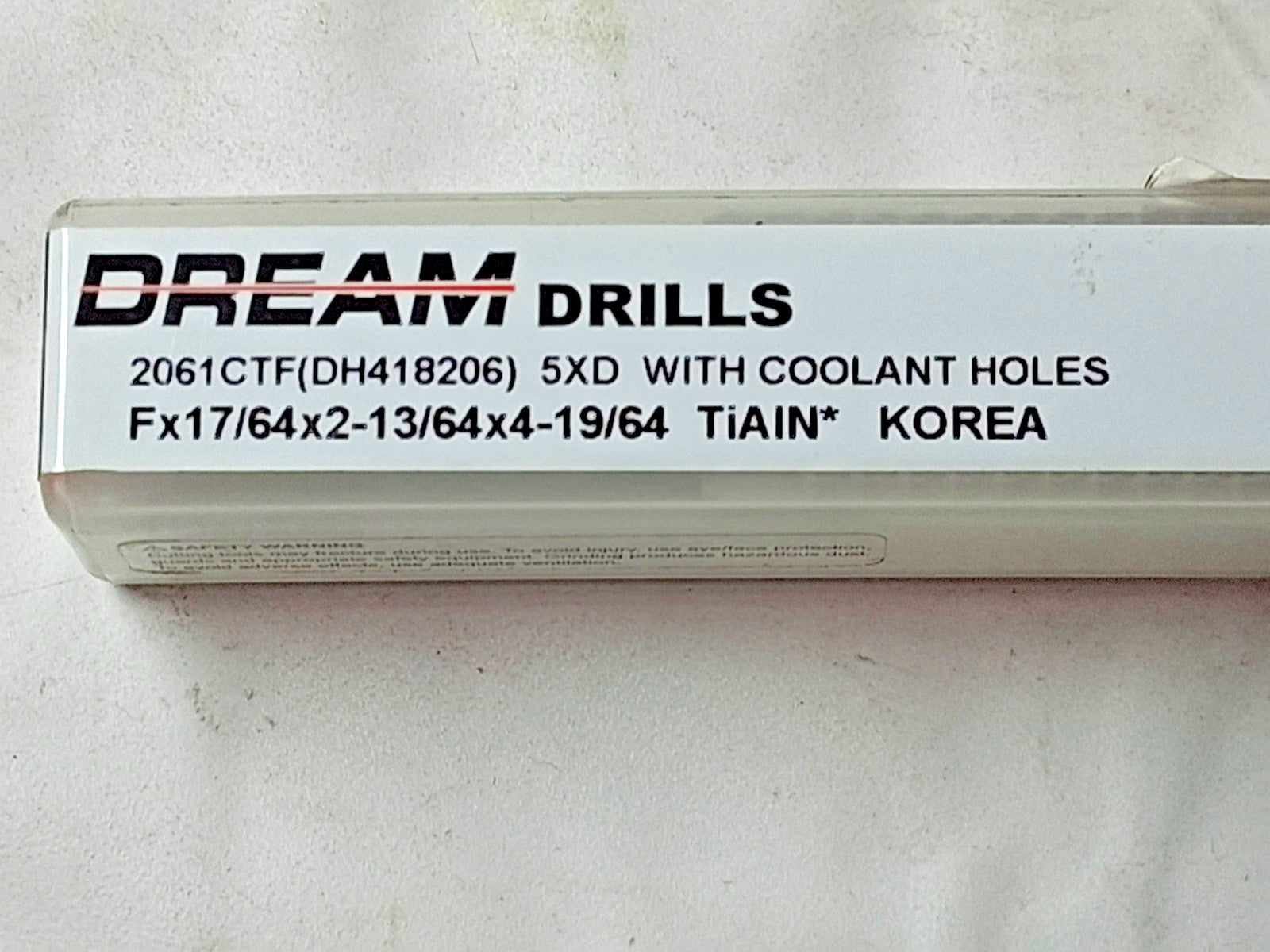

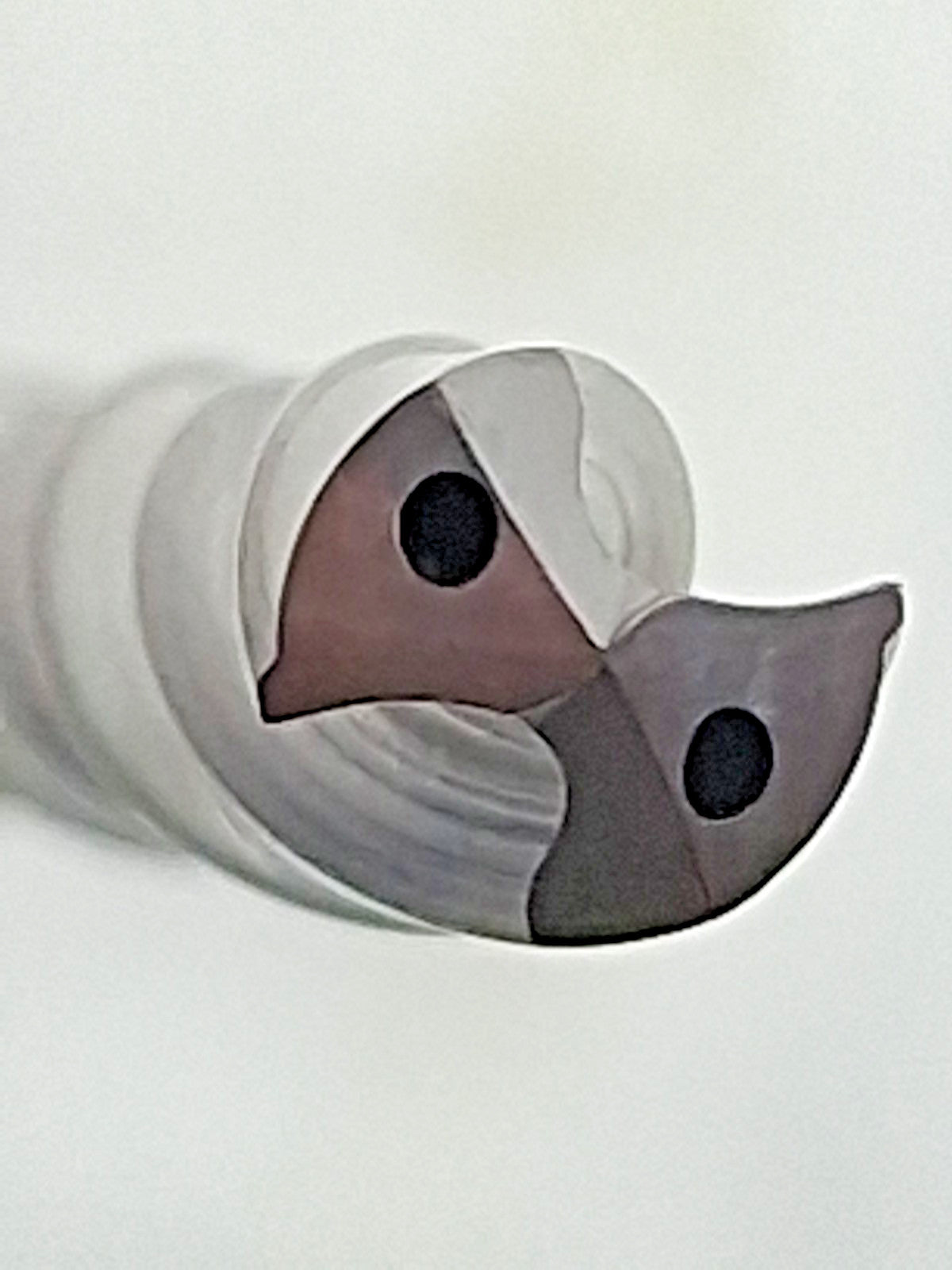

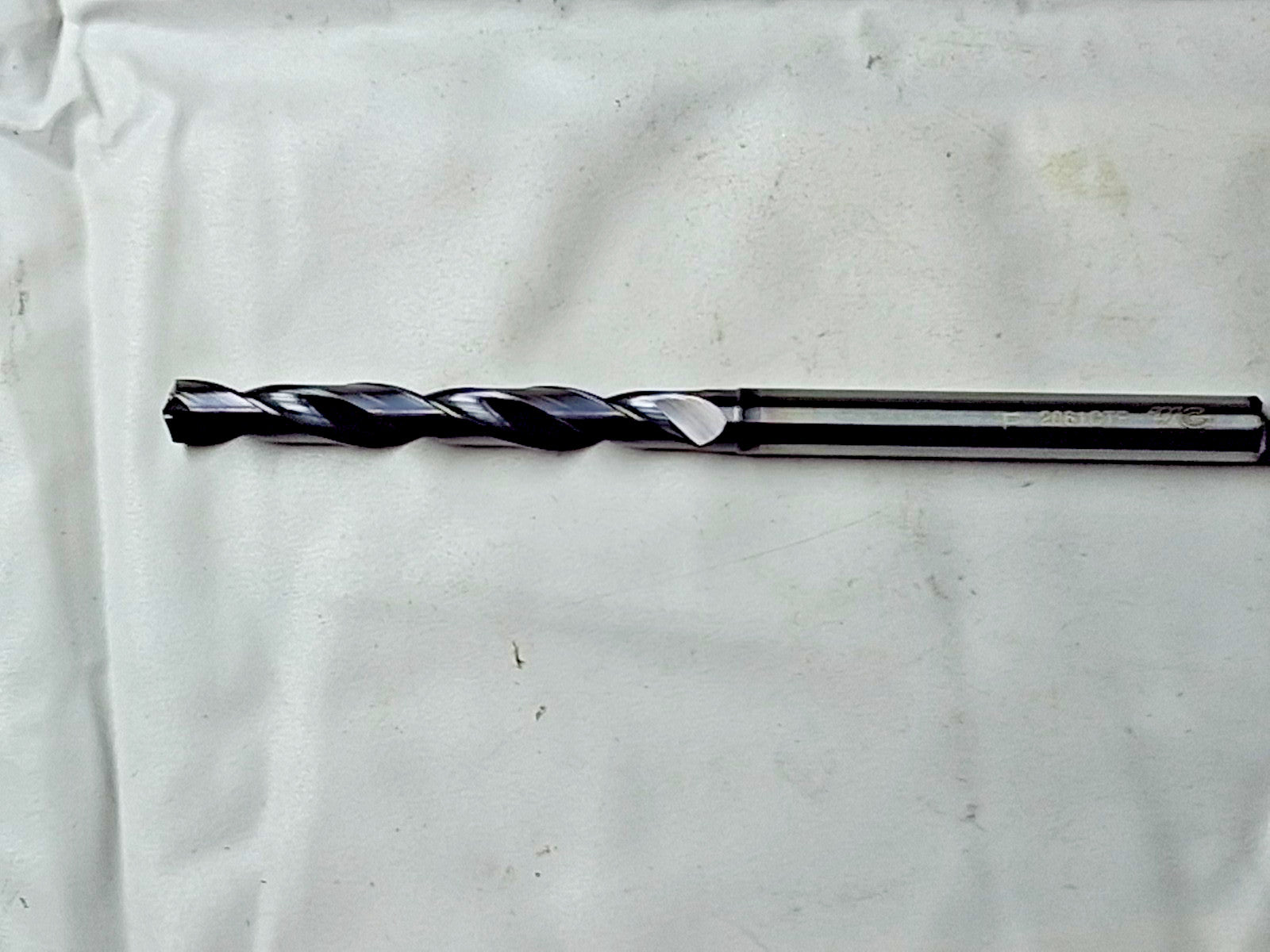

Please review photos, comes as shown.
