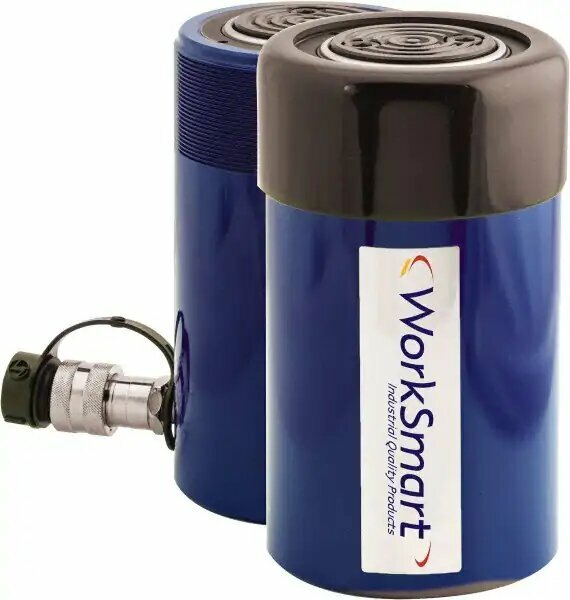

WorkSmart 55 Ton Portable Hydraulic Single Acting Cylinder 4" Stroke
WorkSmart 55 Ton Portable Hydraulic Single Acting Cylinder 4" Stroke
Regular price
$398.71 USD
Regular price
$799.99 USD
Sale price
$398.71 USD
Unit price
/
per
WORKSMART
Hydraulic Cylinder
| Type | Single Acting |
| Load Capacity (Ton) | 55 |
| Piston Stroke (Decimal Inch) | 4.06 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Lowered Height | 8.94 |
| Oil Capacity | 44.57 |
| Effective Area | 10.98 |
| Maximum Height (Decimal Inch) | 13.00 |
| Outside Diameter (Inch) | 5 |
| Plunger Diameter | 3.15 |
| Base To Inlet Port (Inch) | 1-7/32 |
| Saddle Diameter (Inch) | 2.76 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5 - 12 |
| Collar Thread Length (Inch) | 2.17 |
| Base Mounting Holes Bolt Circle (Inch) | 3-3/4 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |

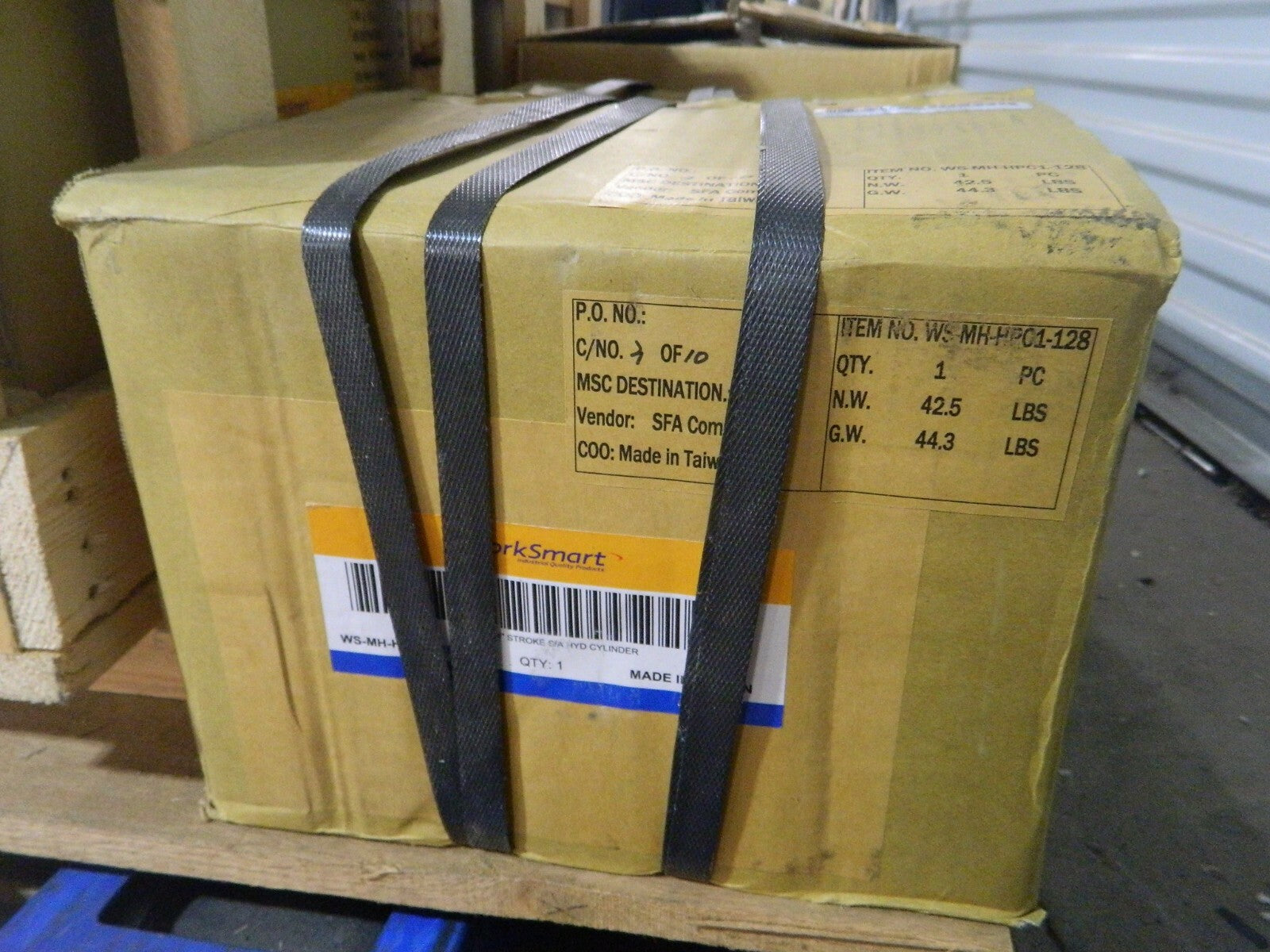

Open-box, unused unit.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
*Florida residents are required to pay 7% sales tax*
