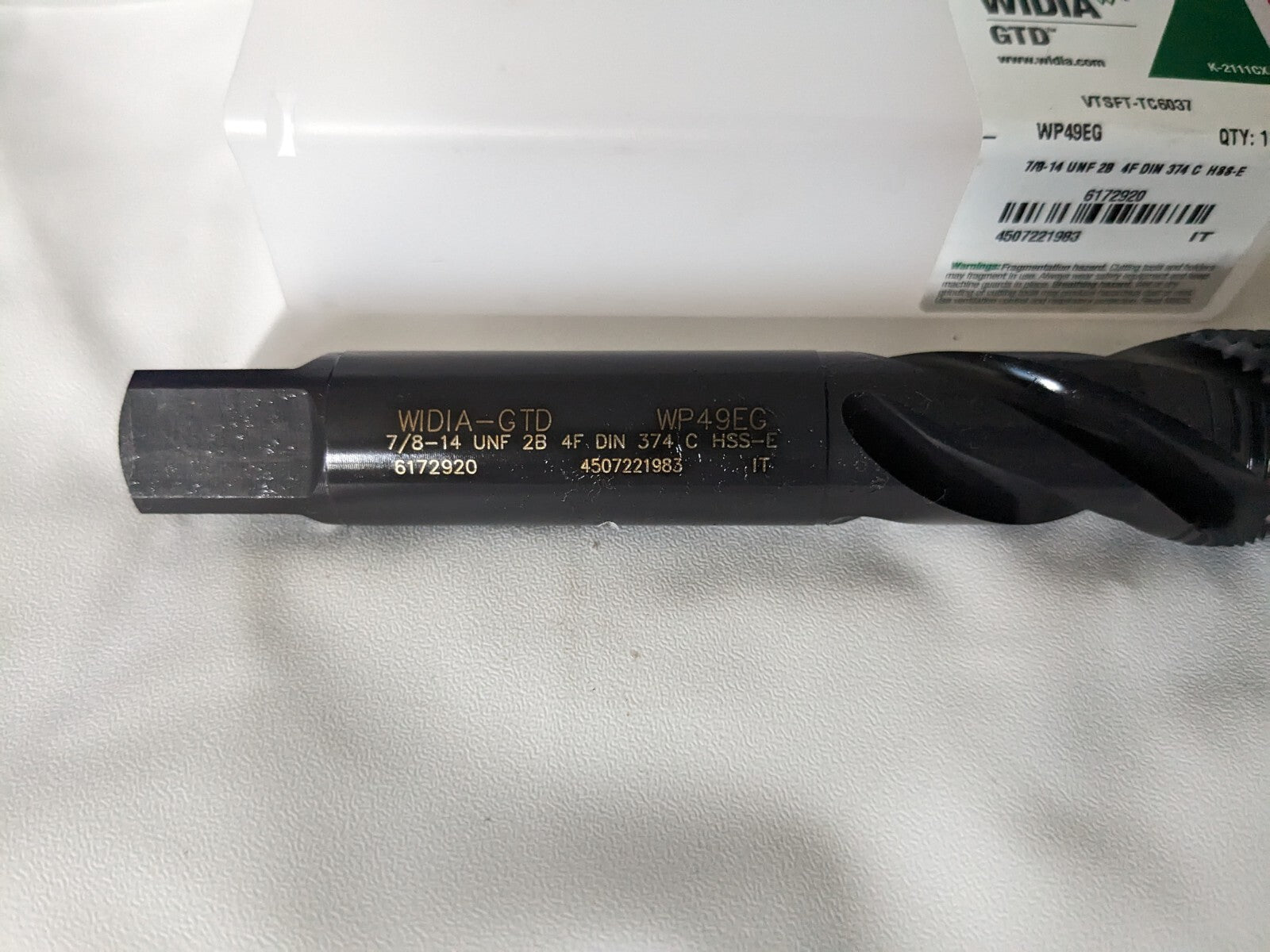

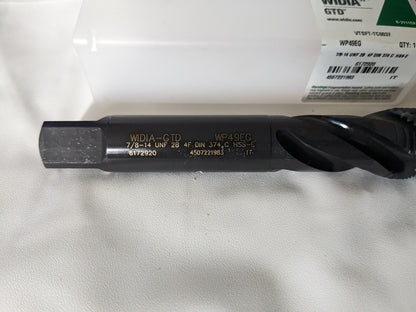

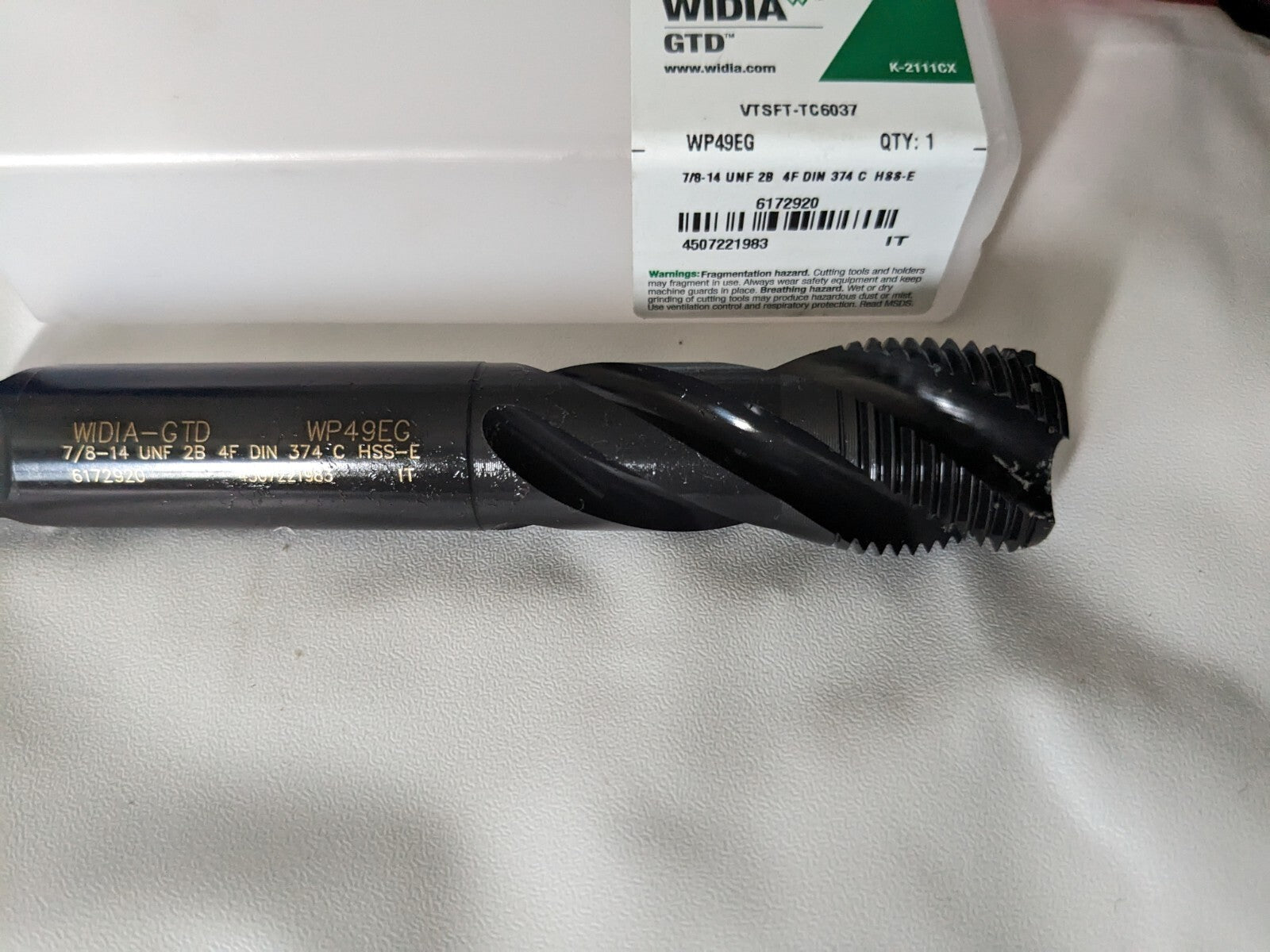

Widia Spiral Flute Tap: 7/8-14, UNF, 4 Fl 6172920

Widia Spiral Flute Tap: 7/8-14, UNF, 4 Fl 6172920

MSRP: $160

• Thread Size (Inch) 7/8-14
• Thread Standard UNF
• Chamfer Modified Bottoming
• Material Cobalt
• Thread Limit H6
• Class Of Fit 2B
• Coating/Finish Oxide
• Thread Direction Right Hand
• Coolant Through No
• Number Of Flutes 4
• Material Application Stainless Steel; Cast Iron; Steel
• Flute Direction Right Hand
• Proprietary Coating/Finish Oxide
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel
• Threads per Inch 14
• Thread Length (Decimal Inch) 0.7100
• Overall Length (Decimal Inch) 4.9200
• Thread Pitch (Decimal Inch) 0.0714
• Material Grade WP49EG
• Primary Workpiece Material Code P; K; M; N
• Shank Diameter (Decimal Inch) 0.7087

(Description).

Please review photos, comes as shown.
