WIDIA Milling Insert 5pk: RDMW1204M0TX WK15CM, Solid Carbide 5427441

WIDIA Milling Insert 5pk: RDMW1204M0TX WK15CM, Solid Carbide 5427441

MSRP: $60

• Insert Style RDMW
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Round
• Manufacturer Grade WK15CM
• Corner Radius (Decimal Inch) 0.2362
• Corner Radius (mm) 6.00
• Number Of Cutting Edges 1
• Thickness (Decimal Inch - 4 Decimals) 0.1875
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 15.00
• Maximum Depth of Cut (Decimal Inch) 0.2362
• Insert Size Code 1204
• Thickness (Inch) 3/16
• Inscribed Circle (Decimal Inch) 0.4724
• Inscribed Circle (mm) 12.00
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Length Range (Decimal Inch) 0.4500 to 0.5000
• Insert Hand Neutral
• Series M100
• Coating Process MTCVD
• Hole Diameter (Decimal Inch) 0.1752
• Rake Positive
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Ansi Code RDMW1204M0TX
• Iso Code RDMW1204M0TX
• Standards ISO; ANSI
• Cutting Edge Style T-Land
• Manufacturers Catalog Number RDMW1204M0TX
• Cutter Series Compatibility M100
• Chip Breaker TX
• UNSPSC Code 23291601
• Material Application Cast Iron
• Length of Cut (mm) 6.0000
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Length (mm) 12.00
• Width (Decimal Inch - 4 Decimals) 0.4724
• Width (mm - 2 Decimals) 12.00
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.4724

(Description).

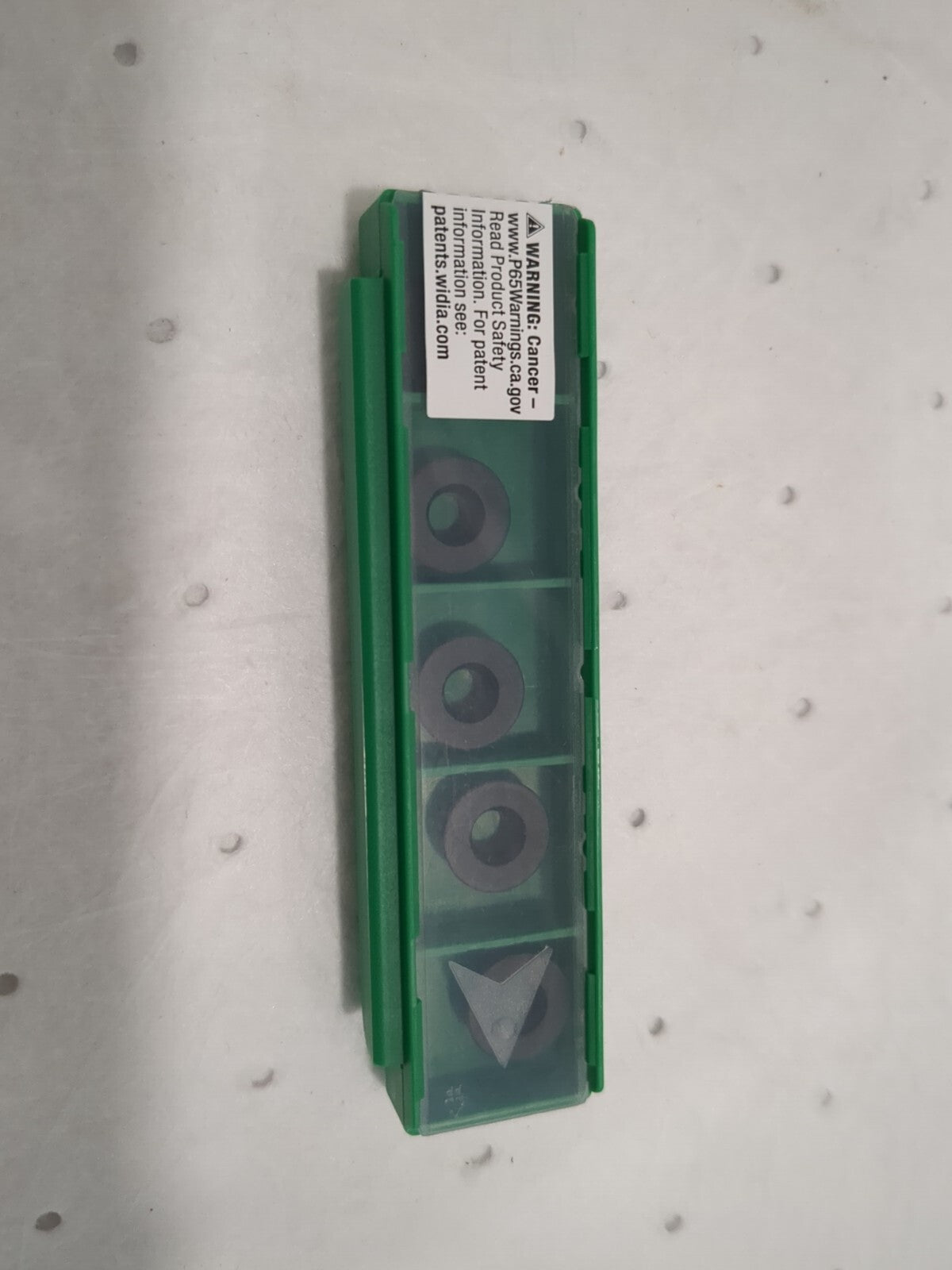

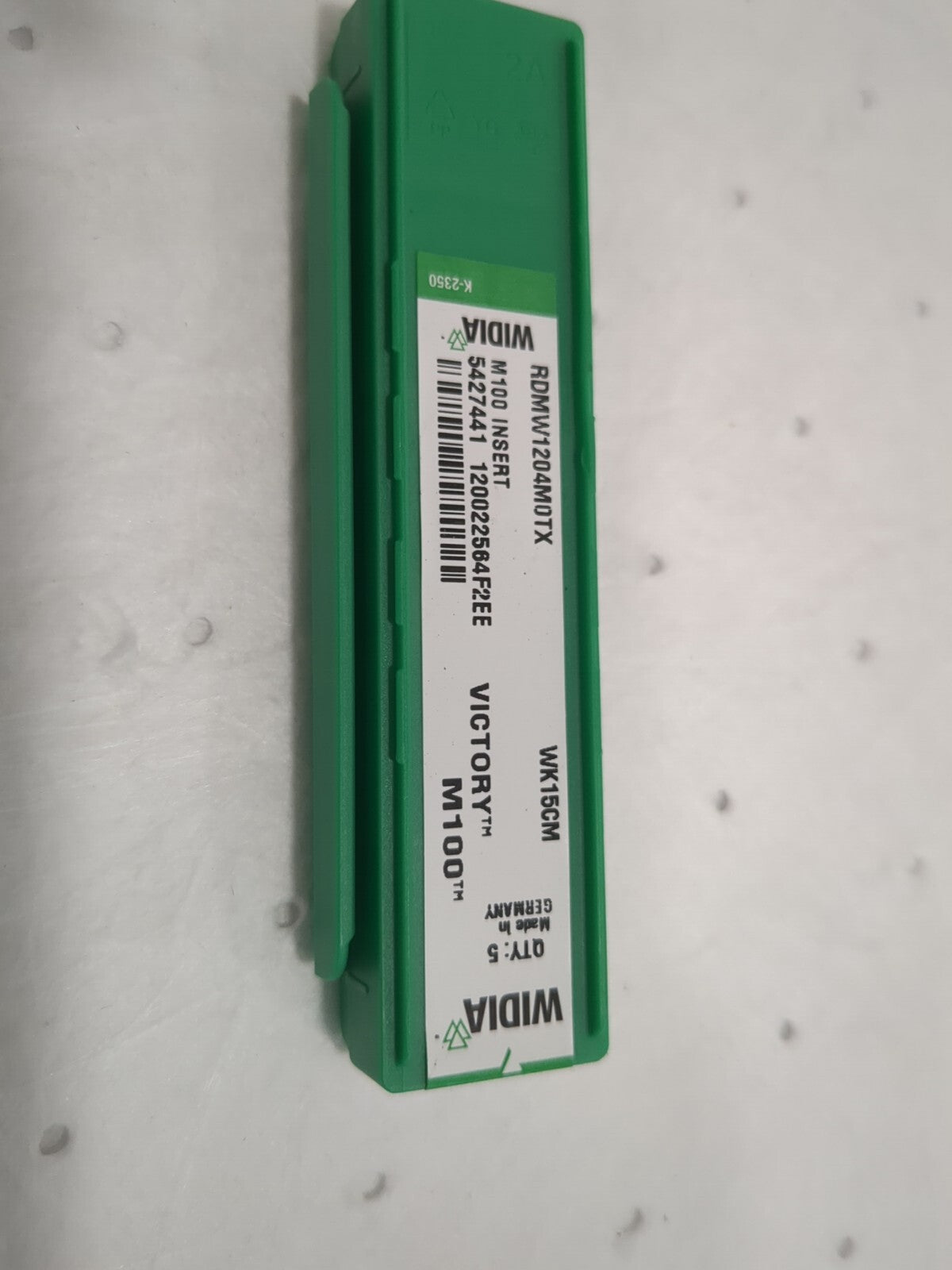

Please review photos, comes as shown.
